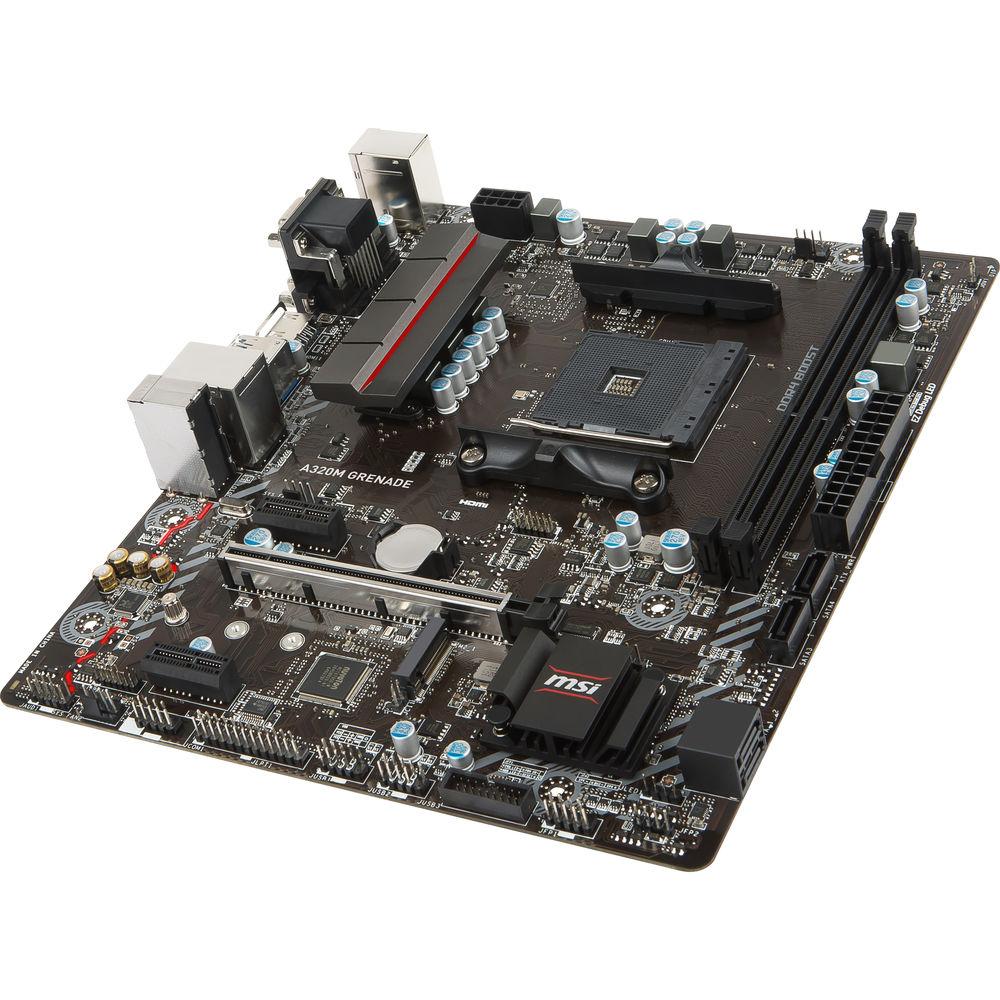

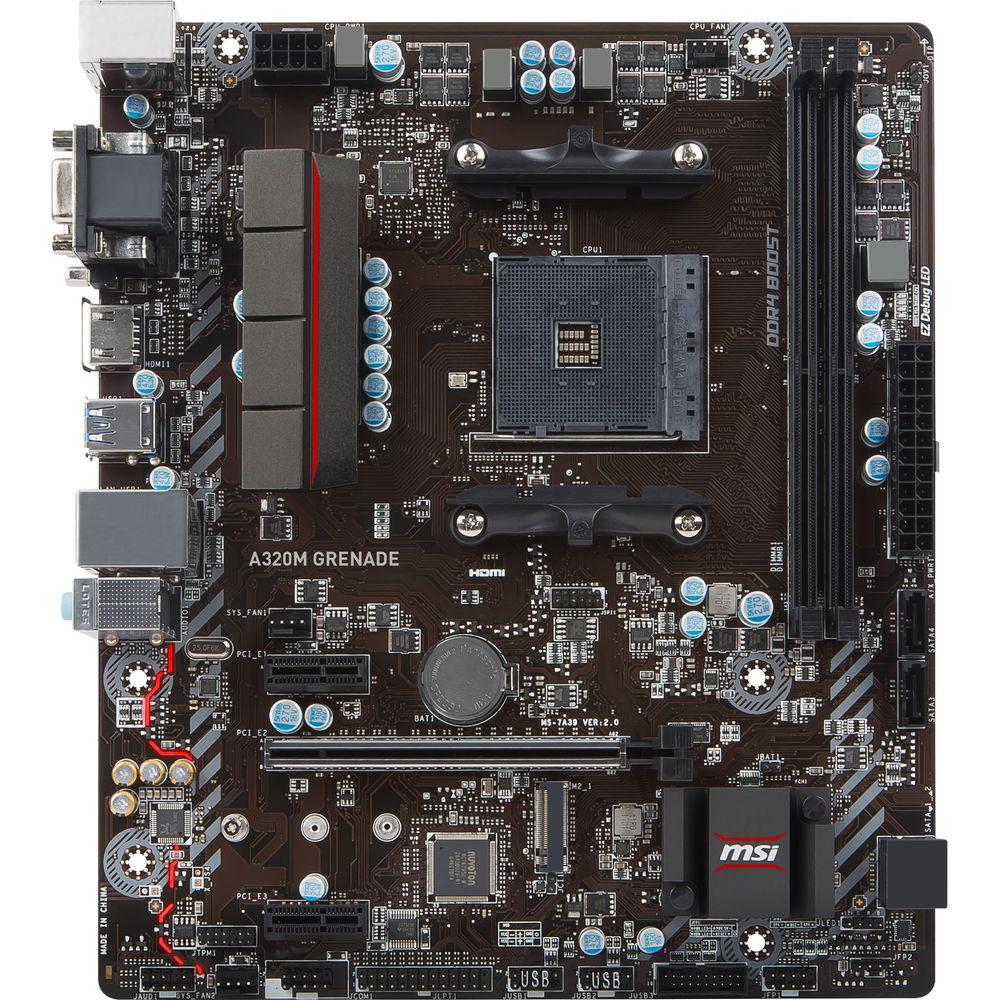

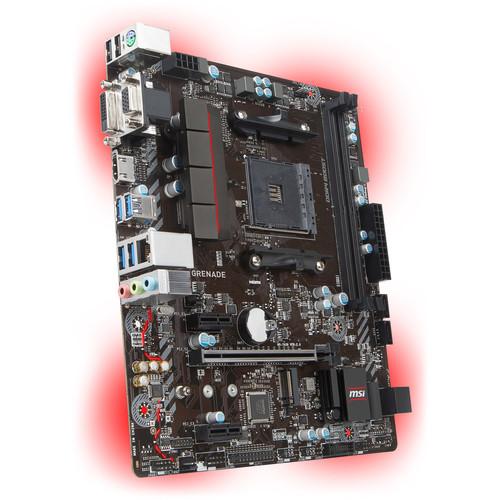

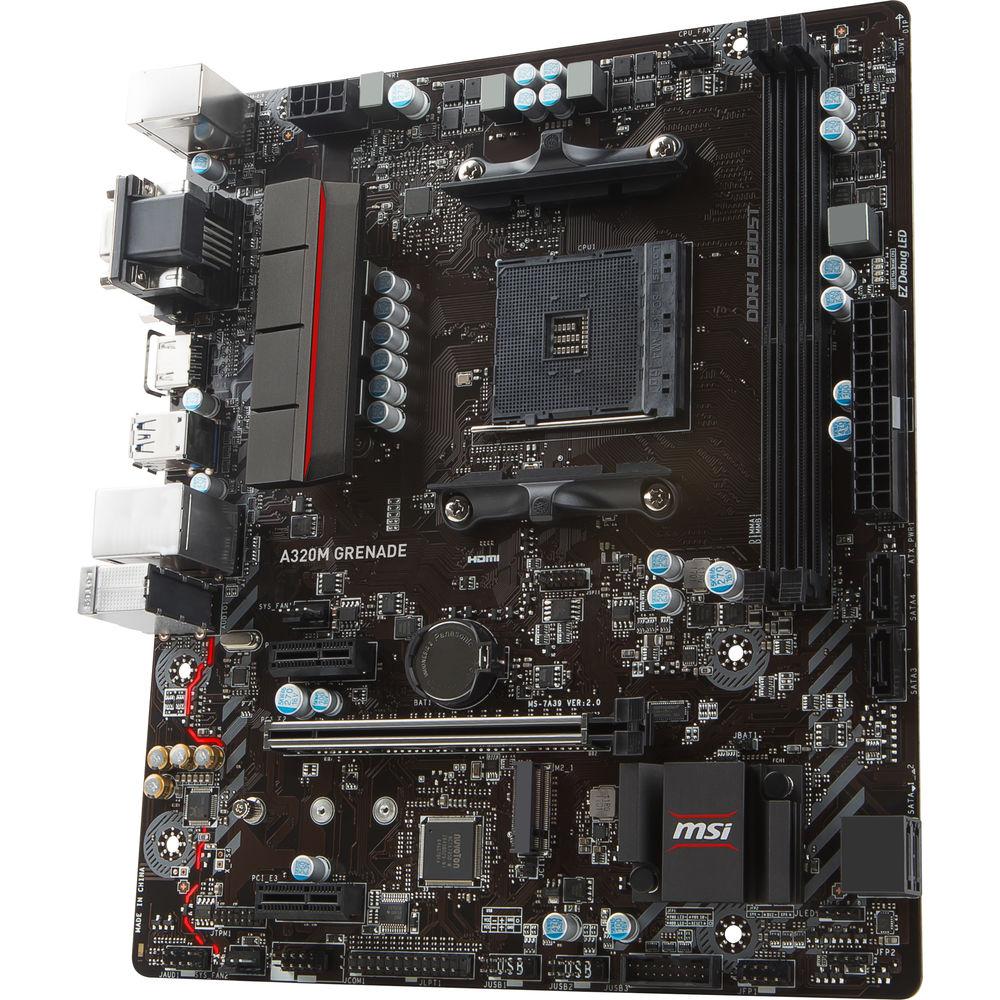

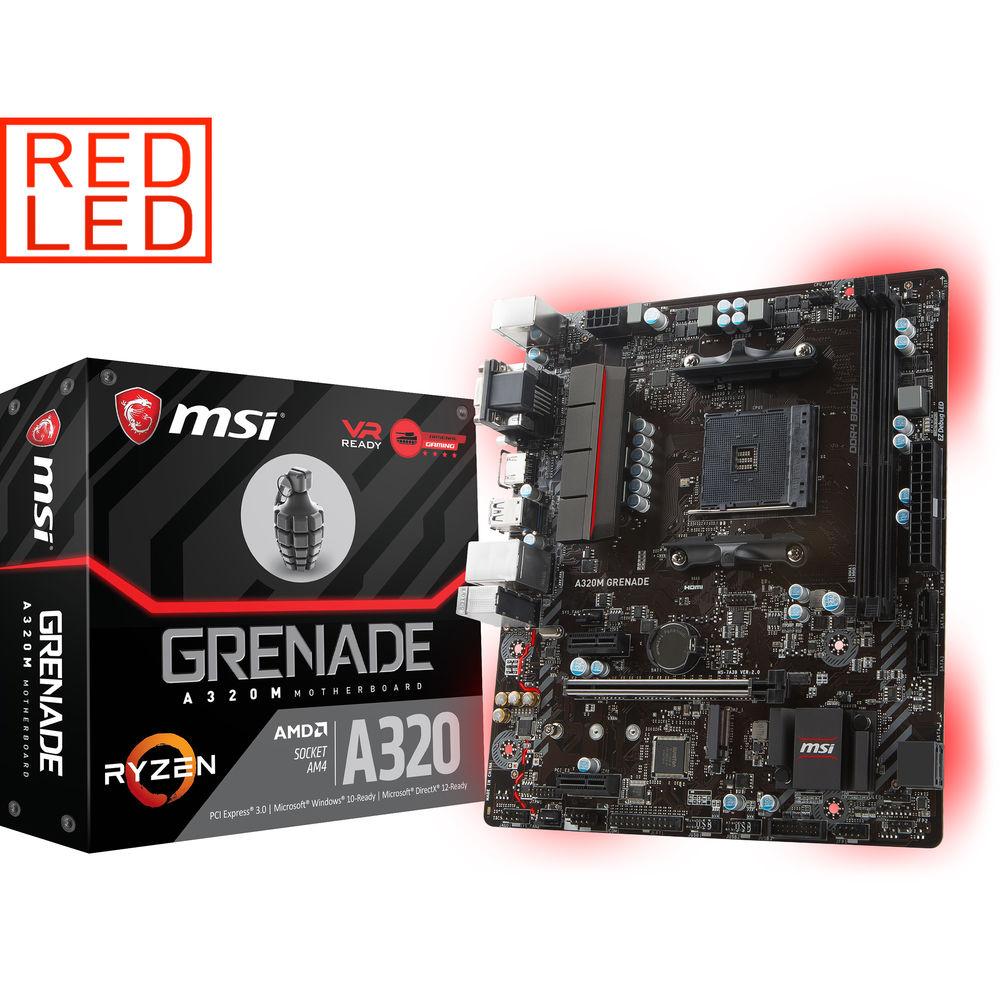

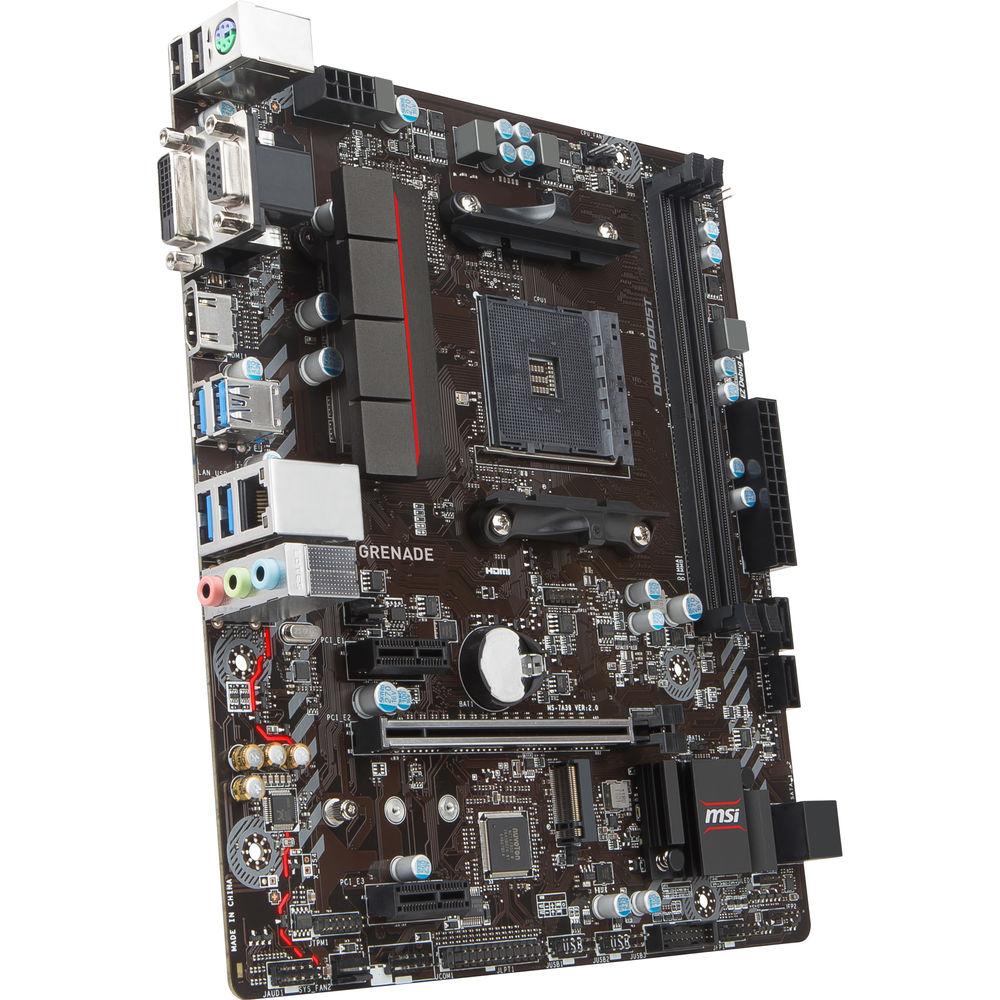

Product description Build a compact computer system that runs on an AMD processor with the A320M Grenade AM4 Micro-ATX Motherboard from MSI. The A320M Grenade comes armed with an AMD A320 chipset and AM4 socket to support AMD's series of RYZEN along with 7th-generation A and Athlon processors. With a micro-ATX form factor, the motherboard provides two DDR4 memory slots as well as one PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots. There's also a set of LEDs built into the back of the motherboard to deliver a red glow inside your case.
The MSI A320M Grenade comes equipped with four SATA connectors that allow optical drives, hard drives, and SSDs to be installed. To enable fast access to data and quick boot up times, an M.2 slot is also available, so you can install a SATA- or PCIe-based M.2 SSD. Aside from storage, the motherboard has two USB 2.0 and four USB 3.0 ports. For multimedia connectivity, it comes equipped with HDMI, DVI-D, and VGA video outputs as well as three audio jacks powered by a Realtek ALC887 processor. Additionally, a Gigabit Ethernet port is on board to provide a reliable wired Internet connection. - AM4 Socket
- AM4 chipsets provide dedicated PCIe lanes for USB, graphics, data, and other I/O.
- Personalize Your Gaming Rig
- Customize and set up your own color scheme with RGB Mystic Light Sync. You can select any of the colors from the palette using the MSI Gaming app for smartphones and desktops to match your personal style. This motherboard features LEDs on the back to create a red glow inside your case. For additional lighting inside, a Mystic Light extension header is on board for controlling optional RGB strips, fans, and other gear, without needing a separate RGB controller. Additionally, Mystic Light Sync can also work with select LED-enabled keyboards and mice.
- Cooling
- MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and quietness. To ensure your system stays silent, Hysteresis is also available to make your fans spin up fluently. Total Fan Control software is offered so you can take control of your fans and check the system's characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan's speeds automatically.
- Audio
- With premium audio components, this motherboard offers studio grade sound by offering separated audio layers and Chemi-Con audio capacitors as well as an isolated audio design, De-Pop protection, and EMI-shielded HD audio processor.
- Software Included
-
- Gaming Hotkey assigns functions to any key to launch your favorite games, load profiles, or overclock the CPU with the push of a single button
- Mouse Master software and dedicated PS/2 port to enhance mouse controls
- MSI Dragon Eye allows you to watch a YouTube video or Twitch Stream while playing a game simultaneously
- Gaming app produces an on-screen overlay on top of your game to help you keep track of CPU speeds, FPS, and temperatures
- WTFAST provides an optimized private network for gaming
- X-Boost optimizes SSDs to keep the system fast and maximize storage
- One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact the virtual-reality experience
- MSI GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games
- DDR4 Boost enhances memory speeds
- X-Boost can provide up to 20% increase in USB speeds
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software
- RAMDisk creates a virtual drive from RAM
- CPU-Z gathers key information of the CPU speed, Memory speed and timings, motherboard BIOS version, and more
- CLICK BIOS 5 offers sharp scalable fonts and EZ and Advanced modes as well as search and favorites features to help you configure the system's components
- Secure Erase+ uses an optimized formatting algorithm, so SSDs can operate at maximum speeds
- Additional Features
-
- M.2 slot delivers speeds of up to 32 Gb/s using PCIe 3.0 x4 lanes
- M.2 connection supports NVMe solutions
- Fully isolated memory circuity and optimized traces help ensure stability and performance
- Onboard LEDs for key components indicate the source of the problem, so you'll know what to fix
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- Protective ICs prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices
- MSI Super Charger USB ports deliver more power than standard ports to charge mobile devices quickly
- PCI Express Steel Armor slot is armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
- Double ESD protection and double layer grounding around the motherboard mounting holes to protect the motherboard from Electrostatic discharge (ESD) surges
UPC: 824142144206 In the Box MSI A320M Grenade AM4 Micro-ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI A320M Grenade AM4 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI A320M GRENADE Specs | Chipset | AMD A320 | | CPU | Supports AMD RYZEN series processors and 7th Gen A-series/Athlon processors | | Memory | 2 x DDR4 memory slots, support up to 32 GB
Supports DDR4 1866, 2133, 2400, 2667, 2933(OC), 3200(OC)+ MHz
Dual-channel memory architecture
Supports non-ECC UDIMM memory | | Graphics | VGA supports a maximum resolution of 2048 x 1280 @ 60 Hz, 1920 x 1200 @ 60 Hz
DVI-D supports a maximum resolution of 1920 x 1200 @ 60 Hz
HDMI supports a maximum resolution of 4096 x 2160 @ 24 Hz | | Expansion Slots | 1 x PCIe 3.0 x16

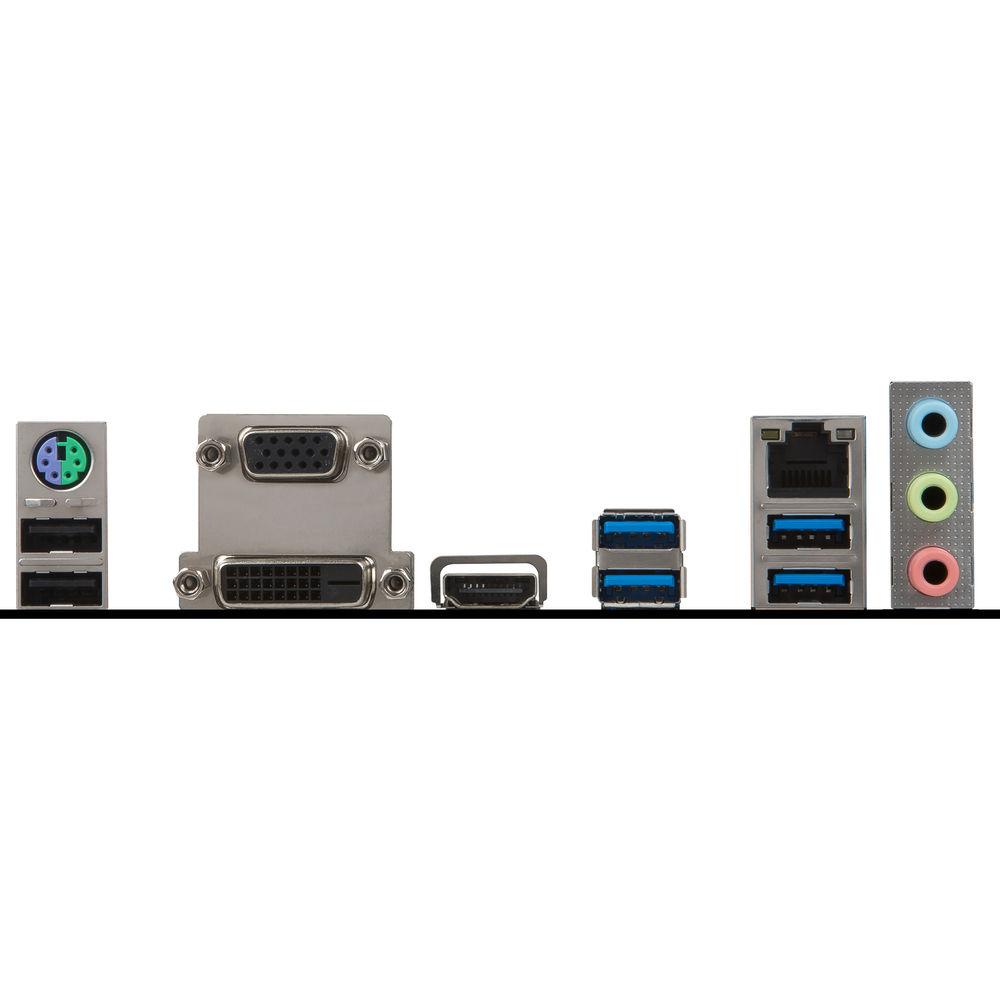

2 x PCIe 2.0 x1 | | Back I/O Ports | 1 x PS/2 keyboard/mouse combo port
2 x USB 2.0 Type-A ports
4 x USB 3.0 Type-A ports
1 x VGA port
1 x DVI-D port
1 x HDMI port
1 x Realtek 8111H Gigabit Ethernet port
3 x audio jacks | | Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
4 x SATA 6 Gb/s connectors
1 x M.2 slot for 2242/2260/2280, Key M (supports PCIe 3.0 x4 and SATA 6 Gb/s)
2 x USB 2.0 headers (support additional 4 USB 2.0 ports)
1 x USB 3.0 header (supports additional 2 USB 3.0 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper | | Audio | Realtek ALC892 Codec | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 8.3" / 24.4 x 21.0 cm |
