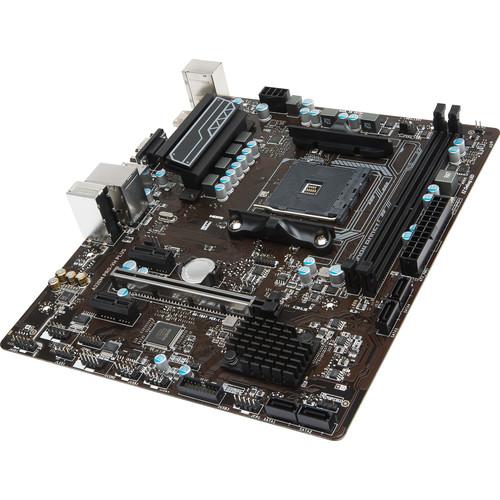

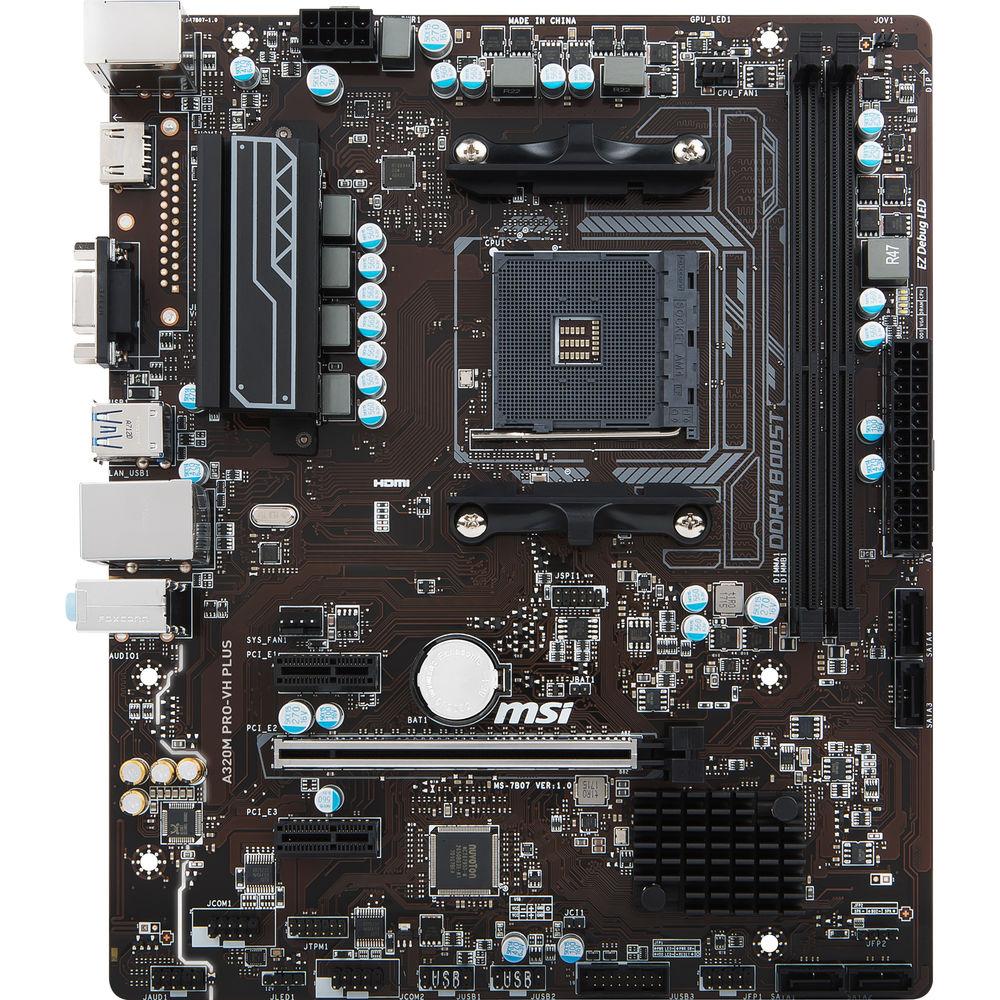

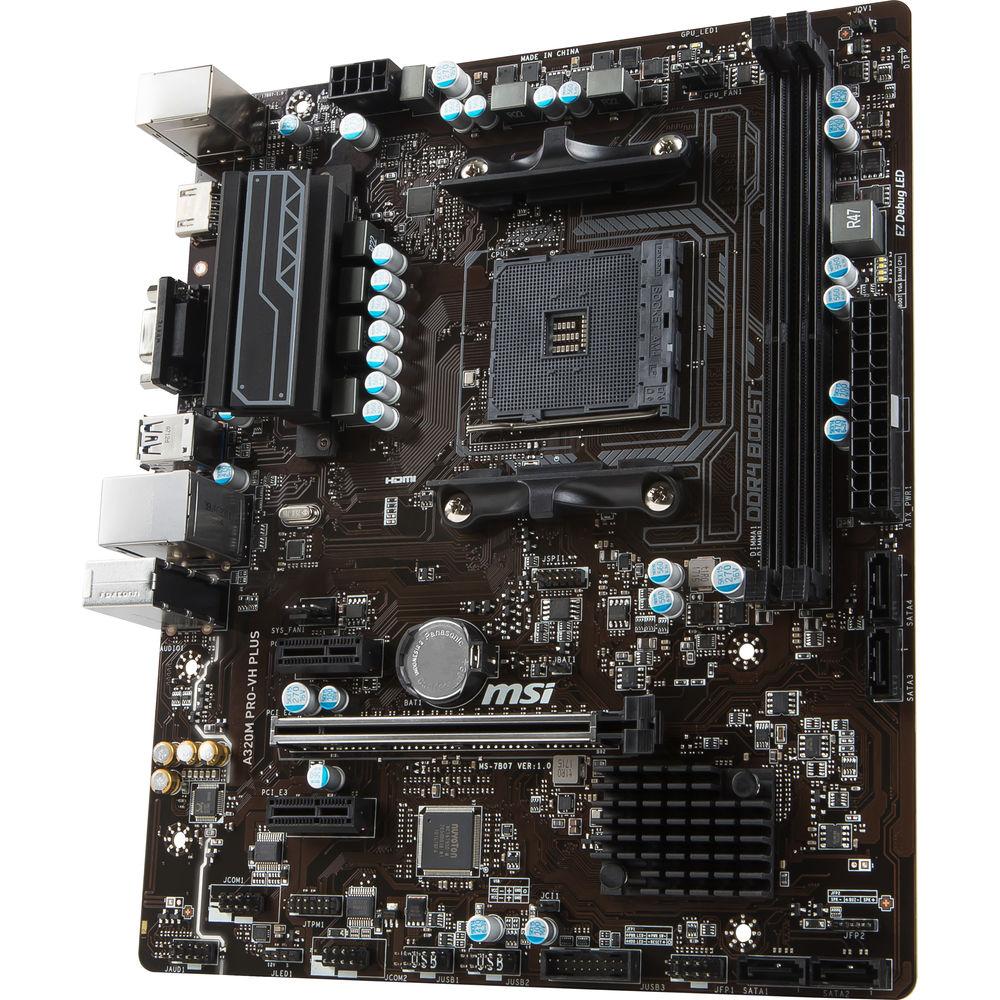

Product description The MSI A320M PRO-VH PLUS Micro-ATX Motherboard features an AMD AM4 socket that enables you to build a compact AMD desktop system, running on an AMD RYZEN or a 7th-generation AMD processor from the A-series or Athlon line. The MSI A320M PRO-VH PLUS motherboard is armed with an A320 chipset that connects your CPU with the rest of your internal components. MSI lets you install up to two user-supplied memory modules on the motherboard and overclock them to 3200 MHz. For storing data, you can attach up to four SATA-based devices, such as optical drives, hard drives, and solid-state drives.

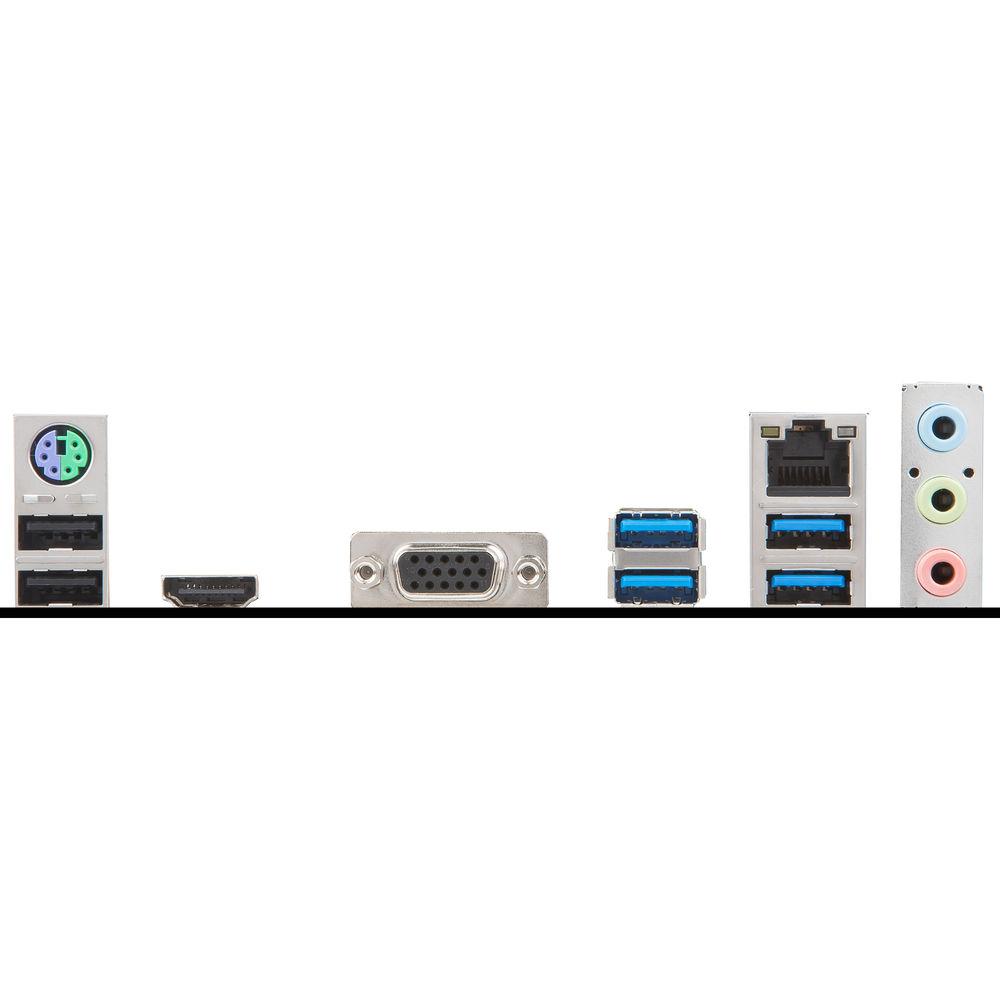

MSI has equipped the A320M PRO-VH PLUS motherboard with an HDMI and VGA port to deliver detailed visuals utilizing an APU processor. Other notable connections include one Gigabit Ethernet port as well as four USB 3.0 and two USB 2.0 ports. To build a gaming rig, you can install a dedicated graphics card into its single PCIe 3.0 x16 slot. Aside from visuals, the motherboard comes with three audio jacks along with two PCIe 3.0 x1 slots for adding additional ports to your system. - AM4 Socket
- AM4 chipsets provide dedicated PCIe lanes for USB, graphics, data, and other I/O.
- Cooling

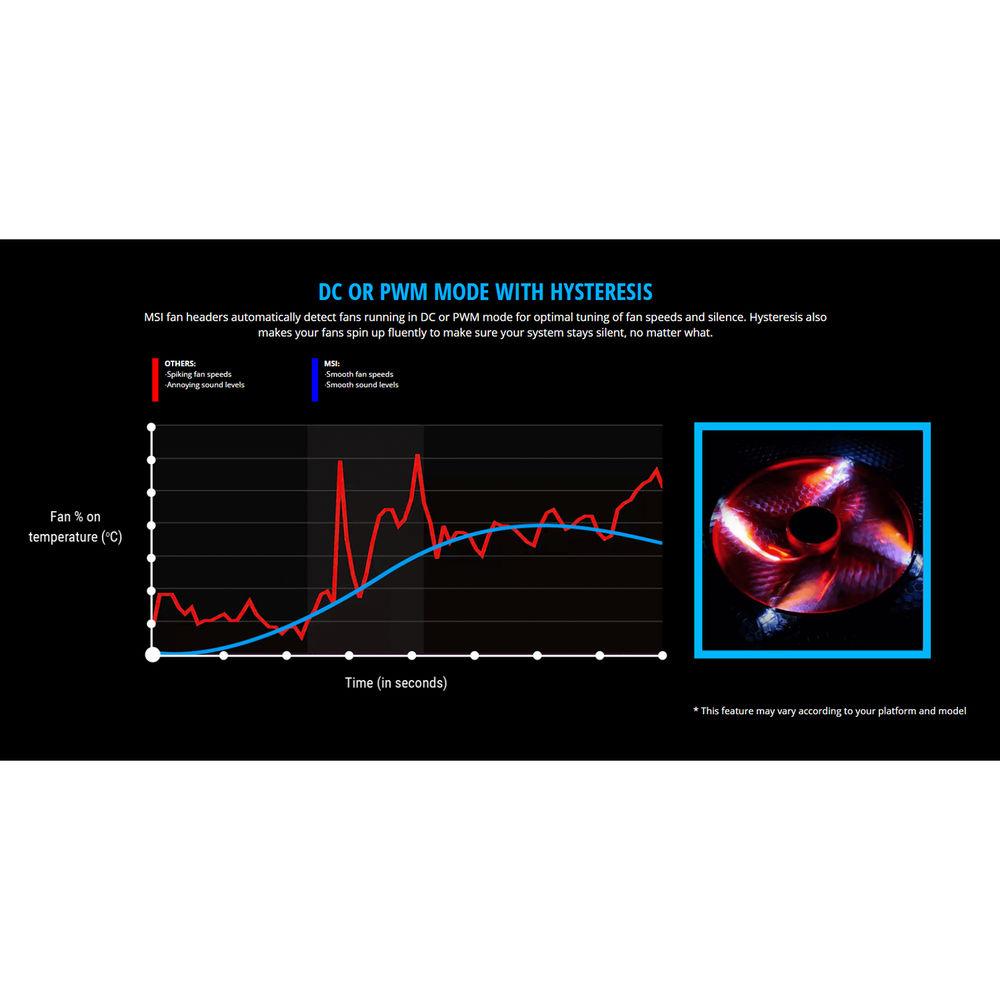

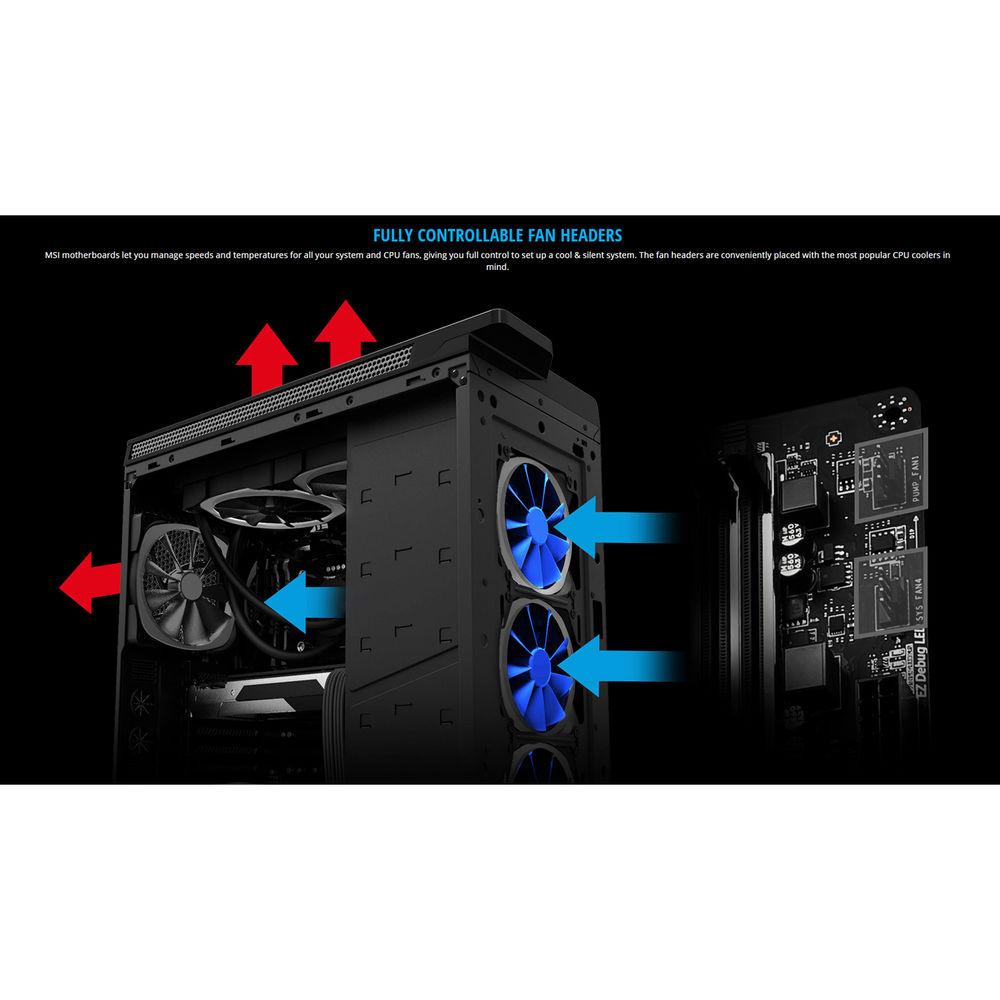

- MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and quietness. Hysteresis technology is on board to make your fans spin up fluently to help ensure your system stays silent. Total Fan Control software is offered so you can take control of your fans and check the system's characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan's speeds automatically.
- Audio

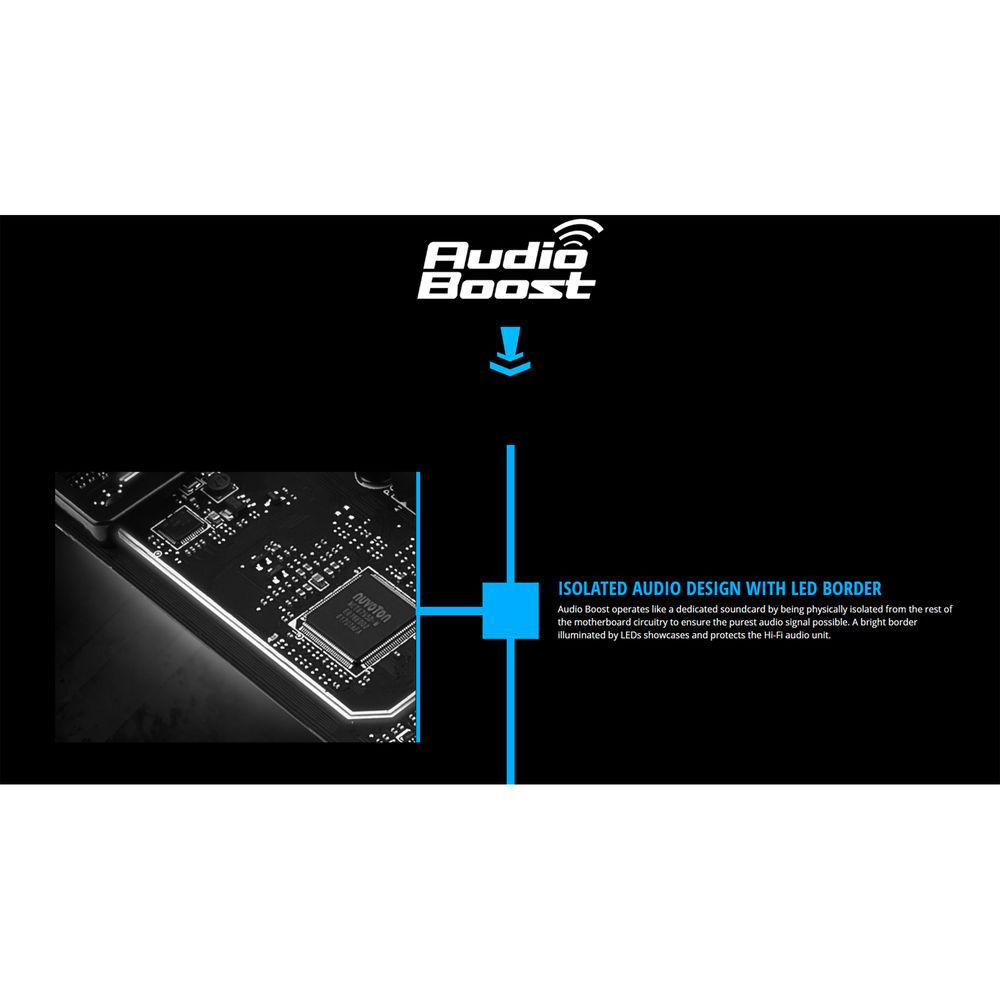

- This motherboard offers high-quality sound by offering separated audio layers and Chemi-Con audio capacitors as well as an isolated audio design, De-Pop protection, and EMI-shielded HD audio processor. It comes equipped with three audio jacks that deliver 5.1-channel audio through your speaker system.
- Software Included
-
- X-Boost increases USB speeds of up to 20% and optimizes SSDs to keep the system fast and maximize storage
- Network Genie for cloud computing and data syncing as well as changing the application's traffic priority
- DDR4 Boost enhances memory speeds
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software patches
- RAMDisk creates a virtual drive from RAM
- MSI M-Cloud can turn your system into an access point and personal cloud
- CLICK BIOS 5 offers EZ and Advanced modes as well as a search function and hardware monitor to help you configure the system's components
- Additional Features
-
- VGA video output for legacy monitors, beamers, and other displays
- HDMI port supports resolutions of up to 4096 x 2160
- Fully-isolated memory circuitry and optimized traces help ensure stability and performance
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- Onboard LEDs for key components indicate the source of the problem, so you'll know what to fix
- PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
- Protective ICs prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices
- Double ESD protection and double-layer grounding around the motherboard mounting holes to protect the motherboard from Electrostatic discharge (ESD) surges
UPC: 824142149072 In the Box MSI A320M PRO-VH PLUS AM4 Micro-ATX Motherboard Driver CD 2 x SATA Cables I/O Panel Limited 3-Year Warranty User Manual PDF 7.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI A320M PRO-VH PLUS AM4 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI A320M PRO-VH PLUS Specs | | | Chipset | AMD A320 | | CPU Socket | AM4 | | | | USB | 2 x USB 2.0 Type-A
4 x USB 3.1 Gen 1 Type-A | | Display | 1 x VGA
1 x HDMI | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 1866, 2133, 2400, 2667, 2933, 3200 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered | | | | SATA | 4 x SATA III | | M.2 | None | | U.2 | None | | RAID Support | RAID 0, 1, 10 | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | None | | Diagnostics | Clear CMOS | | Legacy | 2 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Form Factor | Micro-ATX | | Dimensions | 9.3 x 7.4" / 23.6 x 18.7 cm | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.236 x 10.158 x 2.205" |
