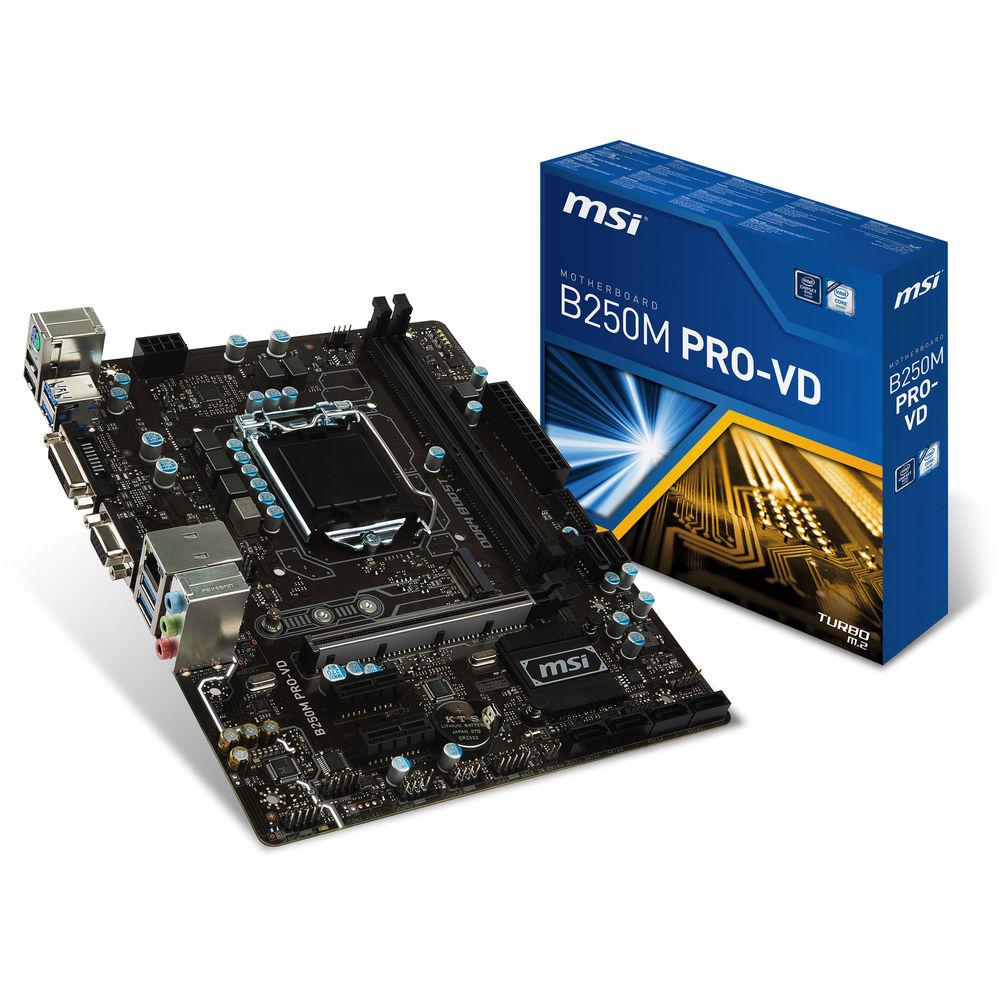

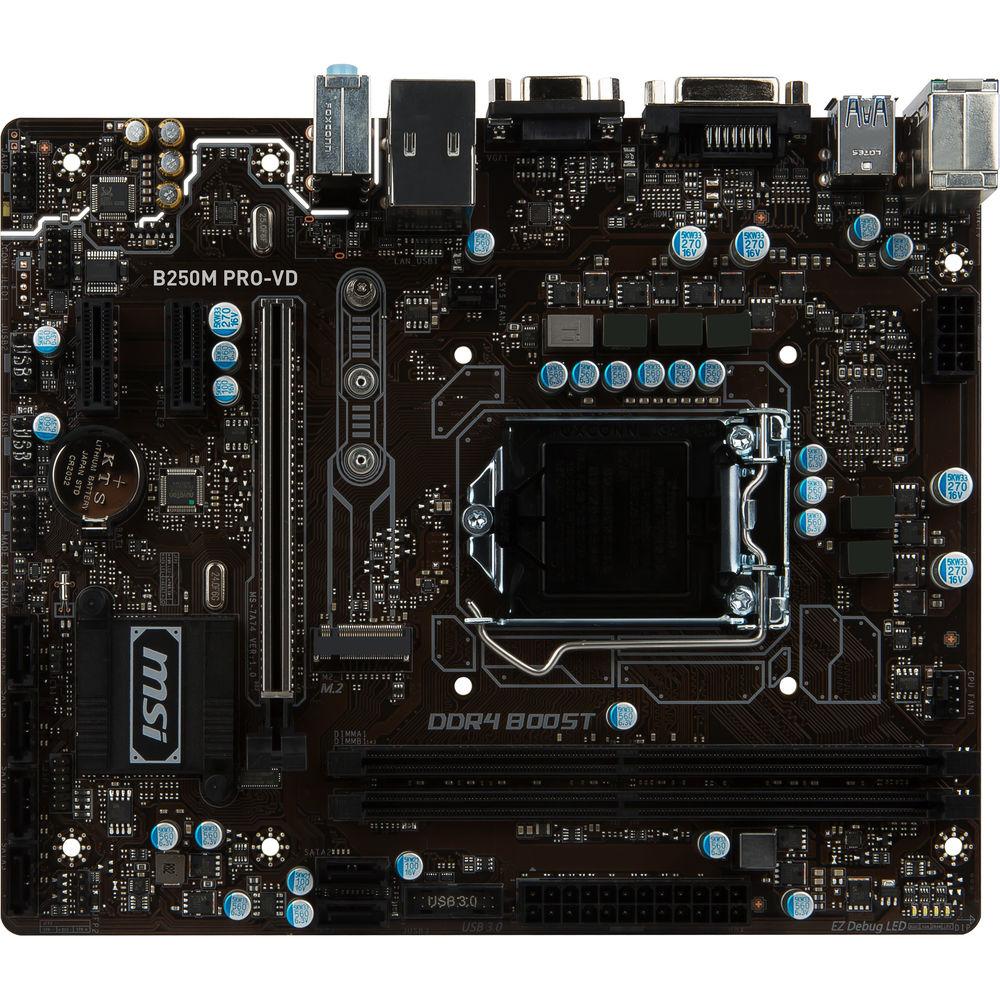

Product description CES 2017: MSI Launches New B250, H270, and Z270 Motherboards Read More The MSI B250M Pro-VD mATX Motherboard lets you build a compact Windows system that is designed for home or office environments by coming equipped with an Intel B250 chipset and an LGA1151 socket. This combination of technologies enables this motherboard to become compatible with Intel's 7th-generation processors while remaining suitable with Intel 6th-generation CPUs. It can accommodate up to 32GB of DDR4 memory and six SATA-based 2.5"/3.5" drives as well as an ultra-fast SSD with an M.2 form factor.
MSI has outfitted the B250M Pro-VD with DVI-D and VGA ports to deliver detailed visuals using integrated Intel graphics. For editing videos and creating 3D designs, you can install an optional dedicated graphics card to its PCIe 3.0 x16 slot. To complete the multimedia experience, a Realtek ALC887-VD audio codec chipset is on board for immersing you in 7.1-channel sounds through three audio jacks.
Other notable connections include four USB 3.0 and two USB 2.0 ports, letting the desktop access printers, scanners, and external storage drives. There are also two PCIe 3.0 x1 slots and multiple internal USB headers to enhance the system's capabilities. - Intel B250 Chipset
- The B250 chipset is designed to support Intel's 6th and 7th-generation of processors.
- Intel LGA1151 Socket
- This motherboard supports Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package. These processors come with integrated graphics, memory, and PCI-Express controllers to deliver onboard graphics, dual-channel DDR4 memory support, and PCI Express 3.0 lanes for graphics performance.
Additional Features - DDR4 Boost gives your DDR4 memory modules a performance boost
- Audio Boost rewards your ears with studio grade sound quality for a Hi-Fi experience
- EZ Debug LED provides an easy way to troubleshoot problems
- Twin Turbo M.2 delivers speeds of up to 32 Gb/s
- Intel Optane memory ready
- Increase your USB and storage performance with the X-Boost tool
- Double ESD Protection features double-layer grounding mounting holes
- Military Class 5 and Guard Pro for enhanced protection and efficiency
- Click BIOS for secure and reliable UEFI BIOS solution
UPC: 824142138335 In the Box MSI B250M Pro-VD LGA1151 mATX Motherboard Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B250M Pro-VD LGA1151 mATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI B250M Specs | Chipset | Intel B250 | CPU Socket | LGA 1151 | | USB | 4 x USB 3.1 Gen 1 Type-A 2 x USB 2.0 Type-A | Display | 1 x DVI-D 1 x VGA | Audio | 3 x 3.5 mm | Ethernet / Controller | 1 x Realtek 8111H Gigabit | PS/2 | 1 x Combo | | Memory Slots | 2 x 288-Pin | Memory Support | DDR4 2133, 2400 MHz | Maximum Capacity | 32 GB | Channel Architecture | Dual Channel | | SATA | 6 x SATA III | M.2 | 1 | U.2 | None | RAID Support | RAID 0, 1, 5, 10 | | Expansion Slots | 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1 | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports) 2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | Multi-GPU Support | None | Air Cooling | None | | I/O Connection Headers | AAFP | | Audio Codec | Realtek ALC887 (8-Channel) | | Package Weight | 1.6 lb | Box Dimensions (LxWxH) | 10.3 x 10.2 x 2.2" |
