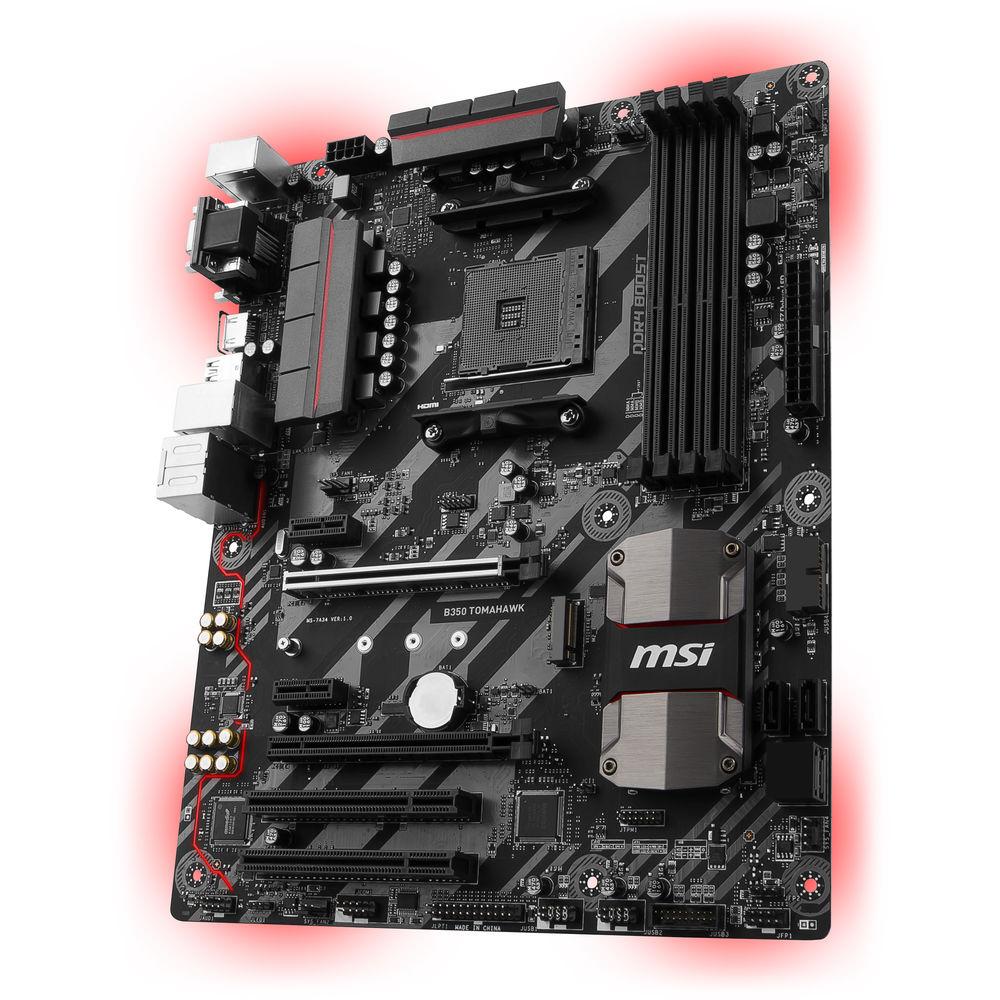

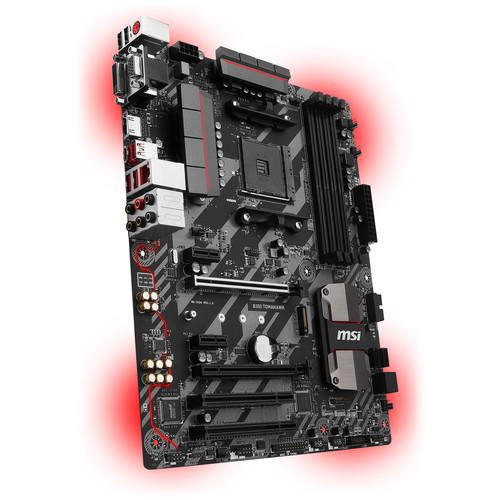

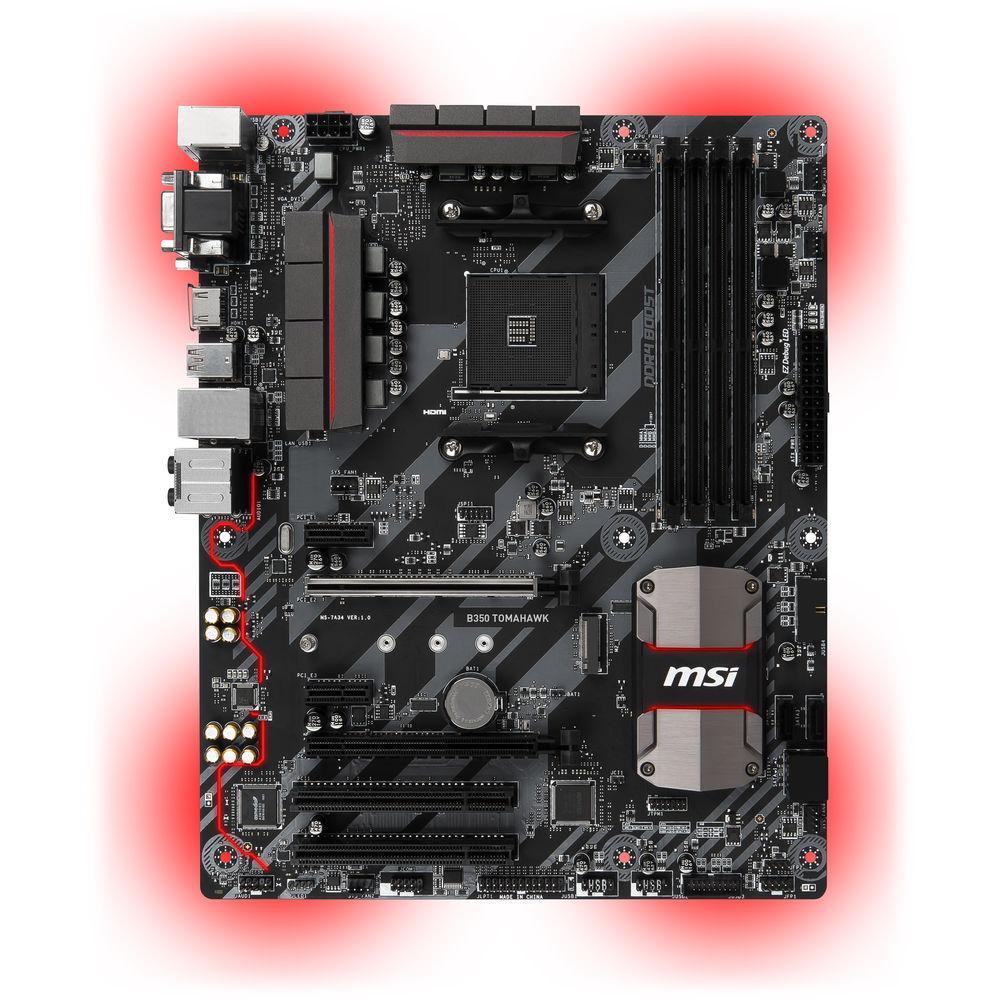

Product description The MSI B350 Tomahawk AM4 ATX Motherboard comes with an AMD B350 chipset and AM4 socket to support AMD's series of RYZEN along with 7th-generation A and Athlon processors. The Tomahawk is equipped with four DDR4 memory slots that can support up to 64GB of memory chips, running up to 3200 MHz. For long-term storage support, it has one M.2 slot for PCIe- or SATA-based SSDs as well as four SATA connections. Once an AMD APU is installed, it delivers up to 4K visuals through the HDMI, DVI-D, and VGA outputs, utilizing integrated AMD graphics. To expand your system's capabilities, one PCIe 3.0 x16 slot, one PCIe 2.0 x16 slot, two PCIe 2.0 x1 slots, and two PCI slots are on board.

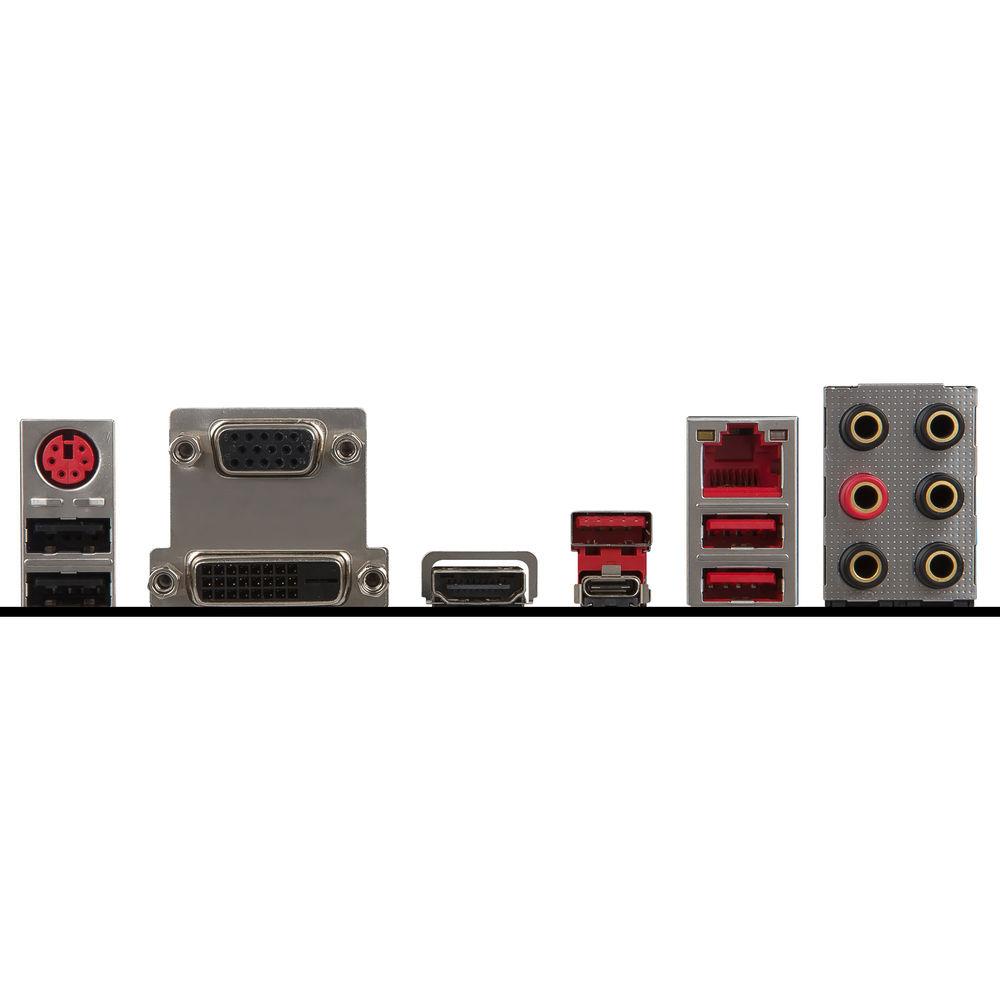

Other notable features include Gigabit Ethernet along with Realtek ALC892 audio, which provides 7.1-channel surround sound through the motherboard's six audio jack. Aside from audio, the Tomahawk provides two USB 2.0 and four USB 3.0 ports to access printers, external storage devices, and other devices. In addition, one of the four 3.0 ports features a USB Type-C interface that enables you to connect on the first try with a USB-C cable. There's also built-in red LED lighting for illuminating the insides of your case. - AM4 Socket
- AM4 chipsets provide dedicated PCIe lanes for USB, graphics, data, and other I/O.
- Personalize Your Gaming Rig
- Customize and set up your own color scheme with RGB Mystic Light Sync. You can select any of the colors from the palette using the MSI Gaming app for smartphones and desktops to match your personal style. This motherboard features LEDs on the back to create a red glow inside your case. For additional lighting inside, Mystic Light extension headers are on board for controlling optional RGB strips, fans, and other gear, without needing a separate RGB controller. Additionally, Mystic Light Sync can also work with select LED-enabled keyboards and mice.
- Cooling
- MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis technology is on board to make your fans spin up fluently to help ensure your system stays silent. Total Fan Control software is offered so you can take control of your fans and check the system's characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan's speeds automatically. Additionally, the motherboard comes with a water-pump PIN header that supports up to 2A, offering you full control of the water pump's speed.
- Audio
- With premium audio components and Nahimic 2 technology, this motherboard offers studio grade sound by offering separated audio layers, golden audio jacks, and Chemi-Con audio capacitors as well as an isolated audio design, De-Pop protection, and EMI-shielded HD audio processor.
- Software Included
-
- Gaming Hotkey assigns functions to any key to launch your favorite games, load profiles, or overclock the CPU with the push of a single button
- Mouse Master software and dedicated PS/2 port to enhance mouse controls
- MSI Game Boost enables one-second overclocking for the CPU and memory
- MSI Dragon Eye allows you to watch a YouTube video or Twitch Stream while playing a game
- Gaming app produces an on-screen overlay on top of your game to help you keep track of CPU speeds, FPS, and temperatures
- WTFAST provides an optimized private network for gaming
- XSplit lets you record your gaming moments and broadcast your live gameplay sessions to share with others
- X-Boost optimizes SSDs to keep the system fast and maximize storage
- One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact the virtual-reality experience
- MSI GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games
- DDR4 Boost enhances memory speeds
- X-Boost can provide up to 20% increase in USB speeds
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software
- RAMDisk creates a virtual drive from RAM
- GO2BIOS boots into the BIOS menu automatically after a restart
- Fast Boot mode for faster boot times
- CPU-Z gathers key information of the CPU speed, Memory speed and timings, motherboard BIOS version, and more
- CLICK BIOS 5 offers sharp scalable fonts and EZ and Advanced modes as well as search and favorites features to help you configure the system's components
- Secure Erase+ uses an optimized formatting algorithm, so SSDs can operate at maximum speeds
- Additional Features
-
- M.2 slots deliver speeds of up to 32 Gb/s using PCIe 3.0 x4 lanes
- M.2 connection supports NVMe solutions
- LAN Protect shields the motherboard from power surges
- Load-Line Calibration helps the CPU's voltage remain stable under different loads
- Onboard LEDs for key components indicate the source of the problem, so you'll know what to fix
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- USB Type-C interface offers effortless connections to USB-C cables
- Protective ICs prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices
- MSI Super Charger USB ports deliver more power than standard ports to charge mobile devices quickly
- PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
- Double ESD protection and double layer grounding around the motherboard mounting holes to protect the motherboard from Electrostatic discharge (ESD) surges
UPC: 824142142974 In the Box MSI B350 Tomahawk AM4 ATX Motherboard Driver/Utilities Disc I/O Shield 2 x SATA Cables Limited 3-Year Warranty User Manual PDF 7.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B350 Tomahawk AM4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI B350 TOMAHAWK Specs | | | Chipset | AMD B350 | | CPU Socket | AM4 | | | | USB | 2 x USB 2.0 Type-A
3 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C | | Display | 1 x VGA
1 x DVI-D
1 x HDMI | | Audio | 6 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 1866, 2133, 2400, 2667, 2933, 3200 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 10 | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1
2 x PCI | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Diagnostics | Clear CMOS | | Legacy | 1 x Parallel
1 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC892 (8-Channel) | | | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 13.7 x 10.6 x 2.6" |
