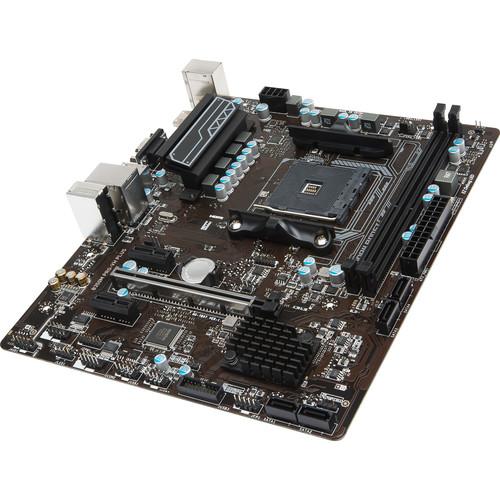

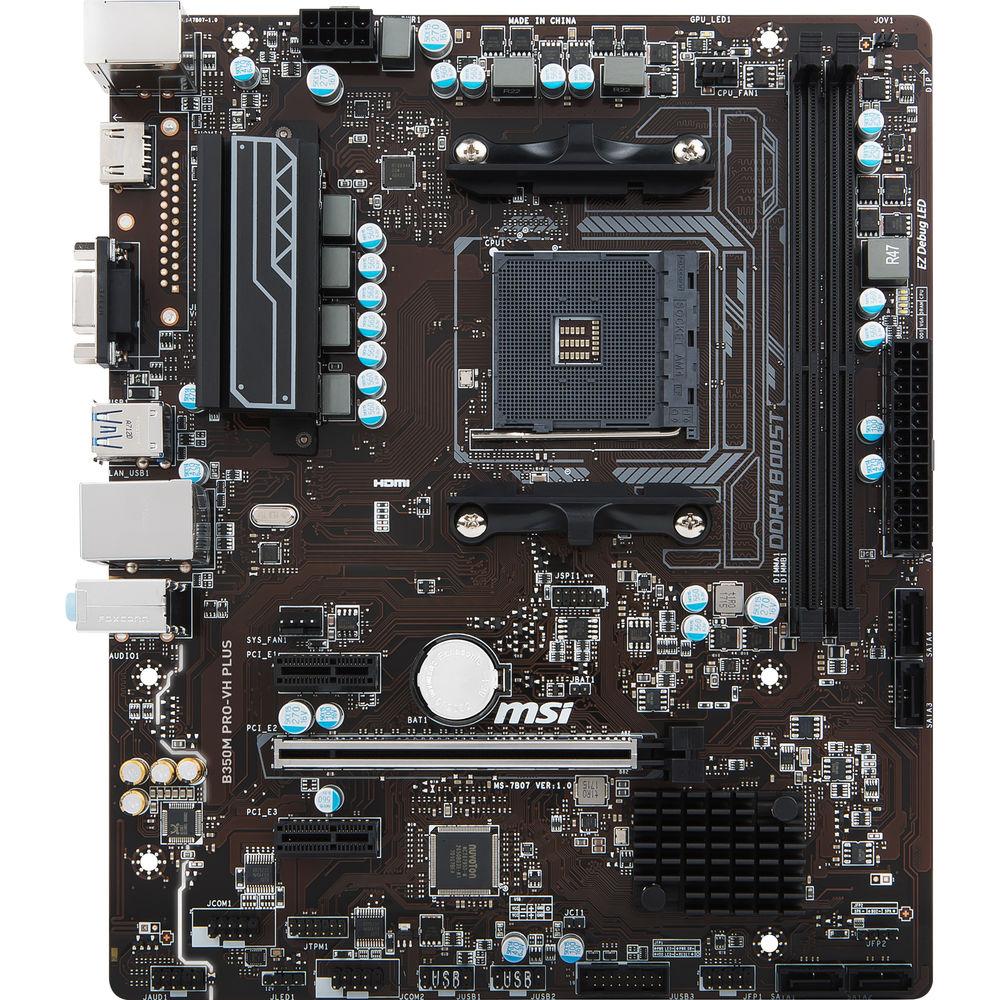

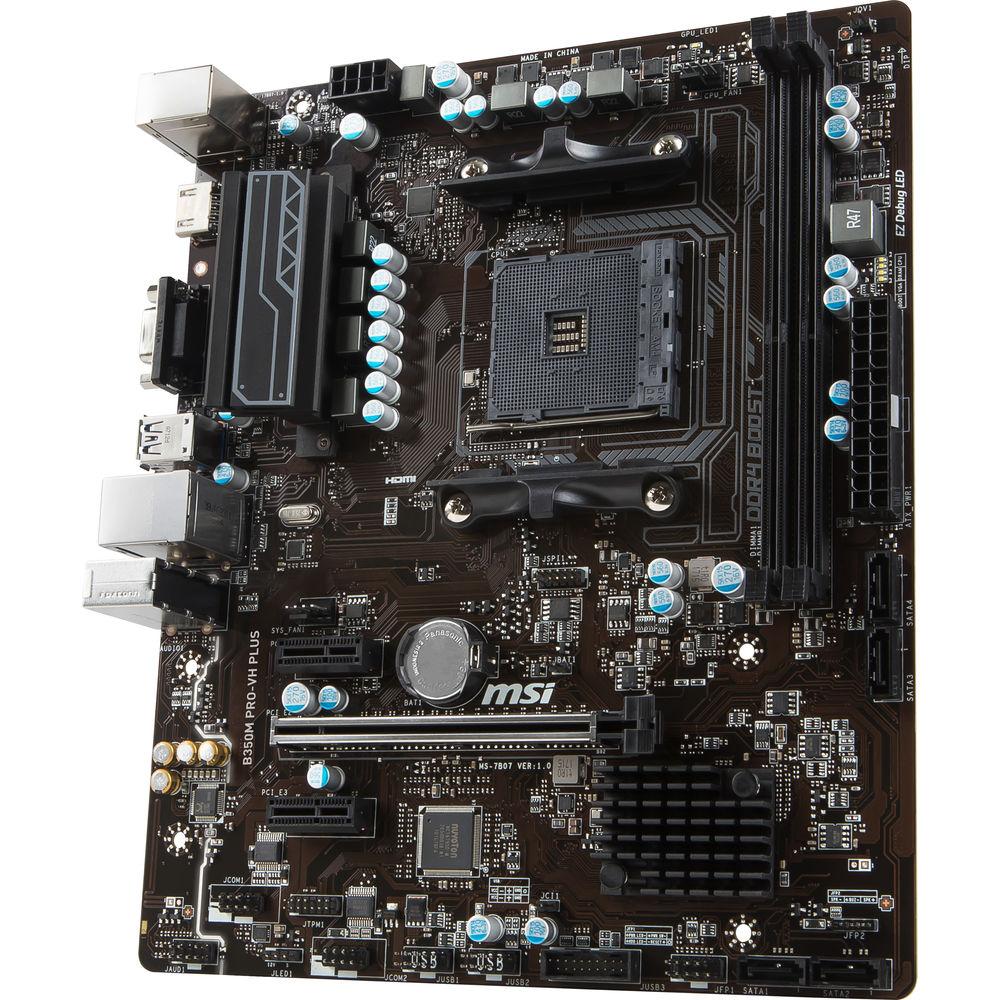

Product description Build a compact AMD desktop system with the MSI B350M PRO-VH PLUS Micro-ATX Motherboard that comes equipped with an AMD AM4 socket and B350 chipset. The B350M PRO-VH PLUS is outfitted with two DDR4 memory slots, which support up to 32GB of memory modules, along with four SATA connectors for your optical and storage drives. This motherboard is designed to accommodate current and legacy peripherals by offering HDMI and VGA outputs, running off an optional AMD APU processor. For more-demanding graphical workloads, you can install a dedicated graphics card in its single PCIe 3.0 x16 slot.

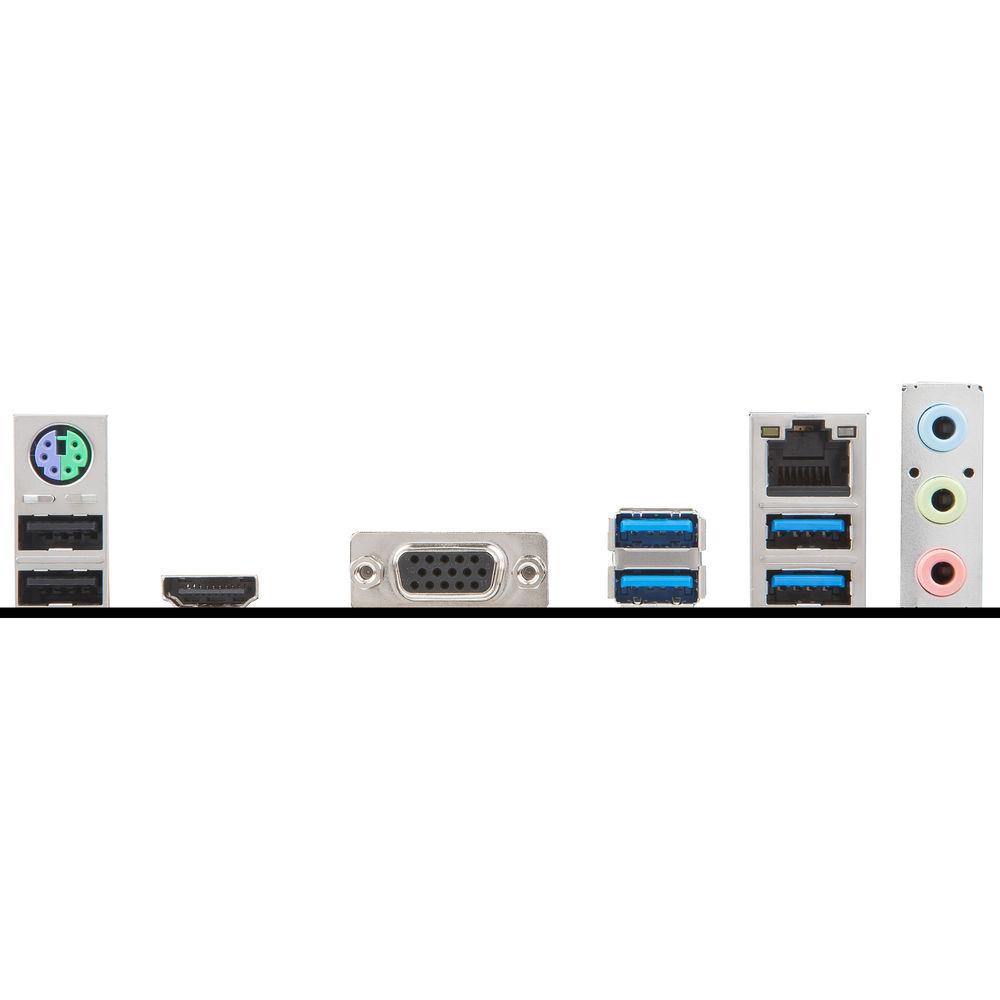

In addition to the video-out ports, the B350M PRO-VH PLUS motherboard offers one Gigabit Ethernet port as well as four USB 3.0 and two USB 2.0 ports. To complete the multimedia experience, a Realtek ALC887 codec chipset delivers 7.1-channel audio through the motherboard's three audio jacks. There's also a pair of PCIe 3.0 x1 slots, which enable you to add additional ports to the system. - AM4 Socket
- AM4 chipsets provide dedicated PCIe lanes for USB, graphics, data, and other I/O.
- Cooling
- MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and quietness. Hysteresis technology is on board to make your fans spin up fluently to help ensure your system stays silent. Total Fan Control software is offered so you can take control of your fans and check the system's characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan's speeds automatically.
- Audio
- This motherboard offers high-quality sound by offering separated audio layers and Chemi-Con audio capacitors as well as an isolated audio design, De-Pop protection, and EMI-shielded HD audio processor. It comes equipped with three audio jacks that deliver 7.1-channel audio through your speaker system.
- Software Included
-
- X-Boost increases USB speeds of up to 30% and optimizes SSDs to keep the system fast and maximize storage
- Network Genie for cloud computing and data syncing as well as changing the application's traffic priority
- DDR4 Boost enhances memory speeds
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software patches
- RAMDisk creates a virtual drive from RAM
- MSI M-Cloud can turn your system into an access point and personal cloud
- CLICK BIOS 5 offers EZ and Advanced modes as well as a search function and hardware monitor to help you configure the system's components
- Additional Features
-
- HDMI and VGA Ports for legacy monitors, beamers, and other displays
- Fully-isolated memory circuitry and optimized traces help ensure stability and performance
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- Onboard LEDs for key components indicate the source of the problem, so you'll know what to fix
- PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
- Protective ICs prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices
- Double ESD protection and double layer grounding around the motherboard mounting holes to protect the motherboard from Electrostatic discharge (ESD) surges
UPC: 824142150801 In the Box MSI B350M PRO-VH PLUS AM4 Micro-ATX Motherboard Driver DVD 2 x SATA Cables I/O Shield Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B350M PRO-VH PLUS AM4 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI B350M PRO-VH PLUS Specs | | | Chipset | AMD B350 | | CPU Socket | AM4 | | | | USB | 2 x USB 2.0 Type-A
4 x USB 3.1 Gen 1 Type-A | | Display | 1 x HDMI
1 x VGA | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 1866, 2133, 2400, 2667, 2933, 3200 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered | | | | SATA | 4 x SATA III | | M.2 | None | | U.2 | None | | RAID Support | RAID 0, 1, 10 | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | None | | Diagnostics | Clear CMOS | | Legacy | 2 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Form Factor | Micro-ATX | | Dimensions | 9.3 x 7.4" / 23.6 x 18.8 cm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.3 x 10.2 x 2.3" |
