User Manual for MSI B360-A Pro LGA 1151 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI B360-A Pro LGA 1151 ATX
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI B360-A Pro LGA 1151 ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

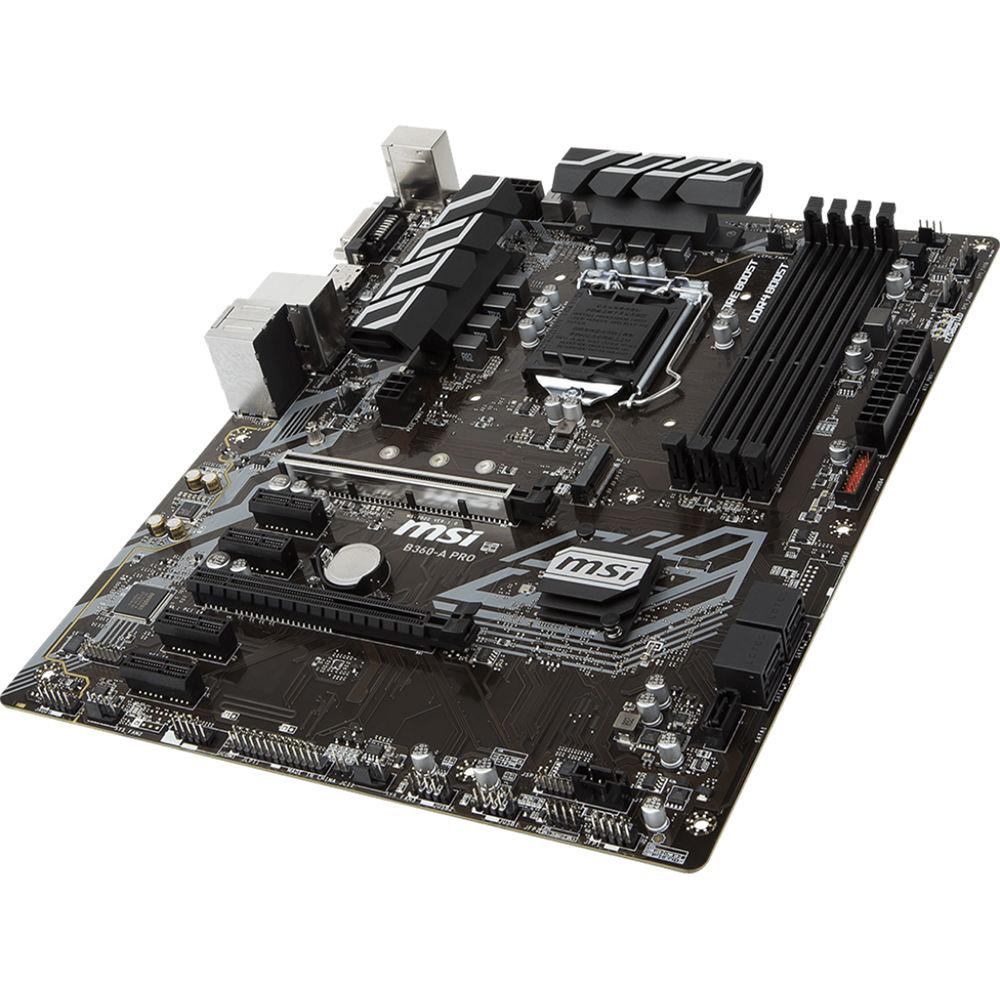

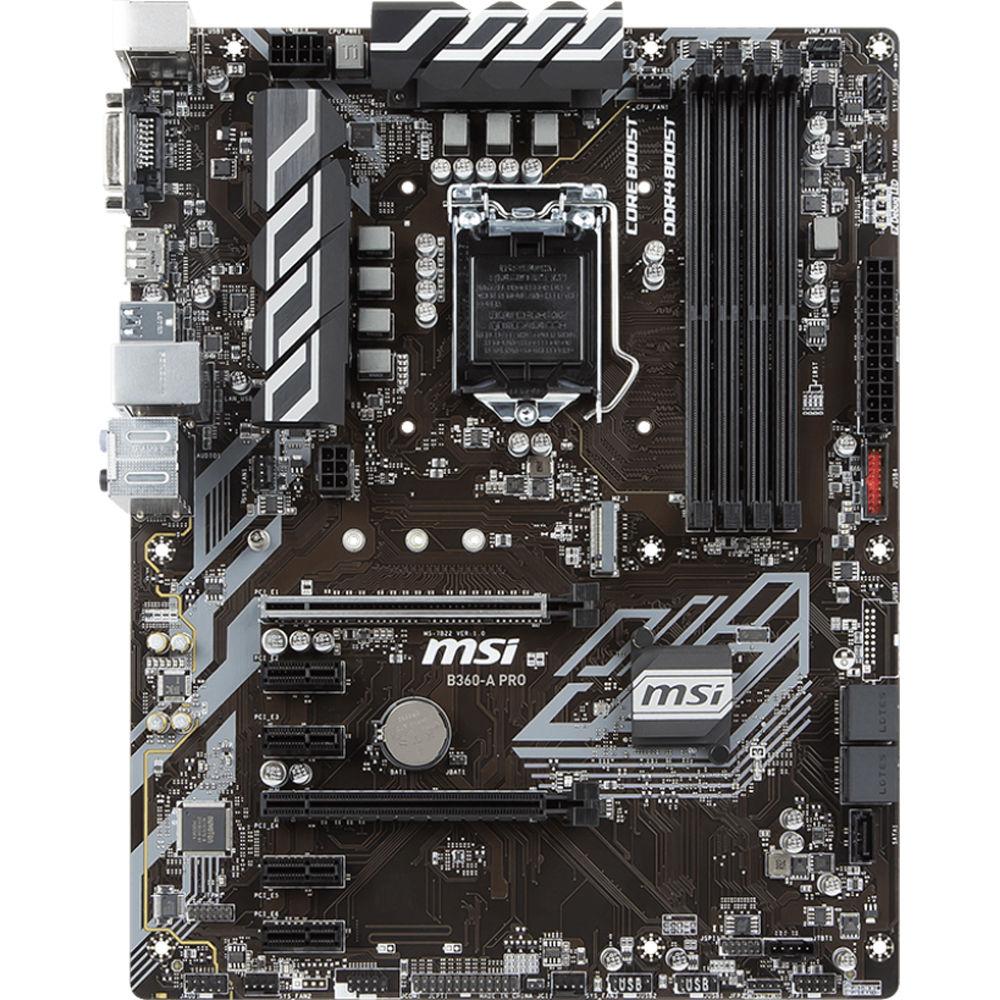

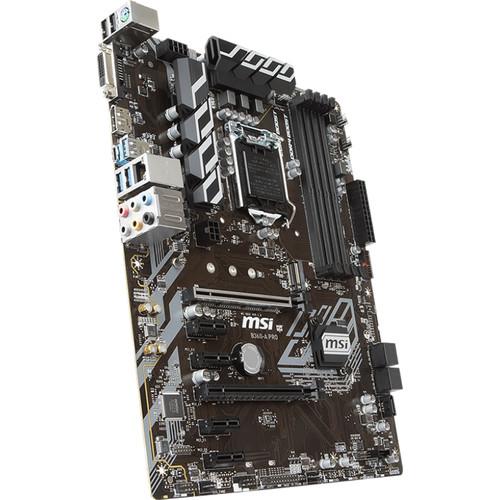

Product description The B360-A Pro LGA 1151 ATX Motherboard from MSI is built on the Intel B360 chipset with an LGA 1151 socket designed for 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support a max of 64GB of 2666MHz RAM, two PCIe 3.0 x16 slots, four PCIe 3.0 x1 slots, five SATA III ports, and an M.2 slot. With a total of six expansion slots, this motherboard can be used to efficiently mine crypto currency. For storage, the M.2 slot supports up to PCIe 3.0 x4 speeds and Intel Optane Memory for quick data transfer. Other integrated features include multiple fan connectors, USB ports, DisplayPort and DVI-D outputs, Intel Gigabit LAN, and Realtek ALC892 7.1-channel audio. - Crypto Currency Friendly
- Equipped with plenty of PCIe slots, this motherboard supports multiple graphics cards for efficient crypto currency mining.
- Cooling
- The B360-A Pro has seven fan headers with DC and PWM control, which enables you to adjust your fans' speeds as needed within its BIOS.
- Storage
- Install a PCIe Gen 3 x4 M.2 drive or Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has five SATA III ports.
- Audio
- The B360-A Pro is built with Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
- Isolated audio design with LED border ensures a better audio signal
- Separated audio layers for clean left- and right-channels
- De-pop protection prevents loud popping sounds when you plug or unplug or devices
- Dedicated, EMI-shielded high-definition audio processor
- High-quality audio capacitors for a warmer sound
- Connectors for 7.1-channel surround sound
- DDR4 RAM
- The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within the BIOS.
- Tuning
- Core Boost technology combines MSI's layout and optimized power design for faster and undistorted current delivery to the CPU. The B360-A Pro is also equipped with over-voltage protection and an EZ debug LED, which you can use to identify sources of problems.
UPC: 824142159170 In the Box MSI B360-A Pro LGA 1151 ATX Motherboard Limited 3-Year Warranty User Manual PDF 3mbaufrxzvbwzecdfudetyqewfvartx Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B360-A Pro LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

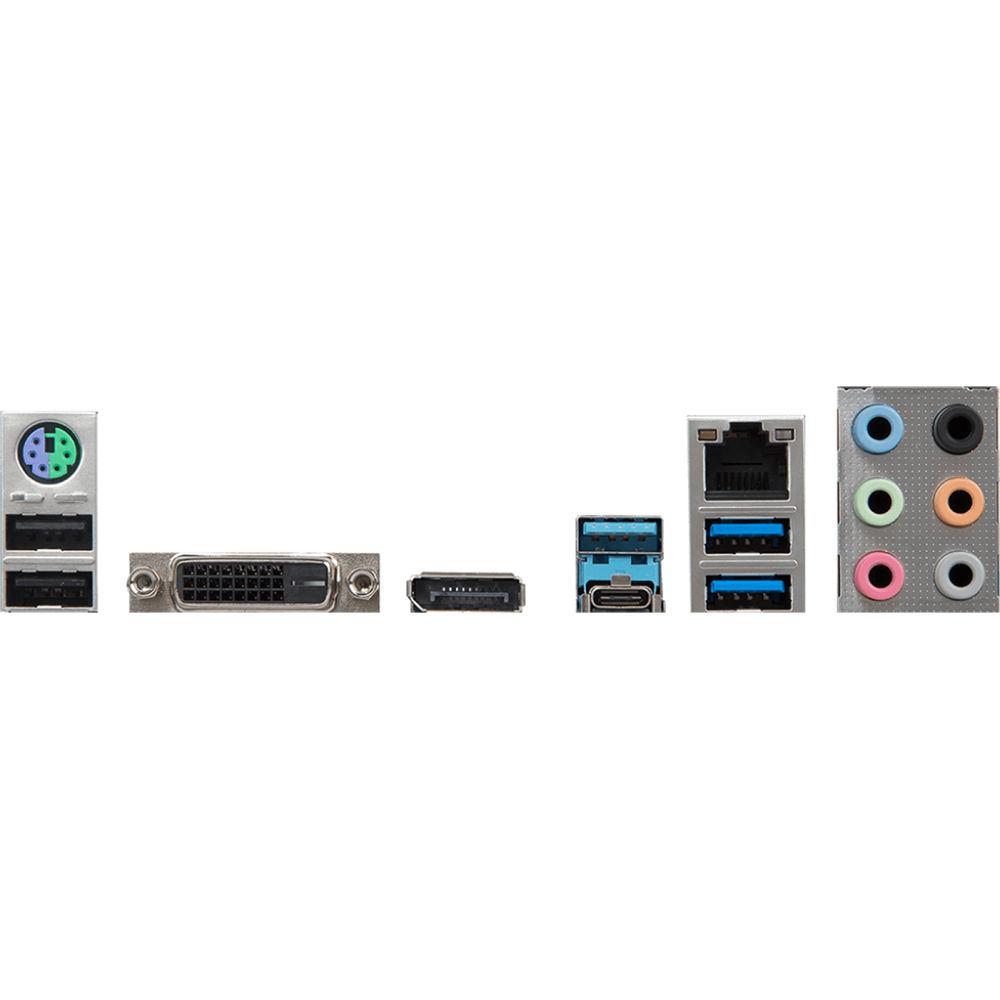

Technical parametersMSI B360-A Pro Specs | | | Chipset | Intel B360 | | CPU Socket | LGA 1151 | | | | USB | 1 x USB 3.1 Gen 2 Type-A
2 x USB 2.0 Type-A
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.1 Gen 1 Type-A | | Display | 1 x DVI-D
1 x DisplayPort | | Audio | 6 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219-V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 5 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) | | U.2 | None | | | | Expansion Slots | 2 x PCIe 3.0 x16
4 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
5 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 6-Pin ATX | | Security | Chassis Intrusion, TPM Module | | Diagnostics | Clear CMOS | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Serial
1 x Parallel | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC892 (7.1-Channel) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 13.6 x 10.7 x 2.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
