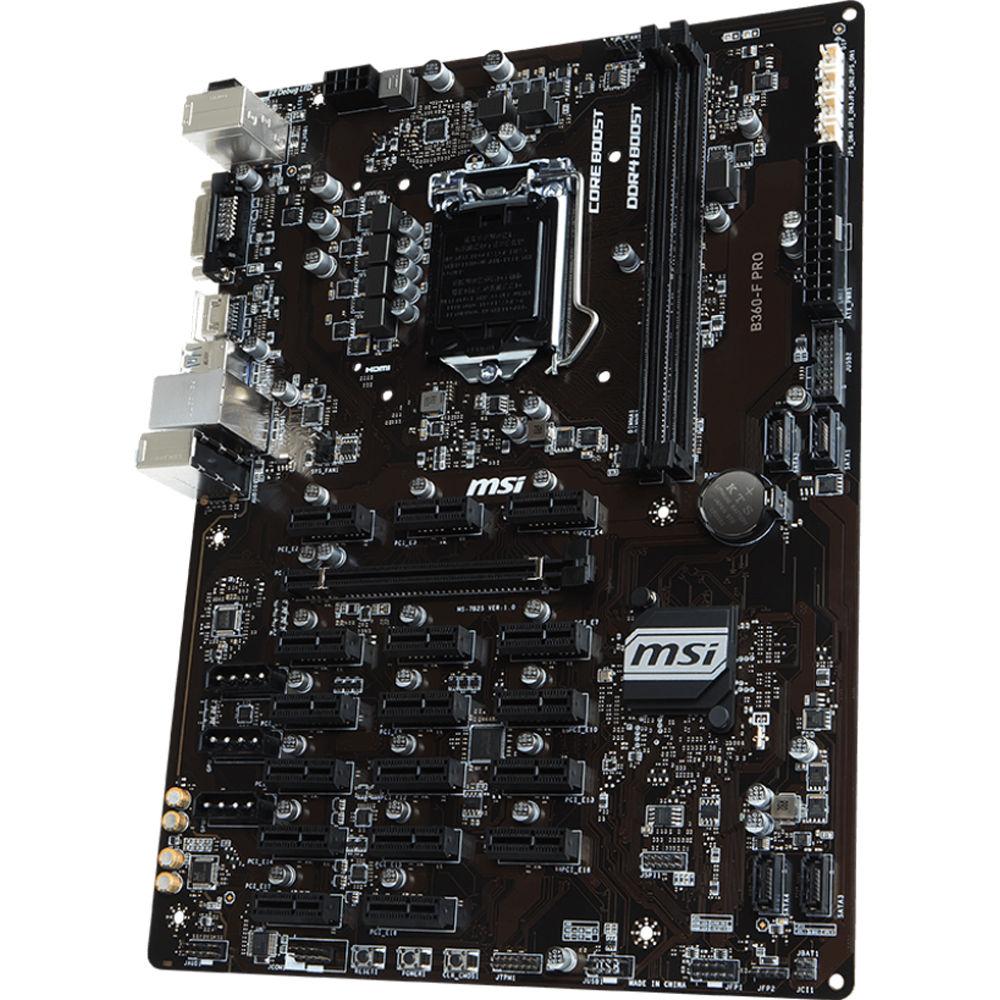

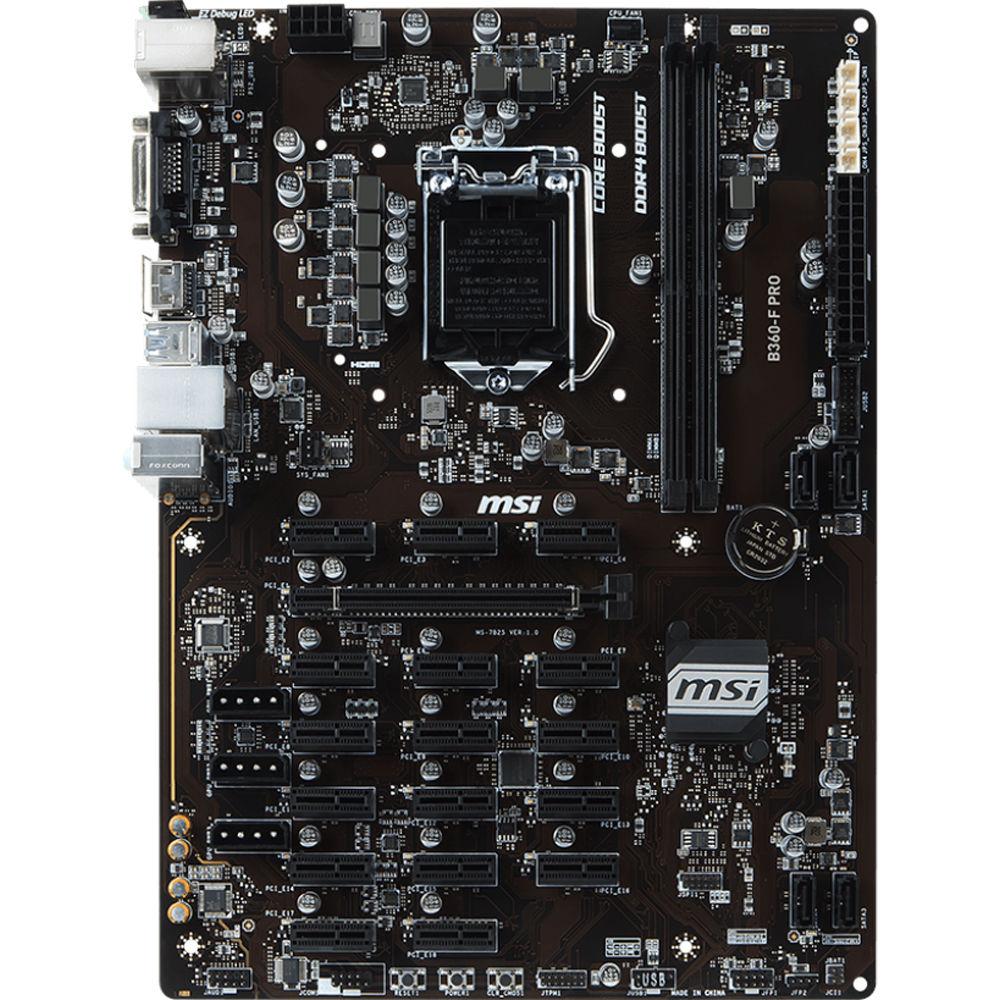

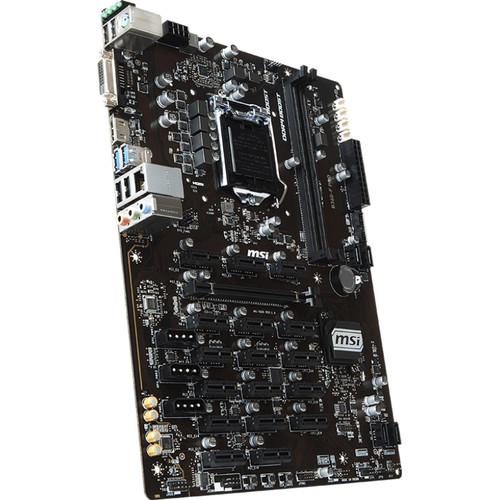

Product description The B360-F Pro LGA1151 ATX Motherboard from MSI is a crypto currency mining-focused motherboard designed with a total of 18 PCIe slots. It's built on the Intel B360 chipset with an LGA 1151 socket designed for 8th generation Intel Core, Pentium Gold, and Celeron processors. There are two DDR4 memory slots that support a max of 32GB of 2666MHz RAM and four SATA III ports for storage drives. Other integrated features include fan connectors, USB ports, HDMI and DVI-D outputs, Intel Gigabit LAN, and Realtek 7.1-channel audio. - Crypto Currency Friendly
- The B360-F Pro motherboard is equipped with one PCIe 3.0 x16 slot and 17 PCIe 2.0 x1 slots, which can be used to mine crypto currency. Moreover, it has multiple hardware and software features designed for efficient mining and management.
- 5x Power Sync - This motherboard supports up to five power connectors to power your motherboard and graphics cards.
- Mining Guard - Mining Guard lets you manage your mining board without a display.
- Power/Rest/Clear CMOS - Physical buttons let you easily control your system as needed.
- EZ Debug LED - Helps you figure out the source of the problem.
- Mining LED - Located next to each PCIe slot so you can check their status.
- Diskless Boot Support - Enables you to mine crypto currency without having an operating system.
- Independent Slot Power - Three 4-pin power connectors provide you with extra power for graphics cards.
- Dedicated for Mining - Dedicated capacitors for each PCIe slot offer more stable and smooth voltage for 24/7 mining.
- Mining Management - The B360-F Pro features a customized and easy-to-use Mining BIOS with built-in slot detection.
- Core Boost
- Core Boost technology combines MSI's layout and power design for faster and undistorted current delivery to the CPU for more stable and reliable operation.
- Cooling
- This motherboard has two fan headers with DC/PWM mode for complete fan control. Manually or automatically adjust the fan speed to find a balance between performance and noise.
- DDR4 RAM
- The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within the BIOS.
- Durability
-
- Double ESD prevents electrostatic discharge surges from damaging the motherboard.
- Steel reinforced PCIe slots prevent damage from GPU sag and also protects against electromagnetic interference.

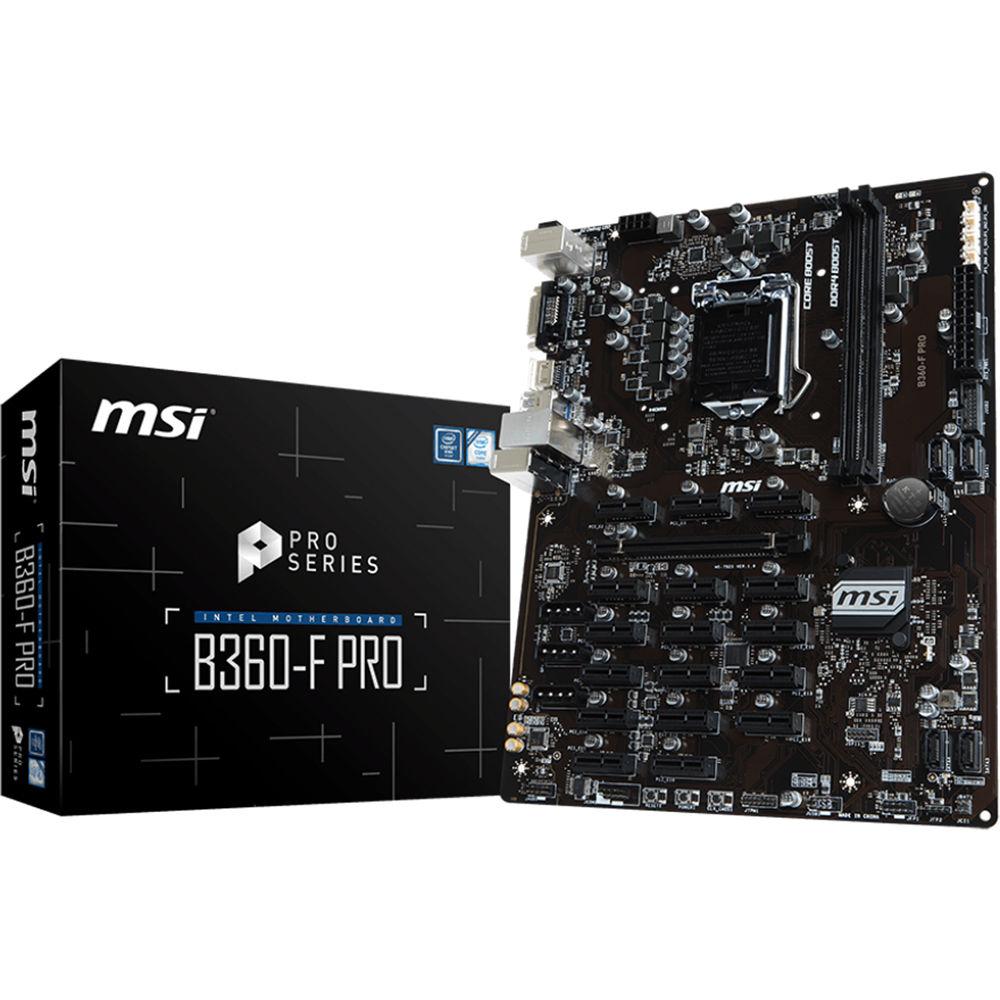

UPC: 824142161807 In the Box MSI B360-F Pro LGA1151 ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B360-F Pro LGA1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

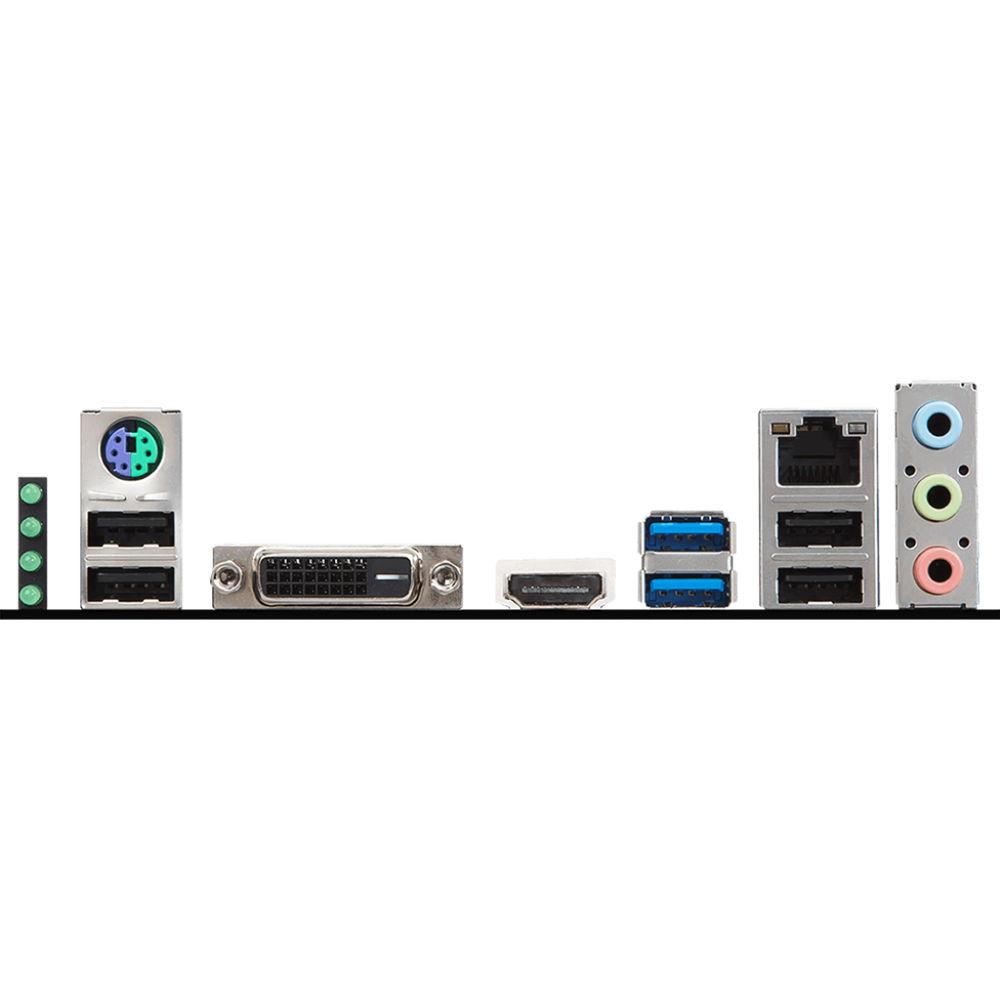

Technical parametersMSI B360-F Pro Specs | | | Chipset | Intel B360 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x HDMI 1.4 | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219-V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | None | | U.2 | None | | | | Expansion Slots | 1 x PCIe 3.0 x16
17 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
3 x 4-Pin PCIe | | Security | Chassis Intrusion, TPM Module | | Audio | None | | Diagnostics | 2-Digit Debug LED, Clear CMOS, Power, Reset | | Legacy | 1 x Serial | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC887 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9" / 30.48 x 22.86 cm | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 3.0" |
