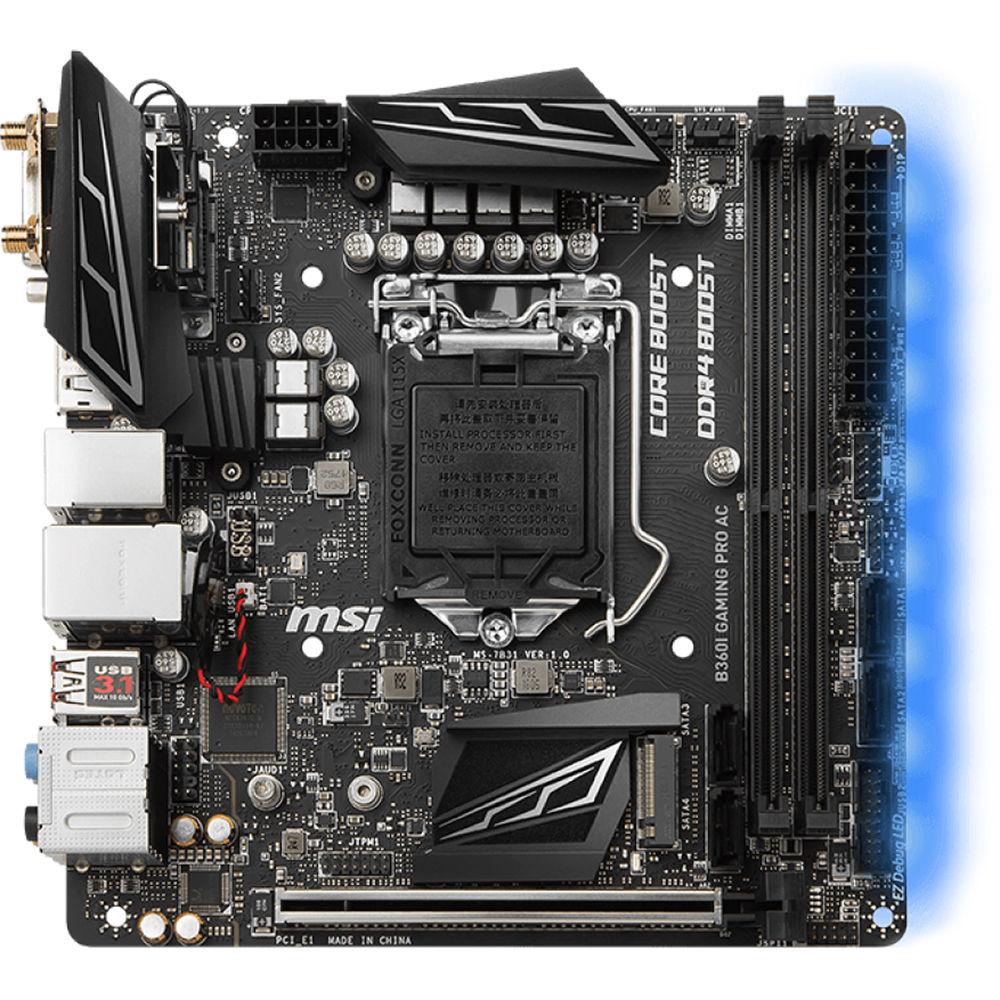

User Manual for MSI B360I Gaming Pro AC Motherboard Click to enlarge the picture
Contents of the user manual for the MSI B360I Gaming Pro AC Motherboard
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI B360I Gaming Pro AC Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

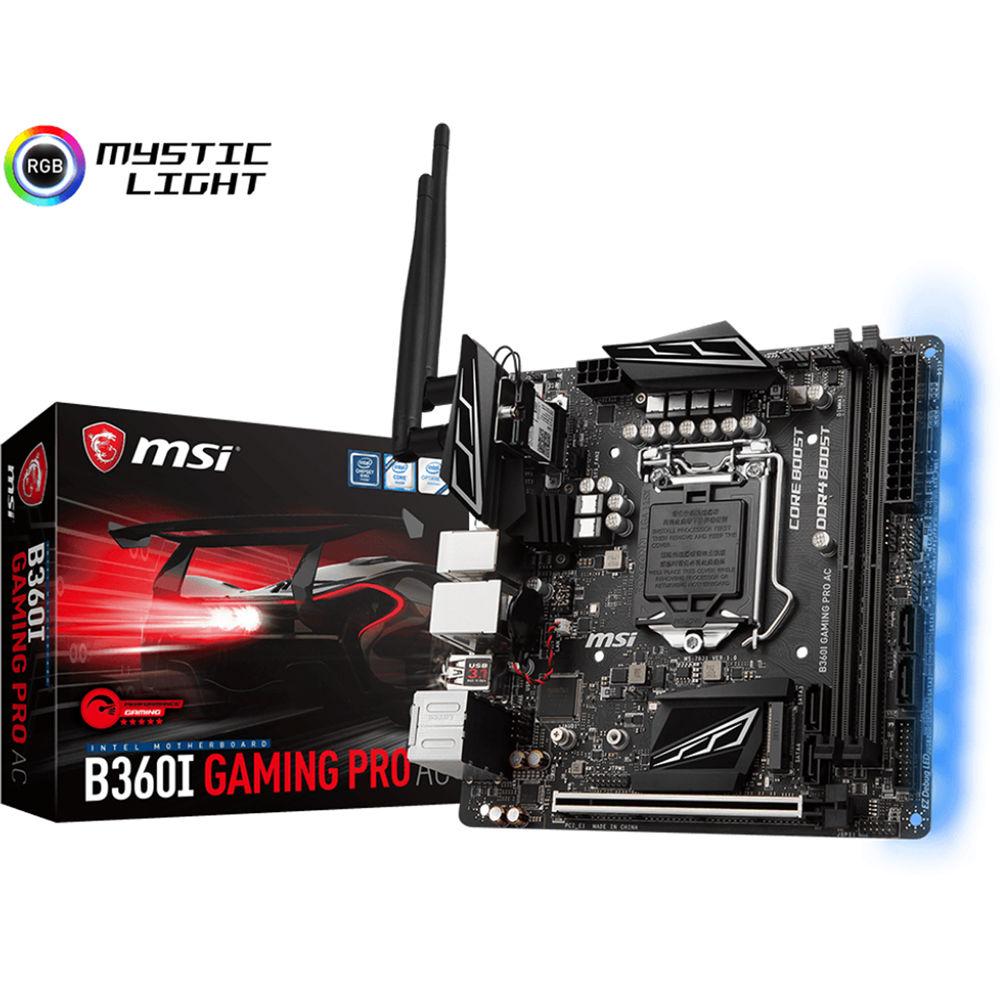

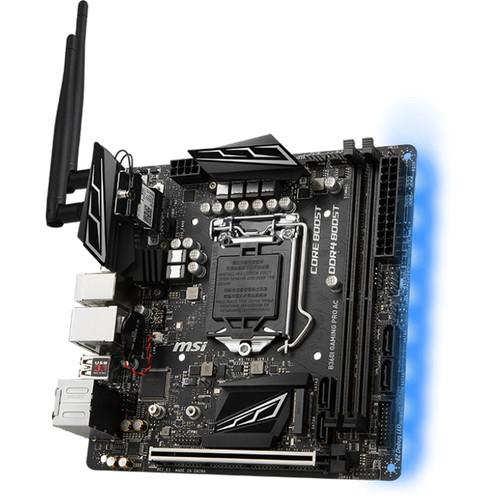

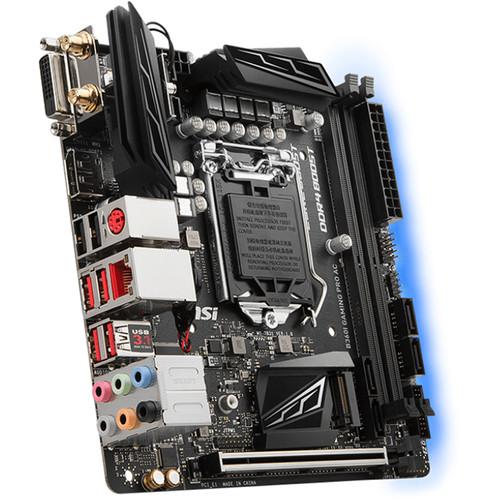

Product description The B360I Gaming Pro AC Motherboard from MSI is built on the Intel B360 chipset supporting an LGA 1151 CPU socket. It has two DDR4 memory slots that can hold up to 32GB of dual-channel RAM at speeds of up to 2666 MHz. For storage, there are four SATA III ports and two M.2 slots that can operate at speeds of up to 6 Gb/s. This motherboard features a PCIe 3.0 x16 expansion slot, six USB ports on the back panel, and two USB internal connectors. Other notable features include Realtek ALC892 7.1-channel HD audio, Realtek RTL8111H-C Gigabit LAN controller, and MSI Mystic Light RGB lighting. - Supports 8th Gen Intel Core, Pentium, Gold, and Celeron processors for LGA 1151 socket
- Supports DDR4 memory up to 2666 MHz
- Mystic Light and Sync personalizes your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light app or a mobile device
- Intel Turbo USB 3.1 Gen2 and Twin Turbo M.2 provide lightning fast game experience
- Core Boost with premium layout and optimized power design supports more cores and provides better performance
- Audio Boost rewards your ears with studio grade sound quality for immersive gaming experience
- DDR4 Boost: Advanced technology to deliver pure data signals for enhanced gaming performance and stability
- Intel wireless support uses smart MU-MIMO technology, delivering AC speeds up to 433 Mb/s with lower CPU loading and better long-term usage
- VR ready for virtual reality game experience without latency, reducing motion sickness
- In-Game Weapons: GAMING Hotkey and X-Boost
- EZ Debug LED for troubleshooting
- Award-winning BIOS 5 with high resolution scalable font, favorites, and search function
- 24-hour on- and off-line game and motherboard testing by eSports players
UPC: 824142162040 In the Box MSI B360I Gaming Pro AC Motherboard 2 x SATA Cables I/O Shield 2 x M.2 Screws 2 x Antennas Case Badge Limited 1-Year Warranty Data Sheet PDF 275kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B360I Gaming Pro AC Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

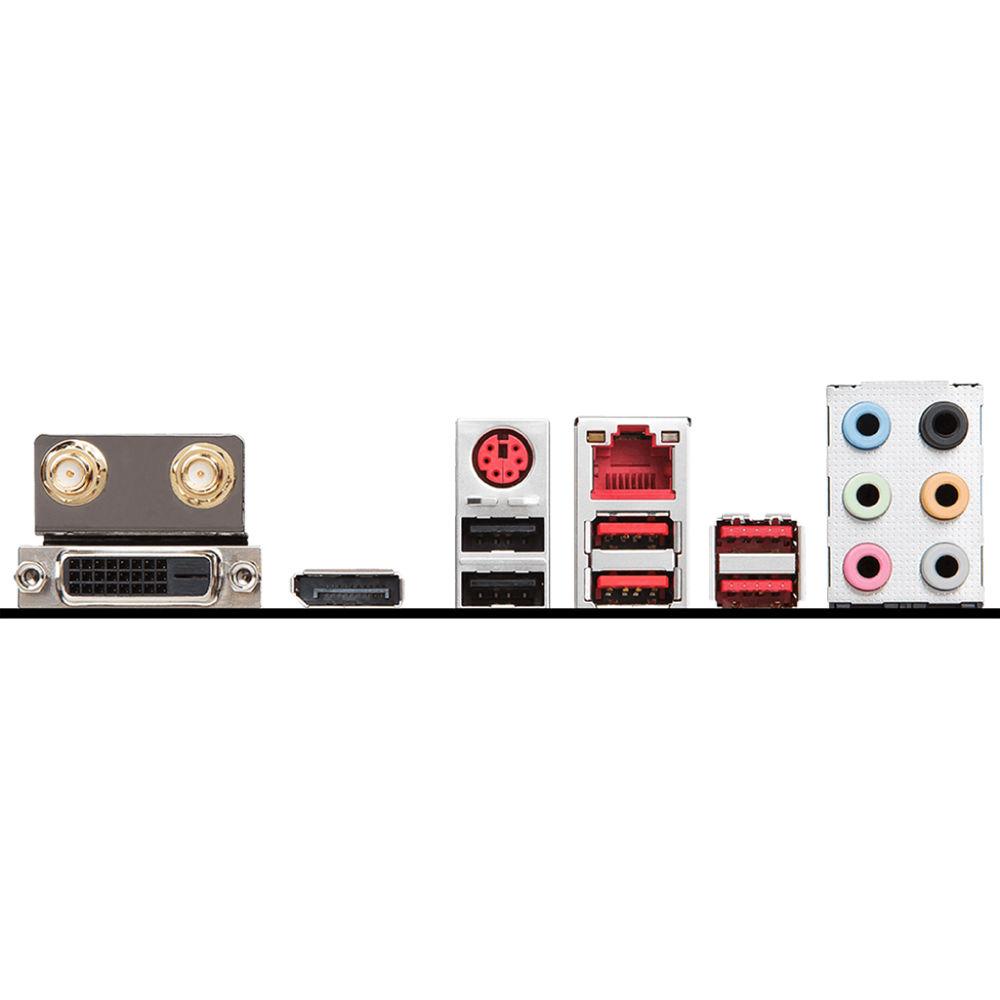

Technical parametersMSI B360I Gaming Pro AC Specs | | | Chipset | Intel B360 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 1 Type-A
2 x USB 3.1 Gen 2 Type-A
2 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x DisplayPort | | Audio | 6 x 3.5 mm | | Ethernet / Controller | 1 | | PS/2 | 1 x Combo | | Wi-Fi Antenna | 2 x Connector | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 2 x M Key 2260, 2280 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Optane Memory Support | Yes | | | | Expansion Slots | 1 x PCIe 3.0 x16 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Air Cooling | 1 x 4-Pin CPU
2 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Diagnostics | Clear CMOS | | | | Audio Codec | Realtek ALC892 Codec (7.1-Channel) | | | | Bluetooth | 5.0 | | Wi-Fi | Wi-Fi 5 (802.11ac) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Mini-ITX | | Dimensions | 6.7 x 6.7" / 17.02 x 17.02 cm | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.0 x 7.6 x 2.7" |
