MSI B450 Gaming Pro Carbon AC

Search your instruction manual in PDF to download

User Manual for MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard

Click to enlarge the picture
MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard Contents of the user manual for the MSI B450 Gaming Pro Carbon AC
  • Product category: Motherboards MSI
  • Brand: MSI
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for MSI Motherboards

MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard
User manual for the MSI B450 Gaming Pro Carbon AC contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MSI product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!



Product description

The B450 Gaming Pro Carbon AC AM4 ATX Motherboard from MSI is built on the AMD B450 chipset, supporting AMD Ryzen series processors with an AM4 socket. It has four RAM slots that can hold up to 64GB of dual-channel DDR4 memory at speeds of up to 3466 MHz when overclocked. For storage, there are six SATA III ports and two M.2 slots, one of which can operate at up to 32 Gb/s when used with a compatible NVMe drive. While this motherboard is equipped with DisplayPort and HDMI ports for onboard graphics, it also has a PCIe 3.0 x16 slot for a dedicated GPU as well as a PCIe 2.0 x16 and three PCIe 2.0 x1 slots for additional PCIe-based hardware. Other notable features include Realtek ALC1220 7.1-channel HD audio, Intel I211AT Gigabit LAN, 802.11ac Wi-Fi, Bluetooth 4.2, and MSI Mystic Light RGB LEDs.
    MSI Mystic Light Sync
  • The right side of the B450 Gaming Pro Carbon AC is equipped with customizable RGB LED lighting. Download the MSI Mystic Light Sync software to choose your favorite color, breathing effect, and even sync it with other MSI Mystic Light Sync-compatible hardware and peripherals.
    Cooling
  • This motherboard is equipped with six fan headers that support both DC and PWM modes, so you adjust their speeds either manually or automatically within BIOS or a third-party software to find a balance between cooling and noise.
    Audio
  • MSI Audio Boost consists of both hardware and software additions that are designed to provide you with a high-quality listening experience. The left and right channels are built on separate PCB layers, De-Pop Protection prevents loud popping noises, an EMI-shielded audio processor ensure clean stereo and surround sound, and a dedicated headphone amplifier automatically detects the optimal impedance for your headphones. For gaming, Nahimic 3 provides you with virtual surround sound with an in-game overlay that displays where noises are coming from.
    Storage
  • There are six SATA III ports on this motherboard designed for traditional 2.5" and 3.5" drives. Moreover, it's also equipped with two M.2 slots, one of which can utilize the PCIe 3.0 x4 interface for speeds up of up 32 Gb/s when used with a compatible NVMe drive. An M.2 shield is included to help heat dissipation and prevent thermal throttling. For an additional boost in performance, you can enable X-Boost within MSI's software.
    Memory
  • The DDR4 memory slots on this motherboard are built with an optimized memory layout to offer stability, performance, and low power consumption. Additionally, this motherboard supports XMP for enhanced RAM speeds.
    Additional Features
    • Gaming Hotkey
    • Gaming Device Port
    • Game Boost
    • LAN Protect
    • Overvoltage protection
    • EZ Debug LED
    • PCIe Steel Slots
    • Humidity protection
    • Temperature protection
    • Circuit protection
    • ESD protection
    • EMI protection
    • Command Center
    • Live Update
    • RAMDisk

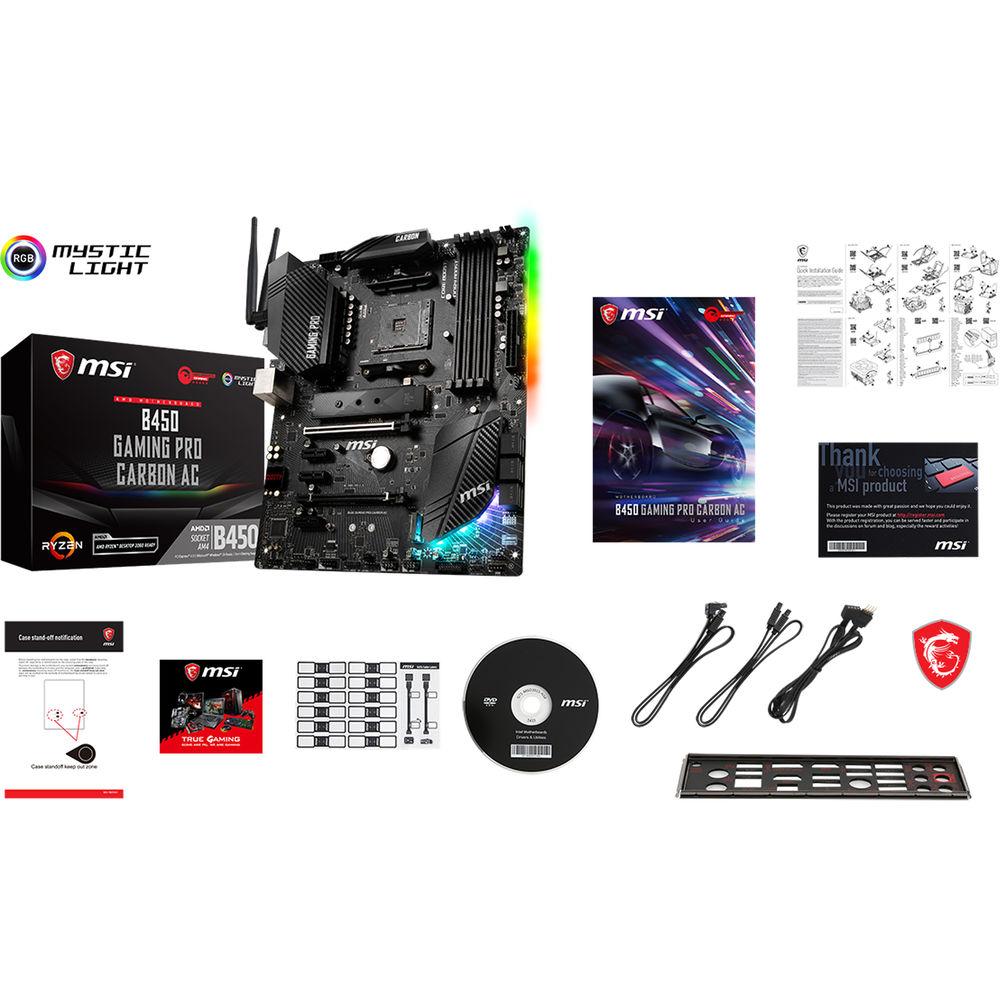

UPC: 824142168073 In the Box MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard
  • I/O Shield
  • 2 x SATA Cable
  • Limited 3-Year Warranty
  • Quick start Guide PDF 3.8mb Table of Contents




    Upload User Manual

    Have you got an user manual for the MSI B450 Gaming Pro Carbon AC AM4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MSI B450 GAMING PRO CARBON AC Specs

    Chipset AMD B450
    CPU Socket AM4
    USB 2 x USB 2.0 Type-A
    2 x USB 3.1 Gen 1 Type-A
    1 x USB 3.1 Gen 2 Type-A
    1 x USB 3.1 Gen 2 Type-C
    Display 1 x DisplayPort
    1 x HDMI 1.4
    Audio 5 x 3.5 mm
    1 x S/PDIF
    Ethernet / Controller 1 x Intel I211AT Gigabit
    PS/2 1 x Combo
    Wi-Fi Antenna 2 x Connector
    Buttons BIOS Flashback
    Memory Slots 4 x 288-Pin
    Memory Support DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466 MHz
    Maximum Capacity 64 GB
    Channel Architecture Dual Channel
    ECC Support Non-ECC, ECC (Non-ECC Mode) Unbuffered
    SATA 6 x SATA III
    M.2 1 x M Key 2242, 2260, 2280 (PCIe 2.0 x4)
    1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
    U.2 None
    RAID Support RAID 0, 1, 10 (SATA)
    RAID 0, 1 (M.2)
    Expansion Slots 1 x PCIe 3.0 x16
    1 x PCIe 2.0 x16 (x4 mode)
    3 x PCIe 2.0 x1
    USB 2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
    1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
    Multi-GPU Support 2-Way AMD CrossFireX
    Air Cooling 1 x 4-Pin CPU
    4 x 4-Pin System
    Liquid Cooling 1 x 4-Pin Pump
    Power Connectors 1 x 24-Pin Mainboard
    1 x 8-Pin CPU
    1 x 4-Pin CPU
    Security Chassis Intrusion, TPM Module
    LED Header 4 x RGB
    Audio None
    Diagnostics Clear CMOS
    Legacy 1 x Serial
    I/O Connection Headers AAFP, USB 3.1
    Audio Codec Realtek ALC1220 (7.1-Channel)
    Bluetooth 4.2
    Wi-Fi Wi-Fi 5 (802.11ac) (MU-MIMO)
    Module Support 1 E Key M.2
    Supported Operating Systems Windows 10 (64-Bit)
    Windows 7 (64-Bit)
    Form Factor ATX
    Dimensions 12 x 9.6" / 304.80 x 243.84 mm
    Package Weight 3.8 lb
    Box Dimensions (LxWxH) 14.0 x 10.9 x 3.1"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5.0 of 5

    This product has already been rated by 16 owners. Add your rating and experience with the product.
