User Manual for MSI B450M Bazooka AM4 Micro-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI B450M Bazooka AM4 Micro-ATX Motherboard
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI B450M Bazooka AM4 Micro-ATX Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

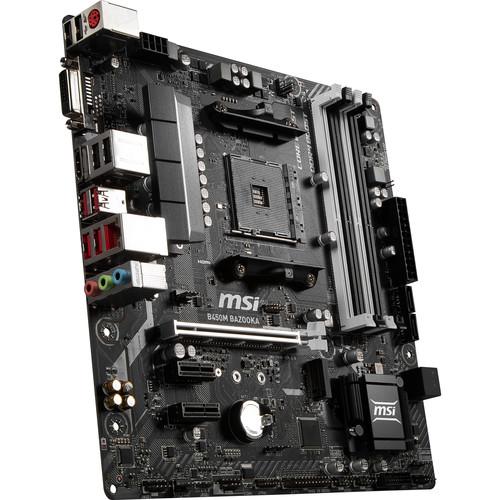

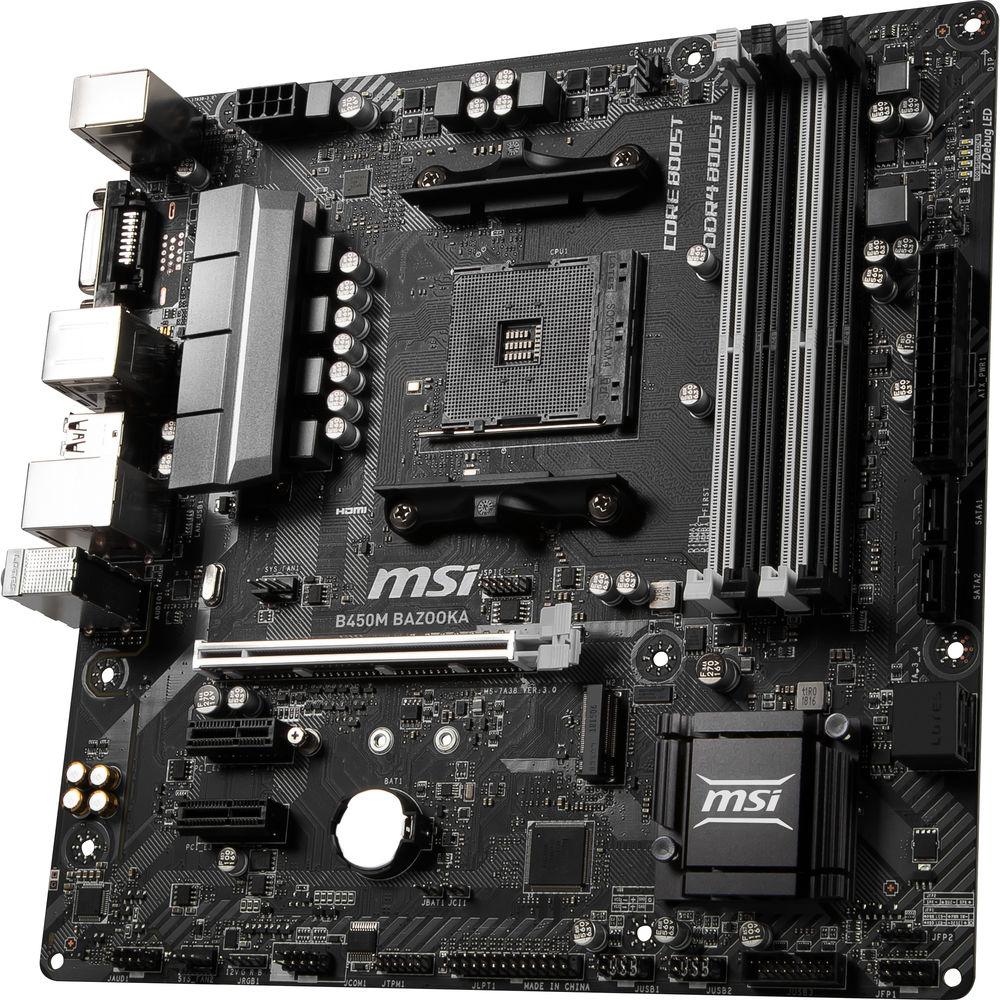

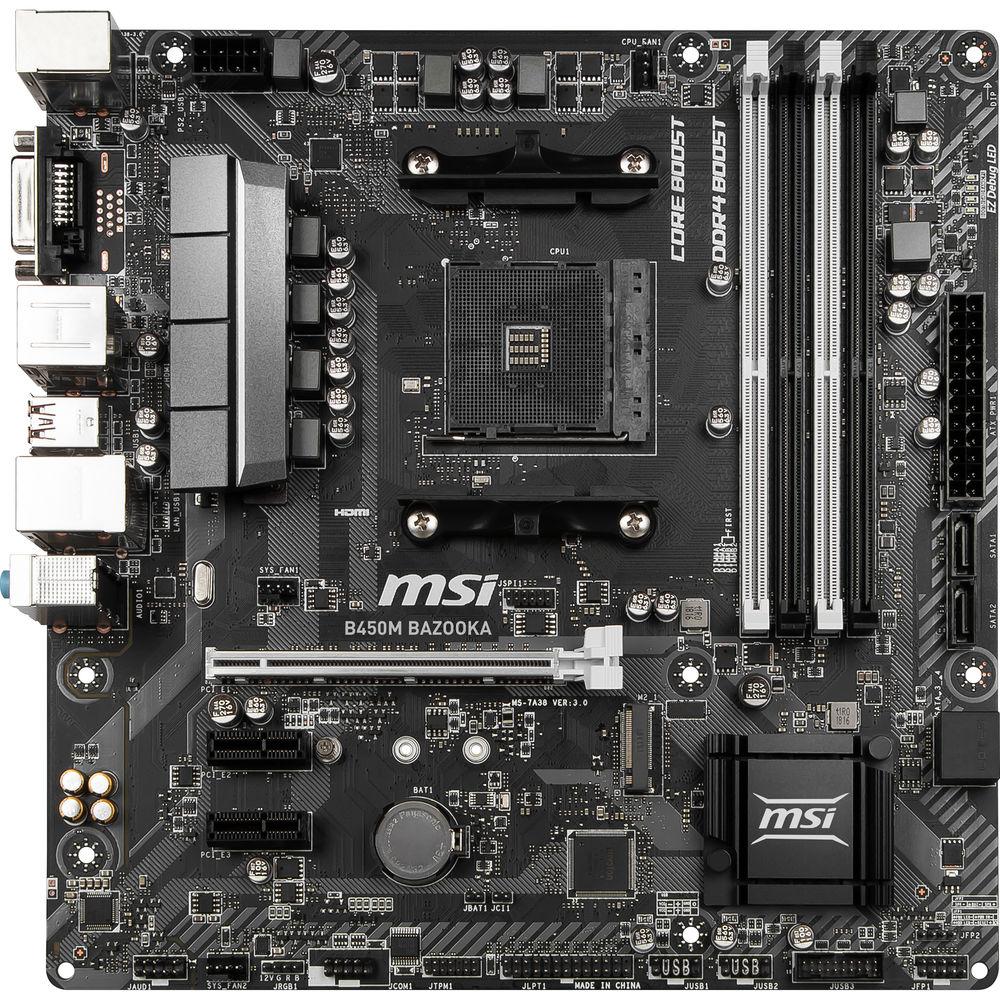

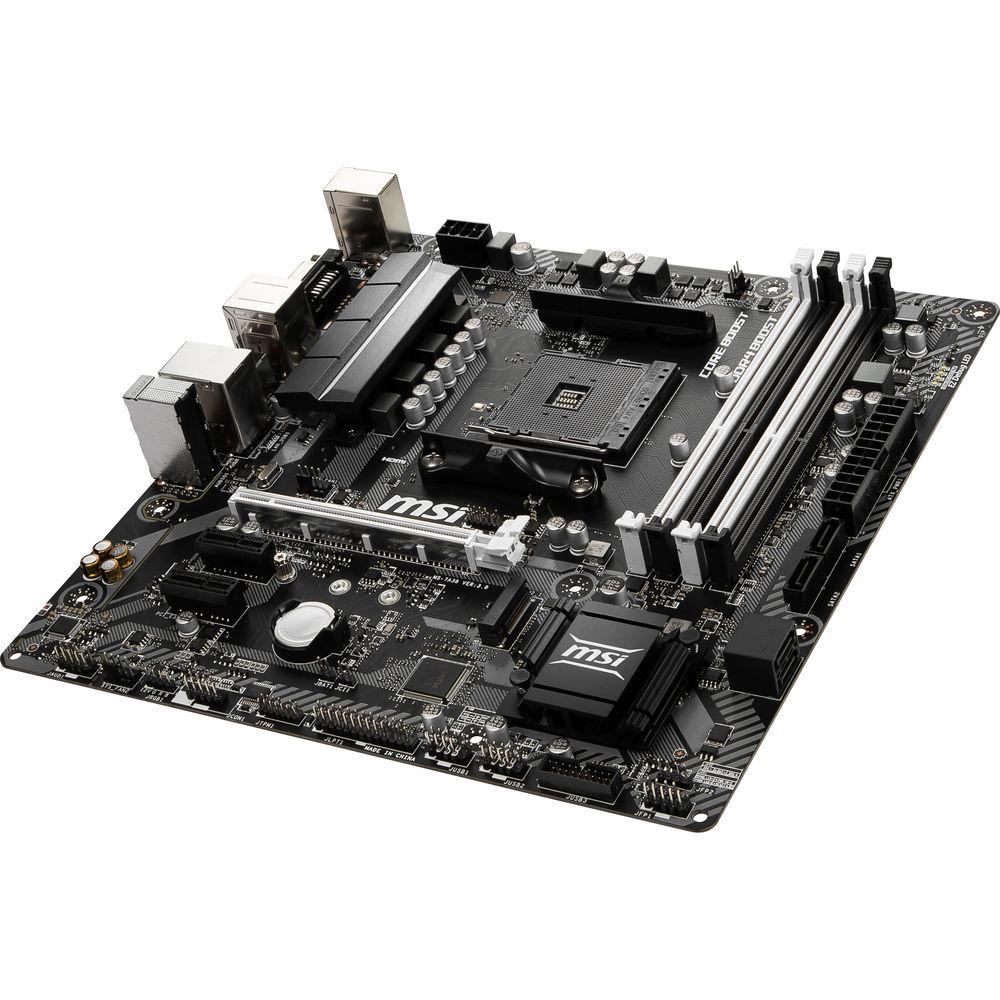

Product description The B450M Bazooka AM4 Micro-ATX Motherboard from MSI is built on the AMD B450 chipset, supporting AMD Ryzen series processors with an AM4 socket. It has four RAM slots that can hold up to 64GB of dual-channel DDR4 memory at speeds of up to 3466 MHz when overclocked. For storage, there are four SATA III ports and a single M.2 slot, which can operate at up to 32 Gb/s when used with a compatible NVMe drive. While this motherboard is equipped with DVI-D and HDMI ports for onboard graphics, it also has a PCIe 3.0 x16 slot for a dedicated GPU and two PCIe 2.0 x1 slots for other PCIe-based hardware. Other notable features include Realtek ALC892 7.1-channel HD audio, Realtek 8111H Gigabit LAN, and MSI Mystic Light RGB lighting. - MSI Mystic Light RGB Lighting
- MSI Mystic Light RGB lighting is built into all four corners of this motherboard, so you can show off your hardware. Choose from millions of colors and a wide variety of lighting effects to find one that suits your style best. Moreover, you can even sync it with other MSI Mystic Light-compatible hardware and peripherals to complete your build.
- Cooling
- This motherboard is equipped with three fan headers that support both DC and PWM modes, so you adjust their speeds either manually or automatically within BIOS or a third-party software to find a balance between cooling and noise.
- Storage
- There are four SATA III ports on this motherboard designed for traditional 2.5" and 3.5" drives. Moreover, it's also equipped with a single M.2 slot, which can utilize the PCIe 3.0 x4 interface for speeds up of up 32 Gb/s when used with a compatible NVMe drive. For an additional boost in performance, you can enable X-Boost within MSI's software.
- Memory
- The DDR4 memory slots on this motherboard are built with an optimized memory layout to offer stability, performance, and low power consumption. Additionally, this motherboard supports XMP for enhanced RAM speeds.
- Audio
- MSI Audio Boost consists of both hardware and software additions that are designed to provide you with a high-quality listening experience. The left and right channels are built on separate PCB layers, De-Pop Protection prevents loud popping noises, an EMI-shielded audio processor ensure clean stereo and surround sound, and a dedicated headphone amplifier automatically detects the optimal impedance for your headphones. For gaming, Nahimic 3 provides you with virtual surround sound with an in-game overlay that displays where noises are coming from.
- Additional Features
-
- Gaming Hotkey
- Gaming Device Port
- Game Boost
- AMD STOREMI
- LAN Protect
- EZ Debug LED
- Steel Armor
- Command Center
- Live Update
- RAMDisk
UPC: 824142167748 In the Box MSI B450M Bazooka AM4 Micro-ATX Motherboard I/O Shield SATA Cable Limited 3-Year Warranty Quick start Guide PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B450M Bazooka AM4 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

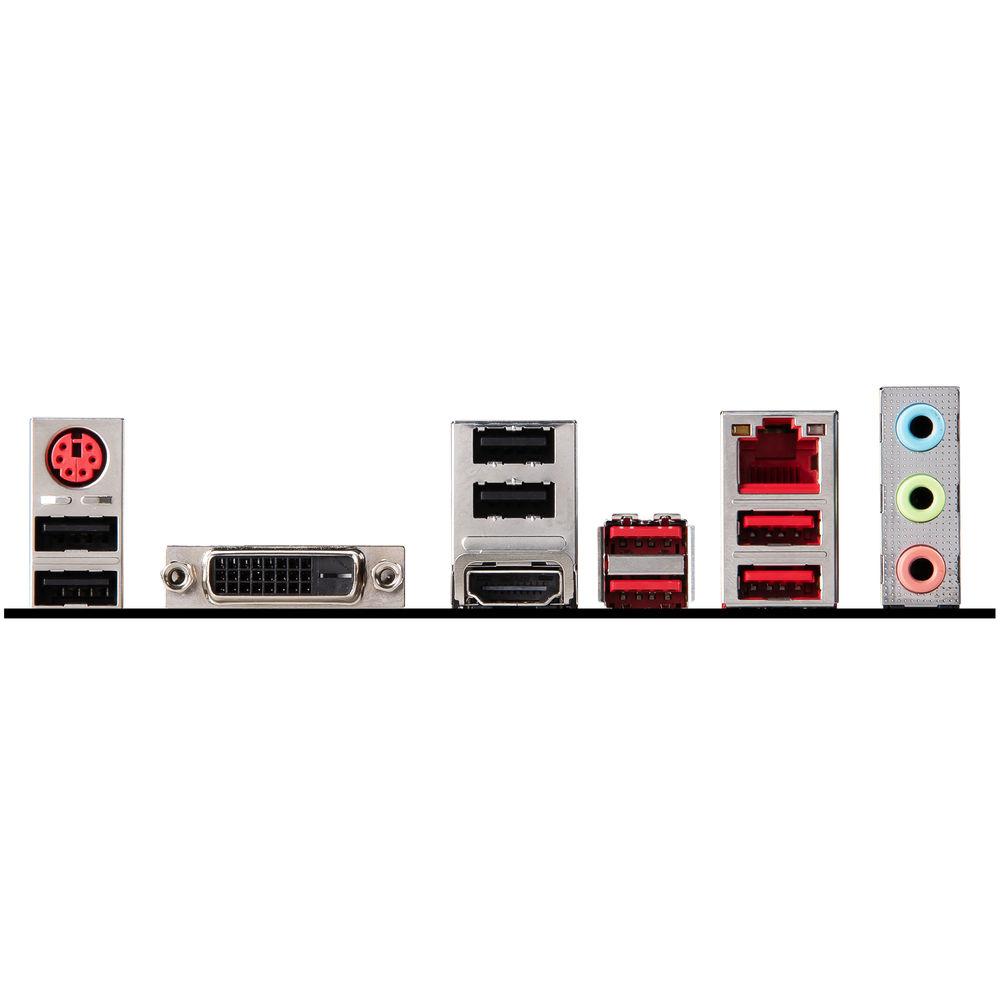

Technical parametersMSI B450M BAZOOKA Specs | | | Chipset | AMD B450 | | CPU Socket | AM4 | | | | USB | 4 x USB 2.0 Type-A
4 x USB 3.1 Gen 1 Type-A | | Display | 1 x DVI-D
1 x HDMI 1.4 | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 10 (SATA) | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 2.0 x1 | | USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
2 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Audio | None | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial
1 x Parallel | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC892 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit)
Windows 7 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 9.6" / 243.84 x 243.84 mm | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 2.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
