Product description Built with a military-style armor design for a strong gaming foundation, the B450M Bazooka v2 AM4 ATX Motherboard from MSI supports 1st and 2nd Gen AMD Ryzen processors with Vega and Athlon graphics. This motherboard features Core Boost, which is an optimized power design that supports more cores, and DDR4 boost, which improves memory performance. Audio Boost provides immersive sound, while X-Boost improves the performance of storage drives, Intel Optane memory, and USB devices. Steel Armor fortifies the PCIe slots against heavy graphics cards. The B450M Bazooka v2 also features the AM4 socket and AMD B450 chipset, and it supports 64-bit versions of Windows 10 and 7.
The ATX form factor of the B450M can support dual-channel 3466 (OC), 3200 (OC), 3066 (OC), 2933 (OC), 2800 (OC), 2667, 2400, 2133, and 1866 MHz non-ECC, unbuffered memory, or ECC unbuffered memory that will run in non-ECC mode. Up to 64GB of memory is supported across four 288-pin DIMM slots, for a maximum of 16GB per slot.
The B350M Bazooka v2 has a total of four SATA III 6 Gb/s connectors and one M.2 Key M slot that supports both PCIe 3.0 x4 and SATA III M.2 2242, 2260, and 2280 storage devices. There are also six USB 3.1 Gen 1 Type-A ports (4 at back panel, 2 through internal connectors) and eight USB 2.0 Type-A ports (four at the back panel and four available via the internal connectors). Other features include the Realtek 8111H Gigabit LAN controller, one PCIe 3.0 x16 slot, and two PCIe 2.0 x1 slots.
The B350M Bazooka v2 supports integrated graphics and is equipped with one HDMI 1.4 port and one DVI-D port. The HDMI port supports resolutions up to 4096 x 2160 @ 30 Hz or 2560 x 1600 @ 60 Hz, while the DVI-D port supports resolutions up to 1920 x 1200 @ 60 Hz. Integrated graphics can access up to 2048MB of memory, or install a dedicated graphics card into one of the PCIe slots.
Using the Realtek ALC892 7.1-channel HD audio codec, the B350M can support analog audio using three integrated 3.5mm. Included are two SATA cables and protection is provided by a limited 3-year warranty.
Please note that to use Windows 7, you must install an AMD Pinnacle Ridge & Summit Ridge processor. General Features - DIY Friendly
- MSI motherboards feature tons of convenient and smart designs, such as a pin-header keep out zone, friendly SATA & USB locations and so on, so DIY users can pick and choose the gaming rig they want.
- Cooling
- Cooling your system is essential for reliable performance. MSI motherboards feature excellent power design with a solid and heavy heatsink. ASUS has also made sure to include enough fan headers with full control to allow you to cool your system as you'd like.
- Hardware
- MSI motherboards feature tons of convenient and smart design for DIY users, as system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweakers. This makes it easy to install your own motherboard and gaming rig.
- Compatibility
- MSI motherboards are certified by a strict mechanic that features a convenient pin-header keep-out zone and friendly SATA & USB locations for compatibility with a wide range of components and devices, so DIY users can pick and choose the components they want. More than that, MSI offers a dedicated Qualified Vendor List (QVL) for memory. Combining this with MSI DDR4 Boost technology, MSI provides broad compatibility for overclocking, which helps when building a gaming rig.
- Apps to Improve Efficiency
- With years of experience in creating performance-enhancing tools that are easy to use, high-quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, MSI made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.
- Enhanced Performance
- MSI motherboards feature solutions for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
- CPU
- High-quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers solid performance at all times.
- Memory Performance
- Optimized layout design and a fully isolated memory circuitry ensures stability and performance. You won't have to worry about your system crashing during games with MSI DDR4 BOOST.
- Storage
- MSI motherboards support many storage standards, which allows users to connect ultra-fast storage devices. Start games faster, load levels faster, and have an advantage over your enemies.
- AMD StoreMI
- All MSI X470 & B450 motherboards are shipped with StoreMI, an AMD SSD technology to improve storage performance. This tool helps create a virtual SSD by blending storage capacity, treating flash as primary storage, and optimizing data access with continuous monitoring. All these functions can enhance read/write speed for active data and provide fast boot times and application startup.
- Storage Boost Your Storage Performance
- This little tool is very simple to use and automatically detects storage devices connected to the system. When enabled, Storage Boost optimizes your SSDs to keep your system fast and maximize storage performance, saving you a lot of time when loading or transferring data.
- In-Game Advantage
- MSI motherboards provide in-game advantages, allowing gamers to dominate. Elevate your listening experience and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online gameplay.
- Sound That Pulls You into the Game
- Deliver high sound quality through the use of premium-quality audio components and get an immersive sound experience when gaming. MSI motherboards let you enjoy gaming-changing sound.
- Dedicated HD Audio Processor
- Make sure you enjoy pure sound quality in both stereo and surround sound.
- High-Quality Audio Capacitors
- A high-fidelity sound experience with strong acoustics and realism for studio-level headphones is ensured.
- 7.1-Channel Audio for True Surround Sound
- With high-quality audio connectors, you get strong signal output with less distortion.
- Isolated Audio Design
- EMI-shielded HD audio processors let you enjoy pure sound quality in front and rear connectors.
- Separated Audio Layers for Clean Left & Right Channels
- Using separated layers in the PCB ensures excellent sound quality for both left and right audio channels.
- De-Pop Protection
- Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your system on/off.
- Everlasting Quality
- Using fine-quality components and integrating technological innovations delivers a smooth professional experience. Rigorous quality testing under most extreme conditions ensures a reliable, long-lasting, and high-performance motherboard.
- Steel Armor
- MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing damage due to heavy graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for an improved gaming experience with higher overclocking.
- Stable Gaming with High-Quality Components
- MSI uses high-quality components, which are shielded to make sure your system runs smoothly under extreme conditions.
- Solid CAPs
- With their aluminum core design and Japanese-made quality, Solid CAPs are made for high-end motherboards. Not only do Solid CAPs provide lower Equivalent Series Resistance (ESR), but they also last for around 10 years.
- Dark Choke
- A special core design allows the Dark Choke to run at a lower temperature, offering better power efficiency and stability.
- Certified for Gaming
- Each model is tweaked to deliver improved frames per second for a stutter-free gaming experience. Tested in 24-hour online and offline gaming sessions with the popular gaming gear, you can enjoy performance and reliability in the world's most popular games.
- Windows 10 Certified
- With MSI, you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10. With true dedication to performance, MSI's R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on MSI products.

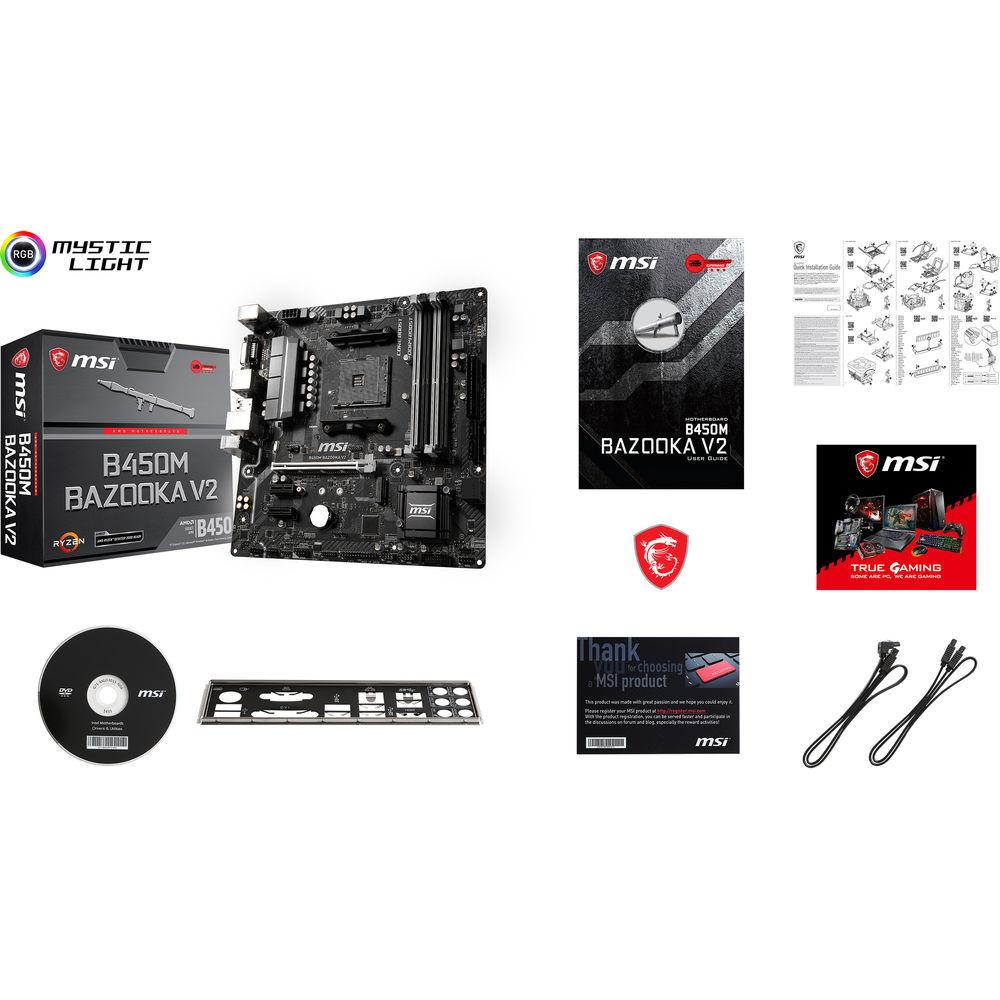

UPC: 824142174586 In the Box MSI B450M Bazooka v2 AM4 ATX Motherboard 2 x SATA Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI B450M Bazooka v2 AM4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI B450MBAZOV2 Specs | | | Chipset | AMD B450 | | CPU Socket | AM4 | | | | USB | 4 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A | | Display | 1 x HDMI
1 x DVI-D | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) | | RAID Support | RAID 0, 1, 10 | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Air Cooling | 1 x 4-Pin CPU
2 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial
1 x Parallel | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC892 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit)
Windows 7 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 9.6 x 9.6" / 24.38 x 24.38 cm | | | | Package Weight | 2.26 lb | | Box Dimensions (LxWxH) | 18.75 x 14.15 x 2.7" |
