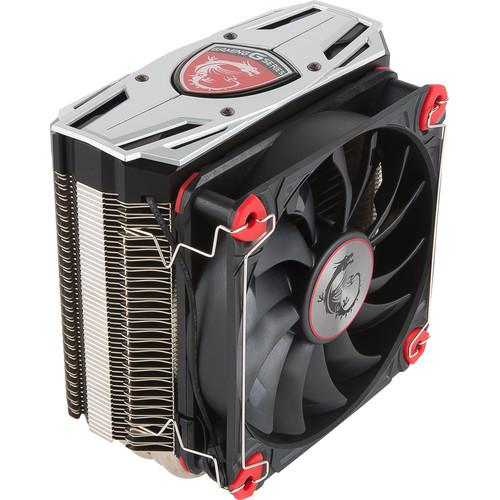

User Manual for MSI Core Frozr L CPU Cooler Click to enlarge the picture
Contents of the user manual for the MSI Core Frozr L CPU Cooler
- Product category: Fans & CPU Coolers MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Fans & CPU Coolers
 |
User manual for the MSI Core Frozr L CPU Cooler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

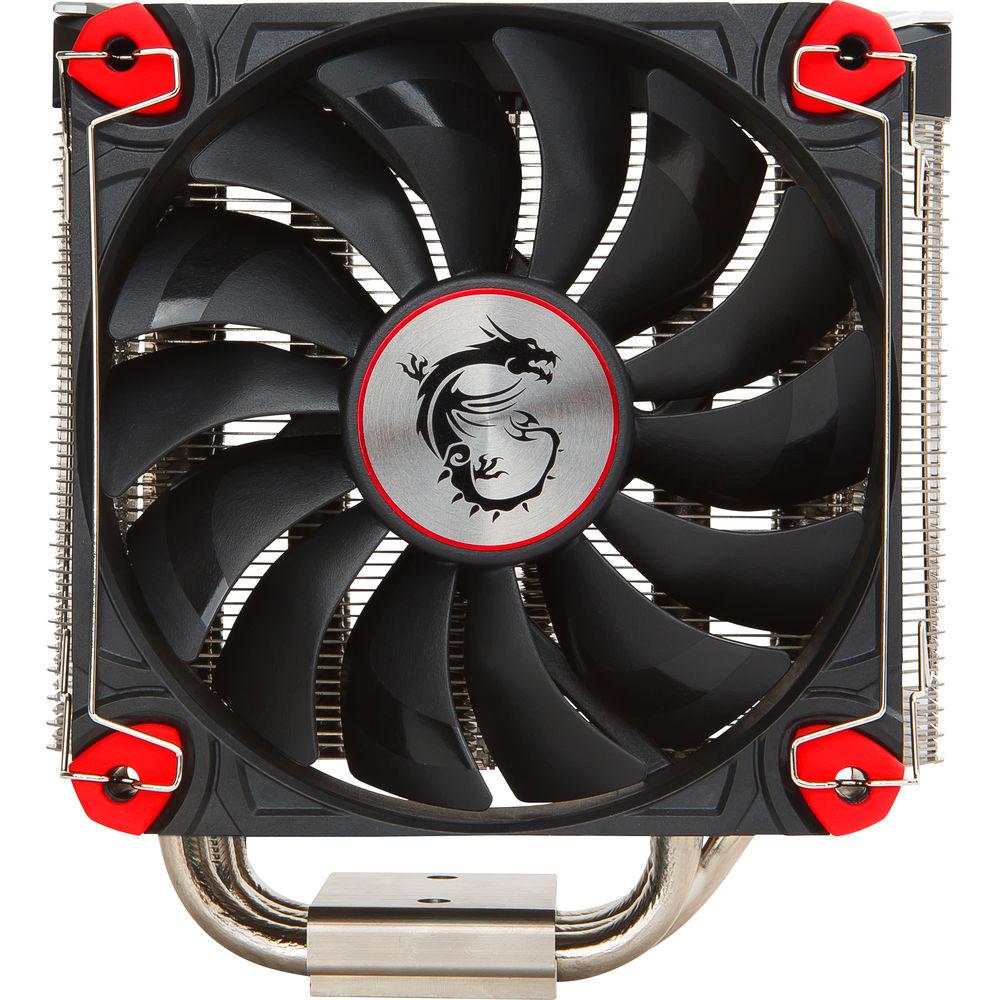

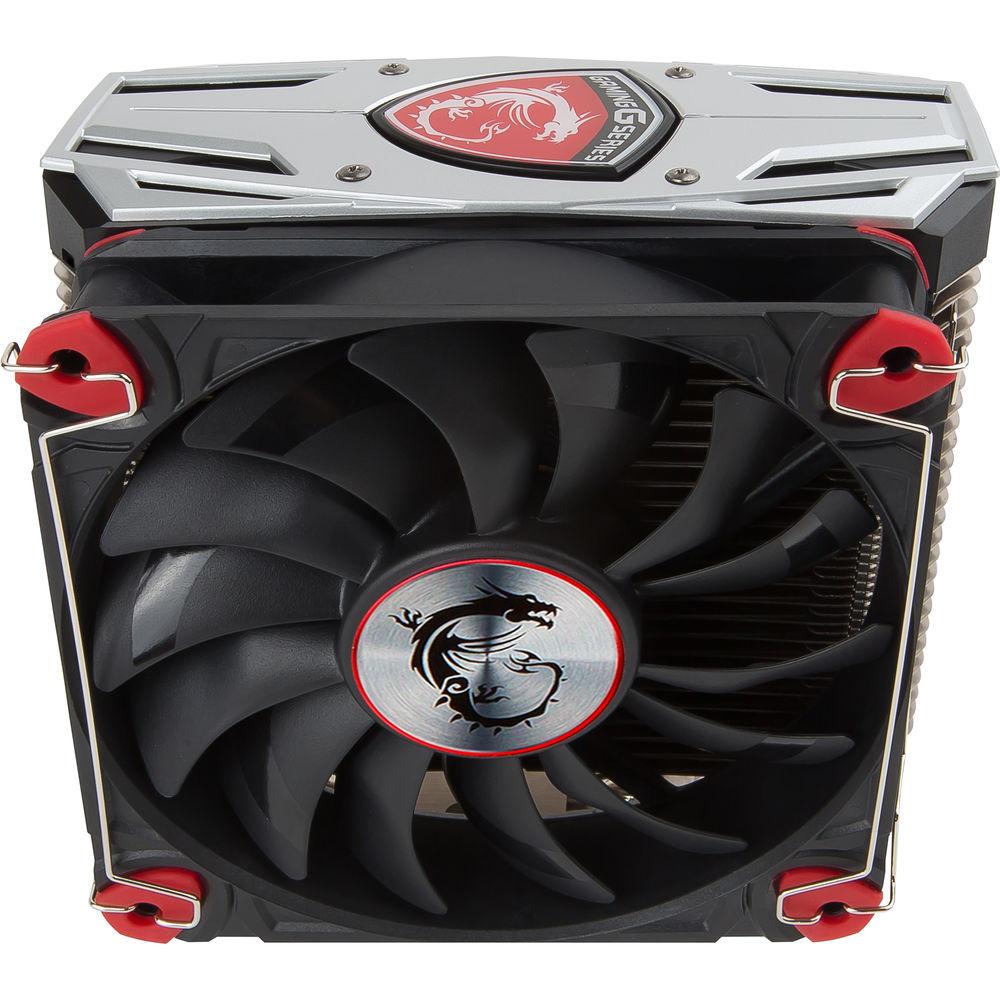

Product description The Core Frozr L CPU Cooler from MSI is designed for both Intel and AMD processors, providing them with efficient cooling for up to 200W of heat. It features a nickel-plated copper base that transfers heat to its four 8mm heatpipes, which is then dissipated with the included 120mm fan. An additional set of fan clips are included, so you can install an optional 120mm fan for a more powerful push/pull configuration. For security, it comes with a metal back-plate to prevent the motherboard from bending over long term use. Included with the Core Frozr L are two black and silver top cover panels that you can change to fit your build's aesthetics. - MSI TORX Fan Technology

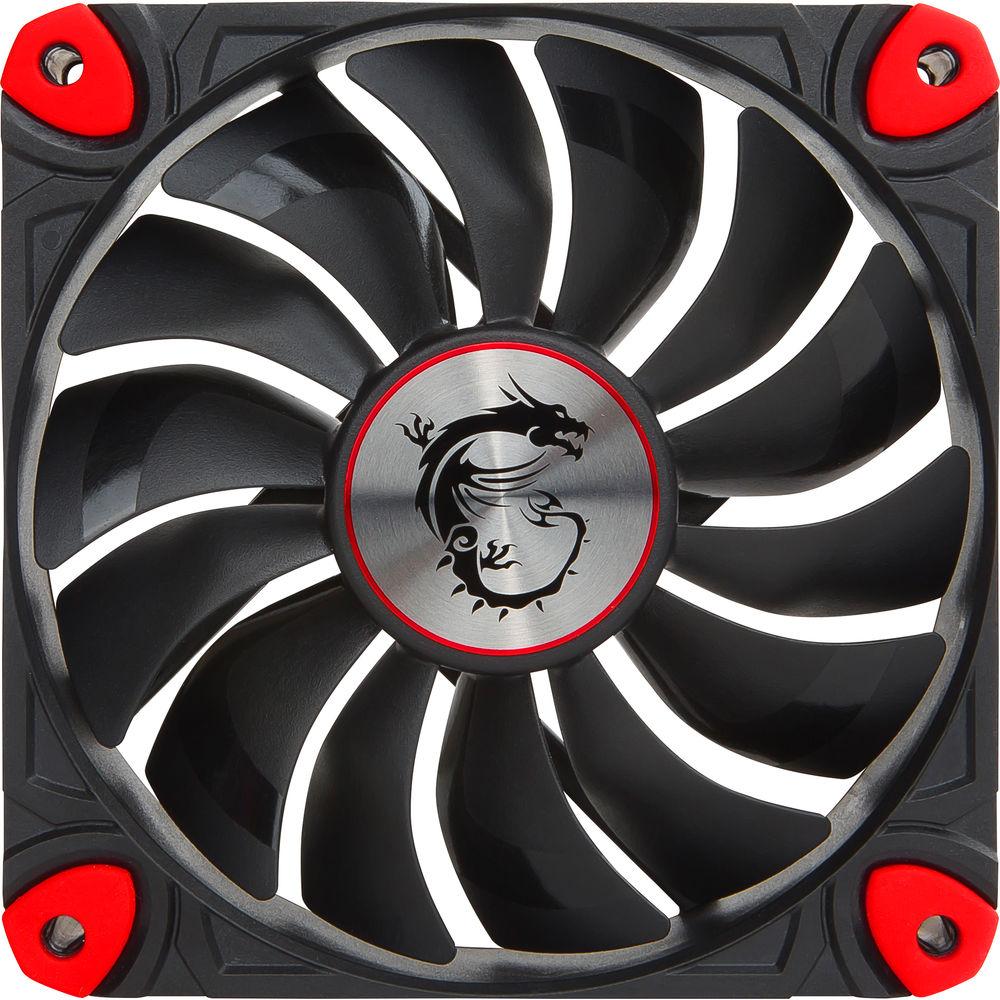

- The included MSI TORX fan features dual dispersion and traditional fan blades for quiet and efficient cooling. Meanwhile its self-lubricating hydro dynamic bearings ensure a longer lifespan under constant operation.
- Solid Base
- The solid nickel-plated copper base-plate is highly conductive and transfers heat to the connected heat pipes.

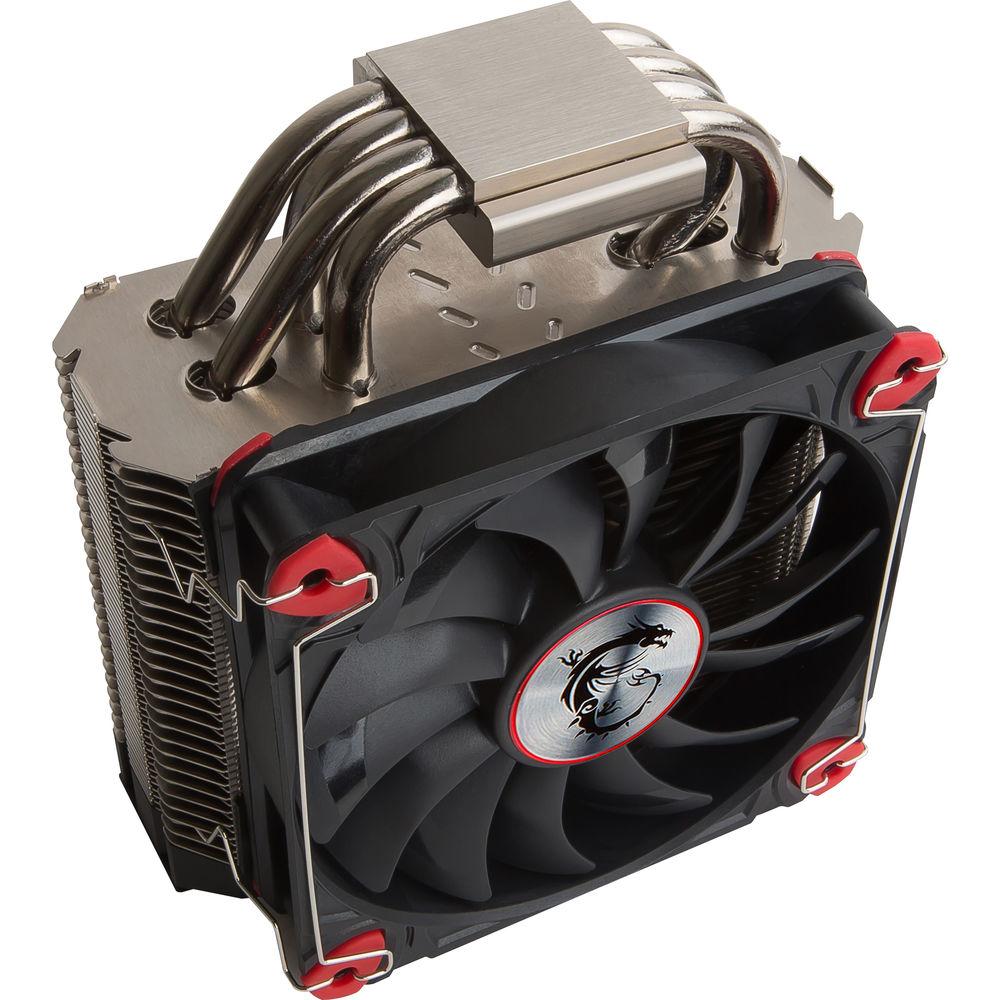

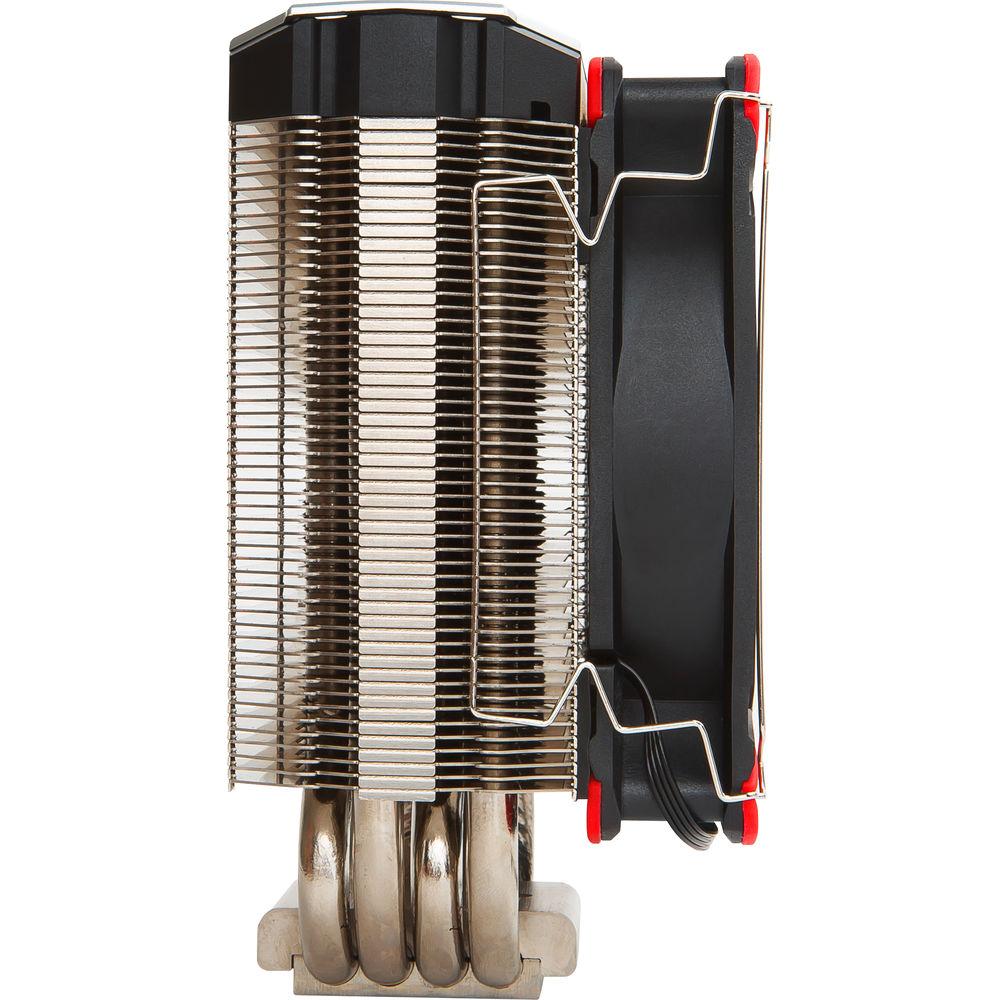

- Heatpipes & Fins
- The Core Frozr L has four 8mm heat pipes with aluminum fins designed to direct airflow onto the heat pipes for efficient cooling.
- Premium Thermal Compound X
- Premium Thermal Compound X is used as a medium between the processor and heat sink to reliably transfer heat.

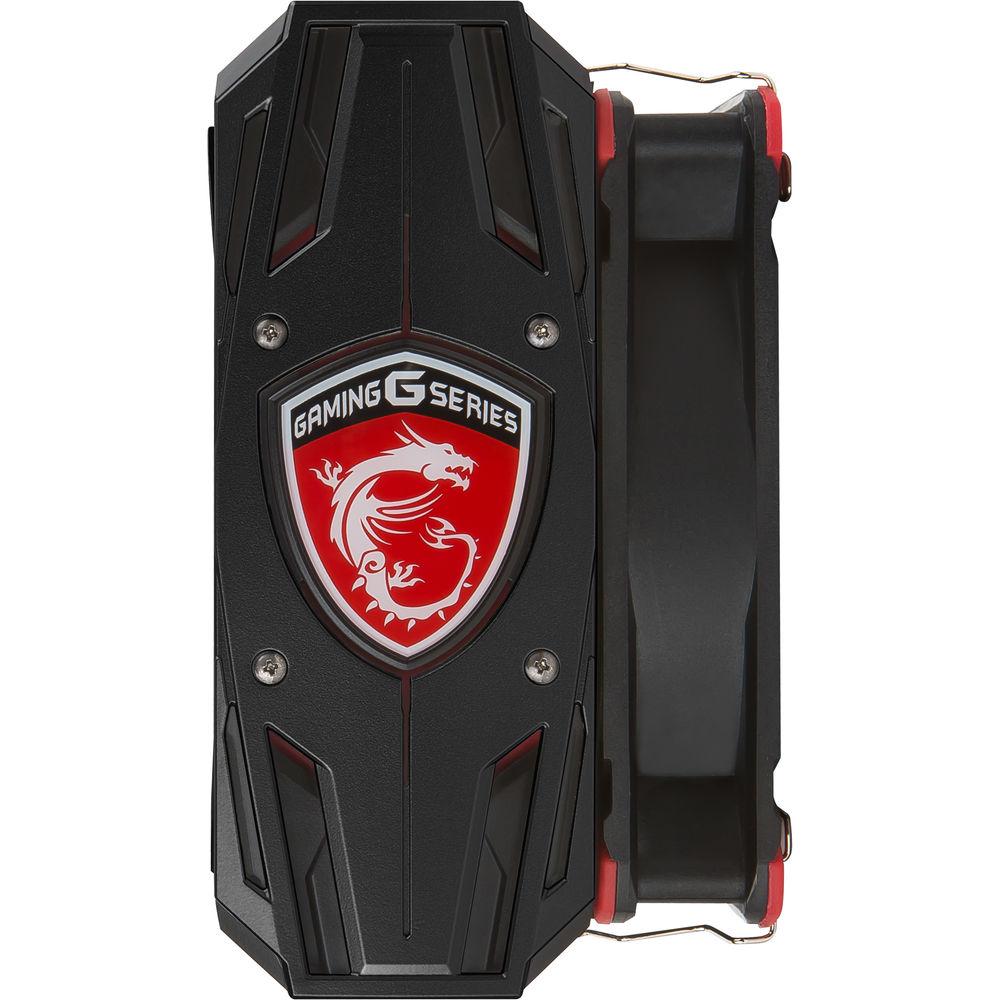

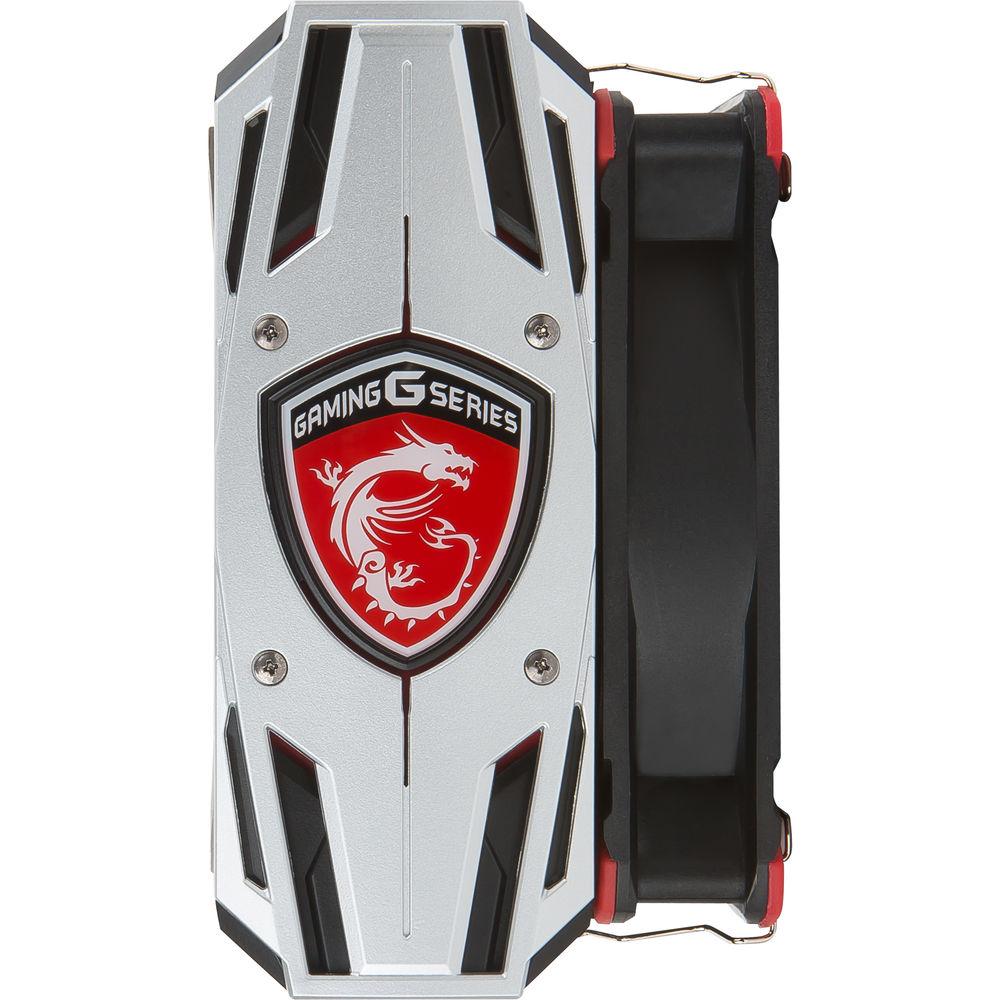

- Swappable Covers
- Black and silver top covers are included with the Core Frozr L so you can customize it to fit your build's color pallet.
- Dual Fan Support
- An additional set of fan brackets are included, which allow you to install another optional 120mm fan for a push/pull configuration for enhanced cooling performance.

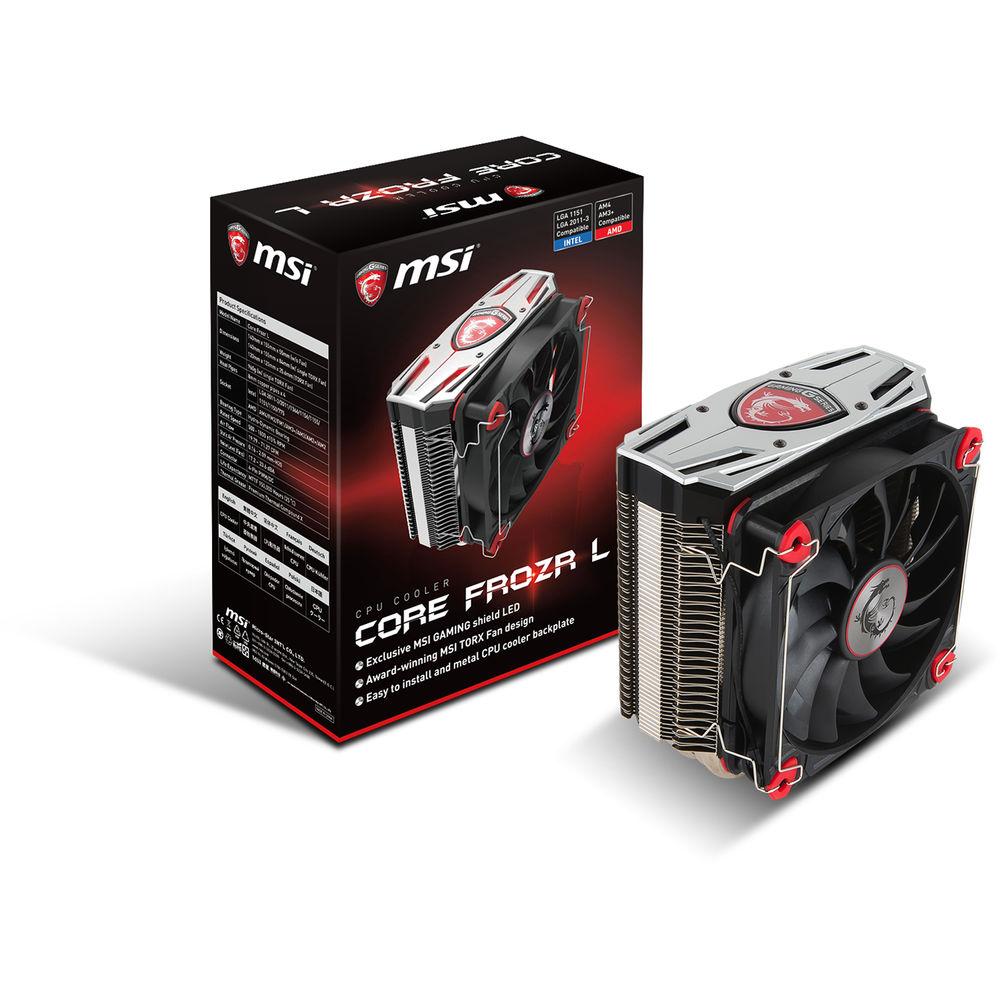

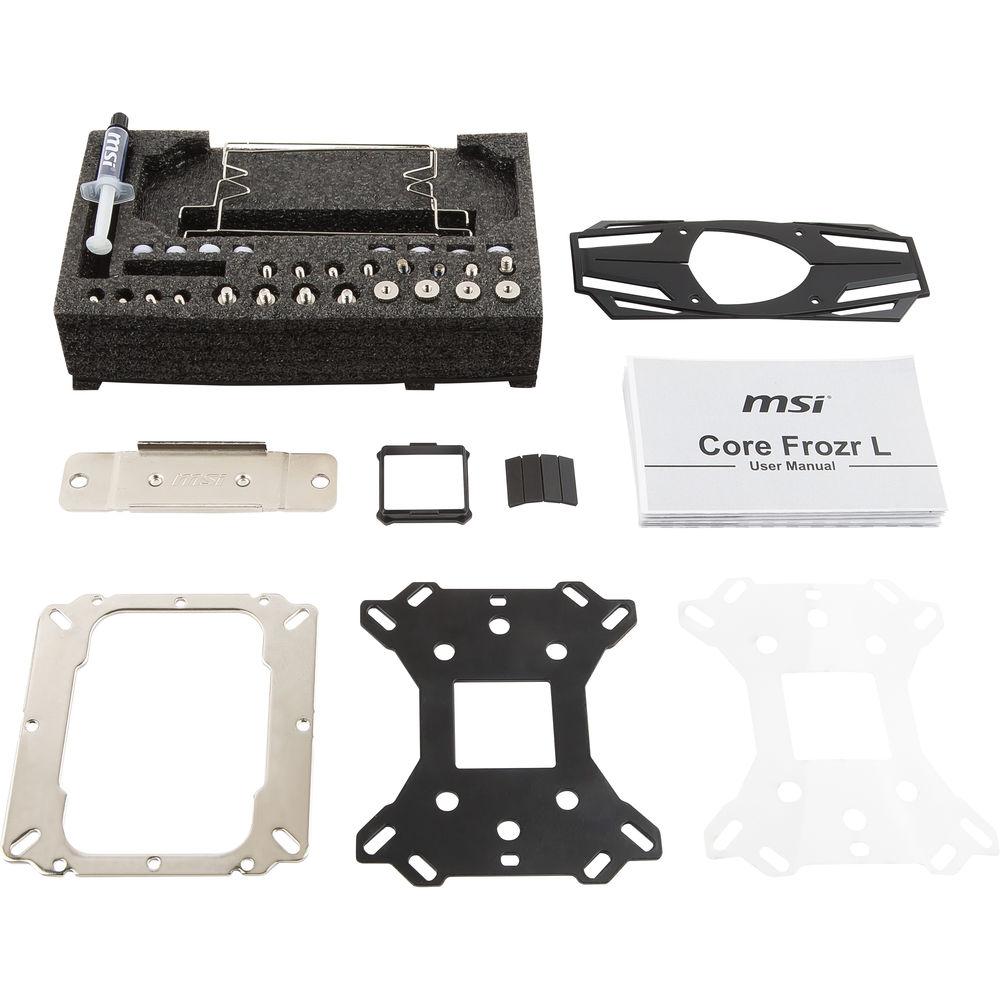

UPC: 824142135341 In the Box MSI Core Frozr L CPU Cooler Mounting Kit 2 x Fan Clips Customizable Cover Panels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Core Frozr L CPU Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Core Frozr L Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Hydro | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 120 mm | | Fan Speed | 500 to 1800 rpm | | Noise Level | 17.2 to 33.6 dBA | | LED | None | | Maximum Airflow | 71.27 CFM | | Dimensions (W x H x D) | 4.7 x 4.7 x 1.0" / 120.0 x 120.0 x 25.6 mm | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 10.0 x 7.4 x 4.2" |
