User Manual for MSI GeForce GTX 1050 AERO ITX 2G OC Graphics Card Click to enlarge the picture
Contents of the user manual for the MSI GeForce GTX 1050 AERO ITX
- Product category: Graphic Display Cards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Graphic Display Cards
 |
User manual for the MSI GeForce GTX 1050 AERO ITX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

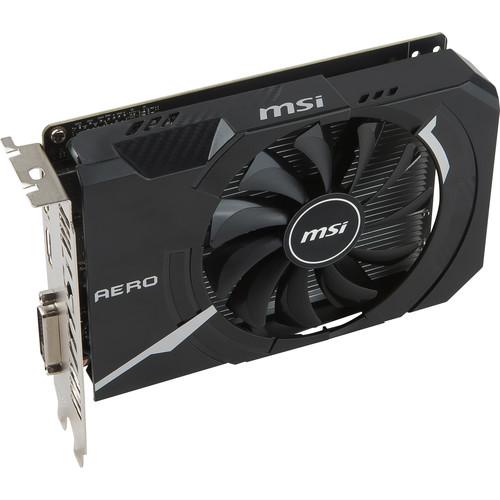

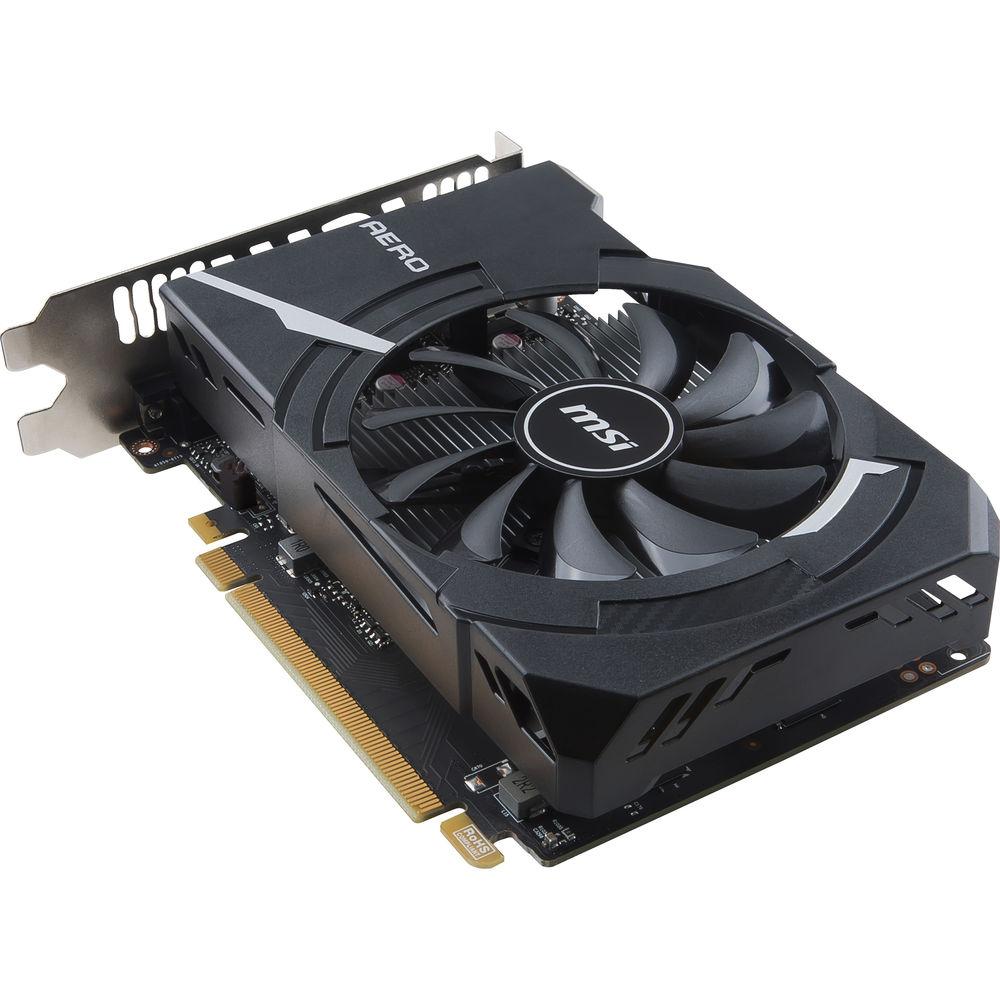

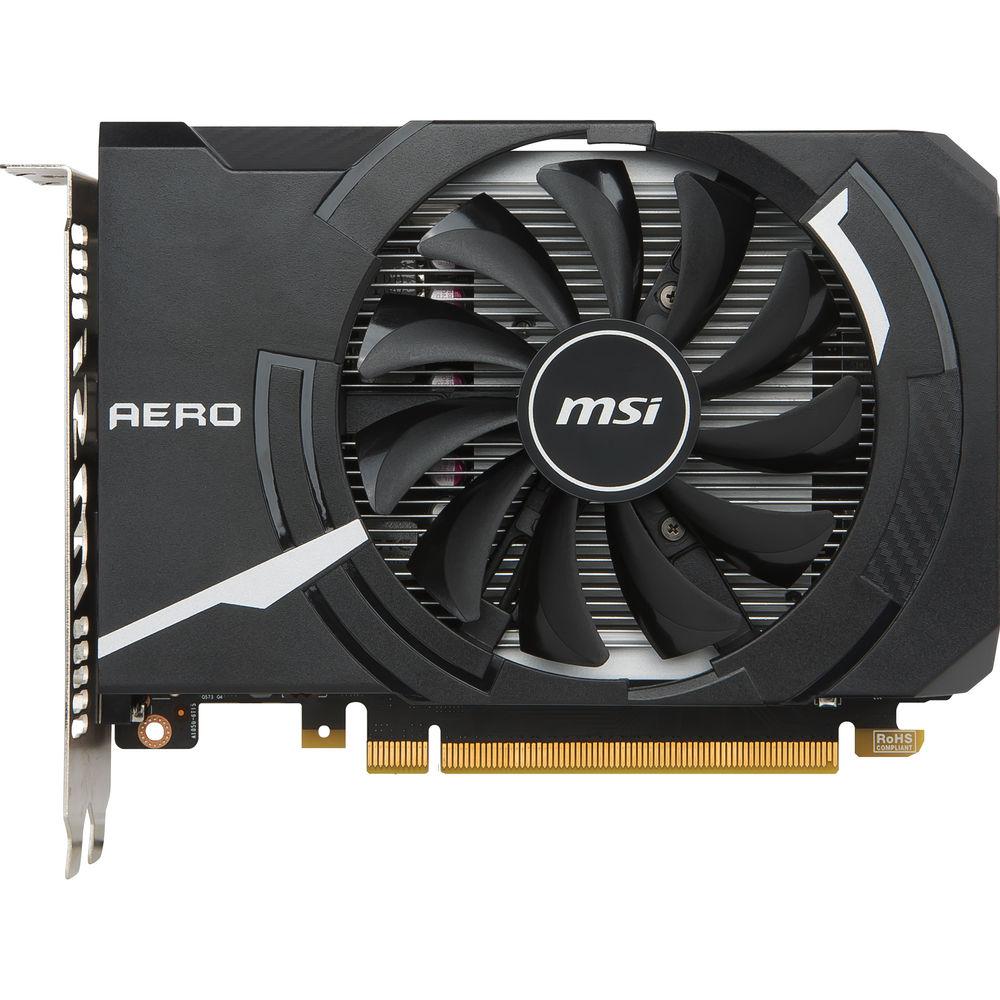

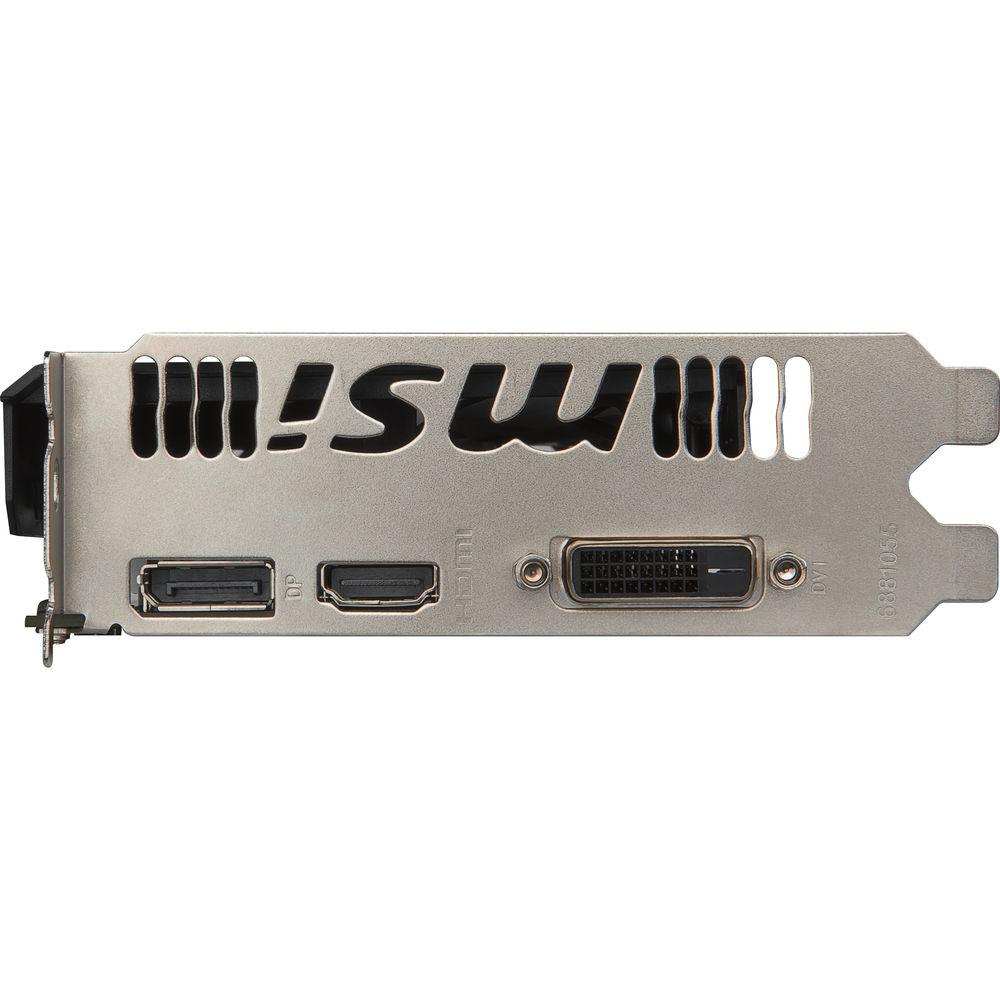

Product description Based on NVIDIA's Pascal architecture, the MSI GeForce GTX 1050 AERO ITX 2G OC Graphics Card provides major improvements in performance, memory bandwidth, and power efficiency over its predecessor, the Maxwell architecture. The front panel of the card features a variety of outputs. There are one DisplayPort 1.4 output, one HDMI 2.0b output, and one DVI-D Dual-Link output. The GTX 1050 is not just about high-resolution gaming: Computationally intensive programs can utilize the GPU's 640 cores to accelerate tasks using CUDA or other APIs. For cooling, MSI implemented a single fan cooler. - NVIDIA Ansel
- With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
- CUDA
- With CUDA, NVIDIA allows applications to hand off CPU-intensive tasks to the GPU. Your GPU is no longer just used for rendering graphics, but it can provide teraflops of floating point performance and accelerate application tasks, from real-time video rendering to fluid dynamics simulation. CUDA is used in many applications and games.
- G-SYNC Ready
- When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
- NVIDIA GPU Boost 3.0
- Boosts the card's clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 3.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.
UPC: 824142143186 In the Box MSI GeForce GTX 1050 AERO ITX 2G OC Graphics Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI GeForce GTX 1050 AERO ITX 2G OC Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI GTX 1050 AERO ITX Specs | GPU | NVIDIA GeForce GTX 1050:
CUDA Cores: 640
Base Clock: 1404 MHz
Boost Clock: 1518 MHz | | Memory | Speed: 7.008 Gbps
Configuration: 2 GB
Interface: GDDR5
Interface Width: 128-bit
Bandwidth: 112 GB/s | | Technologies | Microsoft DirectX: 12
OpenGL: 4.5
CUDA: Yes
Vulkan: Yes | | Interface | PCI Express 3.0 x16 | | Display Support | Display Connectors:
1 x DisplayPort 1.4
1 x HDMI 2.0b
1 x DVI-D DL
Maximum Digital Resolution: 7680 x 4320
Multi Monitor Support: Yes | | Power Requirements | Power Consumption: 75 W
Recommended System Power Requirement: 300 W
PCI Power Connectors: Not specified by manufacturer | | Dimensions | Height: 4.4" / 112 mm
Length: 6.1" / 155 mm
Width: Dual-Slot | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 12.2 x 9.1 x 2.8" |
