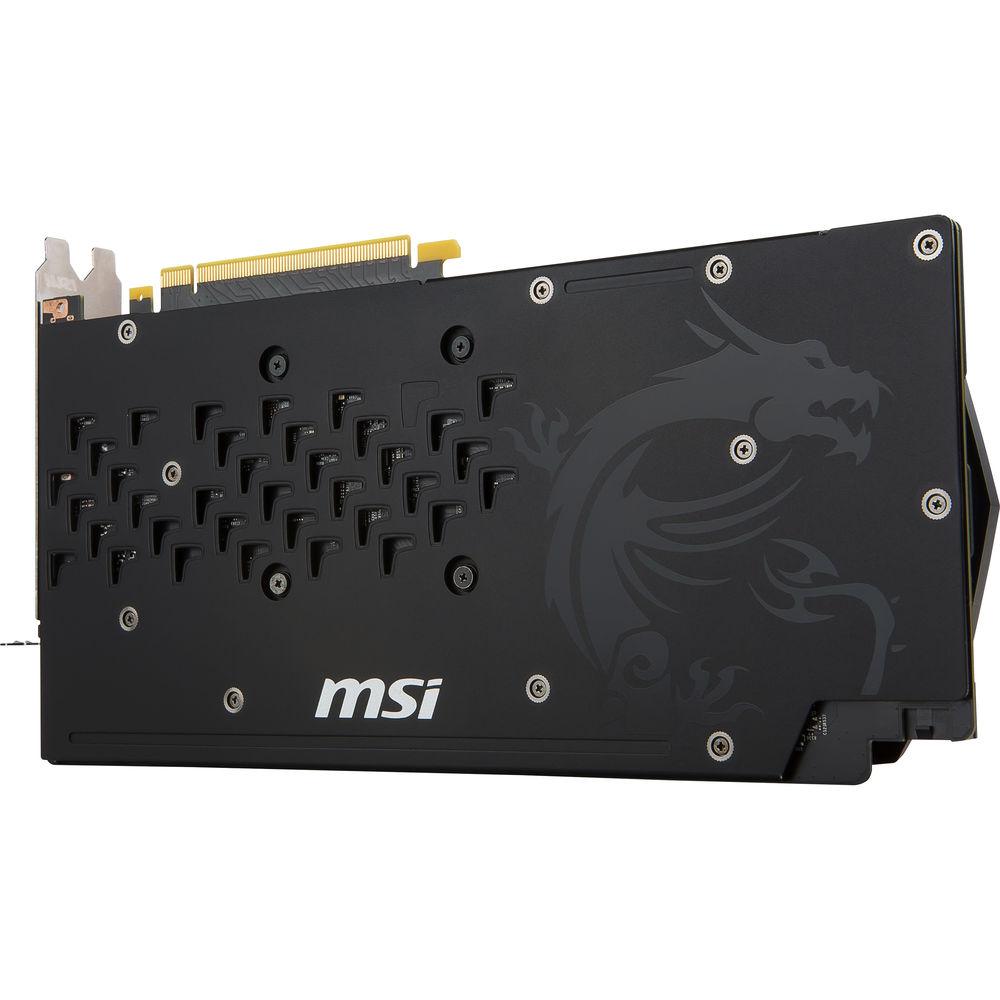

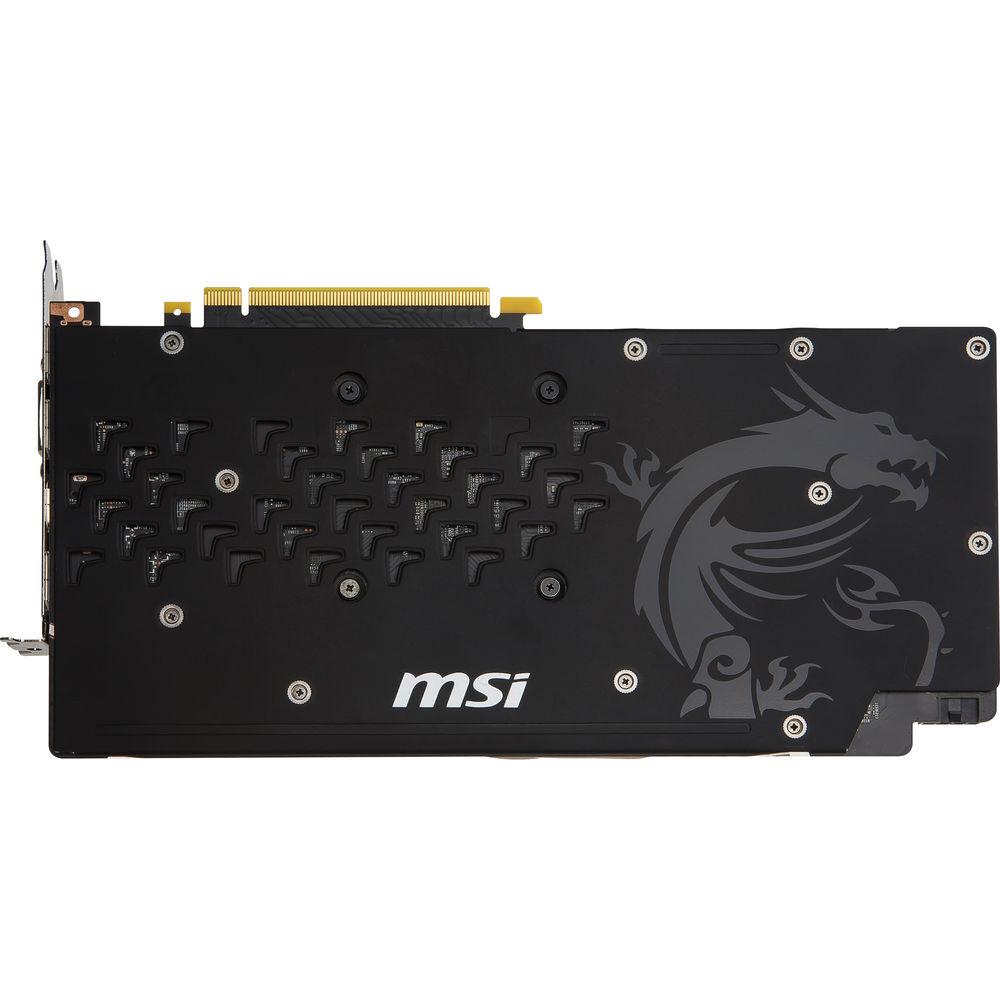

User Manual for MSI GeForce GTX 1060 GAMING X 6G Graphics Card Click to enlarge the picture
Contents of the user manual for the MSI GeForce GTX 1060 GAMING X
- Product category: Graphic Display Cards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Graphic Display Cards
 |
User manual for the MSI GeForce GTX 1060 GAMING X contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

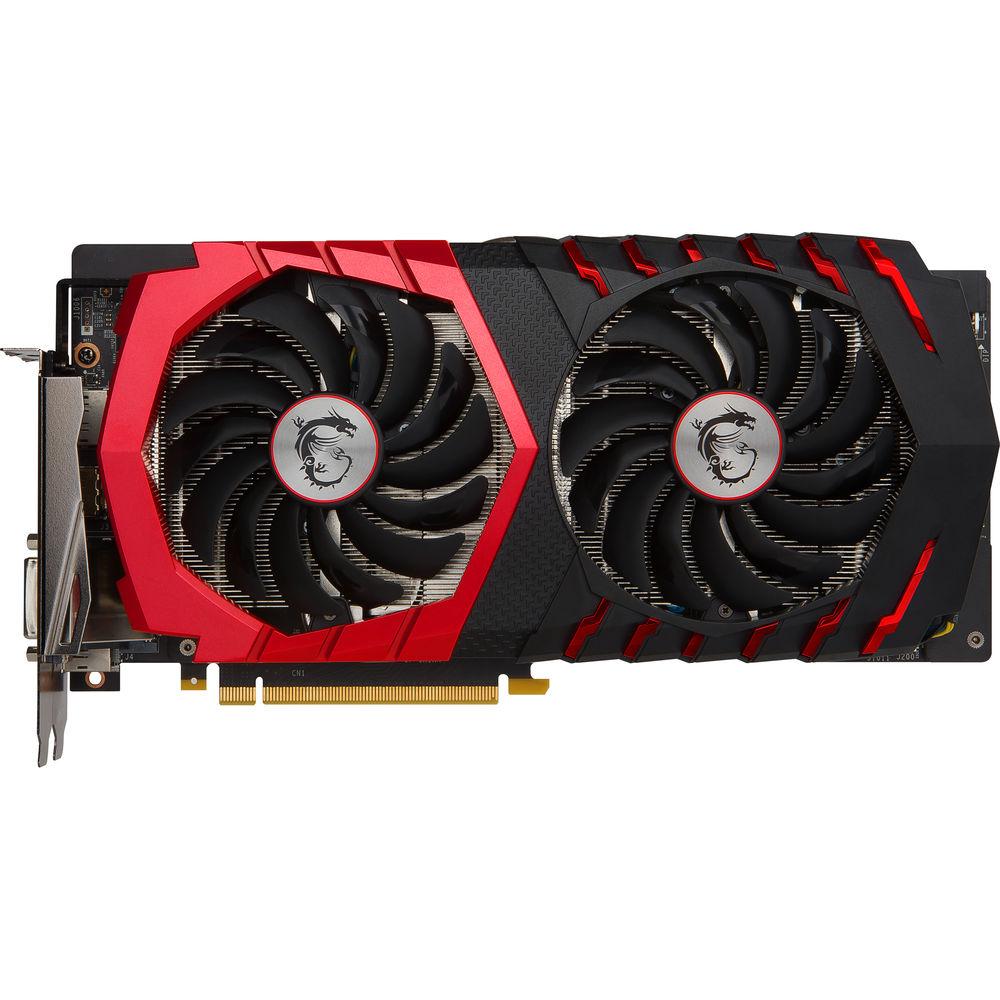

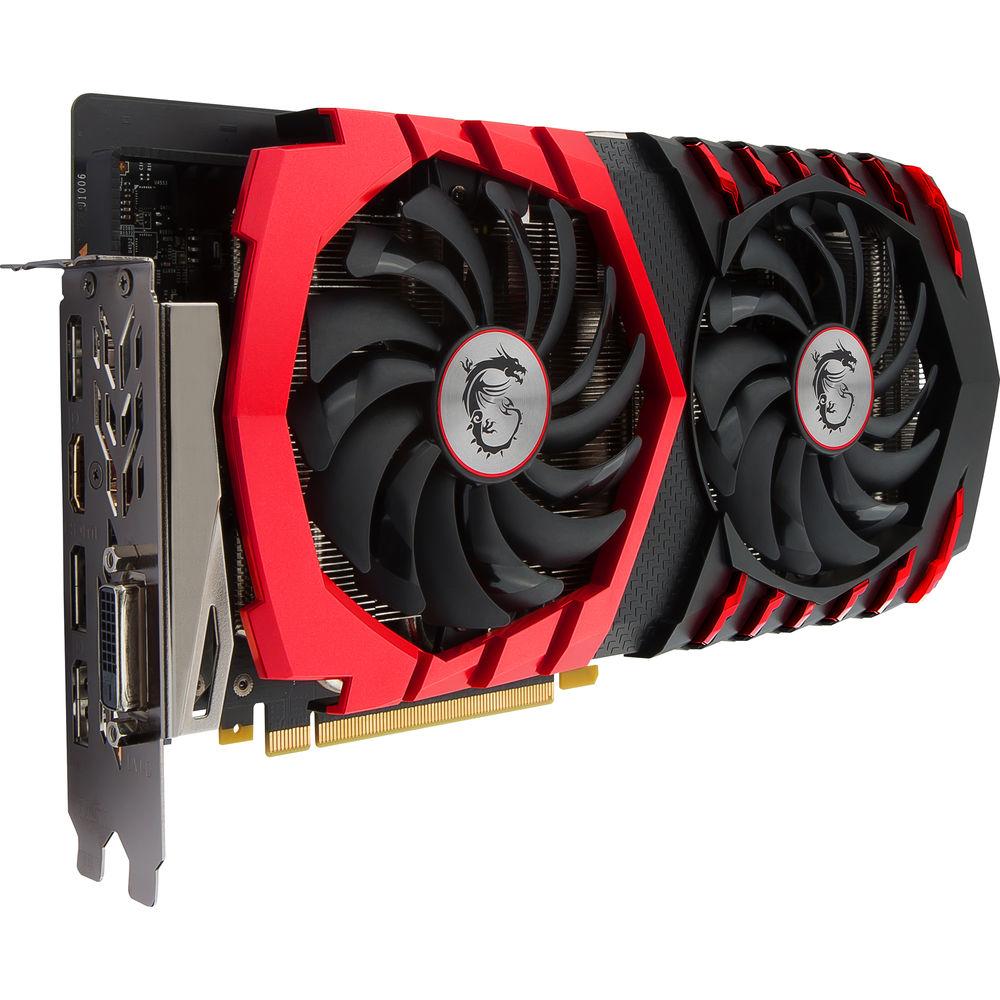

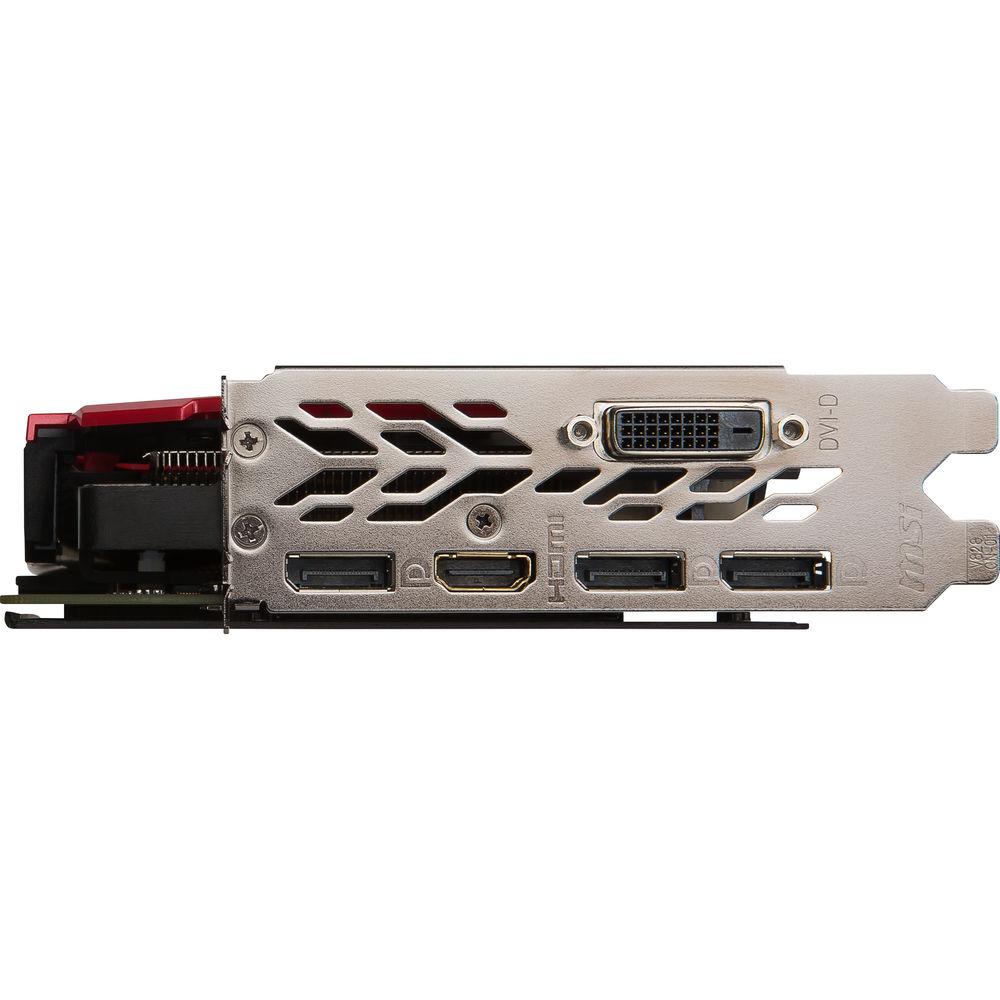

Product description Featuring an overclocked core, slightly overclocked memory, customizable LED lights, and based on NVIDIA's Pascal architecture, the MSI GeForce GTX 1060 GAMING X 6G Graphics Card provides major improvements in performance, memory bandwidth, and power efficiency over its predecessor, the high-performance Maxwell architecture. It also introduces innovative graphics features and technologies that redefine the computer as the platform for playing AAA games and taking full advantage of virtual reality via NVIDIA VRWorks. The front panel of the card features a variety of outputs. There are three DisplayPort 1.4 outputs in addition to an HDMI 2.0b output and a DVI-D Dual-Link output. The GTX 1060 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 1280 cores to accelerate tasks using CUDA or other APIs. To keep cool, even when overclocked, MSI implemented their Twin Frozr VI cooler on this card. The Twin Frozr VI cooler uses two large fans to force air through the heatsink and dissipate heat and lower the GPU's internal temperature. Because this kind of cooler recirculates air back into the case, this card works best in cases that have unrestricted airflow. There are several LED lights on the GPU, which can be controlled individually by choosing any of the animation effects available in the MSI Gaming App. You can choose to have the LED lights respond to game sounds or music. You can pick a static color or have it breathing and flashing. Of course, you can just turn them off if you don't need them. - VRWorks
- VRWorks Graphics includes a simultaneous multi-projection capability that renders natively to the unique dimensions of VR displays instead of traditional 2D monitors. It also renders geometry for the left and right eyes simultaneously in a single pass.
VRWorks Audio uses the NVIDIA OptiX ray-tracing engine to trace the path of sounds across an environment in real-time, fully reflecting the size, shape, and material of the virtual world.
NVIDIA PhysX for VR detects when a hand controller interacts with a virtual object, and enables the game engine to provide a physically accurate visual and haptic response. It also models the physical behavior of the virtual world around the user so that all interactions -- whether an explosion or a hand splashing through water -- behave as if in the real world. - NVIDIA Ansel
- With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
- CUDA
- With CUDA, NVIDIA allows applications to hand off CPU-intensive tasks to the GPU. Your GPU is no longer just used for rendering graphics, but it can provide teraflops of floating point performance and accelerate application tasks, from real-time video rendering to fluid dynamics simulation. CUDA is used in many applications and games.
- G-SYNC Ready
- When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
- NVIDIA GPU Boost 3.0
- Boosts the card's clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 3.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.

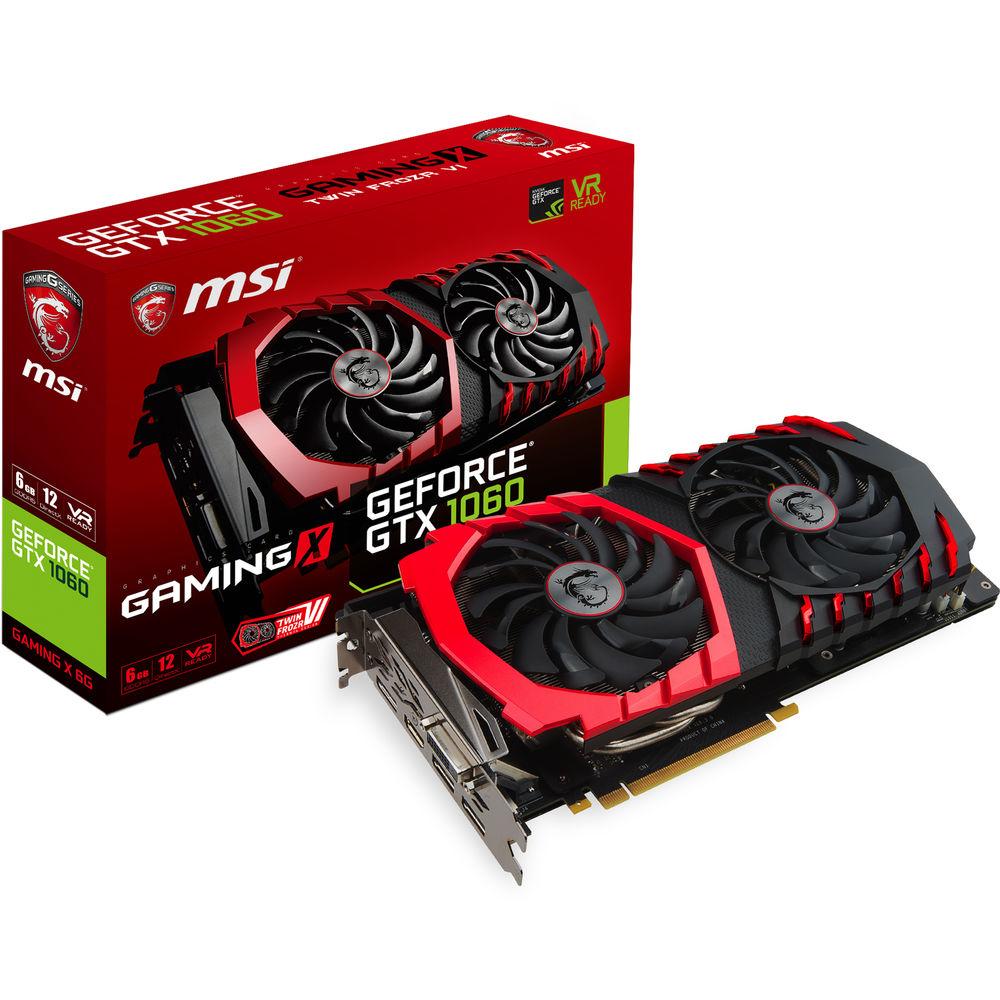

UPC: 824142132142 In the Box MSI GeForce GTX 1060 GAMING X 6G Graphics Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI GeForce GTX 1060 GAMING X 6G Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI GTX 1060 Specs | | | GPU Model | NVIDIA GeForce GTX 1060 | | Stream Processors | 1280 CUDA Cores | | Boost Clock Speed | 1809 MHz | | Base Clock Speed | 1594 MHz | | Interface | PCI Express 3.0 x16 | | Supported APIs | DirectX: 12
OpenGL: 4.5
CUDA
Vulkan | | | | Memory Speed | 8.1 Gb/s | | Memory Configuration | 6 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 192-Bit | | Memory Bandwidth | 192 GB/s | | | | Display Connectors | 3 x DisplayPort 1.4
1 x HDMI 2.0b
1 x DVI-D DL | | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | | | Max Power Consumption | 120 W | | PCI Power Connectors | 1 x 8-Pin | | Recommended System Power Requirement | 400 W | | | | Height | 5.5" / 139.70 mm | | Length | 10.9" / 276.86 mm | | Width | Dual-Slot | | | | Cooler Type | Open Fansink | | Weight | 2.24 lb (1017 g) | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 13.6 x 10.5 x 3.4" |
