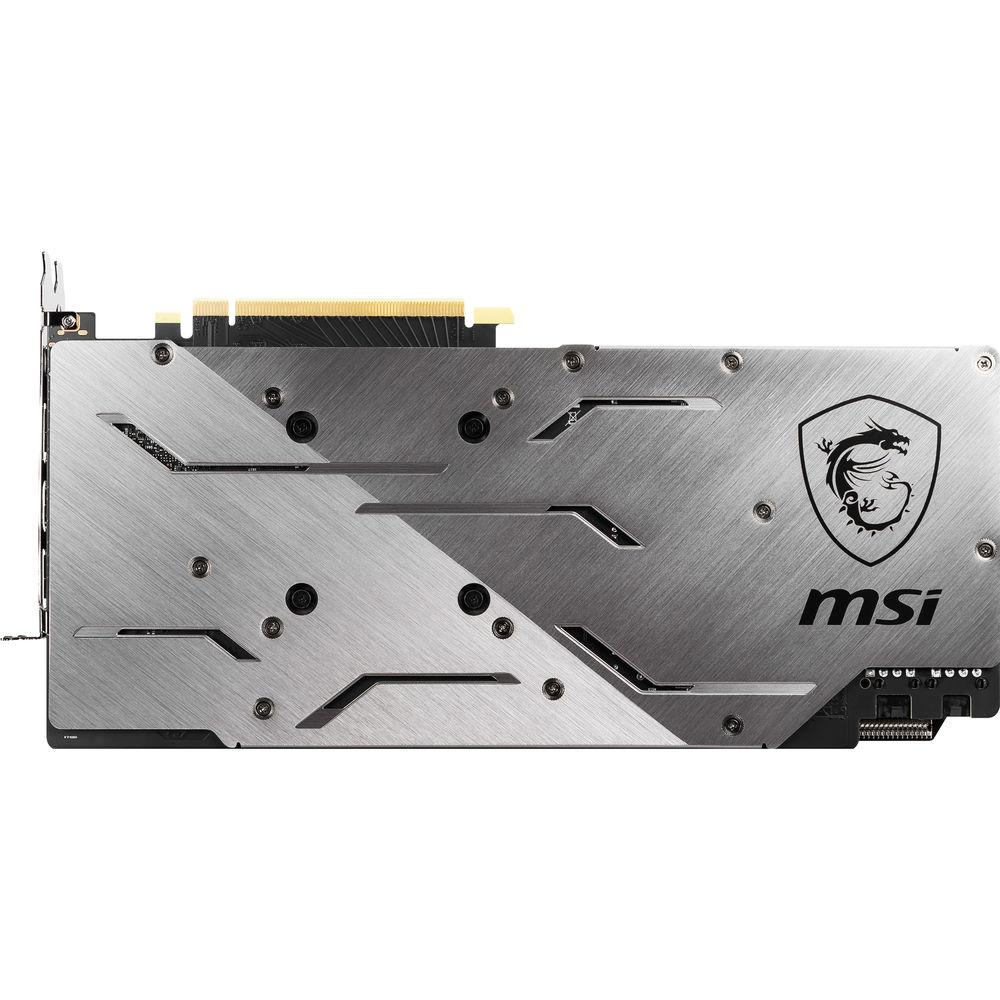

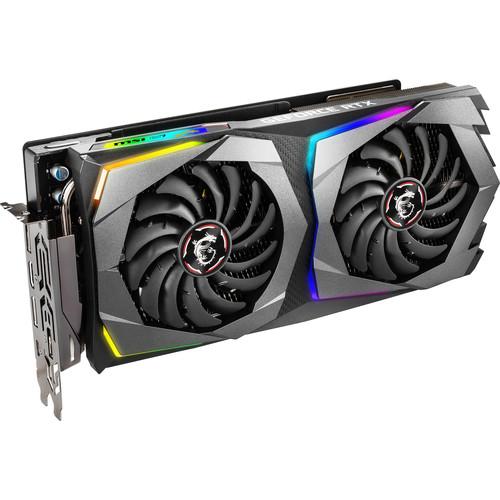

User Manual for MSI GeForce RTX 2070 GAMING Z Graphics Card Click to enlarge the picture
Contents of the user manual for the MSI GeForce RTX 2070 GAMING Z
- Product category: Graphic Display Cards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Graphic Display Cards
 |
User manual for the MSI GeForce RTX 2070 GAMING Z contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

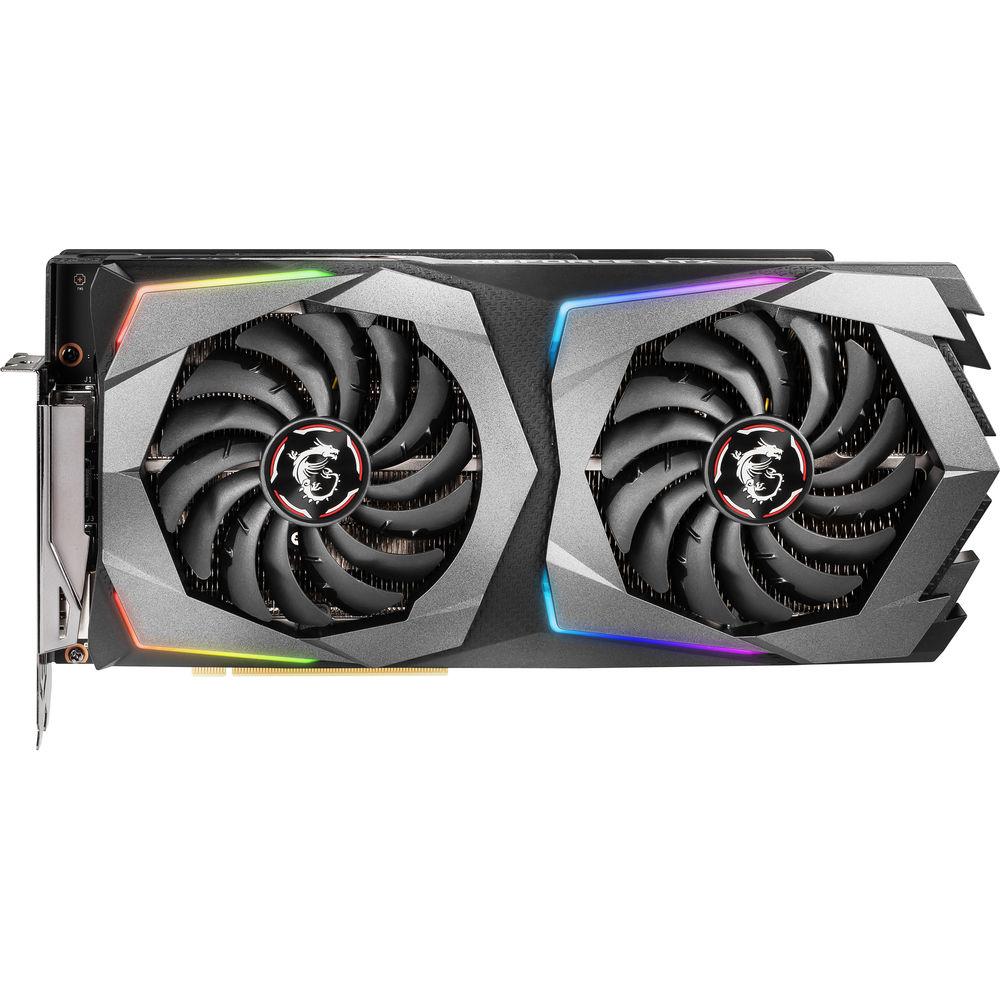

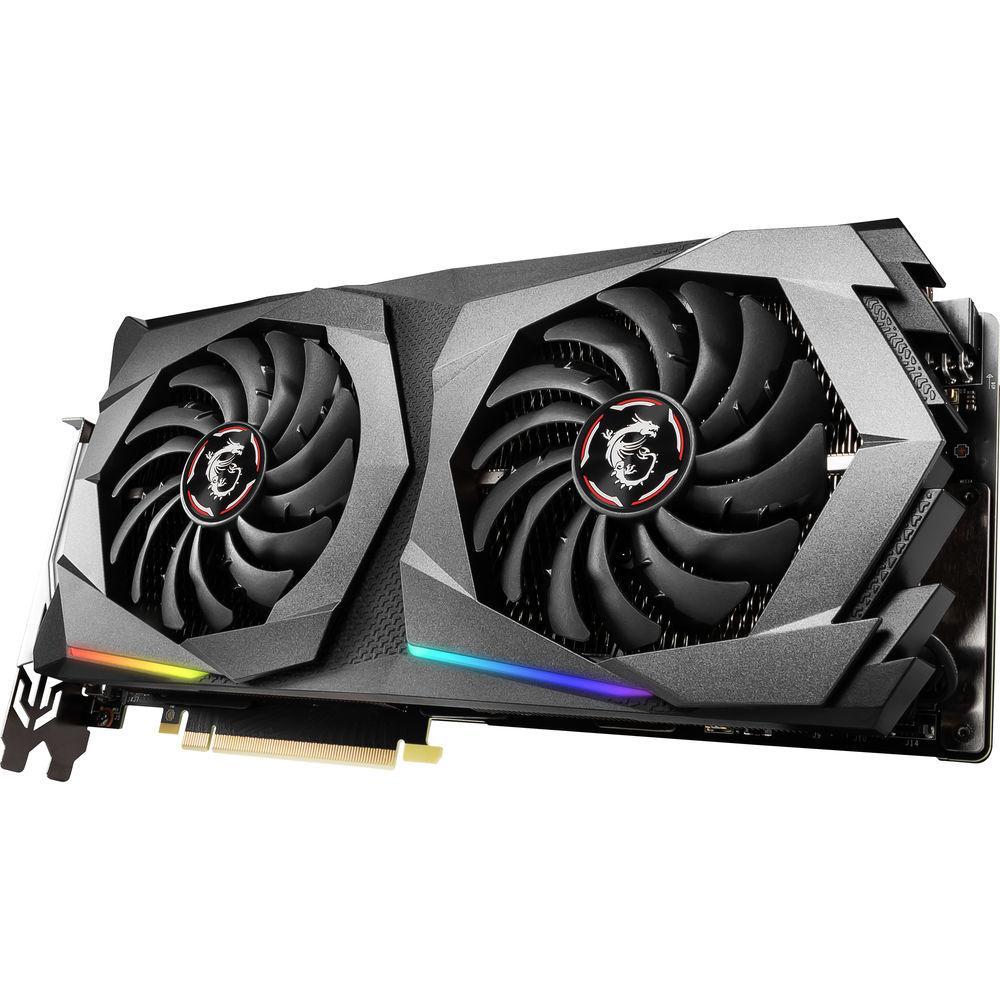

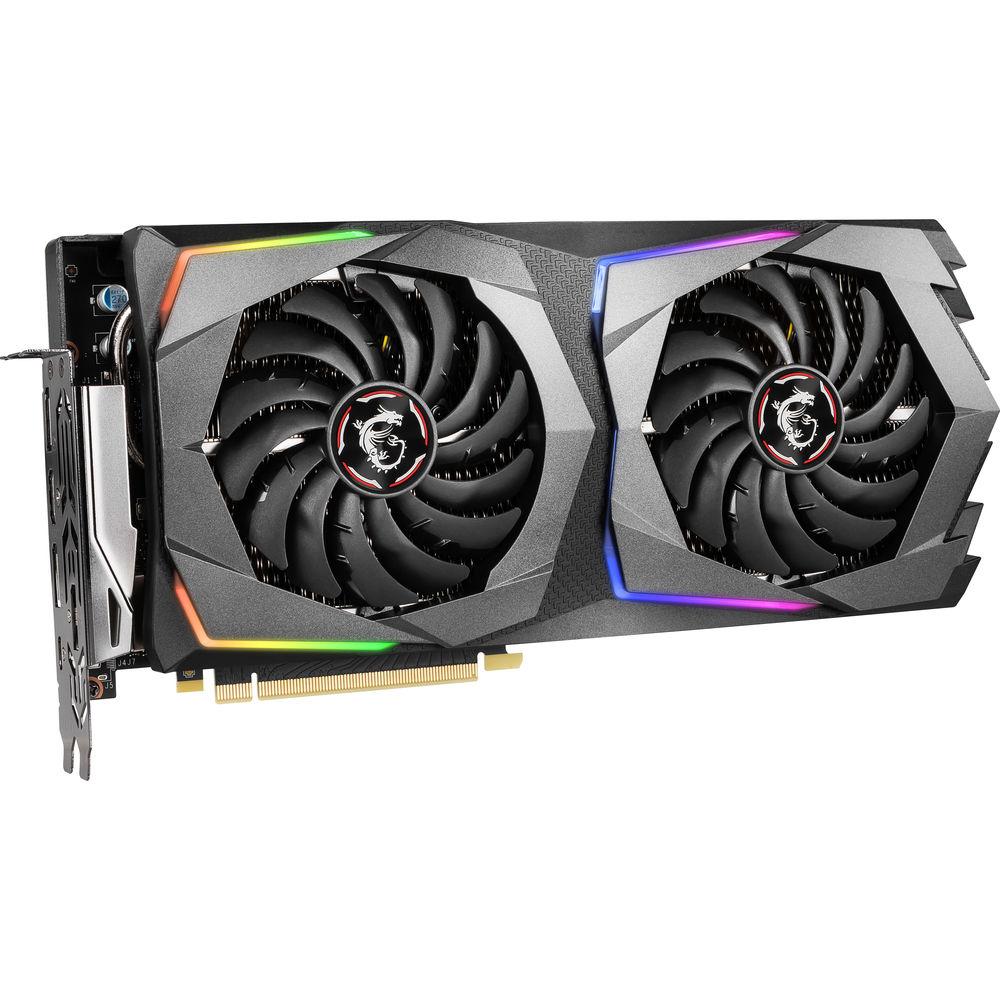

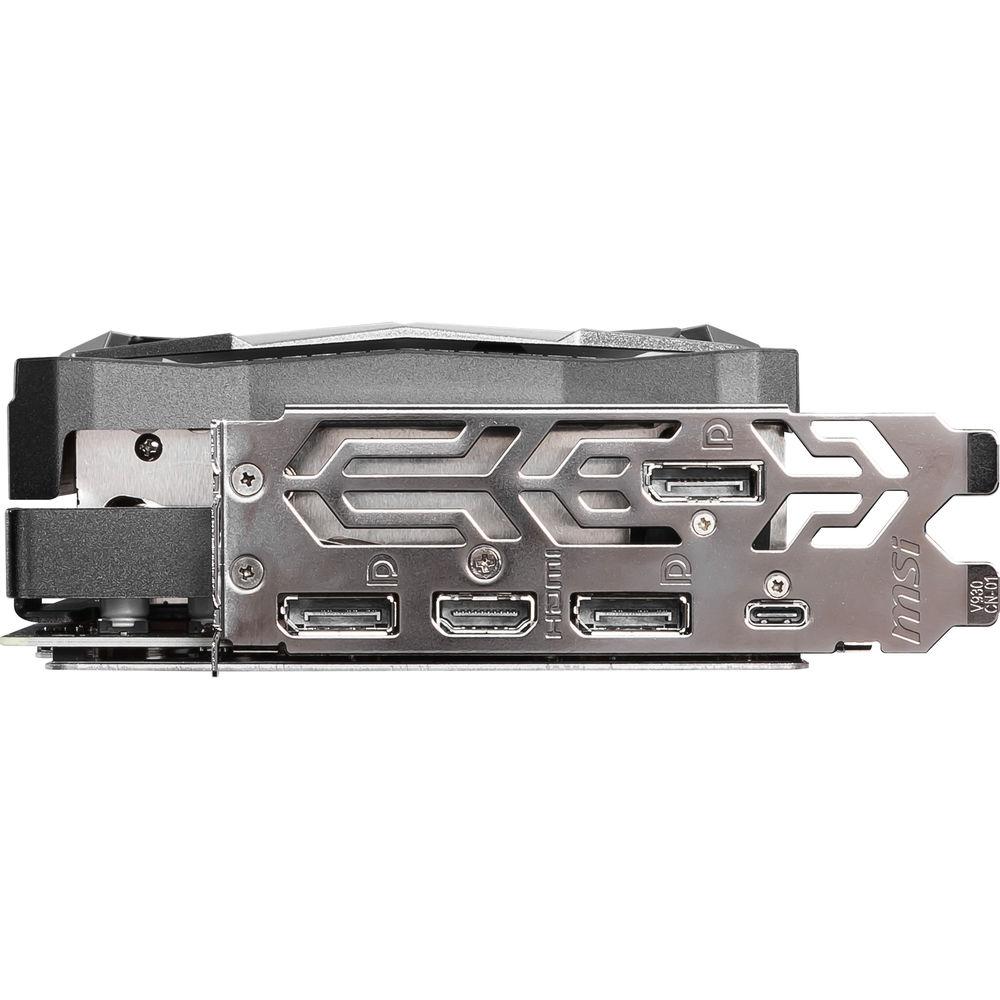

Product description Based on the Turing architecture, the MSI GeForce RTX 2070 GAMING Z Graphics Card brings the power of real-time ray tracing and AI to your PC games. It also features enhanced technologies to improve the performance of VR applications, including Variable Rate Shading, Multi-View Rendering, and VRWorks Audio. There are three DisplayPort 1.4 outputs, one HDMI 2.0b output, and one USB Type-C port with the VirtualLink standard. The RTX 2070 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 2304 cores to accelerate tasks using CUDA or other APIs. For cooling, MSI implemented a TWIN FROZR Thermal Design, which features dual TORX 3.0 fans. This GPU also utilizes MSI ZeroFrozr technology to eliminate fan noise by stopping the fans in low-load situations. With RGB Mystic Light, you can customize colors and LED effects with exclusive MSI software and synchronize the look and feel with other MSI components. - Real-Time Ray Tracing
- The NVIDIA GeForce RTX platform enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination. The RTX 2070 features 6 GigaRays per second and up to 42T RTX-OPS*.
*Equivalent aggregate math operations contributed by the Turing Shaders, CUDA Cores, Tensor Cores, and RT Cores needed to render RTX graphics. - USB Type-C with VirtualLink
- VirtualLink is an open industry standard that enables next-gen VR headsets to connect with PCs and other devices using a single, high-bandwidth USB Type-C connector. The Alternate Mode of USB Type-C simplifies and speeds up VR setup time, avoiding key obstacles to VR adoption. VirtualLink connects with VR headsets to simultaneously deliver four high-speed HBR3 DisplayPort lanes, which are scalable for future uses, a USB 3.1 Gen 2 data channel for supporting high-resolution cameras and sensors, and provides up to 27 watts of power.
- NVIDIA GPU Boost 4.0
- Boosts the card's clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 4.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.
- NVIDIA Ansel
- With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
- CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA-compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- G-SYNC Ready
- When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.

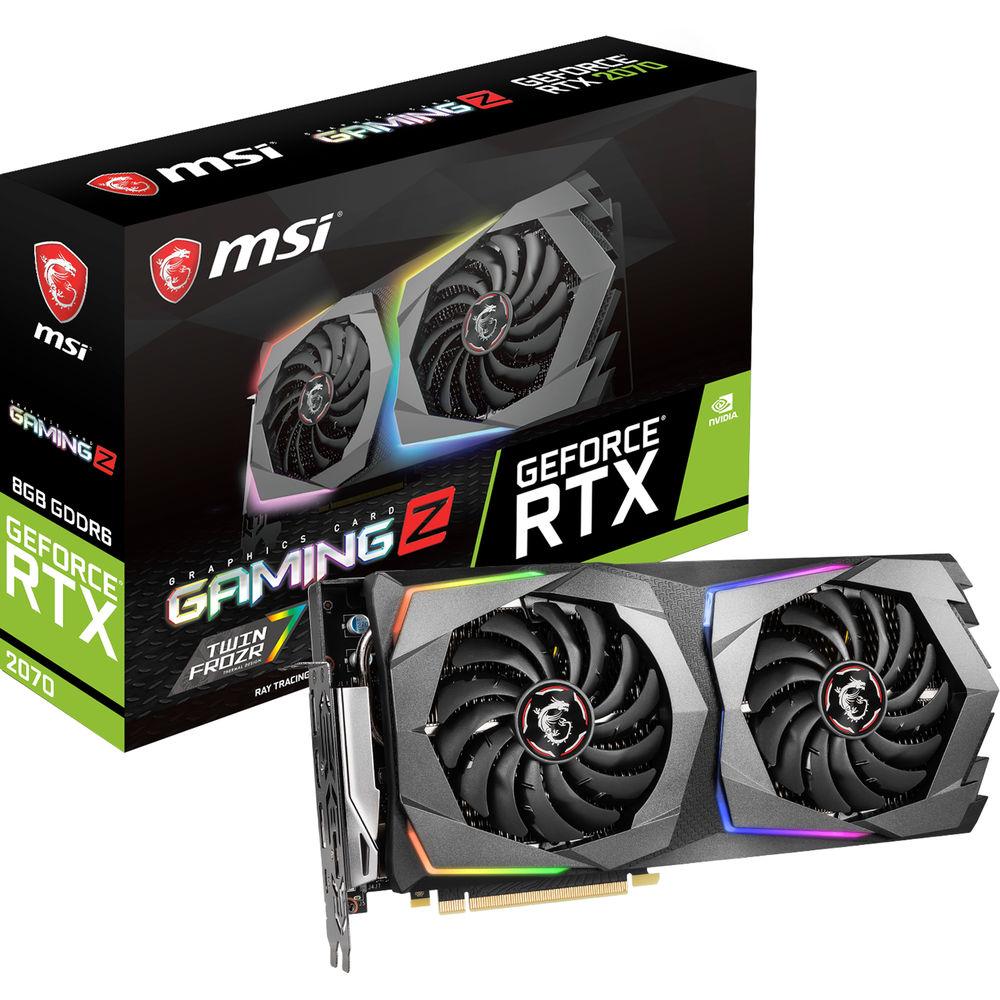

UPC: 824142171417 In the Box MSI GeForce RTX 2070 GAMING Z Graphics Card Graphics Card Support Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI GeForce RTX 2070 GAMING Z Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI GeForce RTX 2070 GAMING Z Specs | | | GPU Model | NVIDIA GeForce RTX 2070 | | Stream Processors | 2304 CUDA Cores | | Boost Clock Speed | 1830 MHz | | Base Clock Speed | 1410 MHz | | Interface | PCI Express 3.0 x16 | | Supported APIs | DirectX: 12
OpenGL: 4.5 | | | | Memory Speed | 14 Gb/s | | Memory Configuration | 8 GB | | Memory Interface | GDDR6 | | Memory Interface Width | 256-Bit | | Memory Bandwidth | 448 GB/s | | | | Display Connectors | 3 x DisplayPort 1.4
1 x HDMI 2.0b
1 x USB Type-C | | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | | | Max Power Consumption | 225 W | | PCI Power Connectors | 1 x 8-Pin
1 x 6-Pin | | Recommended System Power Requirement | 550 W | | | | Height | 6.10" / 155.00 mm | | Length | 12.09" / 307.00 mm | | Width | 2.5-Slot | | | | Cooler Type | Open Fansink | | Lighting | RGB LED | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 15.6 x 11.6 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
