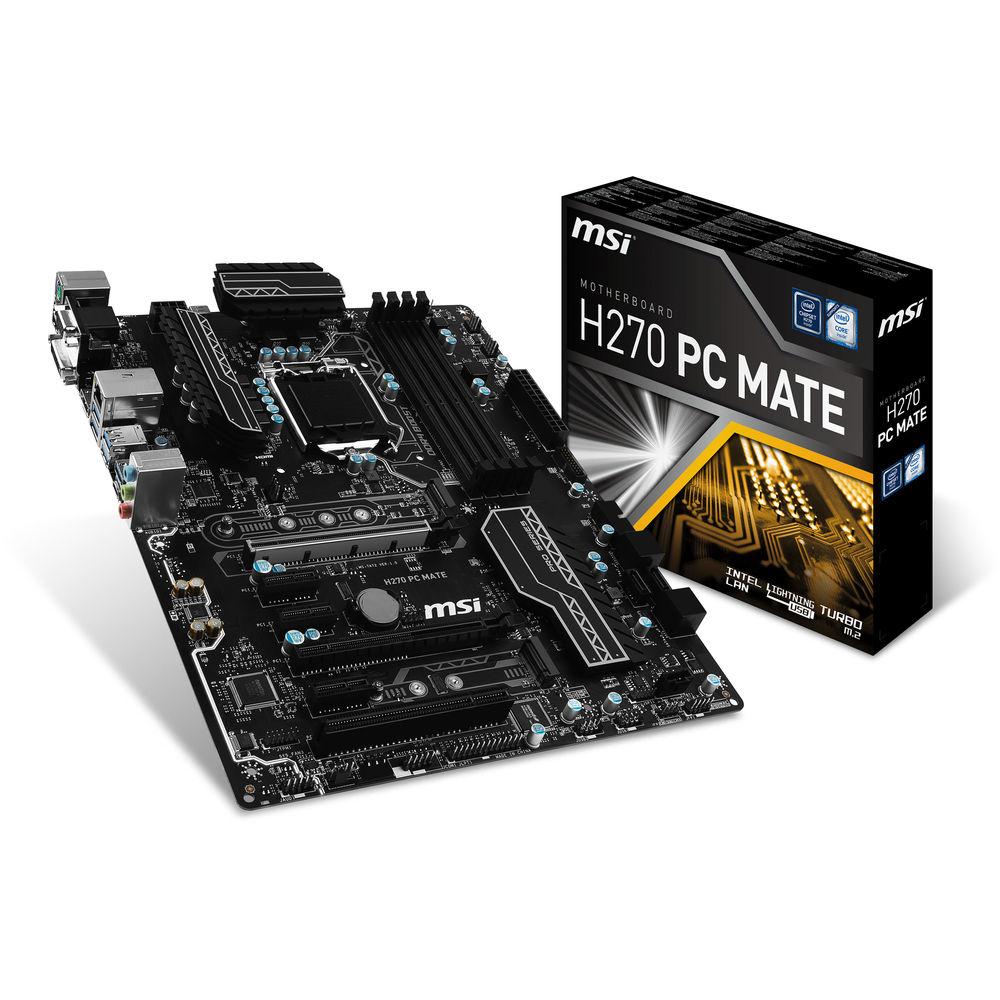

User Manual for MSI H270 PC Mate LGA1151 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI H270 PC Mate LGA1151 ATX
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI H270 PC Mate LGA1151 ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|
Product description CES 2017: MSI Launches New B250, H270, and Z270 Motherboards Read More The MSI H270 PC Mate LGA1151 ATX Motherboard lets you build a Windows system that sports a 6th- or 7th-generation Intel processor and up to two dedicated graphics cards. The H270 PC Mate features an Intel H270 chipset and an LGA1151 socket to become compatible with Intel's Core i3, Core i5, Core i7, Pentium, and Celeron processors. It comes with four DIMM slots, which can accommodate up to 64GB of DDR4 memory chips, as well as six SATA interfaces for your 2.5" and 3.5" storage drives. For faster access to your data, the H270 PC Mate supports up to two ultra-fast SSDs with an M.2 form factor, along with support for RAID with these drives.
The H270 PC Mate motherboard comes with a total of eight USB ports with varying speeds. For connections with keyboards and mice, two USB 2.0 ports are available. To connect with printers, scanners, and external storage drives, this motherboard offers four USB 3.0 ports, which deliver speeds of up to 5 Gb/s. With speeds of 10 Gb/s, the two onboard USB 3.1 ports are suitable for transferring large-sized files from digital cameras. Moreover, one of these two USB 3.1 ports features a reversible USB Type-C design that enables you to connect a USB-C cable the first try.
MSI has outfitted this motherboard with HDMI, DVI-D, and VGA outputs to deliver detailed visuals to your monitors utilizing integrated Intel graphics. With two PCIe 3.0 x16 slots available, you can install optional graphics cards to edit videos and create 3D environments. Furthermore, three PCIe 3.0 x1 slots and one PCI slot are on board, letting you expand the motherboard's capabilities.
Aside from slots, the H270 PC Mate motherboard is equipped with an Intel Gigabit Ethernet port along with a Realtek ALC887 audio codec chipset, which immerses you in 7.1-channel sounds through your speakers or headset. - Intel H270 Chipset
- The H270 chipset is designed to support Intel's 6th and 7th-generation of processors.
- Intel LGA1151 Socket
- This motherboard supports Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package. These processors come with integrated graphics, memory, and PCI-Express controllers to deliver onboard graphics, dual-channel DDR4 memory support, and PCI Express 3.0 lanes for graphics performance.
Additional Features - DDR4 Boost gives your DDR4 memory modules a performance increase
- Audio Boost rewards your ears with studio grade sound quality for a Hi-Fi experience
- EZ Debug LED provides an easy way to troubleshoot problems
- Twin Turbo M.2 delivers speeds of up to 32 Gb/s
- M.2 Genie makes setting up a RAID for M.2 SSDs easier and faster
- Lightning USB 3.1 ports with 10 Gb/s
- Increase your USB and storage performance with the X-Boost tool
- Double ESD Protection features double-layer grounding mounting holes
- Military Class 5 and Guard Pro for enhanced protection and efficiency
- Click BIOS offers secure and reliable UEFI BIOS solution
UPC: 824142138304 In the Box MSI H270 PC Mate LGA1151 ATX Motherboard Driver & Utilities Disc I/O Shield 2 x SATA Cables Limited 2-Year Warranty Quick start Guide PDF 6.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI H270 PC Mate LGA1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI H270 Specs | | | Chipset | Intel H270 | | CPU Socket | LGA 1151 | | | | USB | 1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C
4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x HDMI
1 x DVI-D
1 x VGA | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1 (M.2) | | | | Expansion Slots | 2 x PCIe 3.0 x16
3 x PCIe 3.0 x1
1 x PCI | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | None | | Diagnostics | Clear CMOS | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Parallel
1 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.7 x 10.6 x 2.6" |
