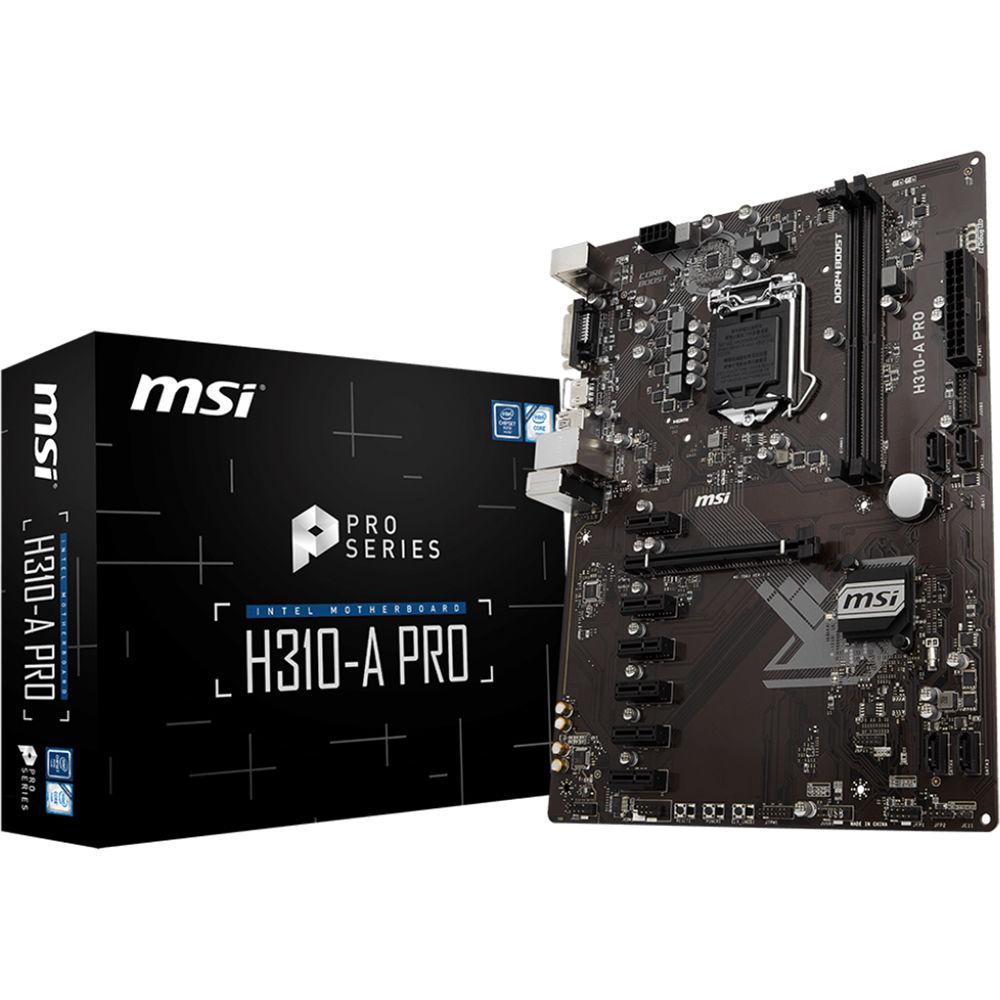

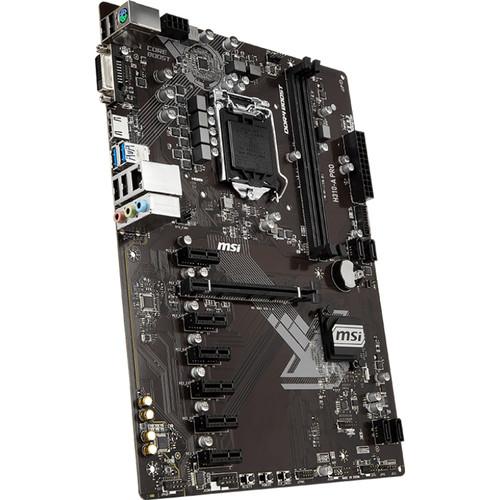

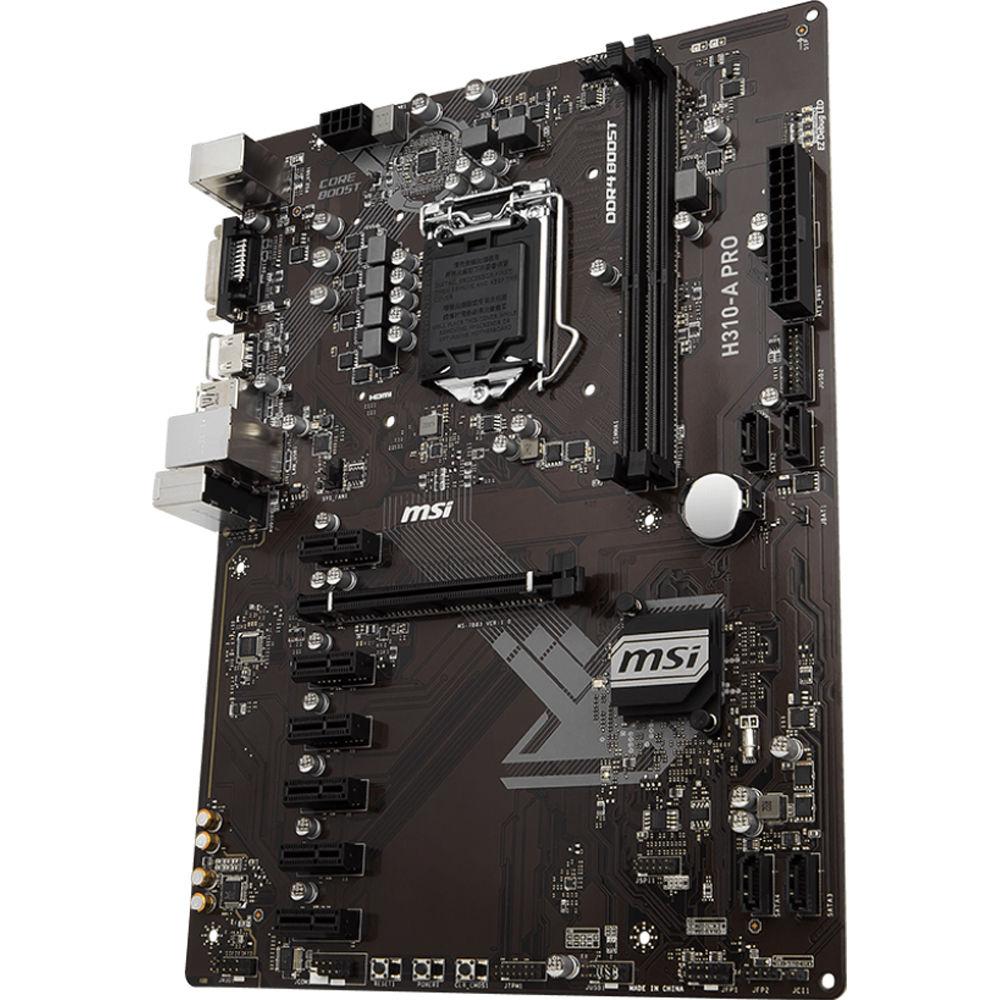

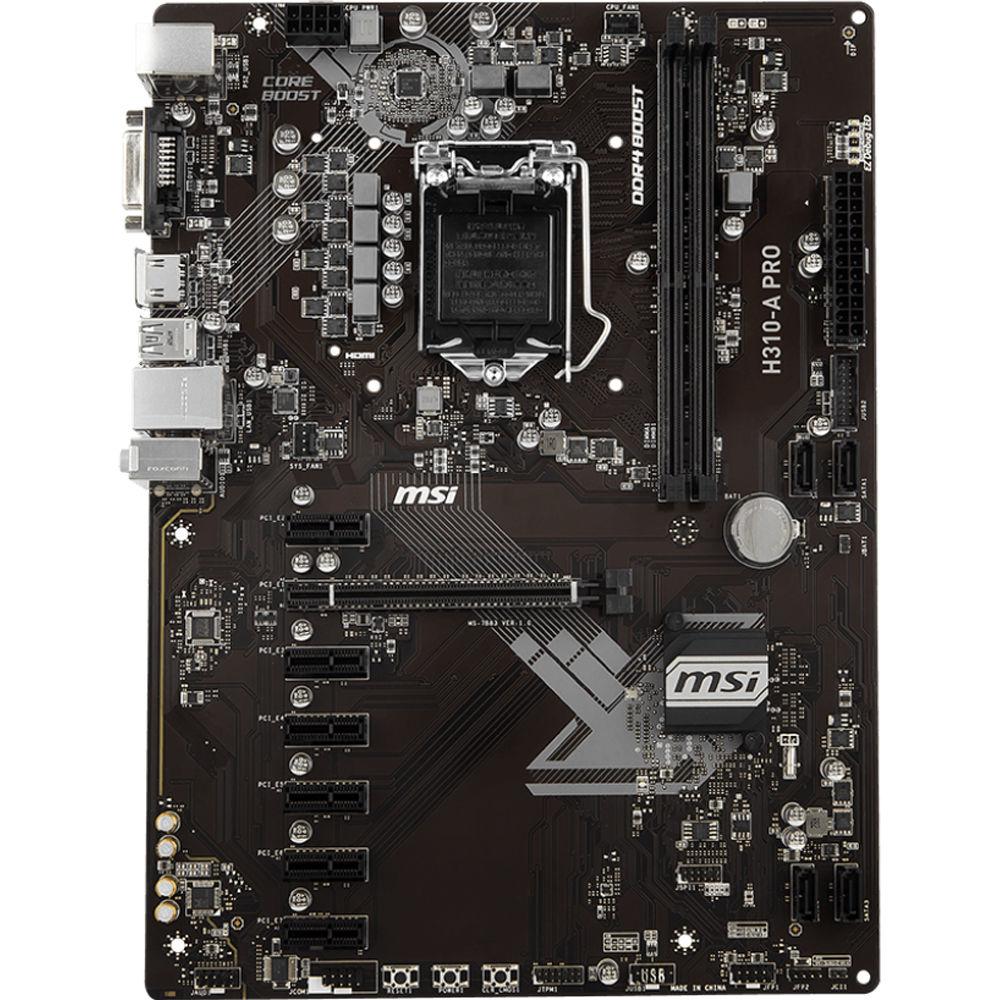

Product description The H310-A Pro LGA 1151 ATX Motherboard from MSI is a crypto currency mining-focused motherboard designed with a total of seven PCIe slots. It's built on the Intel H310 chipset with a LGA 1151 socket for 8th generation Intel Core, Pentium Gold, and Celeron processors. There are two DDR4 memory slots that support a max of 32GB of 2666 MHz RAM and four SATA III ports for storage drives. Other integrated features include Intel Gigabit LAN, DVI-D and HDMI outputs, and Realtek ALC887 7.1-channel high-definition audio. - Crypto Currency Friendly
- The H310-A Pro motherboard is equipped with one PCIe 3.0 x16 slot and six PCIe 2.0 x1 slots that can be used to mine crypto currency. Moreover, it has multiple hardware and software features designed for efficient mining and management such as Diskless Boot support, which enables you to mine crypto currency without having an operating system.
- Cooling
- This motherboard is equipped with two DC/PWM fan headers for complete fan control. Manually or automatically adjust the fan speed to find a balance between performance and noise.
- DDR4 RAM
- The memory circuity on this motherboard has an optimized layout for stability. Moreover, it supports a wide variety of RAM from multiple manufacturers as well as Intel's Extreme Memory Profile (XMP) for enhanced performance.
- Audio
-
- Audio Boost - Delivers an enhanced and immersive listening experience with multiple hardware and software features.
- Isolated Audio Design with LED Border - Physically isolated circuitry ensures better audio signal.
- Separated Audio Layers - Separated layers in the PCB provide better sound quality for left- and right-audio channels.
- De-Pop Protection - Eliminates loud popping sounds when plugging or unplugging devices, or turning your system on or off.
- Dedicated Audio Processor - An EMI-shielded HD audio processor offers enhanced sound quality for both stereo and surround sound.
- Quality Capacitors - Golden audio capacitors ensure reliable and clear sound output.
UPC: 824142160497 In the Box MSI H310-A Pro LGA 1151 ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI H310-A Pro LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

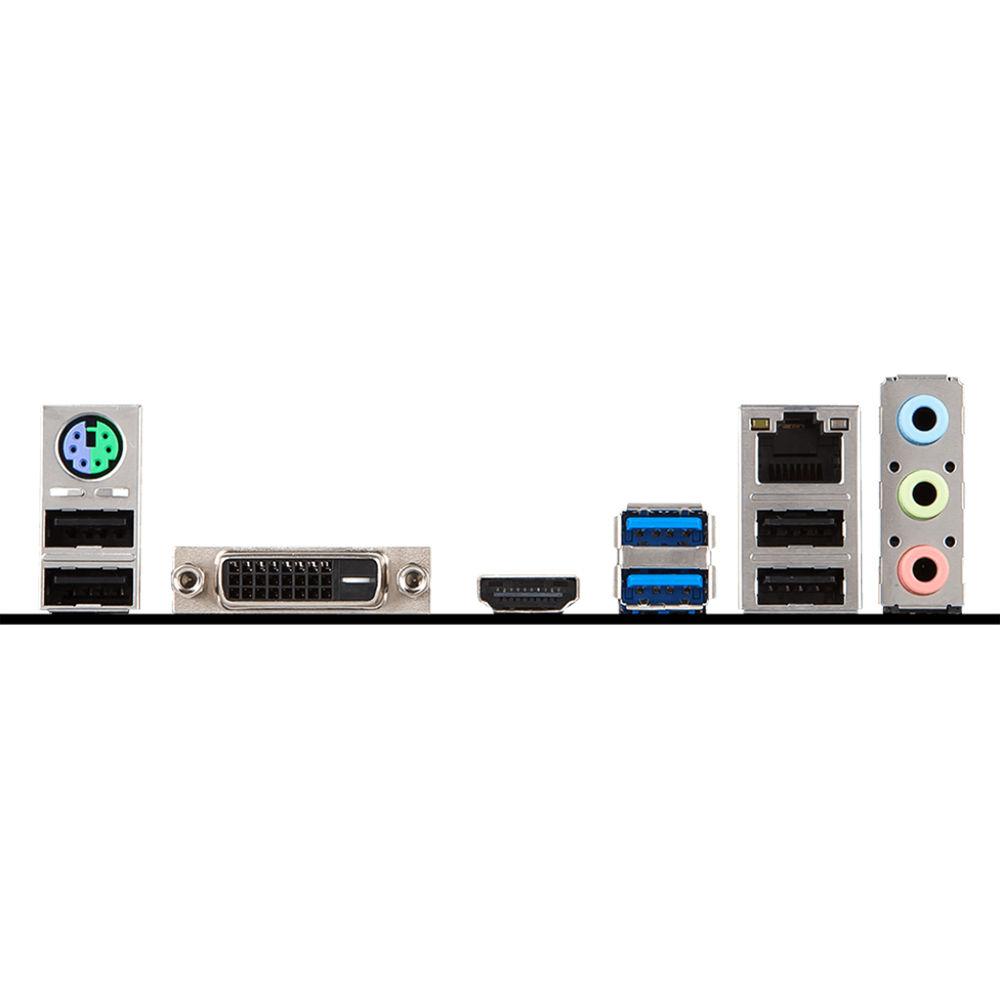

Technical parametersMSI H310-A Pro Specs | | | Chipset | Intel H310 | | CPU Socket | LGA 1151 | | | | USB | 4 x USB 2.0 Type-A
2 x USB 3.1 Gen 1 Type-A | | Display | 1 x DVI-D
1 x HDMI | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219-V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | None | | U.2 | None | | | | Expansion Slots | 1 x PCIe 3.0 x16
6 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | Audio | None | | Diagnostics | Clear CMOS, Power, Reset | | Legacy | 1 x Serial | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC887 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 8.9" / 304.80 x 226.06 mm | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 13.75 x 10.75 x 2.75" |
