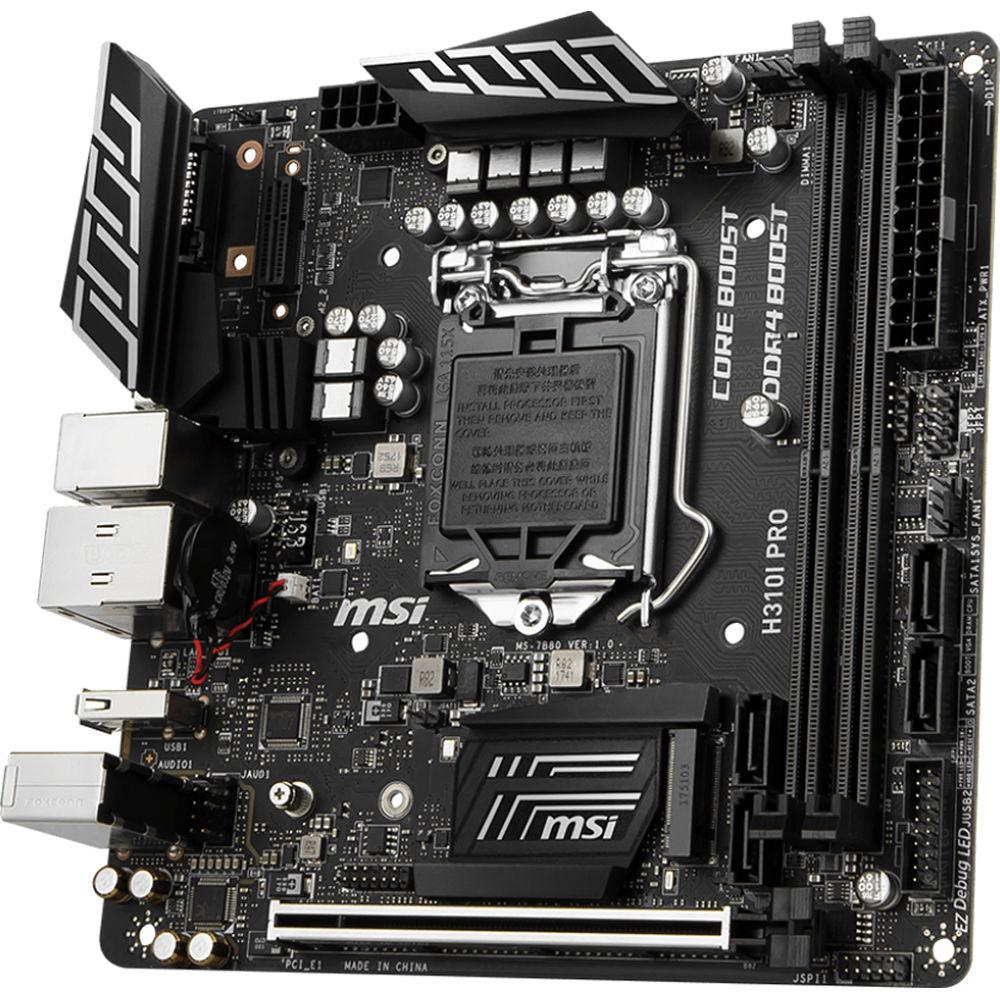

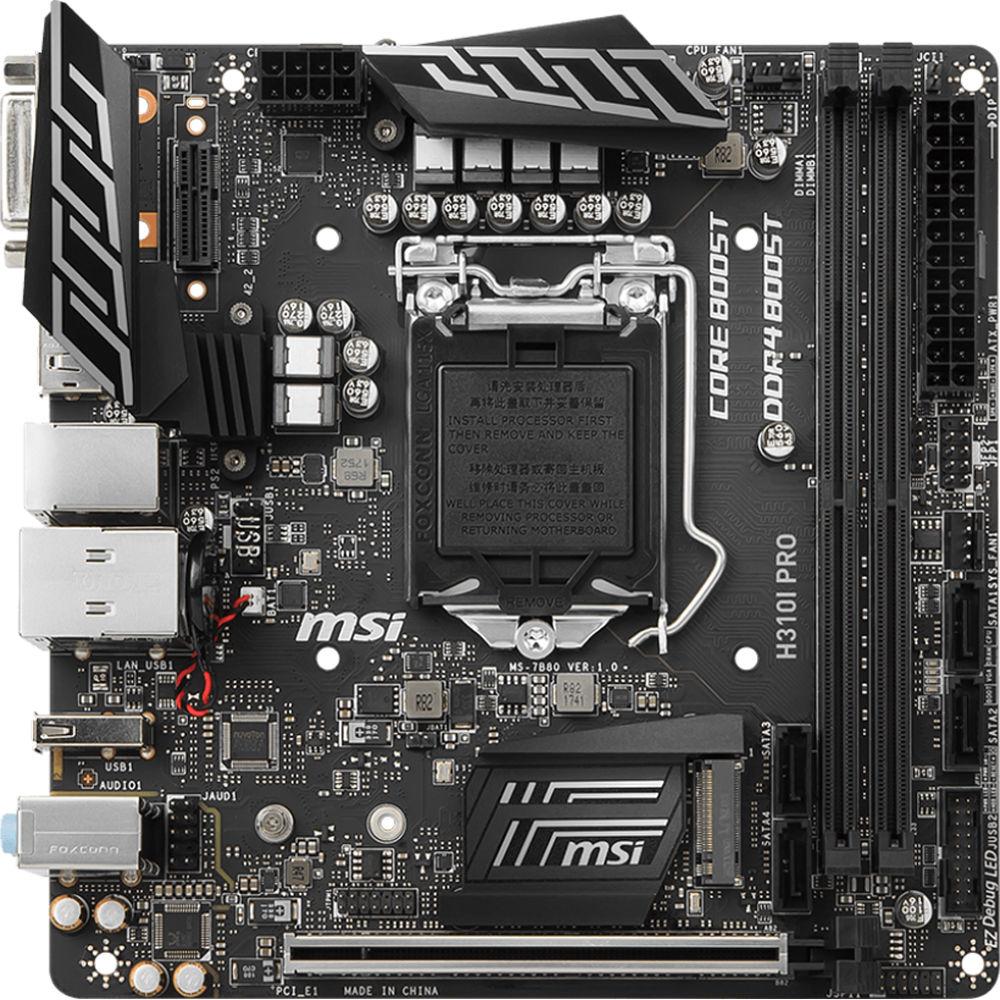

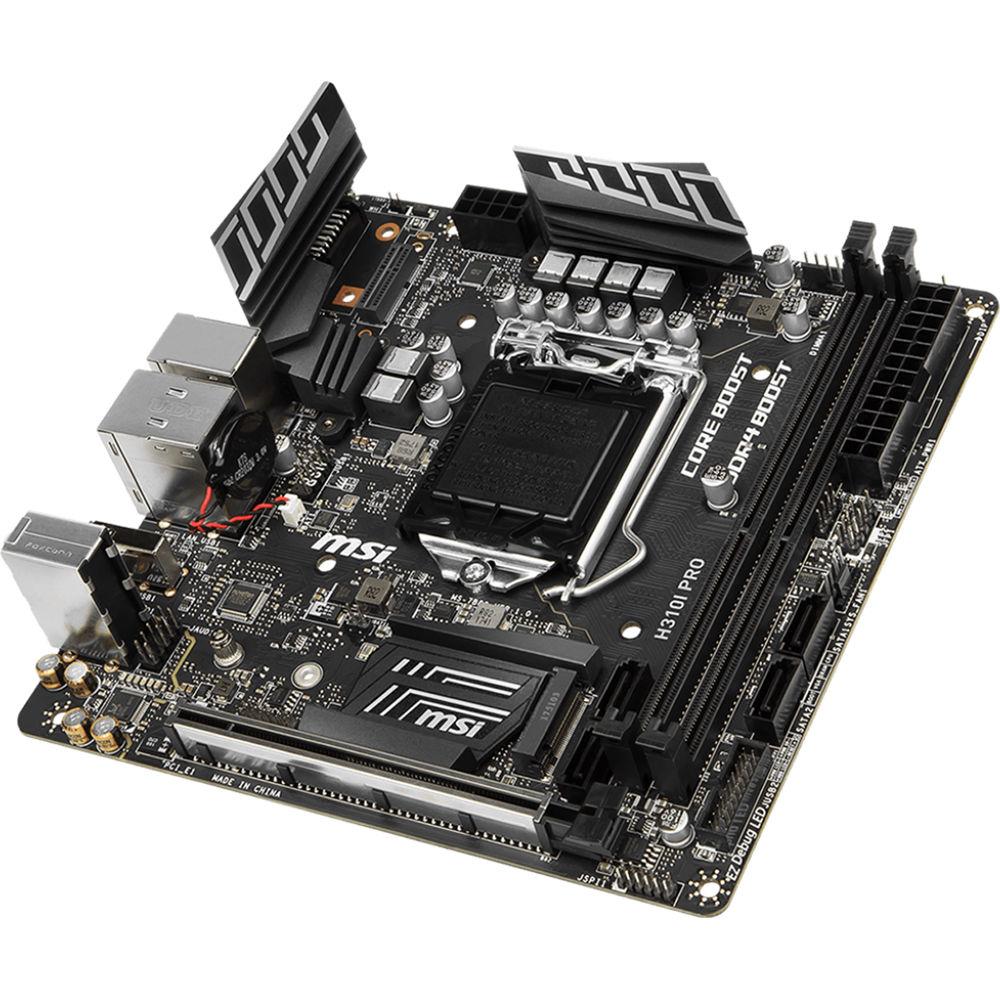

Product description The H310I Pro LGA 1151 Mini-ITX Motherboard from MSI is built on the Intel H310 chipset and has a LGA 1151 socket designed for 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with two DDR4 memory slots that support up to 32GB of 2666 MHz RAM. For storage, it has four SATA III ports and two M.2 slots, one of which is designed for an optional Intel CNVi 802.11ac Wave2 Wi-Fi module. Graphics can be handled by your processor's integrated GPU, or you can use its PCIe 3.0 x 16 slot for a more powerful dedicated graphics cards. Other integrated features include Realtek Gigabit LAN, DVI-D and DisplayPort outputs, and Realtek ALC887 7.1-channel high-definition audio. Moreover, this motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software. - Cooling
- This motherboard is equipped with two fan headers that support both DC and PWM modes, which enable you to automatically or manually adjust their speed within BIOS or a third-party software to best fit your preferred noise-to-cooling ratio.
- Memory
- The two 280-pin DDR4 slots are designed with optimal traces and a fully isolated circuit for enhanced stability and performance. Together, they support up to 32GB of 2666MHz DDR4 RAM from a wide variety of manufacturers as well as Intel XMP (Extreme Memory Profile).
- Storage
- The M.2 slot on this motherboard supports transfer speeds of up to 20 Gb/s using the PCIe Gen2 x4 interface. Using MSI's software, you can enable X-Boost, which optimizes your SSD to maximize its storage performance. The second M.2 slot on this motherboard features a socket E connector and is designed for an Intel CNVi wireless module only.
- Audio
-
- Audio Boost - Delivers an enhanced and immersive listening experience with multiple hardware and software features.
- Isolated Audio Design with LED Border - Physically isolated circuitry ensures better audio signal.
- Separated Audio Layers - Separated layers in the PCB provide better sound quality for left- and right-audio channels.
- De-Pop Protection - Eliminates loud popping sounds when plugging or unplugging devices, or turning your system on or off.
- Dedicated Audio Processor - An EMI-shielded HD audio processor offers enhanced sound quality for both stereo and surround sound.
- Quality Capacitors - Golden audio capacitors ensure reliable and clear sound output.
UPC: 824142163528 In the Box MSI H310I Pro LGA 1151 Mini-ITX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI H310I Pro LGA 1151 Mini-ITX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

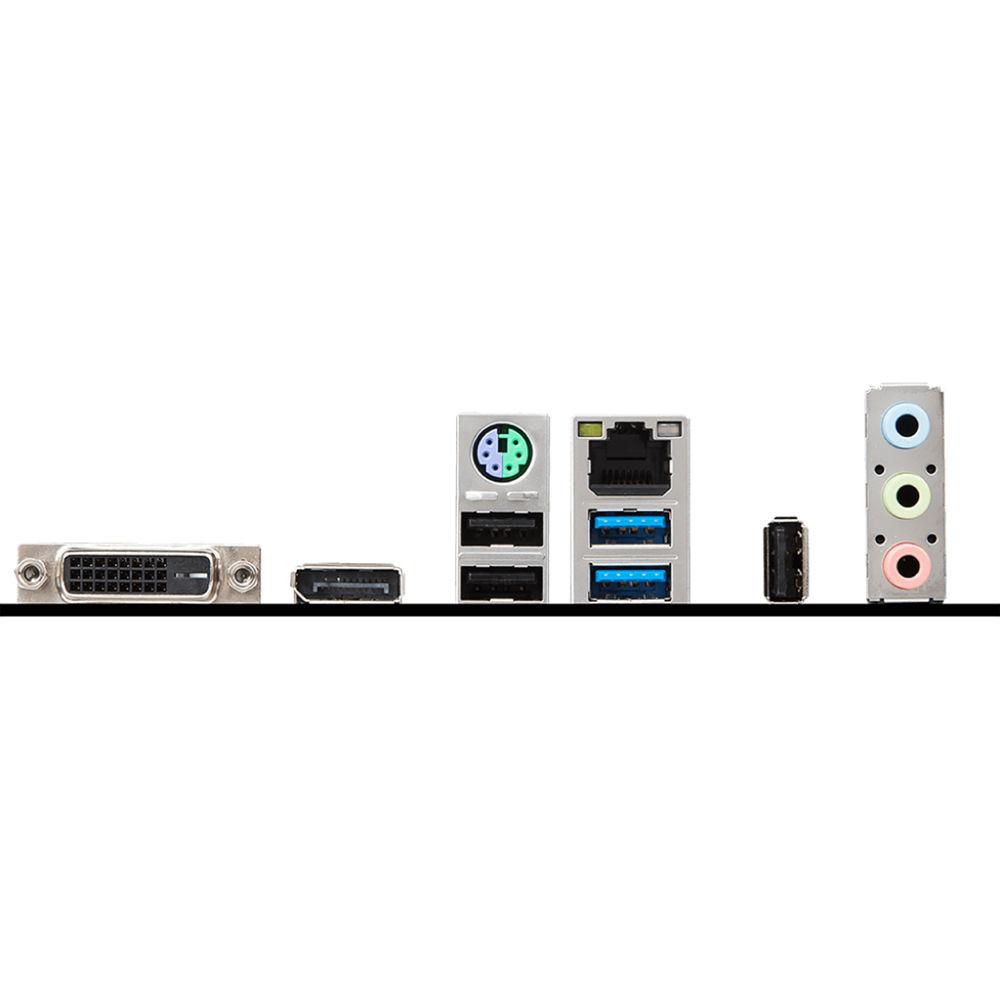

Technical parametersMSI H310I Pro Specs | | | Chipset | Intel H310 | | CPU Socket | LGA 1151 | | | | USB | 3 x USB 2.0 Type-A
2 x USB 3.1 Gen 1 Type-A | | Display | 1 x DisplayPort
1 x DVI-D | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek RTL8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2260, 2280 (PCIe 2.0 x4, SATA III)
1 x E Key | | U.2 | None | | | | Expansion Slots | 1 x PCIe 3.0 x16 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | Audio | None | | Diagnostics | Clear CMOS | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC887 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Mini-ITX | | Dimensions | 6.7 x 6.7" / 170.18 x 170.18 mm | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.9 x 7.5 x 2.6" |
