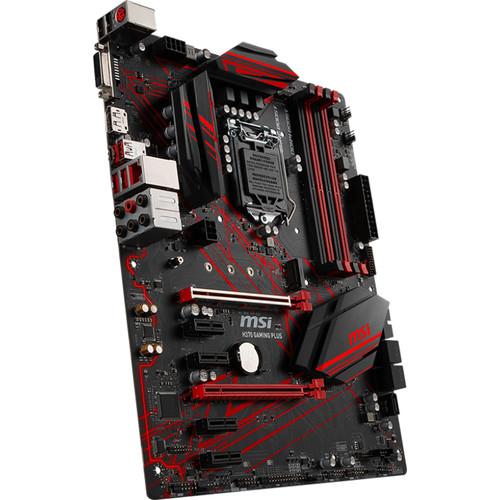

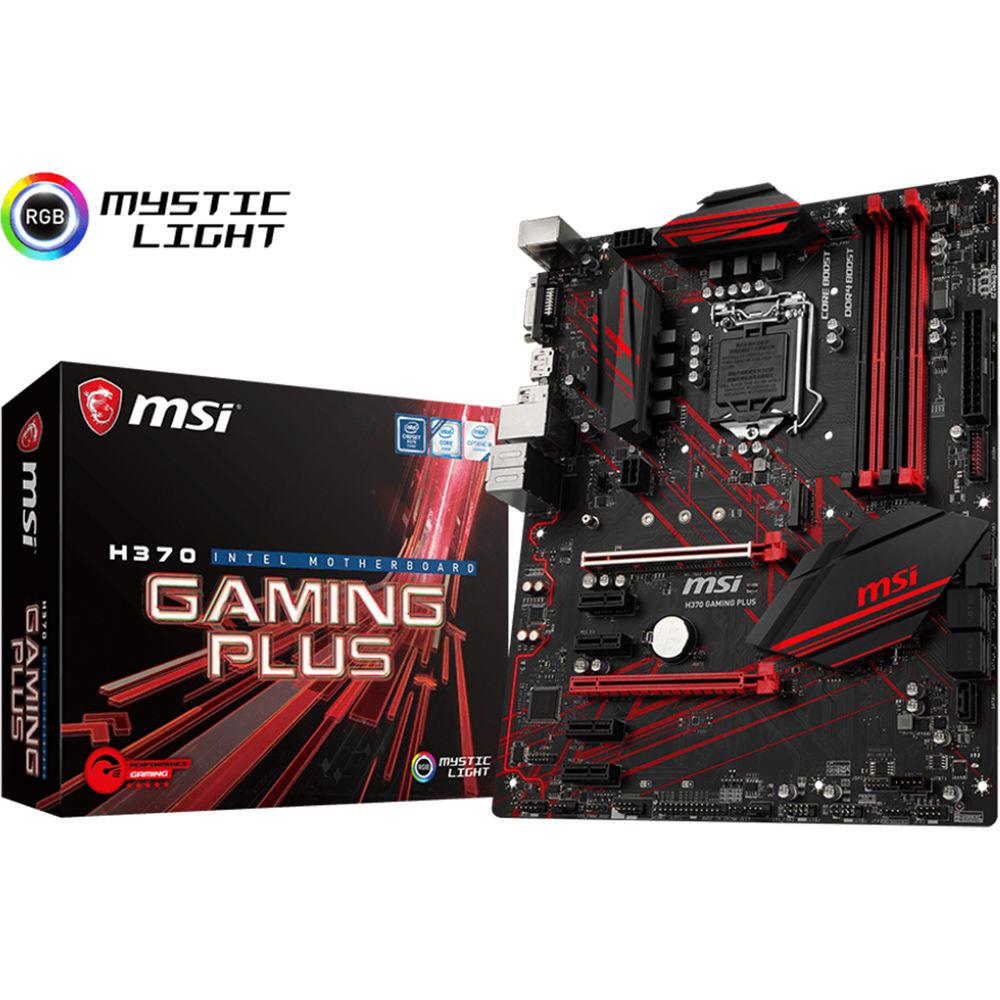

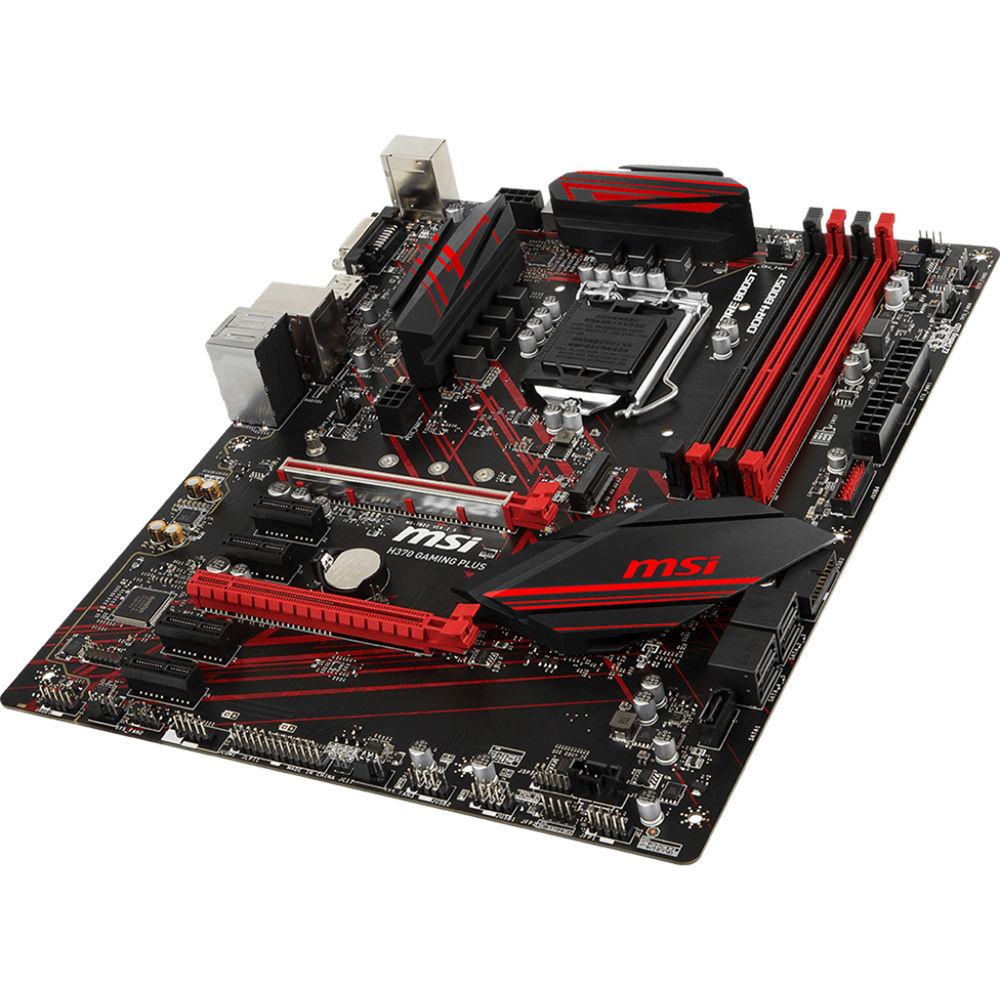

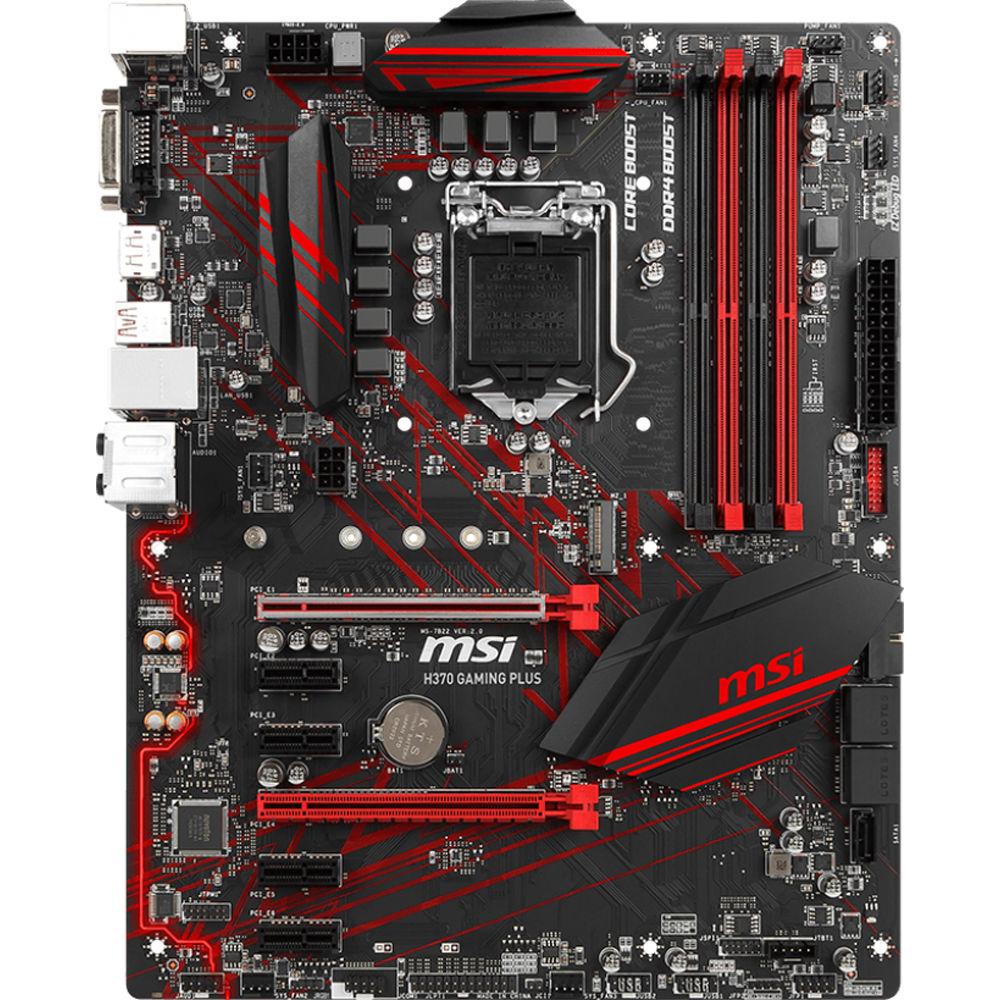

Product description The H370 Gaming Plus LGA 1151 ATX Motherboard from MSI is built on the Intel H370 chipset and has an LGA 1151 socket designed for 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support up to 64GB of 2666 MHz RAM. For storage, it has five SATA III ports and a single M.2 slot, which also supports Intel Optane Memory. As a gaming-focused board, the H370 Gaming Plus has two PCIe 3.0 x 16 slots, ideal for graphics cards, and four PCIe 3.0 x 1 slots for other PCIe-based hardware. Other integrated features include Intel Gigabit LAN, DVI-D and DisplayPort outputs, and Realtek ALC892 7.1-channel high-definition audio. Moreover, this motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software. - MSI Mystic Light
- This motherboard is equipped with MSI Mystic Light, which features millions of colors to choose from, a variety of lighting effects, and the ability to sync it with your other RGB-compatible products.
- Cooling
- The H370 Gaming Plus has seven fan headers that support DC and PWM modes for complete fan control. Furthermore, it has a dedicated pump header for those who are planning to install liquid cooling.
- Memory
- The memory circuity on this motherboard has an optimized layout for stability. Moreover, it supports a wide variety of RAM from multiple manufacturers as well as Intel's Extreme Memory Profile (XMP) for enhanced performance.
- Storage
- The M.2 slot on this motherboard supports transfer speeds of up to 32 Gb/s using the PCIe Gen3 x4 interface. It also supports Intel Optane Memory to speed up system performance. Using MSI's software, you can enable X-Boost, which optimizes your SSD to maximize its storage performance.
- Audio
-
- Audio Boost - Delivers an enhanced and immersive listening experience with multiple hardware and software features.
- Isolated Audio Design with LED Border - Physically isolated circuitry ensures better audio signal.
- Separated Audio Layers - Separated layers in the PCB provide better sound quality for left- and right-audio channels.
- De-Pop Protection - Eliminates loud popping sounds when plugging or unplugging devices, or turning your system on or off.
- Dedicated Audio Processor - An EMI-shielded HD audio processor offers enhanced sound quality for both stereo and surround sound.
- Quality Capacitors - Golden audio capacitors ensure reliable and clear sound output.
- Additional Features
-
- Gaming Hotkey - Assign any key to launch an app, load a profile, overclock, and much more.
- MSI Game Boost - Easily and quickly overclock your system to enhance your CPU and GPU's performance with a single click.
- MSI Gaming App - Track your system's performance with an on-screen display. Customize what stats are shown such as CPU speed, FPS counter, GPU temperature, and more.
- RAMDisk - Create a virtual drive with your system's RAM to increase load times and speed up your system.
- Steel Armor - Steel-plated slots increase durability to resist bending and prevent GPU sag.
UPC: 824142159439 In the Box MSI H370 Gaming Plus LGA 1151 ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI H370 Gaming Plus LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

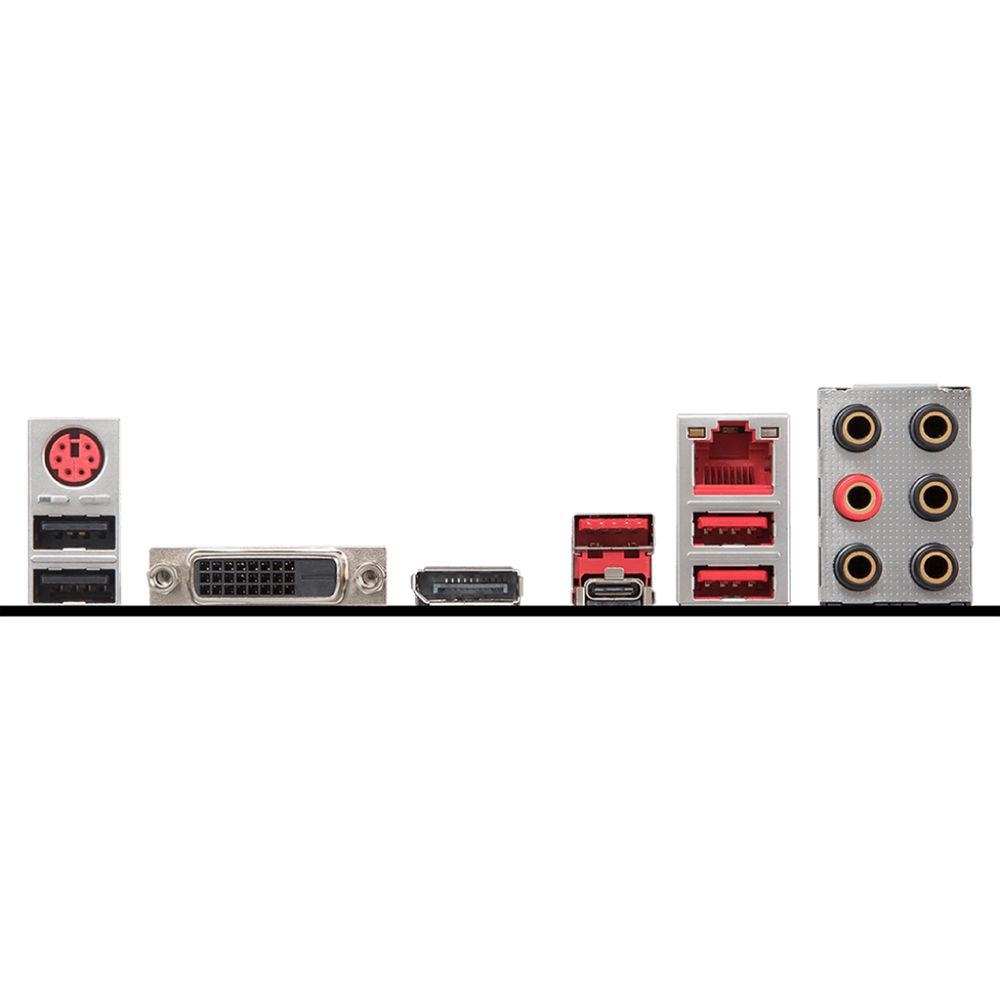

Technical parametersMSI H370 Gaming Plus Specs | | | Chipset | Intel H370 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 2.0 Type-A
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.1 Gen 1 Type-A | | Display | 1 x DVI-D
1 x DisplayPort | | Audio | 6 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219-V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 5 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 2 x PCIe 3.0 x16
4 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
5 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Audio | None | | Diagnostics | Clear CMOS | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Parallel
1 x Serial | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC892 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 3.0" |
