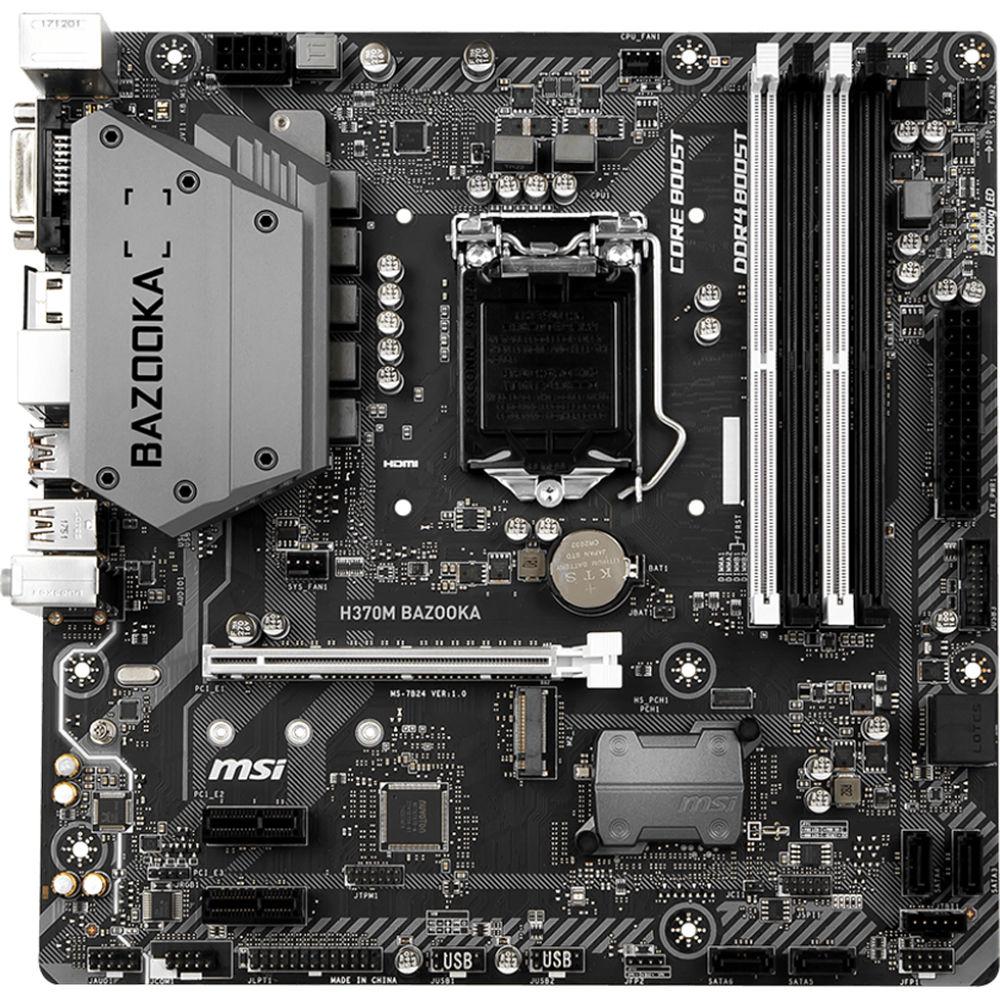

User Manual for MSI H370M Bazooka LGA 1151 Micro-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI H370M Bazooka LGA 1151 Micro-ATX
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI H370M Bazooka LGA 1151 Micro-ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

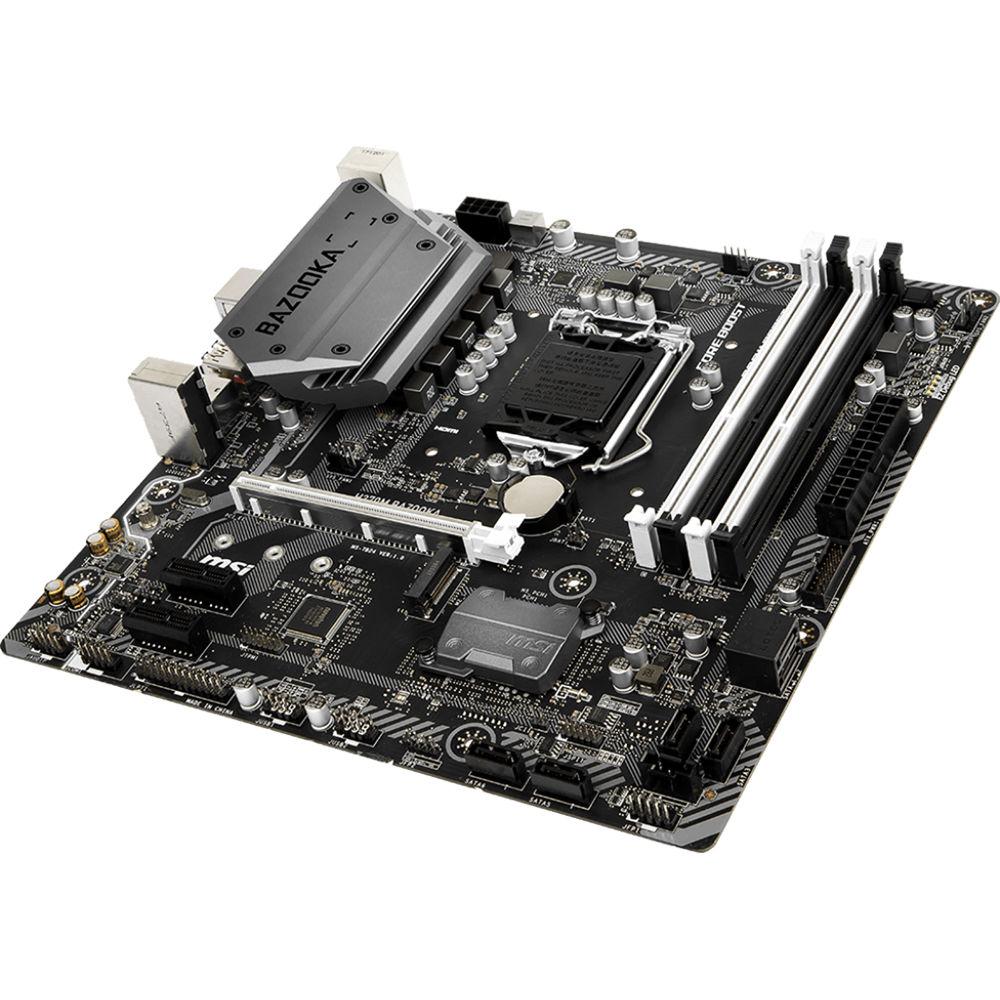

Product description The H370M Bazooka LGA 1151 Micro-ATX Motherboard from MSI is built on the Intel H370 chipset featuring an LGA 1151 socket designed for 8th generation Intel Core, Pentium Gold, and Celeron processors. There are four DDR4 memory slots, which support up to a max of 64GB of 2666 MHz RAM. As for storage, this motherboard is equipped with six SATA III ports and a single M.2 slot that also supports Intel Optane Memory. It has a single PCIe 3.0 x16 slot, ideal for a graphics card, and two PCIe 3.0 x1 slots that can be used for other PCIe-based expansion cards. Other integrated features include Realtek Gigabit LAN, DVI-D and HDMI outputs, and Realtek ALC887 7.1-channel high-definition audio. - Cooling
- This motherboard features an extended heatsink to keep temperatures low. Moreover, it has three fan headers that support both DC and PWM modes so you can control their speeds within BIOS or a third-party software to find a balance between noise and cooling.
- Memory
- The memory circuity on this motherboard has an optimized layout for stability. Moreover, it supports a wide variety of RAM from multiple manufacturers as well as Intel's Extreme Memory Profile (XMP) for enhanced performance.
- Storage
- The M.2 slot on this motherboard supports transfer speeds of up to 32 Gb/s using the PCIe Gen3 x4 interface. It also supports Intel Optane Memory to speed up system performance. Using MSI's software, you can enable X-Boost, which optimizes your SSD to maximize its storage performance.
- Audio
-
- Audio Boost - Delivers an enhanced and immersive listening experience with multiple hardware and software features.
- Isolated Audio Design with LED Border - Physically isolated circuitry ensures better audio signal.
- Separated Audio Layers - Separated layers in the PCB provide better sound quality for left- and right-audio channels.
- De-Pop Protection - Eliminates loud popping sounds when plugging or unplugging devices, or turning your system on or off.
- Dedicated Audio Processor - An EMI-shielded HD audio processor offers enhanced sound quality for both stereo and surround sound.
- Quality Capacitors - Golden audio capacitors ensure reliable and clear sound output.
- Additional Features
-
- Gaming Hotkey - Assign any key to launch an app, load a profile, overclock, and much more.
- MSI Game Boost - Easily and quickly overclock your system to enhance your CPU and GPU's performance with a single click.
- MSI Gaming App - Track your system's performance with an on-screen display. Customize what stats are shown such as CPU speed, FPS counter, GPU temperature, and more.
- RAMDisk - Create a virtual drive with your system's RAM to increase load times and speed up your system.
- Steel Armor - Steel-plated slots increase durability to resist bending and prevent GPU sag.

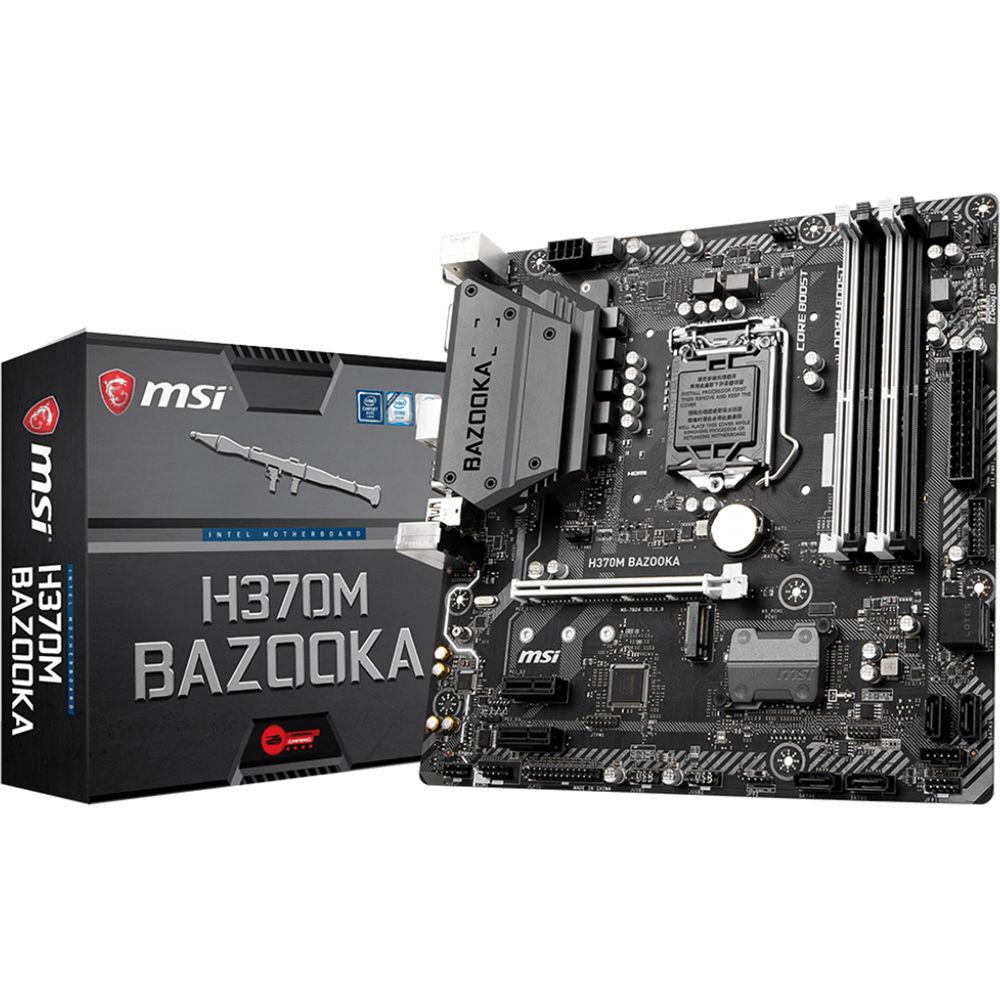

In the Box MSI H370M Bazooka LGA 1151 Micro-ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI H370M Bazooka LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

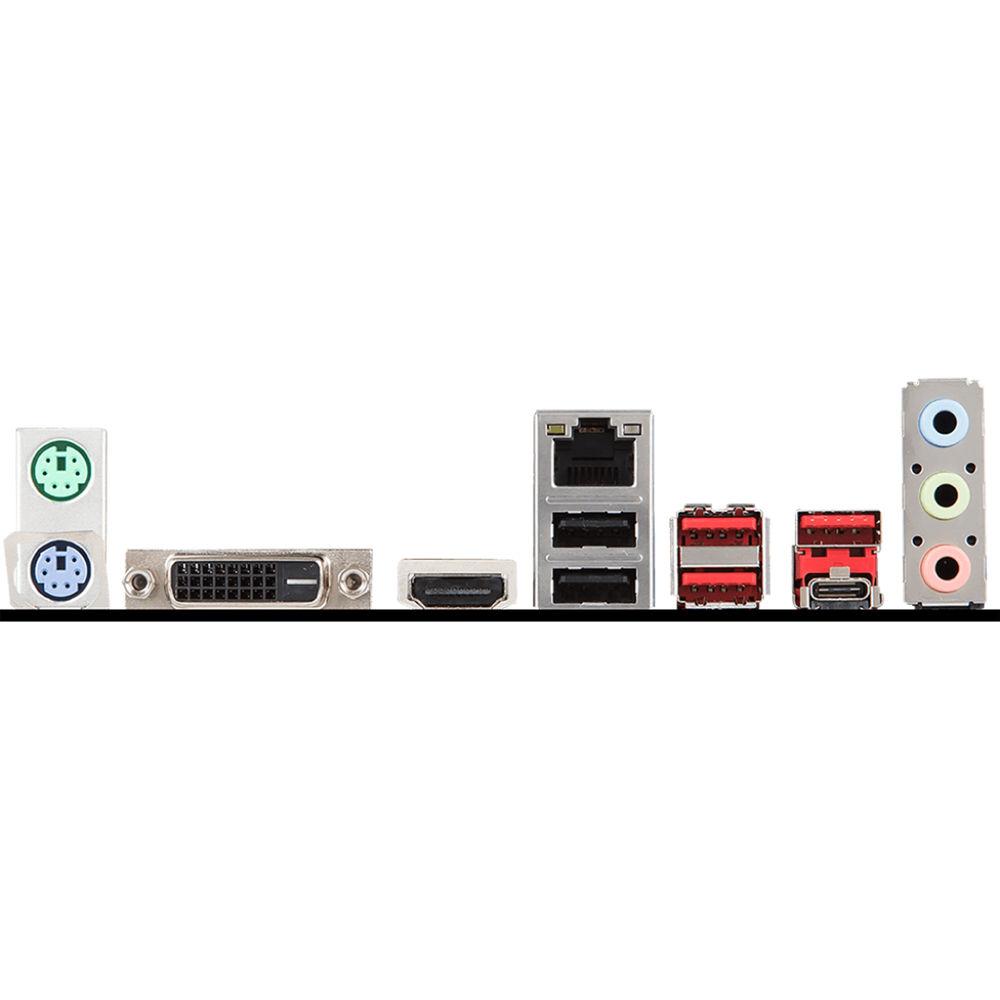

Technical parametersMSI H370M Bazooka Specs | | | Chipset | Intel H370 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 2.0 Type-A
2 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C | | Display | 1 x DVI-D
1 x HDMI | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 2 x PS/2 | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
2 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Audio | None | | Diagnostics | Clear CMOS | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Parallel
1 x Serial | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC887 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 9.6" / 243.84 x 243.84 mm | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 4.0" |
