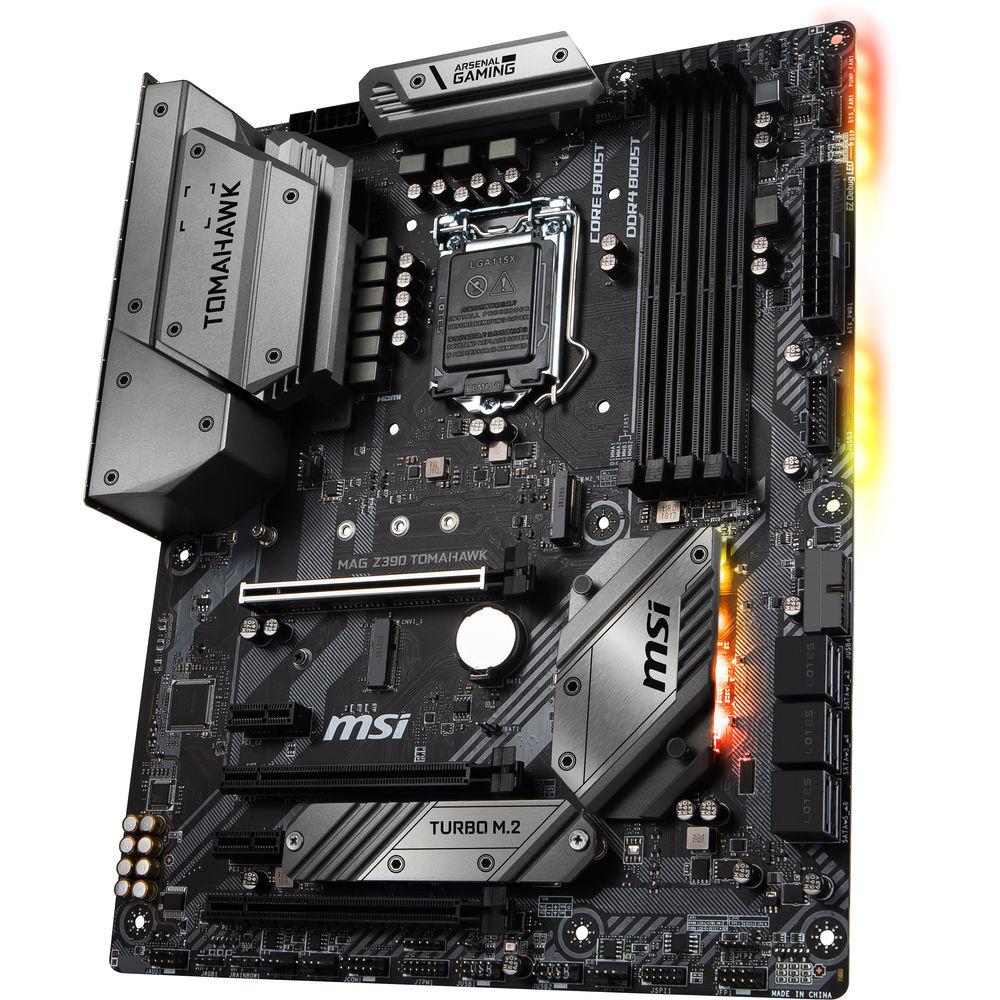

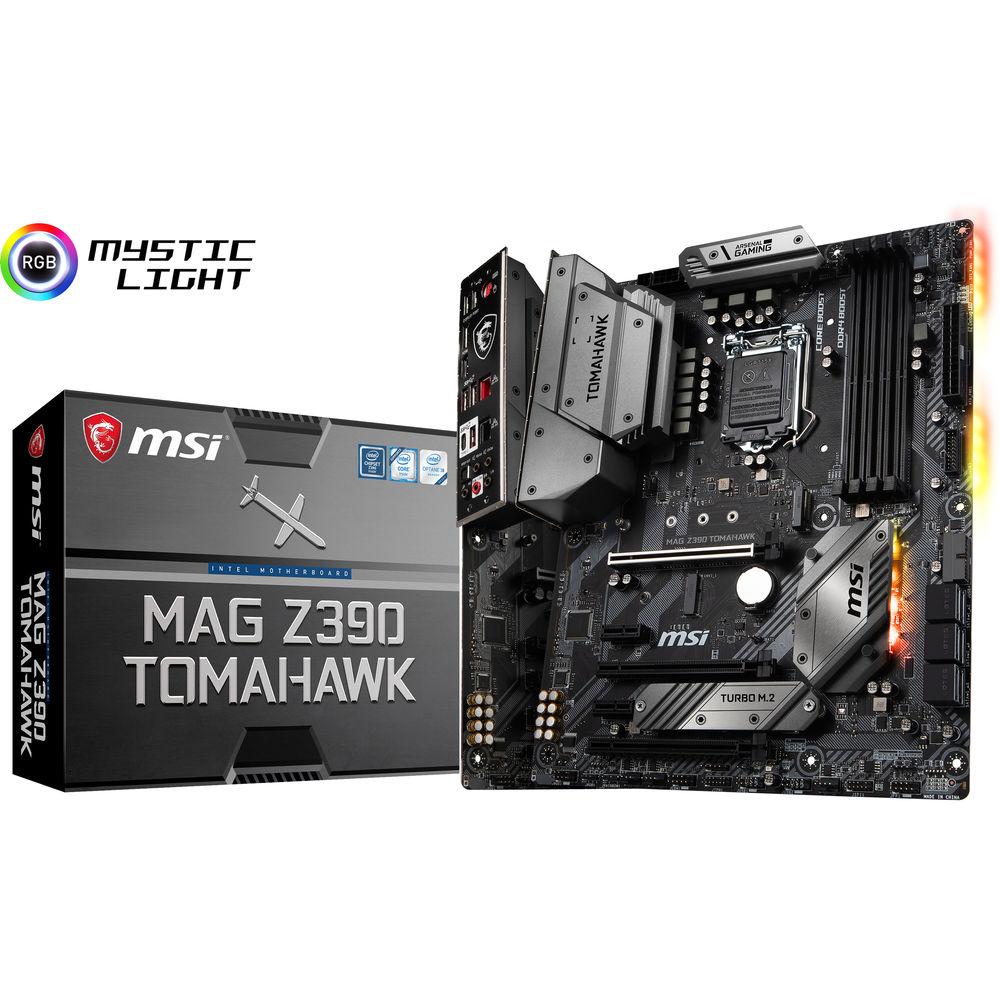

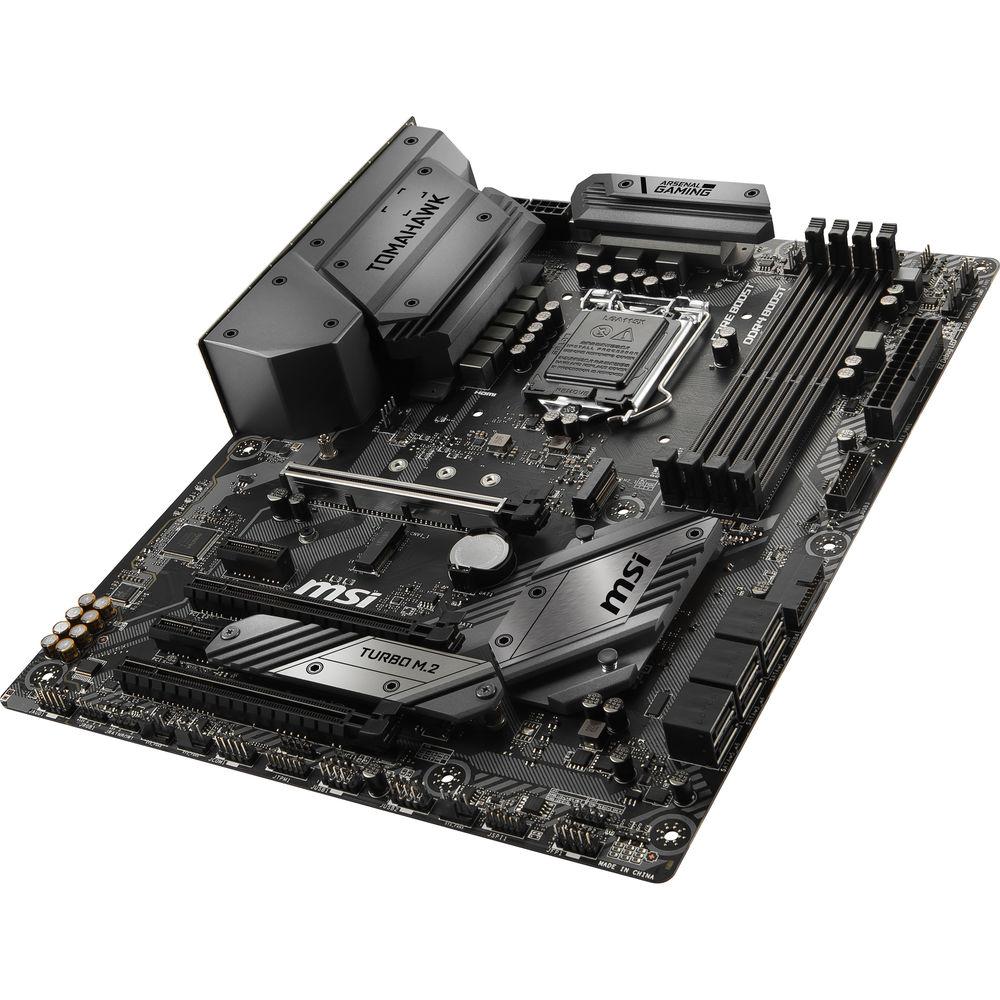

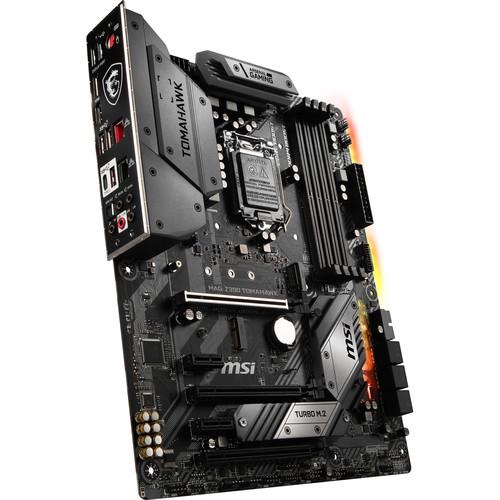

Product description The MAG Z390 TOMAHAWK LGA 1151 ATX Motherboard from MSI is built on the Intel Z390 chipset with an LGA 1151 socket designed for 8th- and 9th-generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support a max of 64GB of 4400 MHz RAM, three PCIe 3.0 x16 slots, two PCIe 3.0 x1 slots, six SATA III ports, and two M.2 slots. With three PCIe 3.0 x16 expansion slots, this motherboard can be used for two-way AMD CrossFire setups. For storage, the M.2 slots support up to PCIe 3.0 x4 speeds and Intel Optane memory for quick data transfer. Other integrated features include multiple fan connectors, USB ports, HDMI and DisplayPort outputs, Intel Gigabit LAN, optional wireless Internet connectivity, and Realtek ALC892 7.1-channel audio. - Cooling
- The MAG Z390 TOMAHAWK has one water pump connector and six fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or a third-party software.
- CPU
- For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.
- DDR4
- The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.
- Storage
- Install PCIe Gen 3 x4 or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie.
- Internet Connectivity
- There are two Intel Gigabit LAN ports on this motherboard for internet and intranet usage. They are also optimized for reduced CPU overhead and feature high TCP and UDP throughputs. Moreover, there is an M.2 E-key slot for Intel Wireless AC (CNVi) 802.11ac Wave2 Wi-Fi should you opt for a wireless solution.
- Audio
- The MAG Z390 TOMAHAWK is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
- Isolated audio design with LED border ensures a better audio signal
- Separated audio layers for clean left- and right-channels
- De-pop protection prevents loud popping sounds when you plug or unplug or devices
- Dedicated, EMI-shielded high-definition audio processor
- High-quality audio capacitors for a warmer sound
- Connectors for 7.1-channel surround sound
- MSI Mystic Light
- Control and sync your compatible RGB products with MSI Mystic Light. This motherboard has two 4-pin RGB LED connectors and a 3-pin RAINBOW LED connector. With over 16.8 million colors to choose from and a variety of lighting patterns, MSI Mystic Light can be easily configured to fit your build's aesthetics.

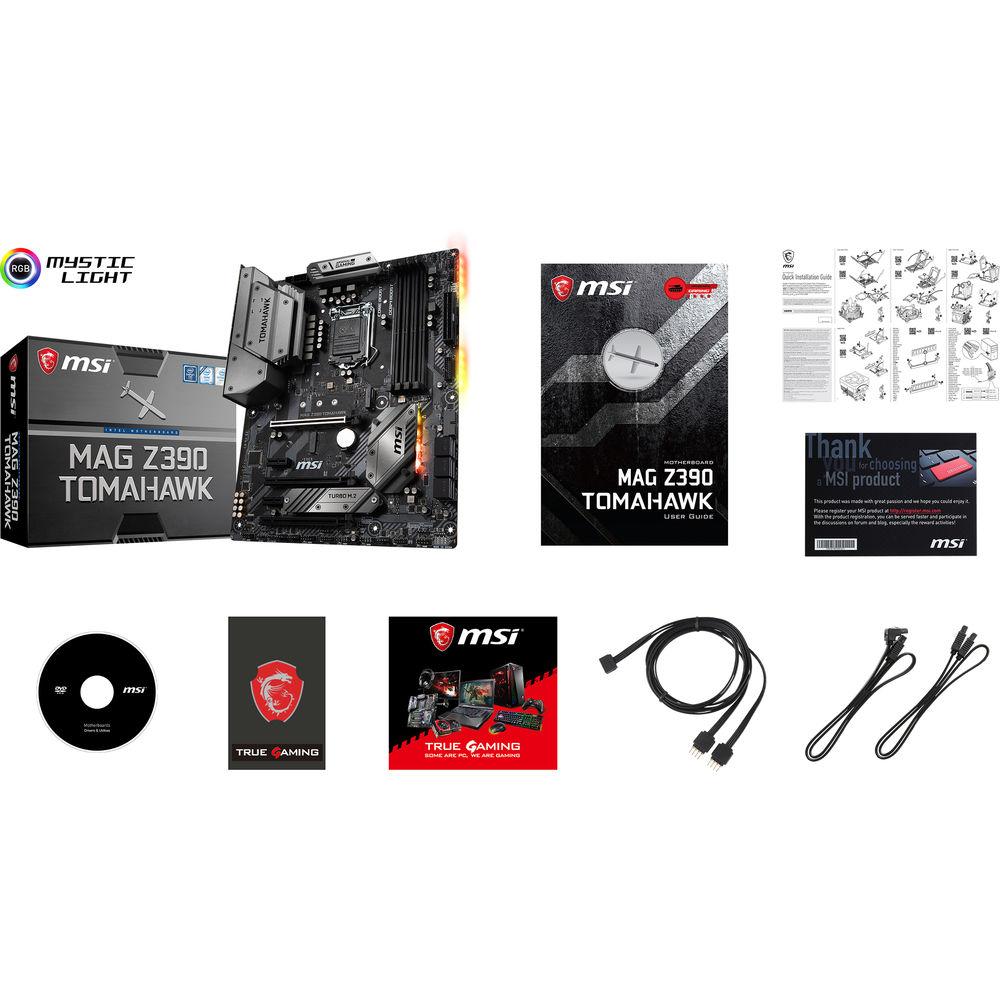

UPC: 824142169865 In the Box MSI MAG Z390 TOMAHAWK LGA 1151 ATX Motherboard I/O Shield 2 x SATA Cables Limited 3-Year Warranty User Manual PDF 6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI MAG Z390 TOMAHAWK LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

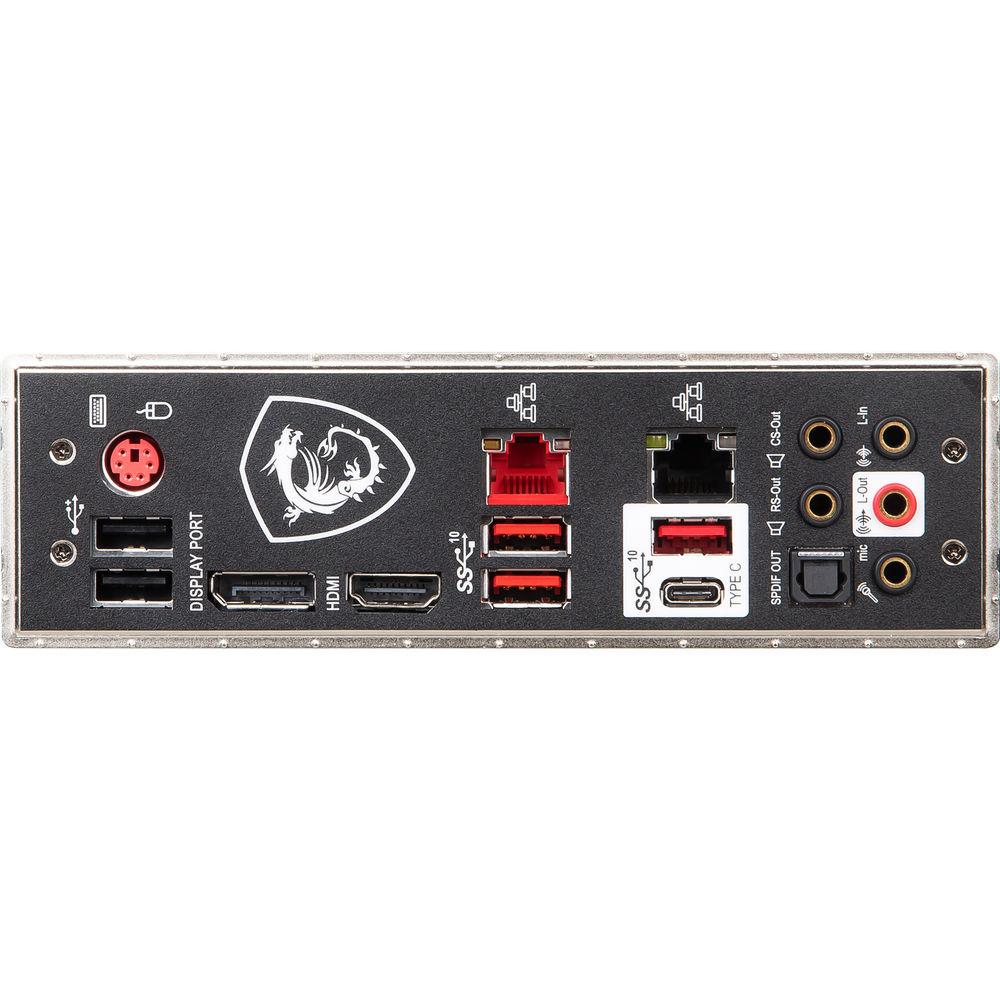

Technical parametersMSI MAG Z390 TOMAHAWK Specs | | | Chipset | Intel Z390 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 2.0 Type-A
3 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Display | 1 x DisplayPort
1 x HDMI | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel I219-V Gigabit
1 x Intel I211-AT Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1 (M.2) | | | | Expansion Slots | 3 x PCIe 3.0 x16
2 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
5 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 3 x RGB | | Audio | None | | Legacy | 1 x Serial | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC892 (7.1-Channel) | | | | Module Support | 1 E Key M.2 | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 9.6 x 12" / 243.84 x 304.80 mm | | | | Package Weight | 3.59 lb | | Box Dimensions (LxWxH) | 13.7 x 10.9 x 3.5" |
