User Manual for MSI MEG X399 Creation TR4 E-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI MEG X399 Creation TR4 E-ATX
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI MEG X399 Creation TR4 E-ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

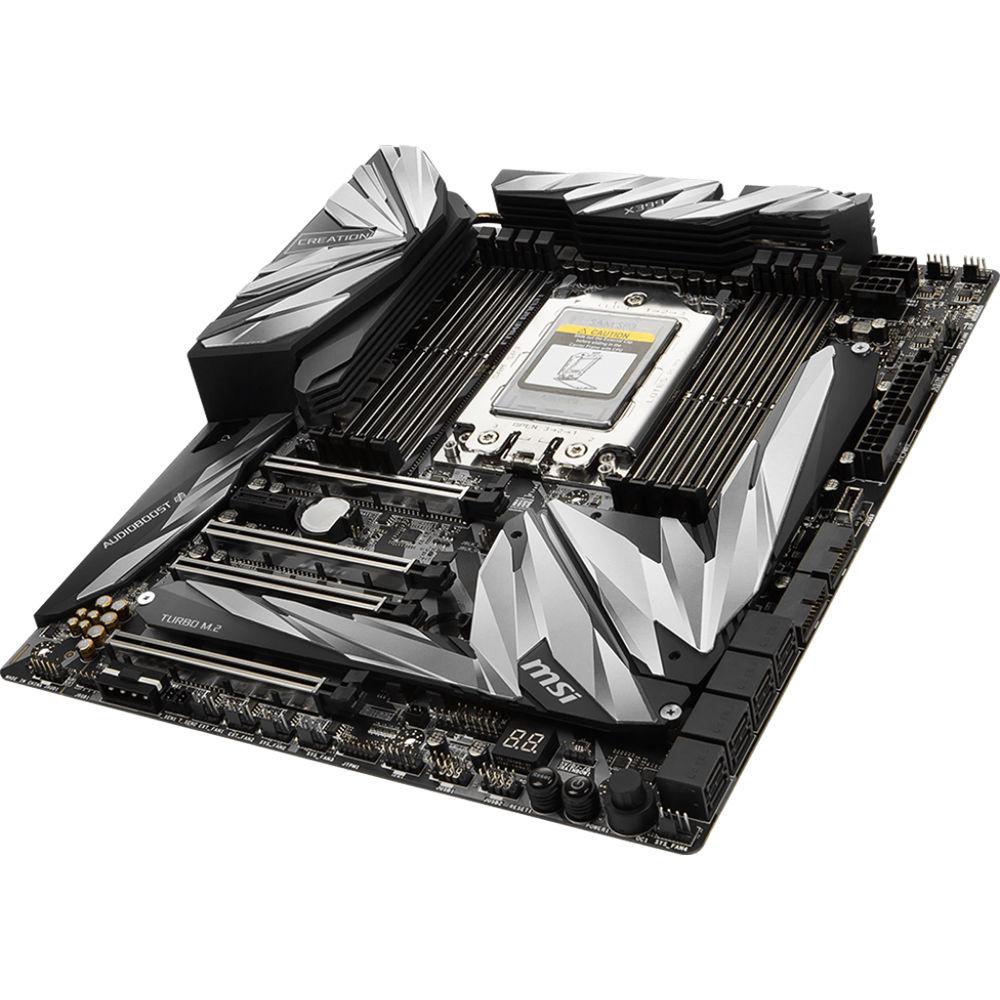

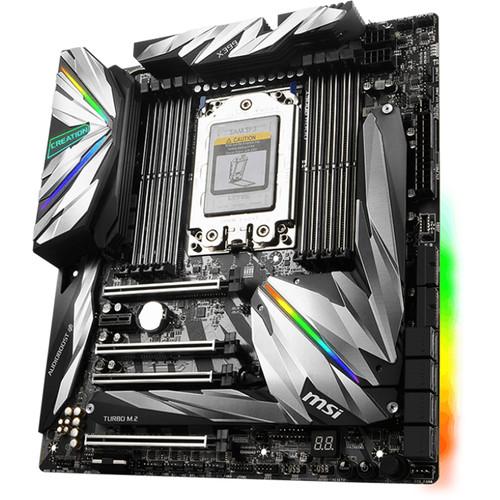

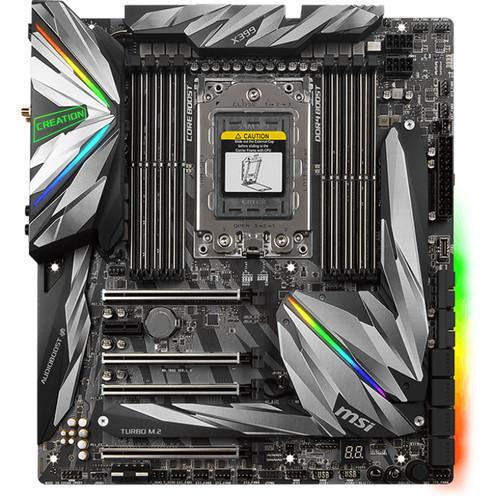

Product description The MEG X399 Creation TR4 E-ATX Motherboard from MSI is built on the AMD X399 chipset, supporting first- and second-generation AMD Ryzen Threadripper processors with a TR4 socket. It has eight memory slots for up to 128GB of quad-channel DDR4 RAM, which can be overclocked to up to 3600 MHz. For storage, it's equipped with eight SATA III ports and three M.2 slots. If you need more space, the MEG X399 Creation comes with an M.2 XPANDER-AERO PCIe card that adds four additional M.2 slots. There are four PCIe 3.0 x16 slots for graphics cards and a single PCIe 2.0 x1 slot for other PCI-based hardware. Other integrated features include dual Gigabit Ethernet ports, 802.11ac Wi-Fi, Bluetooth 5.0, and Realtek ALC1220 7.1-channel HD audio - Cooling
- The MEG X399 Creation motherboard is built with 10 fan headers that support both DC and PWM modes for full fan control. Adjust their speeds within BIOS or a third-party software to find your preferred balance between noise and cooling performance.
- Storage
- The MEG X399 Creation motherboard has eight SATA III ports and three M.2 slots, which support the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s. It also comes with a M.2 XPANDER-AERO PCIe card, which adds four extra M.2 slots. For additional performance, AMD STOREMI technology can improve storage performance by creating a virtual SSD with a combination of storage drives and memory.
- Internet Connectivity
- Connect to the Internet via 802.11ac Wi-Fi or using the dual Gigabit Ethernet ports for a more stable and reliable wired connection. Both ports are equipped with LAN Protect, which shields your connection from power surges, lightning strikes, and static electricity.
- MSI Mystic Light
- Customize your system's lighting with MSI Mystic Light. Choose from over 16 million colors and a variety of lighting effects to fit your build. Additionally, you can sync it with other RGB LED hardware and peripherals.
- Audio Boost with Nahimic 3
- Audio Boost incorporates multiple hardware and software features designed to provide you with a more immersive listening experience. It consists of a high definition ALC1220 audio processor, separated audio channels, audio caps for warm sound, and an easy-to-use software for customizing user profiles.
- Memory
- With eight quad-channel memory slots, this motherboard can support up to 128GB of DDR4 RAM. Moreover, the slots are built with optimizes traces and fully isolated circuits for enhanced stability and performance. You can also enable X.M.P for overclocked speeds of up to 3600 MHz.
- Additional Features
-
- X-Boost storage optimizer
- Command Center system monitor
- Steel Armor PCIe slots
- Live Update
- RAMDisk

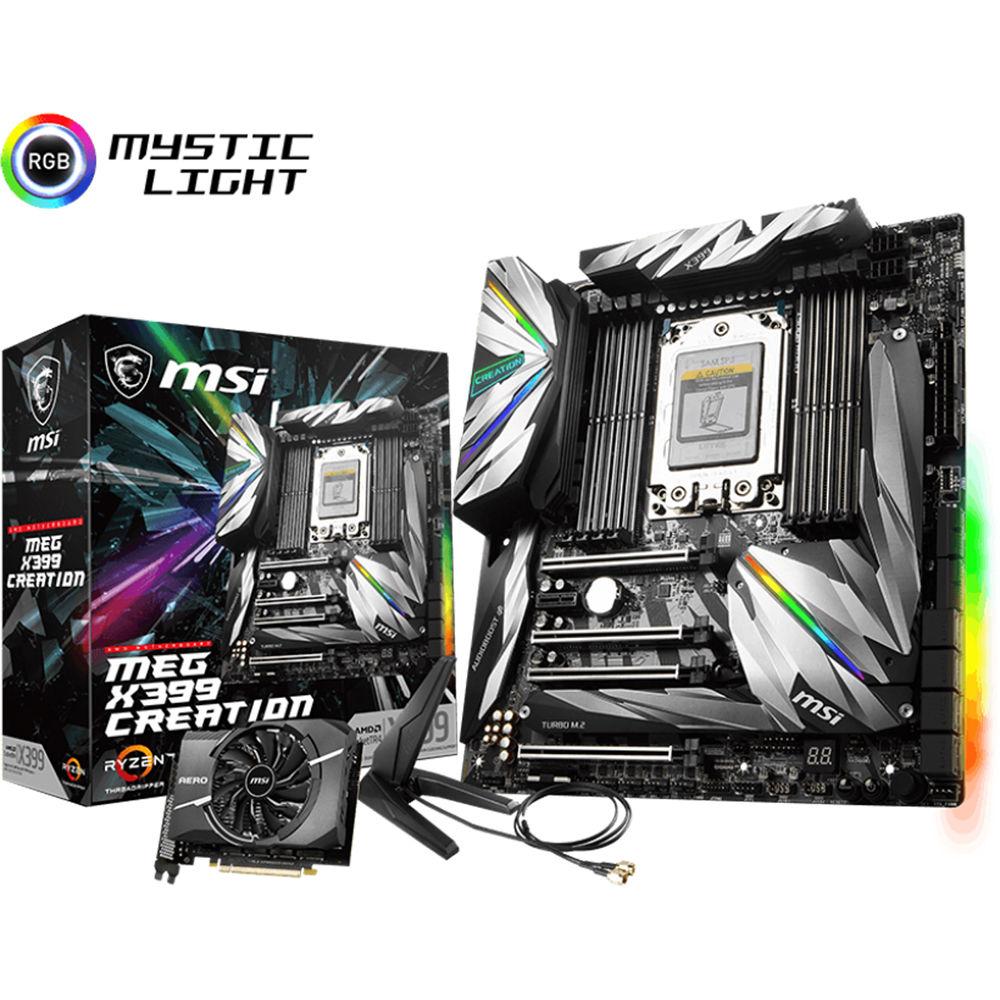

UPC: 824142168165 In the Box MSI MEG X399 Creation TR4 E-ATX Motherboard SATA Cables SLI Bridge I/O Shield M.2 XPANDER-AERO Limited 3-Year Warranty Quick start Guide PDF 10.1mbrcrrybtdfuvacrbqsbbwbd Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI MEG X399 Creation TR4 E-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

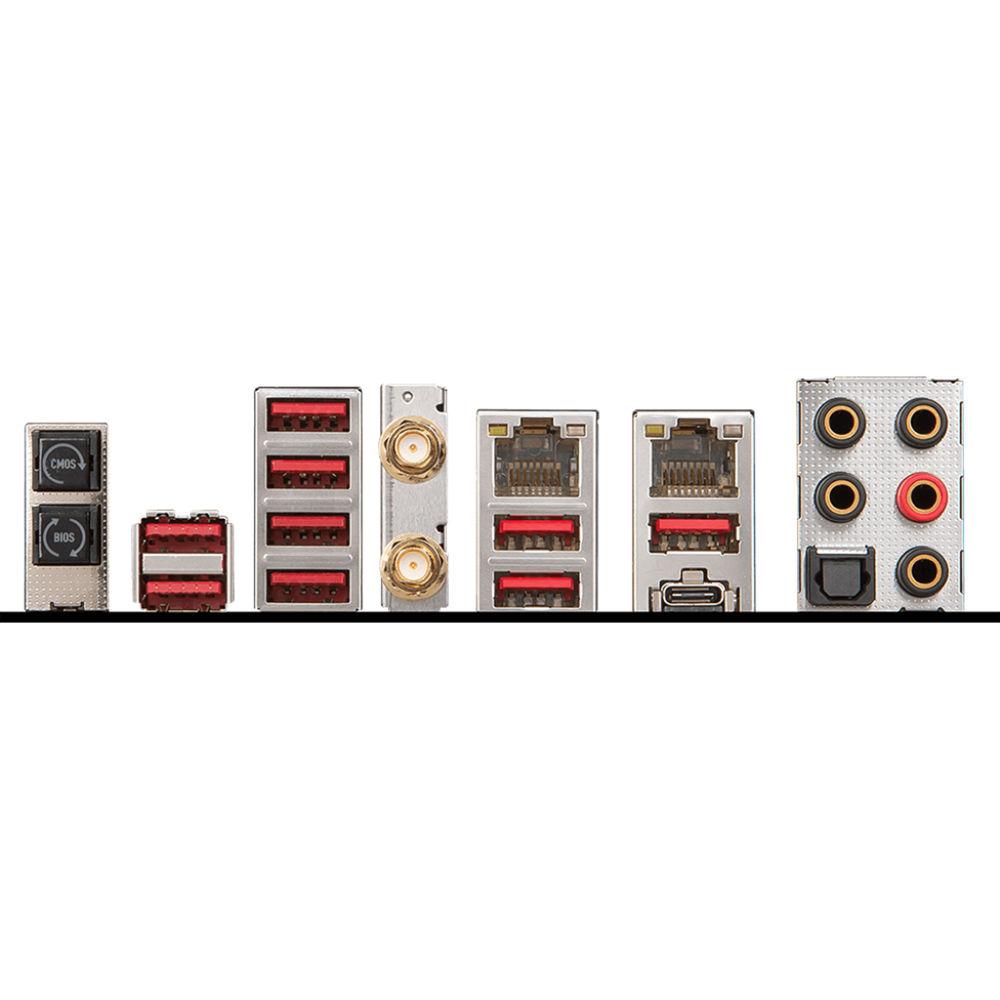

Technical parametersMSI MEG X399 Creation Specs | | | Chipset | AMD X399 | | CPU Socket | TR4 | | | | USB | 9 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 2 x Intel I211AT Gigabit | | Wi-Fi Antenna | 2 x Connector | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2667, 2800, 2933, 3066, 3200, 3333, 3466, 3600 MHz | | Maximum Capacity | 128 GB | | Channel Architecture | Quad Channel | | | | SATA | 8 x SATA III | | M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 10 (SATA) | | | | Expansion Slots | 4 x PCIe 3.0 x16
1 x PCIe 2.0 x1 | | USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-C Ports) | | Multi-GPU Support | 3-Way AMD CrossFireX
3-Way NVIDIA SLI | | Air Cooling | 1 x 4-Pin CPU
8 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
2 x 8-Pin CPU
1 x 4-Pin PCIe | | Security | TPM Module | | LED Header | 3 x RGB | | Audio | None | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC1220 (7.1-Channel) | | | | Bluetooth | 5.0 | | Wi-Fi | Wi-Fi 5 (802.11ac) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | E-ATX | | Dimensions | 12 x 10.7" / 304.80 x 271.78 mm | | | | Package Weight | 7.57 lb | | Box Dimensions (LxWxH) | 13.8 x 11.9 x 5.0" |
