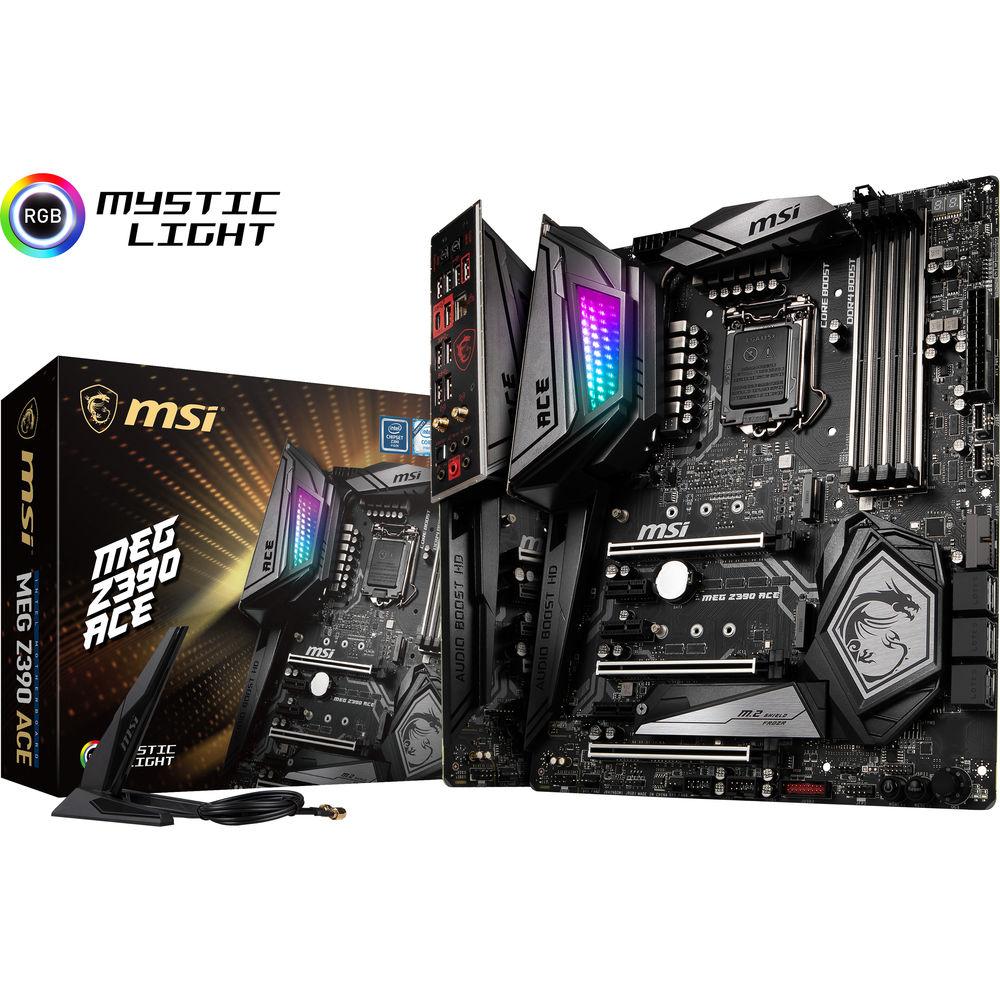

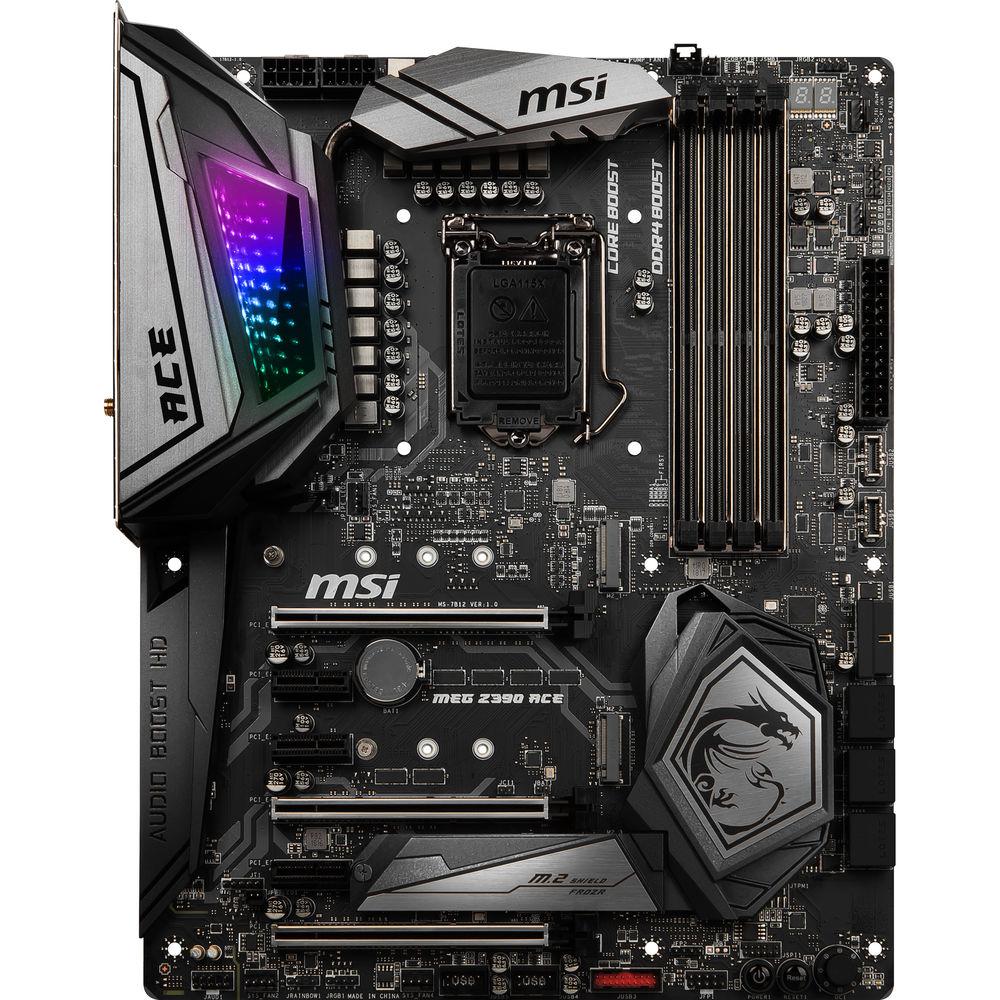

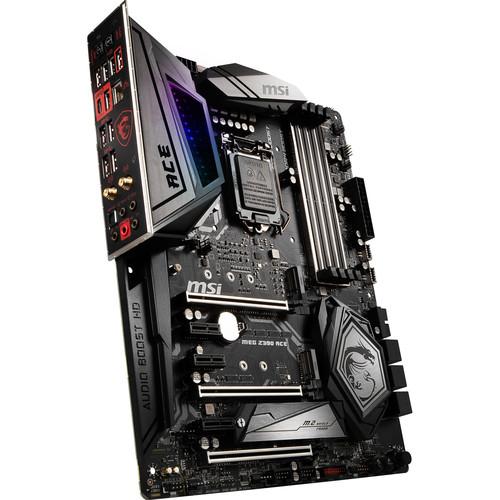

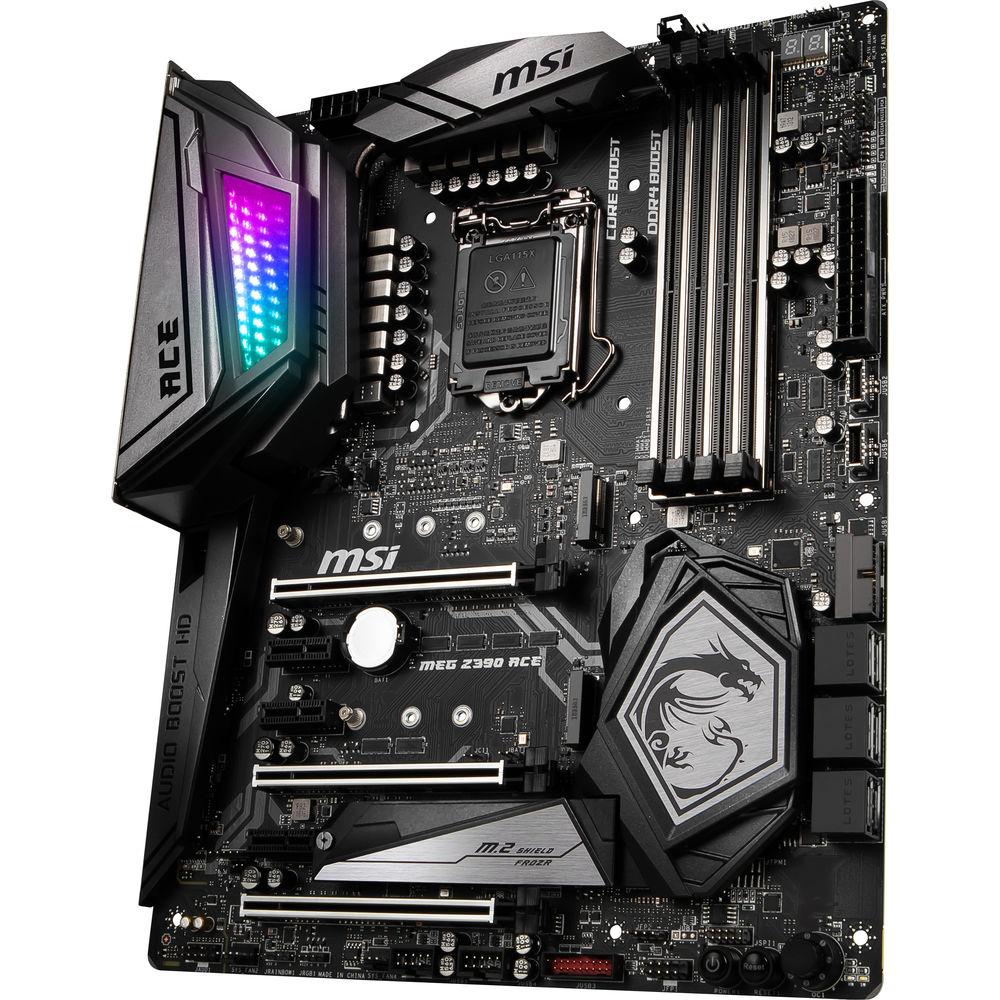

Product description The MEG Z390 ACE LGA 1151 ATX Motherboard from MSI is built on the Intel Z390 chipset with an LGA 1151 socket designed for 8th- and 9th-generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support a max of 64GB of 4500 MHz RAM, three PCIe 3.0 x16 slots, three PCIe 3.0 x1 slots, six SATA III ports, and three M.2 slots. With three PCIe 3.0 x16 expansion slots, this motherboard can be used for two-way NVIDIA SLI or three-way AMD CrossFire setups. For storage, the M.2 slots support up to PCIe 3.0 x4 speeds and Intel Optane memory for quick data transfer. Please note that you should update the drivers and BIOS to the latest version before using Intel Optane memory. Other integrated features include multiple fan connectors, USB ports, Killer Gigabit LAN, 802.11ac Wi-Fi, Bluetooth 5.0, and Realtek ALC1220 7.1-channel audio. - Cooling
- The MEG Z390 ACE has one water pump connector and six fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or a third-party software.
- CPU
- For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.
- DDR4
- The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.
- Storage
- Install PCIe Gen 3 x4 or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.
- Internet Connectivity
- Killer E2500 provides you with fast, optimized gaming-quality Gigabit LAN connectivity. It can automatically detect and prioritize game traffic for smoother performance. Moreover, this motherboard also has 802.11ac Wi-Fi for wireless internet connectivity as well as Bluetooth 5.0 for pairing additional peripherals.
- Audio
- The MEG Z390 ACE is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
- Isolated audio design with LED border ensures a better audio signal
- Separated audio layers for clean left- and right-channels
- De-pop protection prevents loud popping sounds when you plug or unplug or devices
- Dedicated, EMI-shielded high-definition audio processor
- High-quality audio capacitors for a warmer sound
- Connectors for 7.1-channel surround sound
- MSI Mystic Light
- Control and sync your compatible RGB products with MSI Mystic Light. This motherboard has two 4-pin RGB LED connectors, a 3-pin RAINBOW LED connector, and a 3-pin CORSAIR LED connector. With over 16.8 million colors to choose from and a variety of lighting patterns, MSI Mystic Light can be easily configured to fit your build's aesthetics.
UPC: 824142169841 In the Box MSI MEG Z390 ACE LGA 1151 ATX Motherboard I/O Shield 2 x SATA Cables Limited 3-Year Warranty Quick start Guide PDF 7.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI MEG Z390 ACE LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

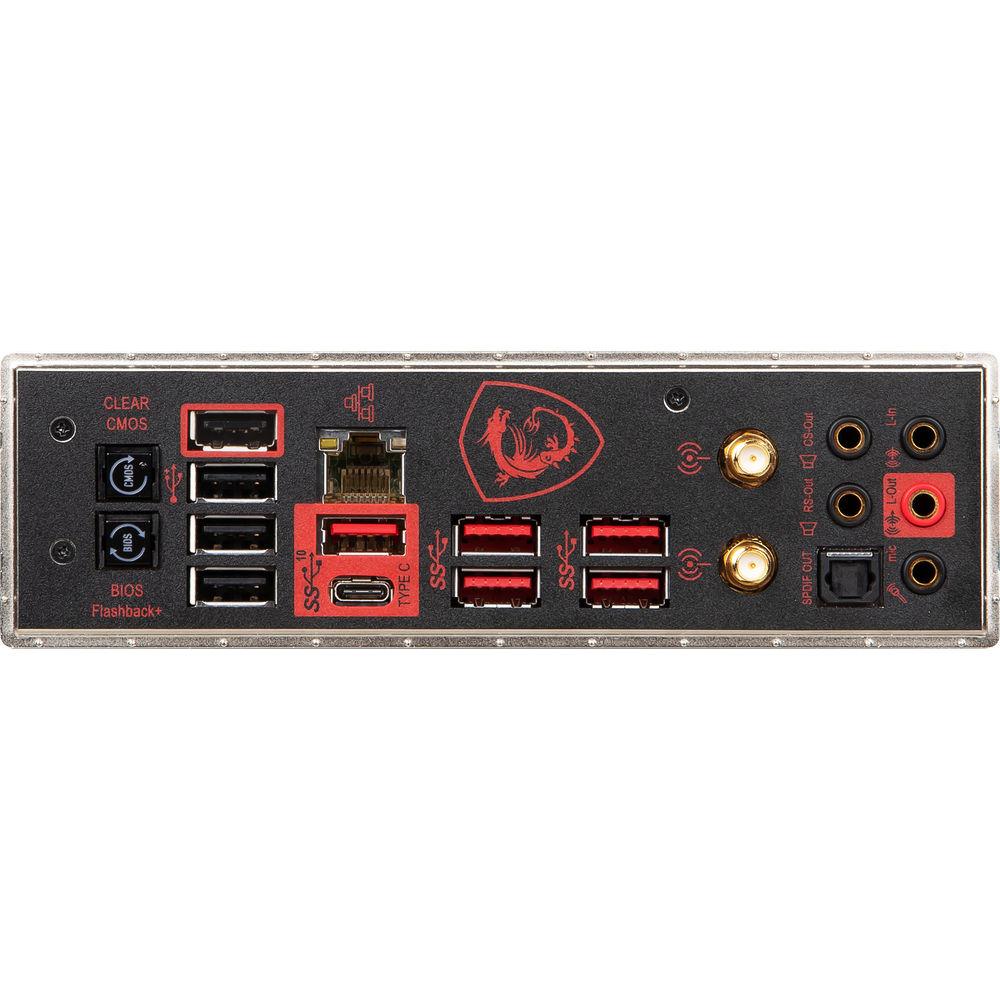

Technical parametersMSI MEG Z390 ACE Specs | | | Chipset | Intel Z390 | | CPU Socket | LGA 1151 | | | | USB | 4 x USB 2.0 Type-A
5 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Killer E2500 Gigabit | | PS/2 | 1 x Combo | | Wi-Fi Antenna | 2 x Connector | | Buttons | Clear CMOS | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4500 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) | | U.2 | None | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5 (M.2) | | | | Expansion Slots | 3 x PCIe 3.0 x16
3 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 2 Header (Supports 2 USB Type-C Ports)
2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
5 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
2 x 8-Pin CPU | | Security | Chassis Intrusion | | LED Header | 4 x RGB | | Audio | None | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC1220 (7.1-Channel) | | | | Bluetooth | 5.0 | | Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 9.6 x 12" / 243.84 x 304.80 mm | | | | Package Weight | 4.565 lb | | Box Dimensions (LxWxH) | 14.0 x 11.4 x 3.5" |
