User Manual for MSI MPG Z390 GAMING PRO CARBON LGA 1151 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI MPG Z390 GAMING PRO CARBON
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI MPG Z390 GAMING PRO CARBON contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

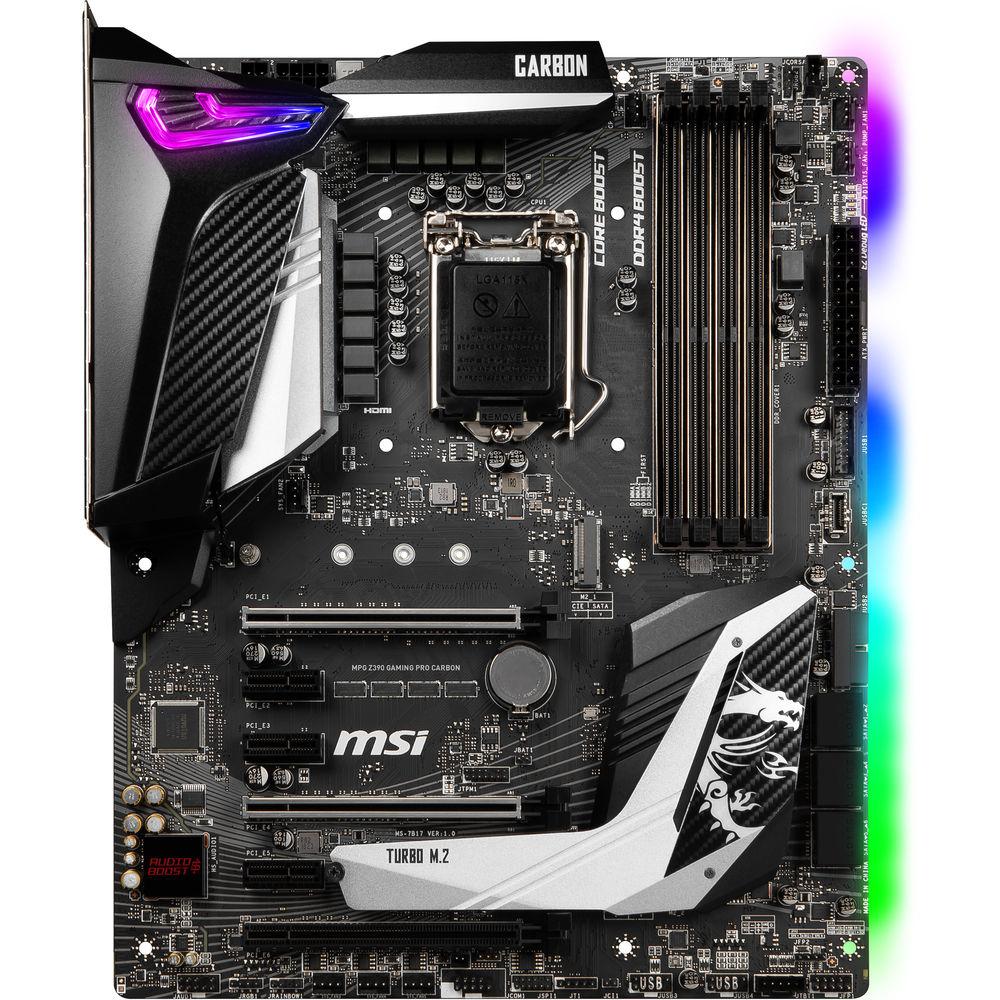

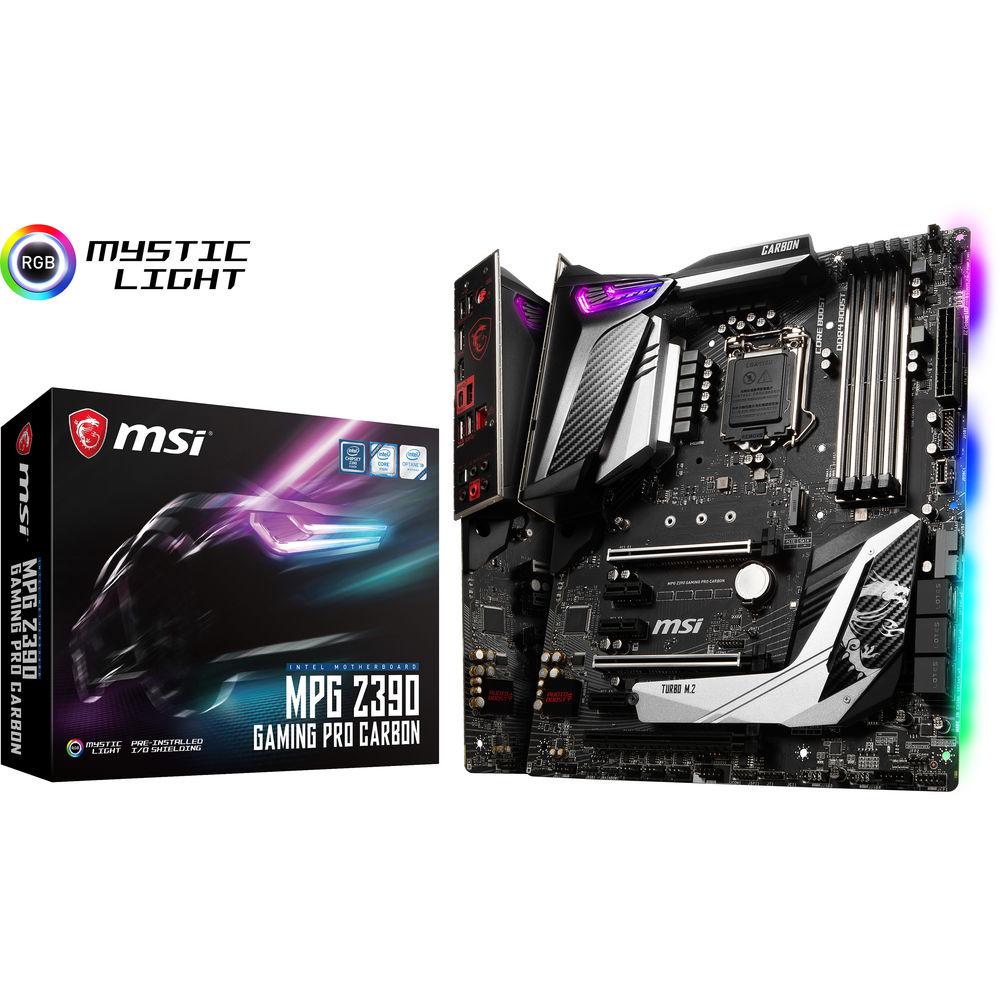

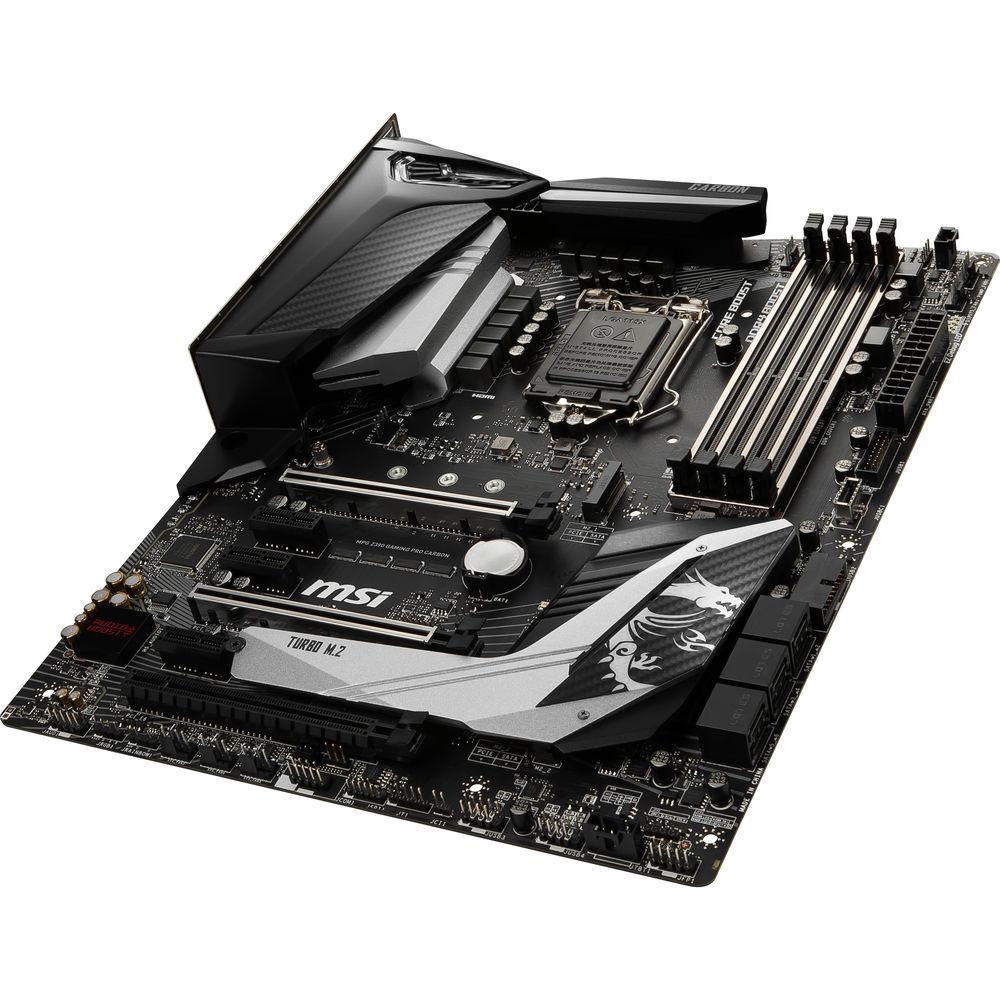

Product description The MPG Z390 GAMING PRO CARBON LGA 1151 ATX Motherboard from MSI is built on the Intel Z390 chipset with an LGA 1151 socket designed for 8th- and 9th-generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support a max of 64GB of 4400 MHz RAM, three PCIe 3.0 x16 slots, three PCIe 3.0 x1 slots, six SATA III ports, and two M.2 slots. With three PCIe 3.0 x16 expansion slots, this motherboard can be used for two-way NVIDIA SLI or three-way AMD CrossFire setups. For storage, the M.2 slots support up to PCIe 3.0 x4 speeds as well as Intel Optane memory for quick data transfer. Please note that you should update the drivers and BIOS to the latest version before using Intel Optane memory. Other integrated features include multiple fan connectors, USB ports, DisplayPort and HDMI connectivity, Intel I219-V Gigabit LAN, and Realtek ALC1220P 7.1-channel HD audio. - Cooling
- The MPG Z390 has one water pump connector and six fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or a third-party software. Moreover, it has an extended heatsink design to help dissipate heat and ensure stable performance.
- User Friendly
-
- XL Clip - Enlarged PCIe clips make it easier for users to swap out PCIe hardware
- EZ Debug LED - Onboard LEDs for key components indicate the source of a problem
- CPU
- For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.
- DDR4
- The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.
- Storage
- Install PCIe Gen 3 x4 SSDs or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.
- Internet Connectivity
- Intel I219-V provides you with fast, optimized gaming-quality Gigabit LAN connectivity. Moreover, you can use the optional MSI GAMING LAN Manager to automatically classify and prioritize your gaming traffic.
- Audio
- The MPG Z390 is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.
- Dedicated, EMI-shielded Hi-Fi audio processor
- Isolated audio design with LED border ensures a better audio signal
- Separated audio layers for clean left and right channels
- De-pop protection prevents loud popping sounds when you plug or unplug or devices
- Nahimic 3 surround sound for immersion
- High-quality audio capacitors for a warmer sound
- Connectors for 7.1-channel surround sound
- MSI Mystic Light
- Control and sync your compatible RGB products with MSI Mystic Light. This motherboard has two 4-pin RGB LED connector, one 3-pin RAINBOW LED connector, and a 3-pin CORSAIR LED connector. With over 16.8 million colors to choose from and a variety of lighting patterns, MSI Mystic Light can be easily configured to fit your build's aesthetics.

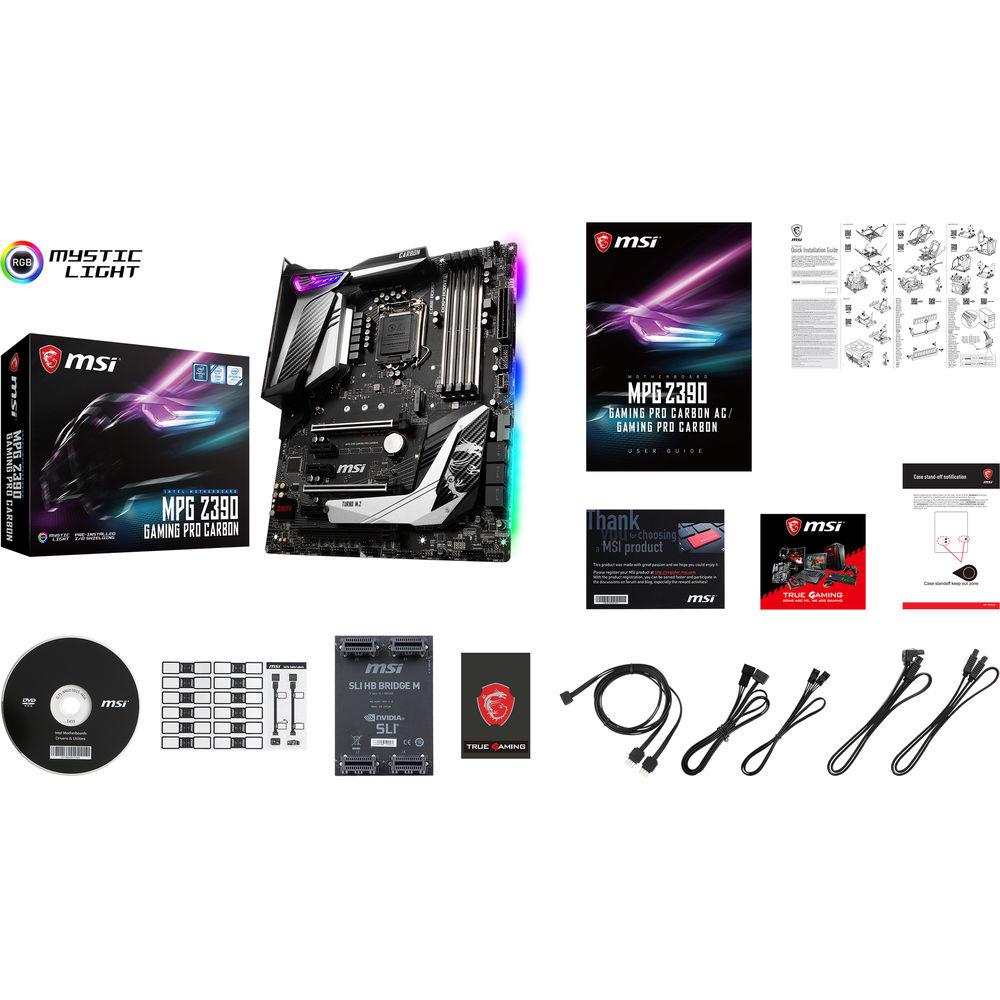

UPC: 824142170168 In the Box MSI MPG Z390 GAMING PRO CARBON LGA 1151 ATX Motherboard SLI Bridge Limited 3-Year Warranty Quick start Guide PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI MPG Z390 GAMING PRO CARBON LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

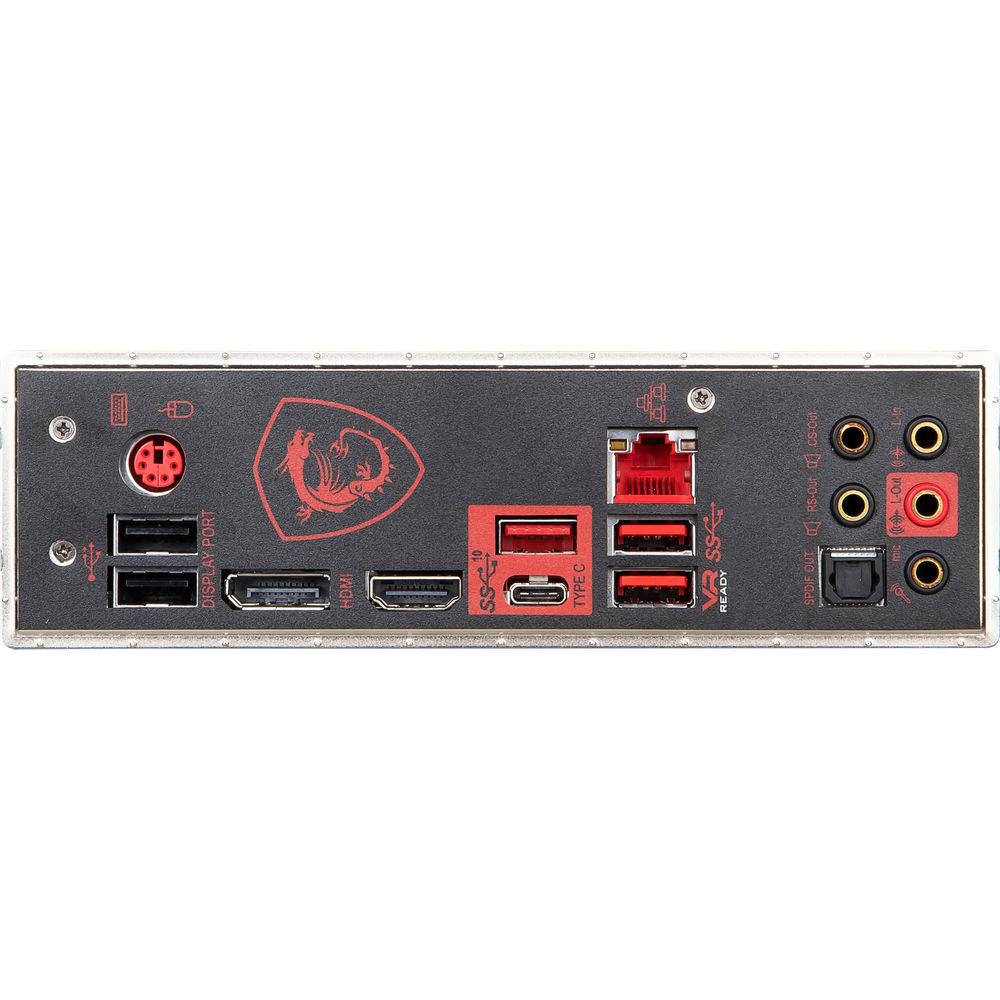

Technical parametersMSI MPG Z390 GAMING PRO CARBON AC Specs | | | Chipset | Intel Z390 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 2.0 Type-A
3 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Display | 1 x DisplayPort
1 x HDMI | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel I219-V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1 (M.2) | | | | Expansion Slots | 3 x PCIe 3.0 x16
3 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-C Ports)
2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way NVIDIA SLI
3-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
5 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 4 x RGB | | Audio | None | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Serial | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC1220P-VB2 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 9.6 x 12" / 243.84 x 304.80 mm | | | | Package Weight | 3.895 lb | | Box Dimensions (LxWxH) | 13.7 x 10.7 x 3.5" |
