User Manual for MSI Optix AG32C 32" 16:9 Curved LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the MSI Optix AG32C 32" 16:9 Curved
- Product category: Computer Monitors MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Computer Monitors
 |
User manual for the MSI Optix AG32C 32" 16:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

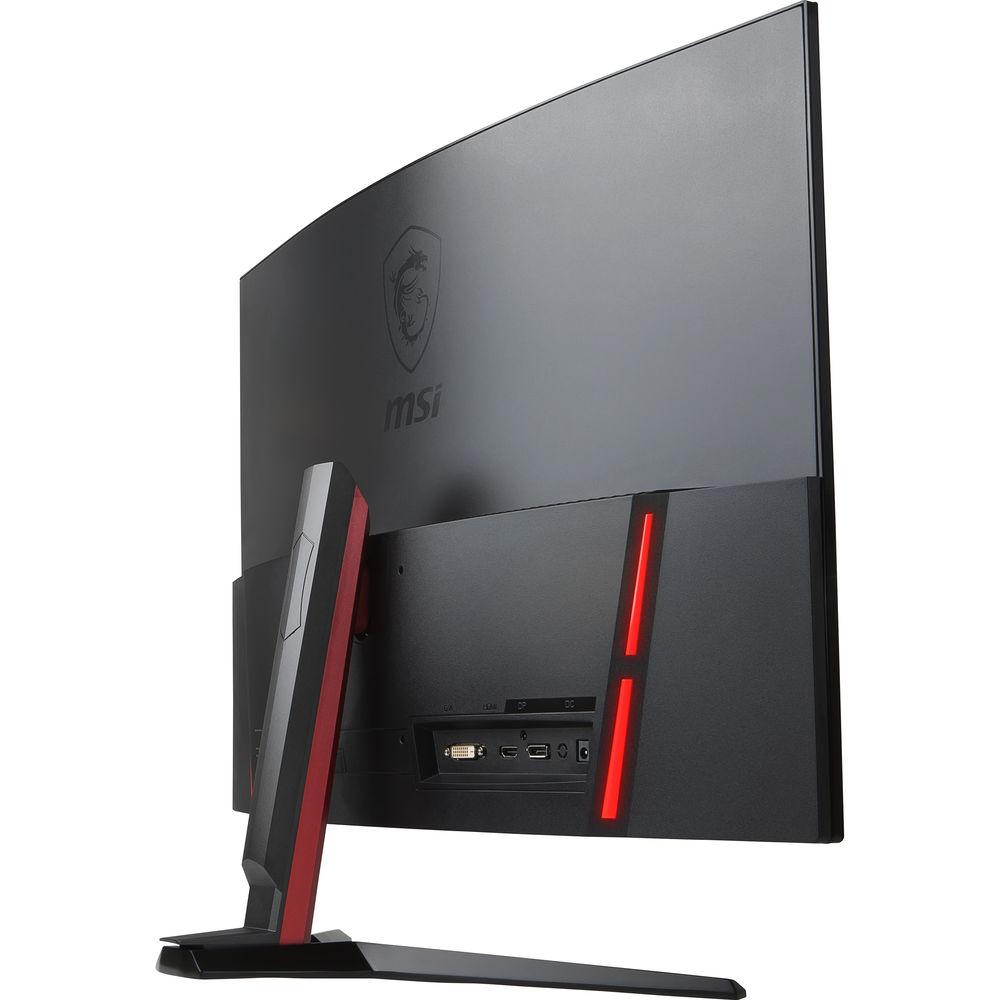

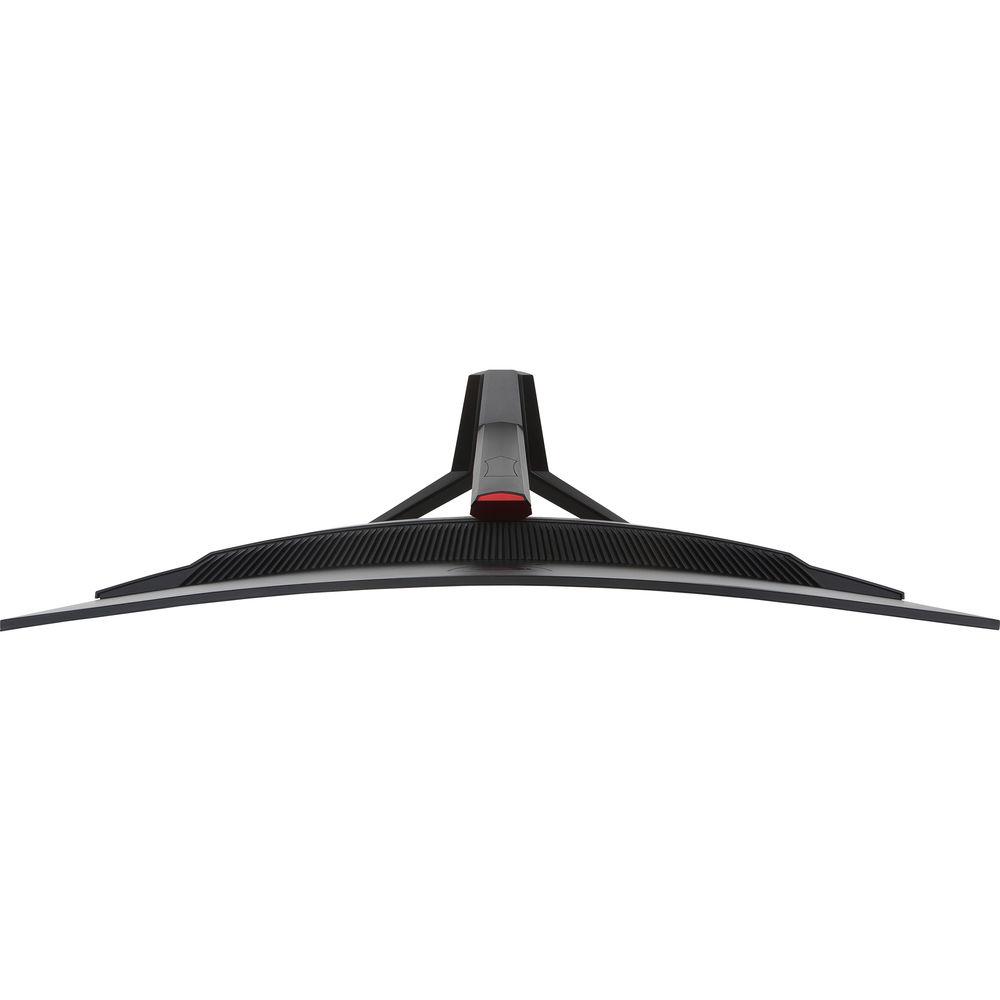

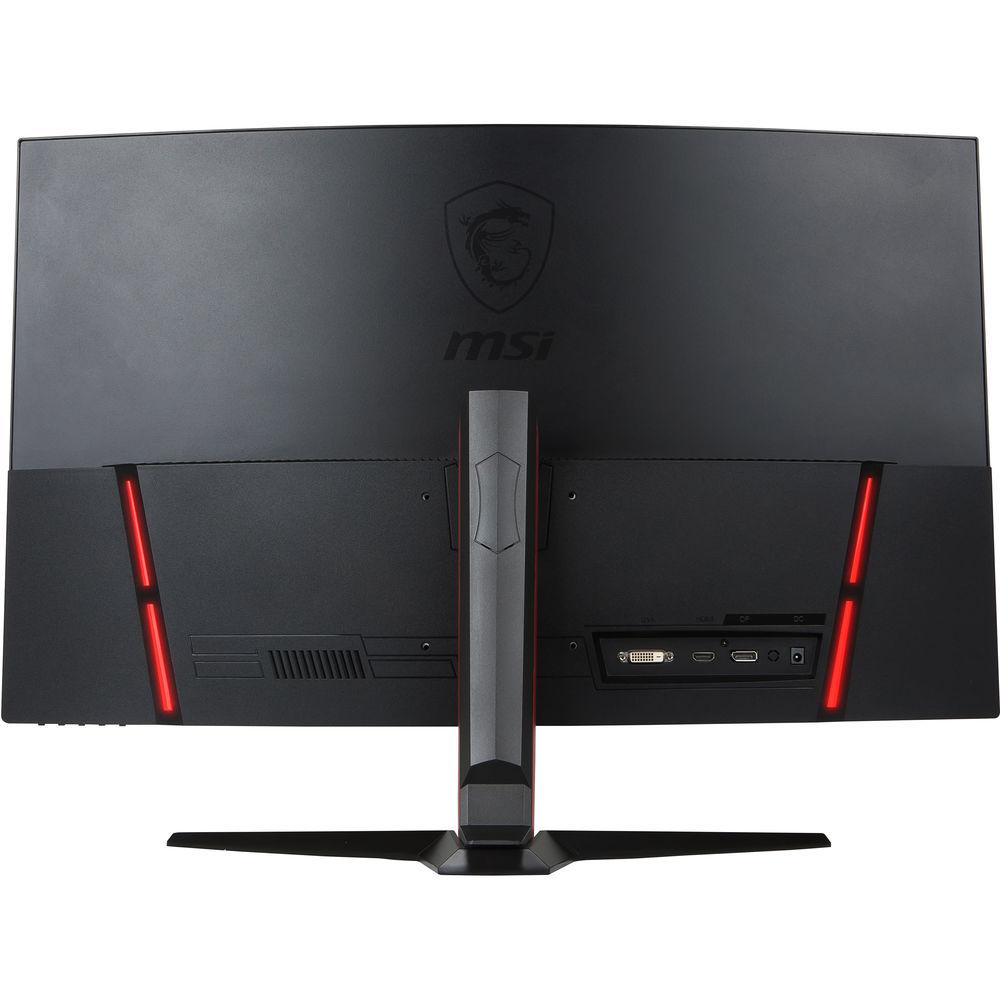

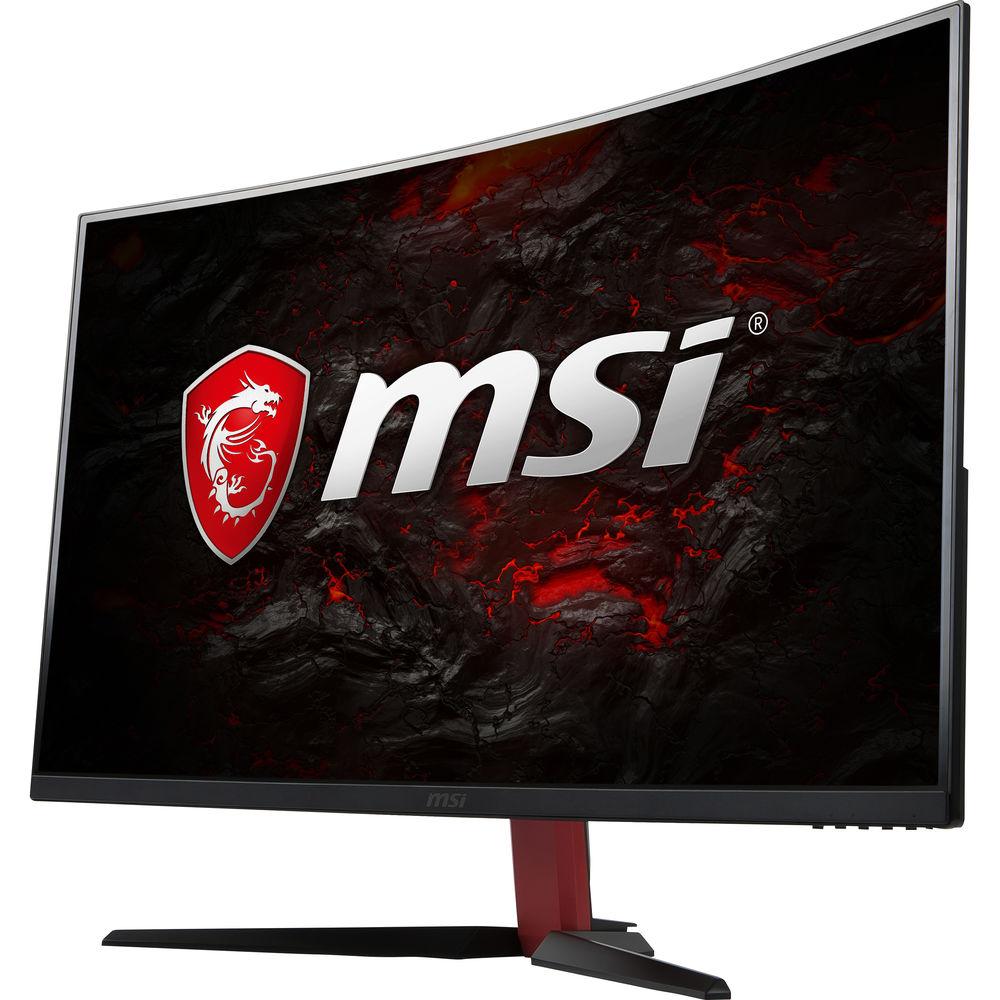

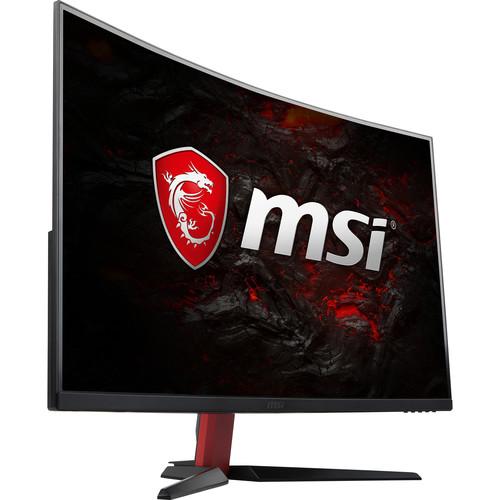

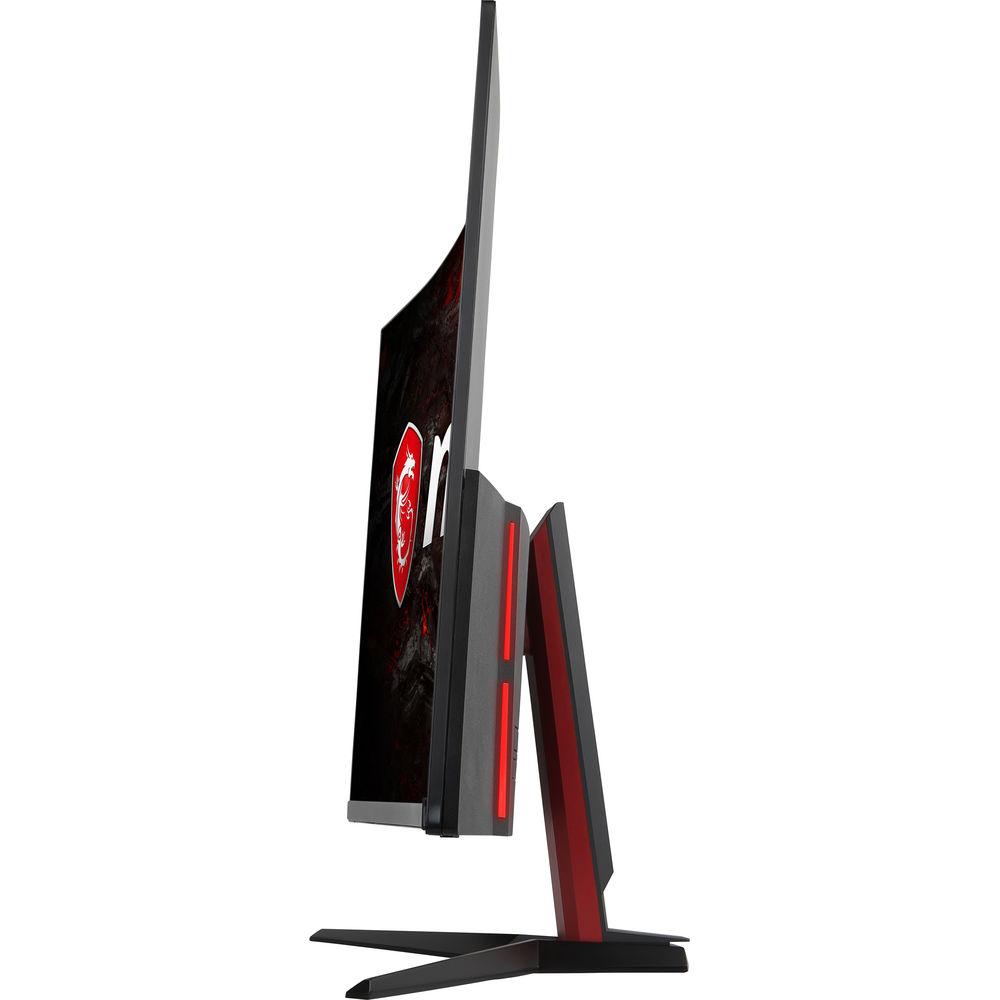

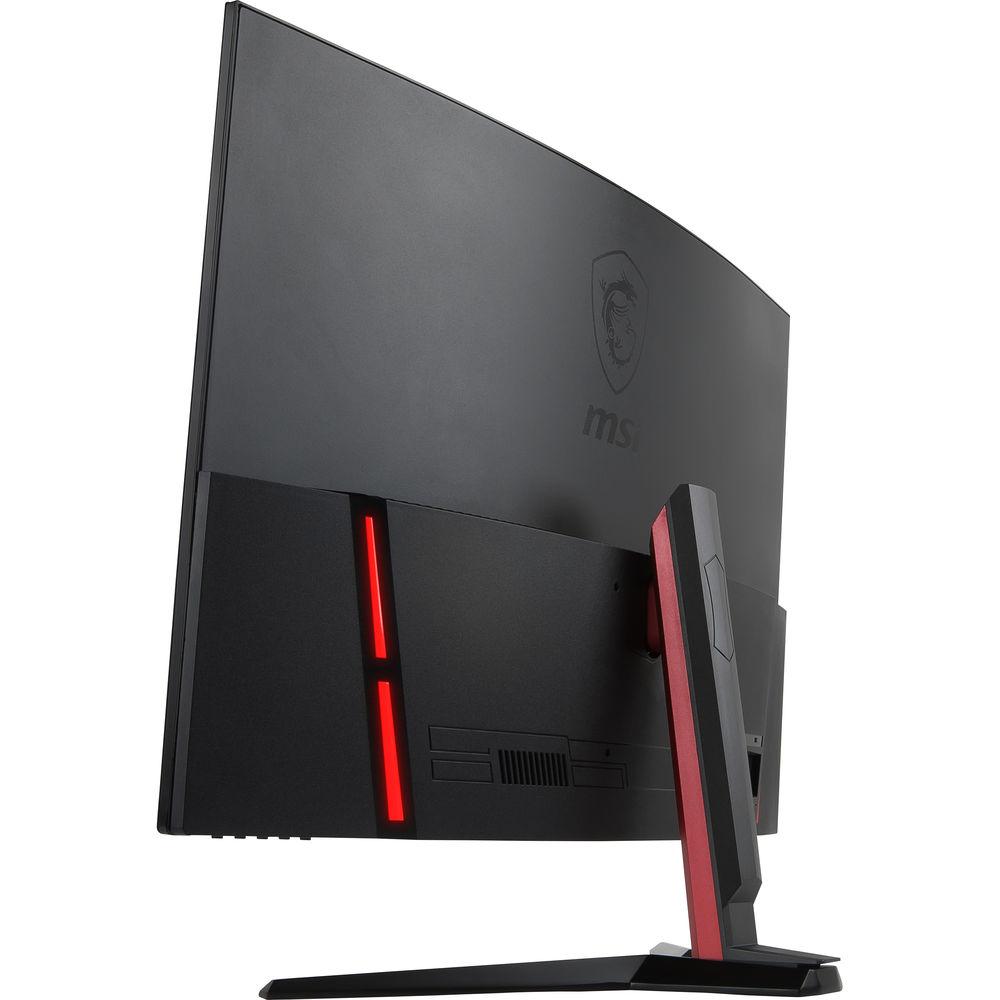

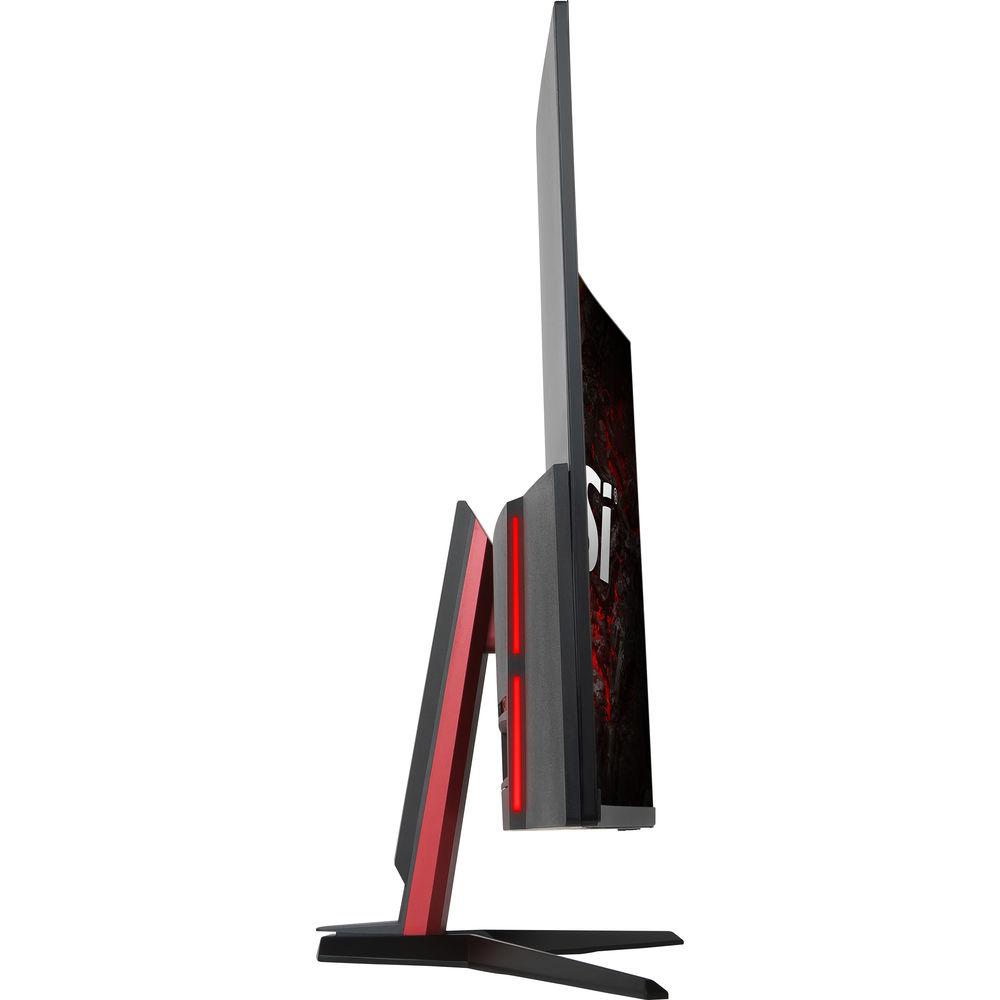

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Don't miss a second of your favorite game with the Optix AG32C 32" 16:9 Curved LCD Gaming Monitor from MSI. This monitor comes equipped with AMD FreeSync technology, a 165 Hz refresh rate, and a 1 ms response all designed to virtually eliminate lag and blurring of fast moving games.
In addition to the enhanced gaming features, this frameless monitor covers 85% of the NTSC color space and 110% of the sRGB color space producing a more vivid picture with true to life colors. All of this is packed into the 31.5" monitor that features an 1800R curvature rating for a more immersive viewing experience. The Optix AG32C provides a crisp, clear picture thanks to the Full HD 1920 x 1080 resolution, a 3000:1 contrast ratio, a 250 cd/m² brightness rating, and support for up to 16.7 million colors. Setup is simple thanks to the DisplayPort, HDMI, and DVI inputs; and the monitor can be viewed from the included stand or mounted to the wall using a VESA compatible mount. - Curved Gaming
- View more of your game with the 1800R curve rate that is perfect for gamers to play their games.
- 165 Hz
- Experience smooth gaming with a fast 165 Hz refresh rate, that gives you the upper hand in fast-moving games.
- 1 ms Fast Response Time
- Eliminate screen tearing and choppy frame rates with 1 ms response time.
- 85% NTSC
- Game colors and details will look more realistic and refined, to push game immersion to its limits.
- 110% sRGB
- Get the vivid and detailed colors with 110% coverage of the sRGB color space.
- FreeSync Technology
- AMD FreeSync will prevent screen tearing or stuttering, producing ultra-smooth, and lag-free gameplay.
- Frameless Design
- With the narrow bezel, you will not even notice the monitor at all in the heat of the moment.
- Gaming Red LED Lights
- Get the ultimate gaming vibes with red LED lights on the back of the Gaming Monitor.
UPC: 824142150429 In the Box MSI Optix AG32C 32" 16:9 Curved LCD Gaming Monitor Limited 2-Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Optix AG32C 32" 16:9 Curved LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Optix AG32C Specs | | | Size | 31.5" | | Screen Area | 27.50 x 15.47" / 69.84 x 39.29 cm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 70 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 165 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 56 to 215 kHz | | Vertical Frequency | 48 to 165 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 85% NTSC
110% sRGB | | Response Time | 1 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.36375 x 0.36375 mm | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x HDMI 2.0 Input
1 x DVI Input | | | | Power Consumption | 60 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | DC Input Power | 12 VDC at 5 A | | | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 75 x 75 mm | | Dimensions (W x H x D) | 28.5 x 20.2 x 8.2" / 72.3 x 51.2 x 20.9 cm | | Weight | 14.62 lb / 6.63 kg | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 32.0 x 21.0 x 6.0" |
