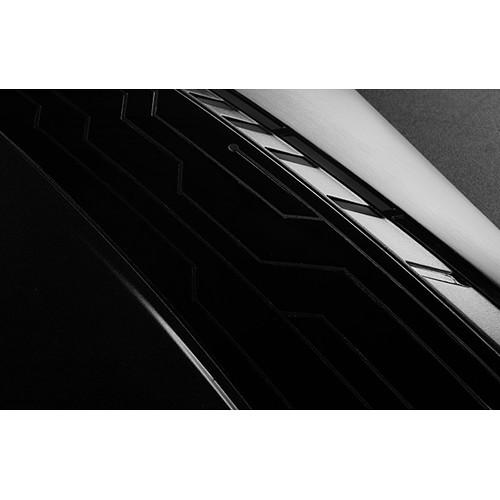

User Manual for MSI OPTIX MAG271C 27" 16:9 Curved Gaming Monitor Click to enlarge the picture
Contents of the user manual for the MSI OPTIX MAG271C 27" 16:9 Curved
- Product category: Computer Monitors MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Computer Monitors
 |
User manual for the MSI OPTIX MAG271C 27" 16:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

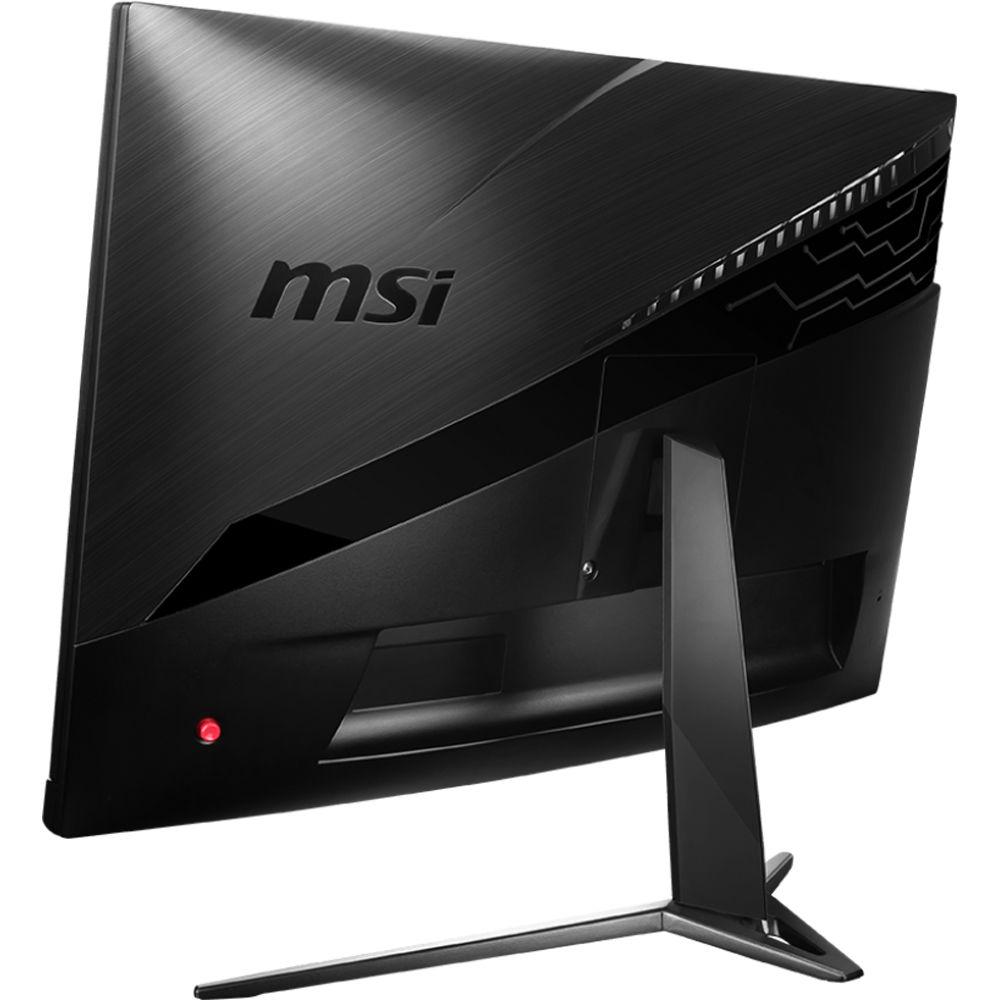

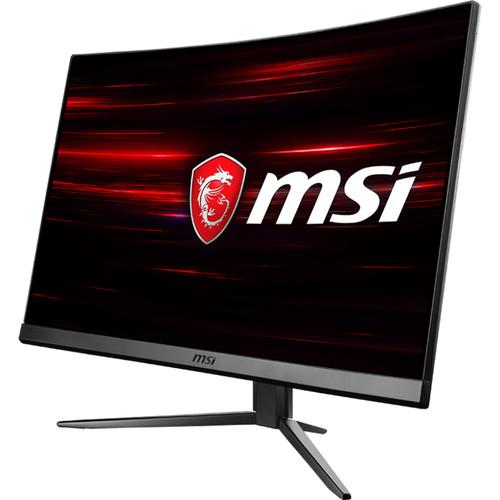

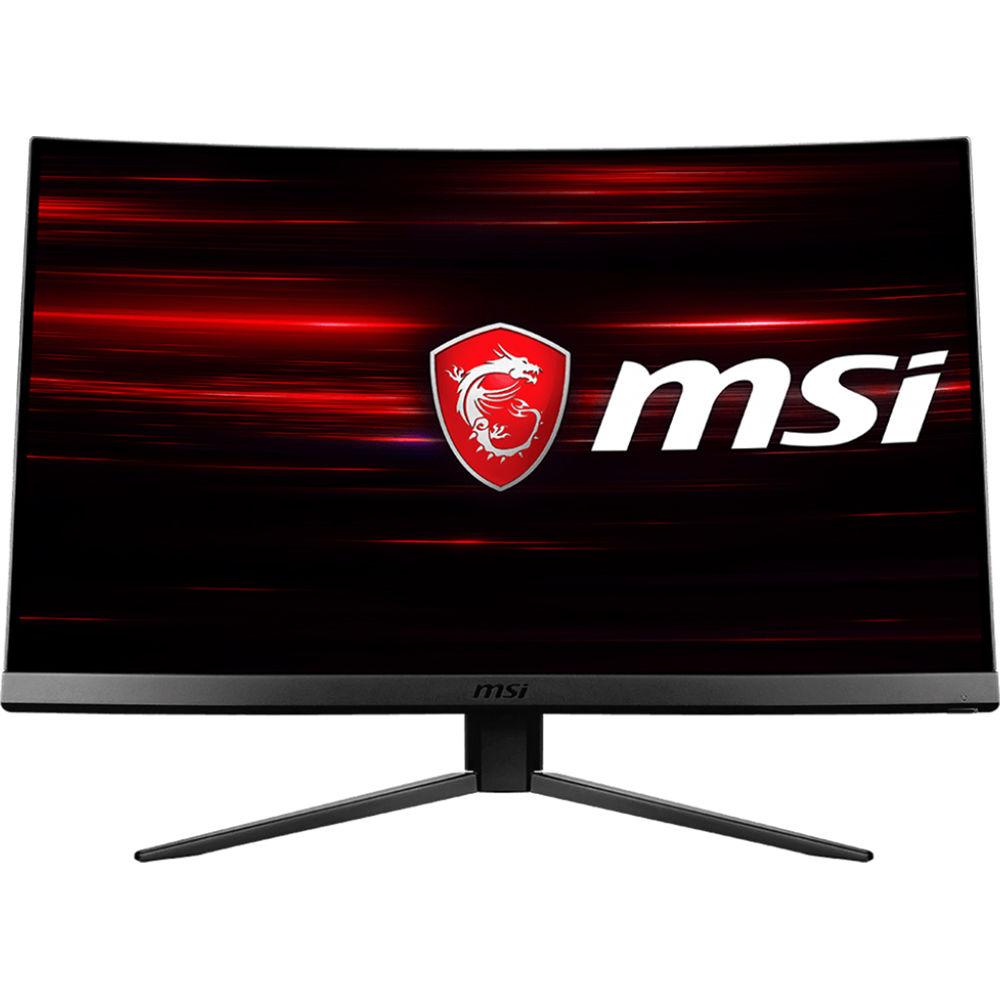

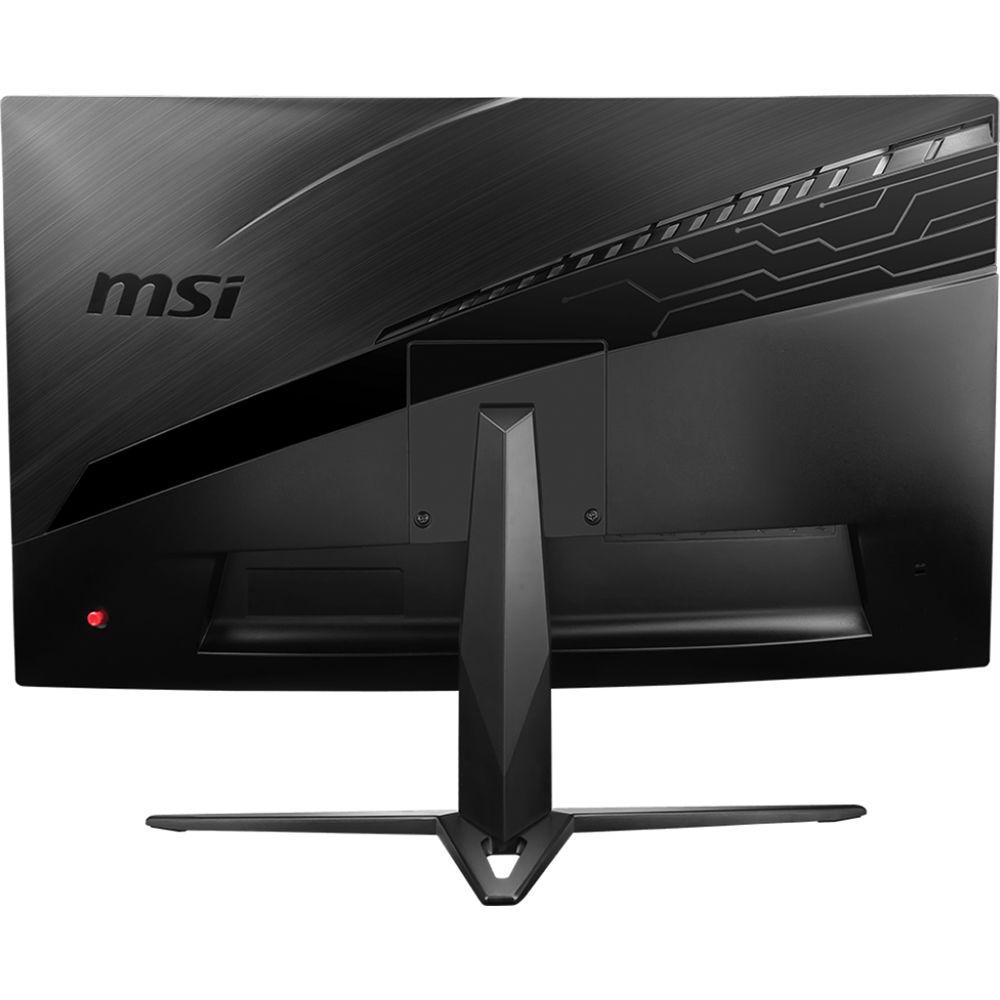

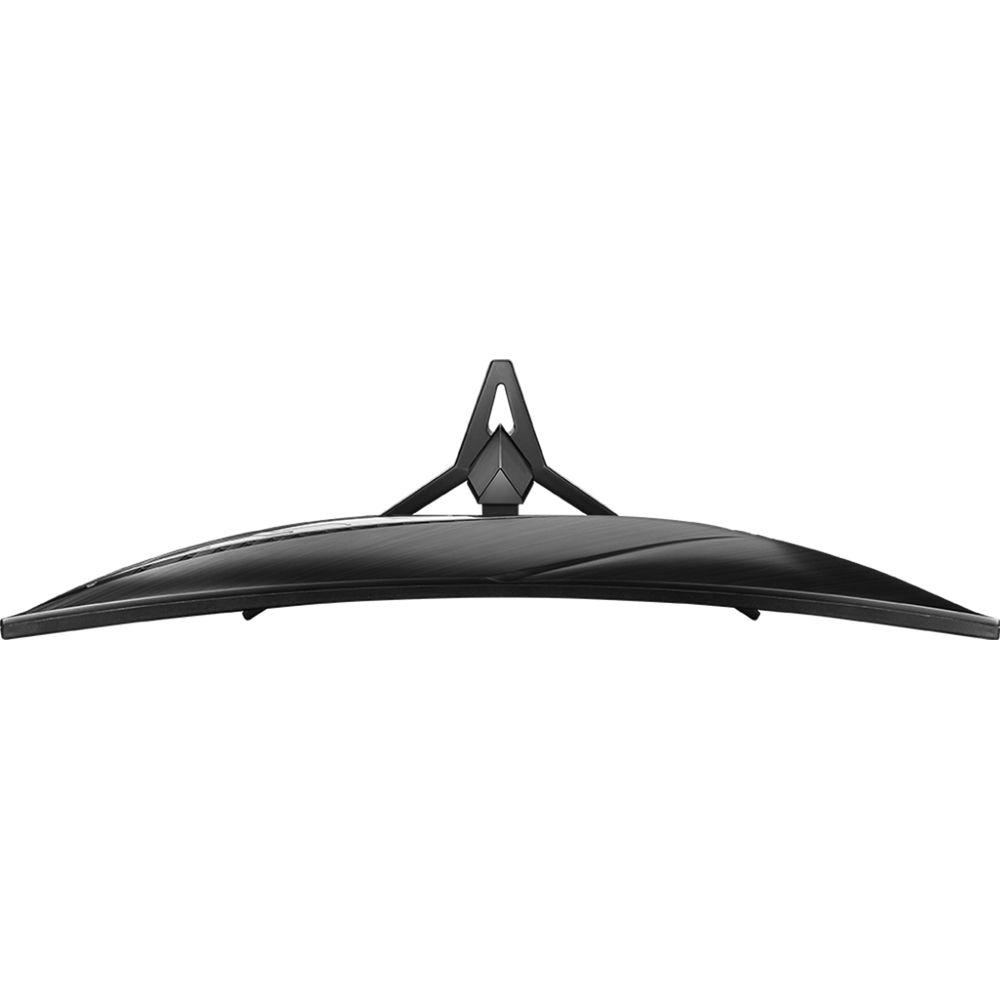

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More For an immersive gaming experience, the OPTIX MAG271C 27" 16:9 Curved Gaming Monitor from MSI features a 1800R curved Full HD panel with a 144 Hz refresh rate and FreeSync technology. A virtually frameless bezel surrounds this 1920 x 1080 resolution display that features a 3000:1 contrast ratio, a 300 cd/m² brightness rating, a 1 ms response time, and support for up to 16.7 million colors. Setup is simple thanks to HDMI and DisplayPort inputs, while the USB hub lets you connect USB compatible peripherals directly to the display. Once configured, gamers can take advantage of the Gaming OSD App, and an included headset hanger keeps your headset close by in between gaming sessions. Furthermore, this monitor has a 5-way OSD navigation joystick and can be tilted from -5 to 20° for maximum viewing comfort. - Curved Gaming
- View more of your game with the 1800R curve rate that is suitable for gamers to play their games.
- 144 Hz High Refresh Rate
- Experience smooth gaming with a fast 144 Hz refresh rate, that gives you the upper hand in fast-moving games.
- 1 ms Fast Response Time
- Eliminate screen tearing and choppy frame rates with 1 ms response time.
- Gaming OSD APP
- Customize and set the ultimate monitor modes with keyboard and mouse in a very easy way.

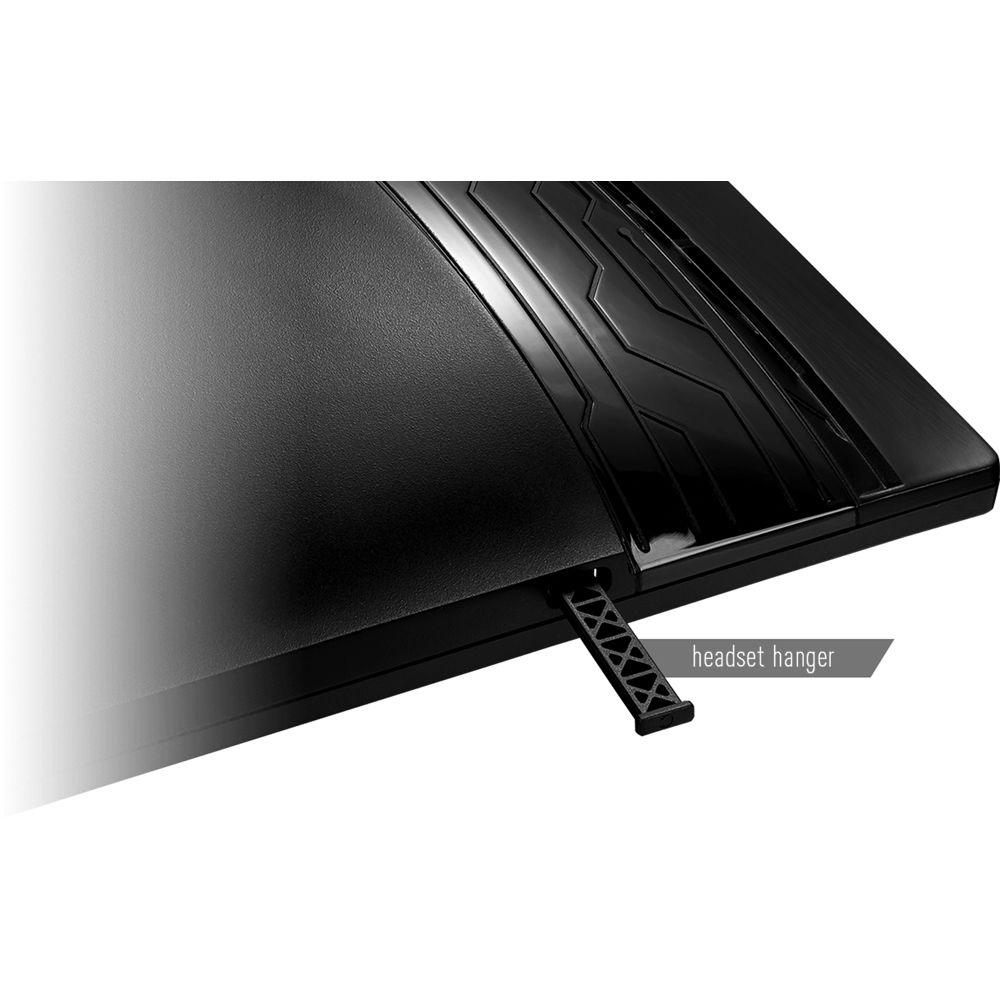

- Headset Hanger
- Keep your headset in an easy to access space with the built-in headset hanger.
- Frameless Design
- With the narrow bezel, you will not even notice the monitor at all in the heat of the moment.
- FreeSync Technology
- AMD FreeSync will prevent screen tearing or stuttering, producing ultra-smooth and lag-free gameplay.
- Anti-Flicker Technology
- MSI Anti-Flicker technology provides a very comfortable viewing experience by reducing the amount of screen flicker.
UPC: 824142163931 In the Box MSI OPTIX MAG271C 27" 16:9 Curved Gaming Monitor Stand Stand Base with Screw Power Cord HDMI Cable DisplayPort Cable USB Upstream Cable Limited 2-Year Warranty User Manual PDF 1.2mbbfbyezzcfysszxxeftv Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI OPTIX MAG271C 27" 16:9 Curved Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Optix MAG271C Specs | | | Size | 27.0" | | Screen Area | 23.54 x 13.24" / 597.89 x 336.31 mm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 115% sRGB
90% DCI-P3 | | Response Time | 1 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x DisplayPort Input
2 x HDMI 1.4 Input
2 x USB Type-A (USB 2.0) Output
1 x USB Type-B (USB 2.0) Input
1 x 3.5 mm Output | | Built-In Speakers | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.1 x 17.8 x 8.9" / 612.0 x 451.8 x 225.2 mm | | Weight | 12.35 lb / 5.6 kg | | | | Package Weight | 17.35 lb | | Box Dimensions (LxWxH) | 27.0 x 20.0 x 7.0" |
