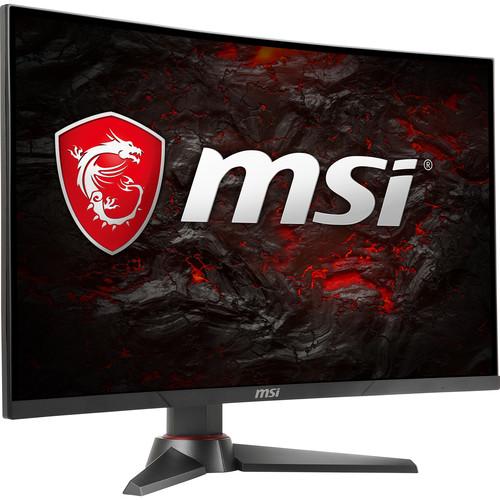

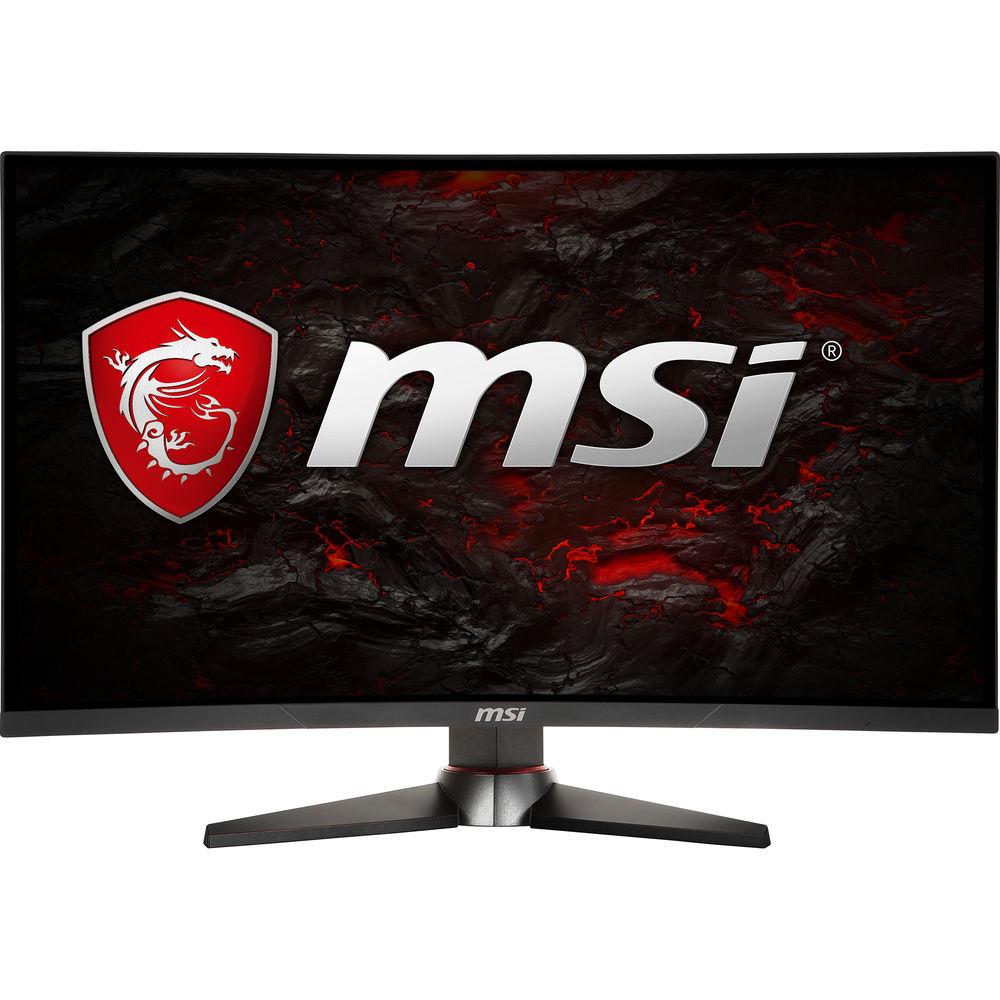

User Manual for MSI Optix MAG27CQ 27" 16:9 Curved 144 Hz LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the MSI Optix MAG27CQ 27" 16:9 Curved
- Product category: Computer Monitors MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Computer Monitors
 |
User manual for the MSI Optix MAG27CQ 27" 16:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

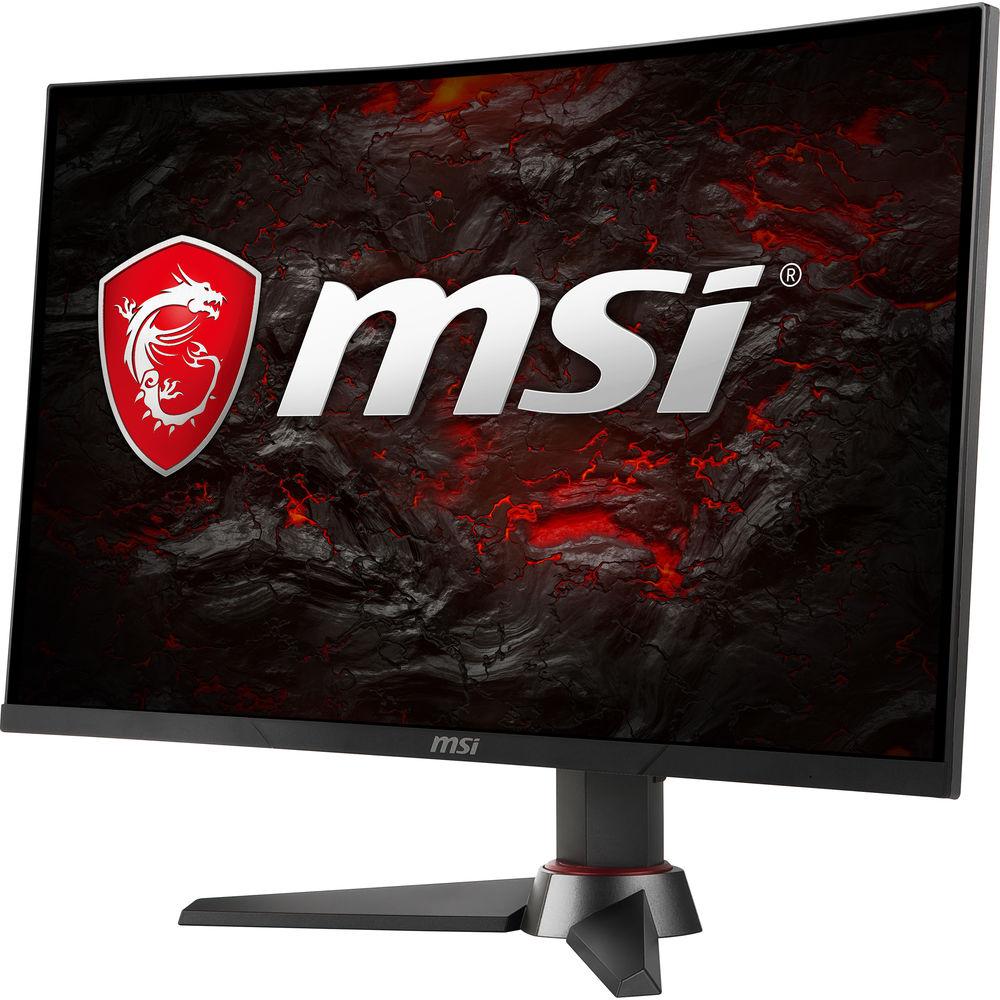

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Optix MAG27CQ 27" 16:9 Curved 144 Hz LCD Gaming Monitor from MSI features a 2560 x 1440 WQHD resolution, a 3000:1 contrast ratio, a 250 cd/m² brightness rating, a 1 ms response time, a 144 Hz refresh rate, and support for up to 16.7 million colors. The display also covers 85% of the NTSC color space and 110% of the sRGB color space for a more accurate color representation.

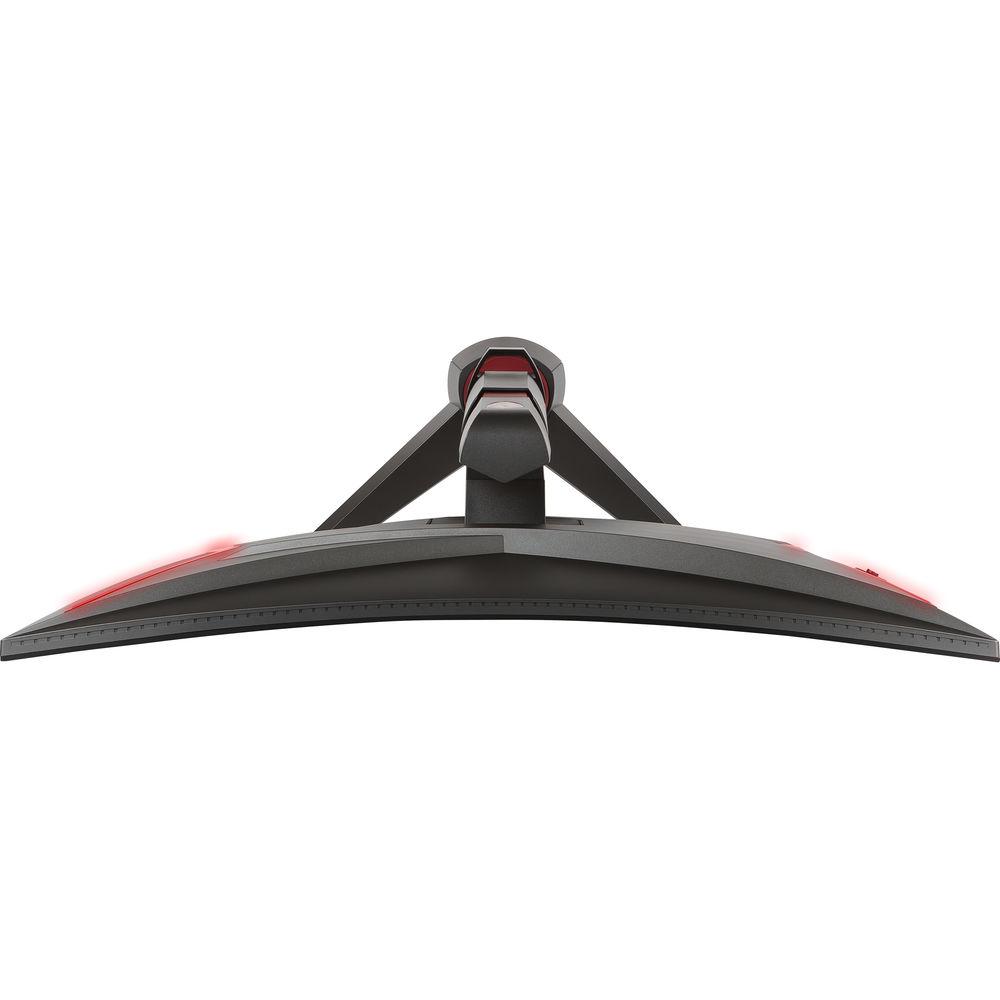

All of this is packed into the curved Optix MAG27CQ monitor, which also features an 1800R curvature rating and 178° horizontal and vertical viewing angles, so the screen doesn't become distorted when you view it from various angles. Configuration is simple thanks to HDMI, DisplayPort, and DVI inputs, while the adjustable stand allows you to tilt and swivel the monitor into place. - Curved Gaming
- View more of your game with the 1800R curve rate that is perfect for gamers to play their games.
- 144 Hz High Refresh Rate
- Experience smooth gaming with a fast 144 Hz refresh rate, that gives you the upper hand in fast-moving games.
- 1 ms Fast Response Time
- Eliminate screen tearing and choppy frame rates with 1 ms response time.
- Gaming OSD
- Customize and set the ultimate monitor modes, settings and functions with the monitors Gaming OSD.

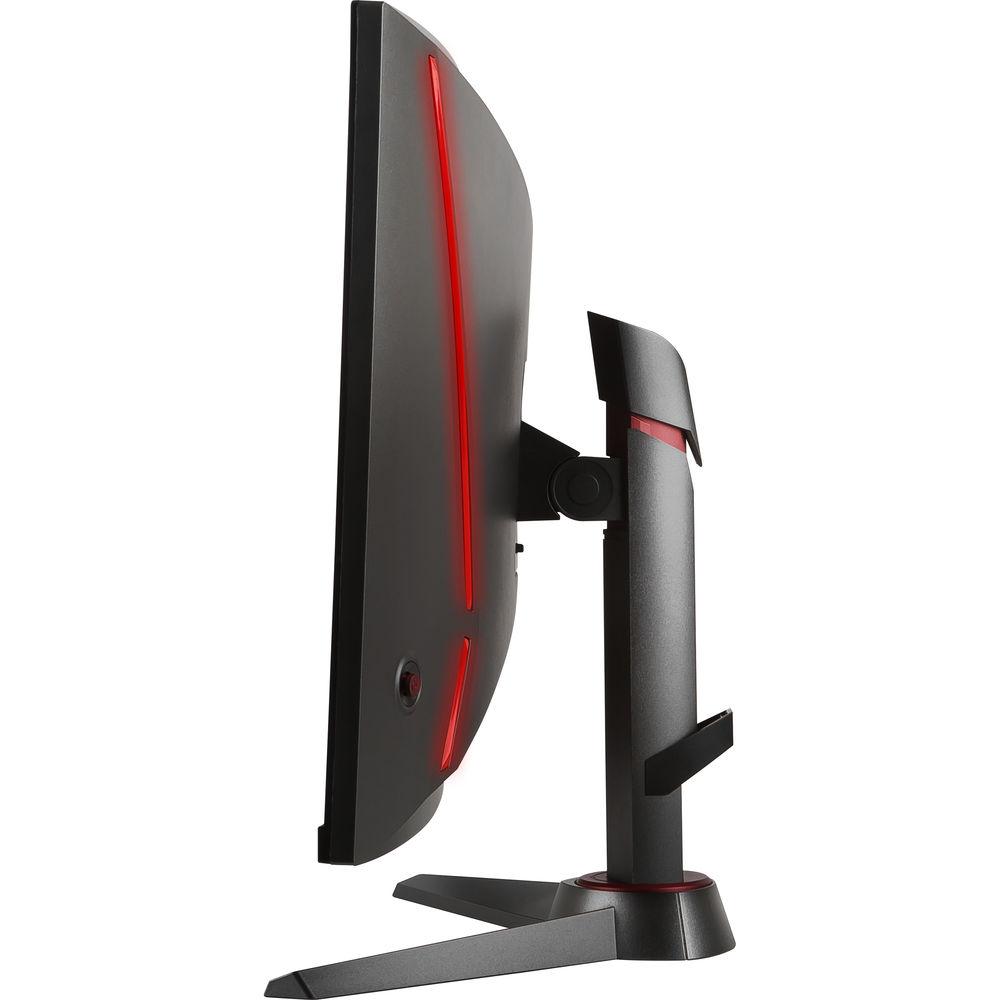

- Adjustable Stand
- Maximize your productivity and comfort with the adjustable stand.
- 85% NTSC
- Game colors and details will look more realistic and refined, to push game immersion to its limits.
- 110% sRGB
- Get the vivid and detailed colors with 110% coverage of the sRGB color space and 85% coverage of the NTSC color space.

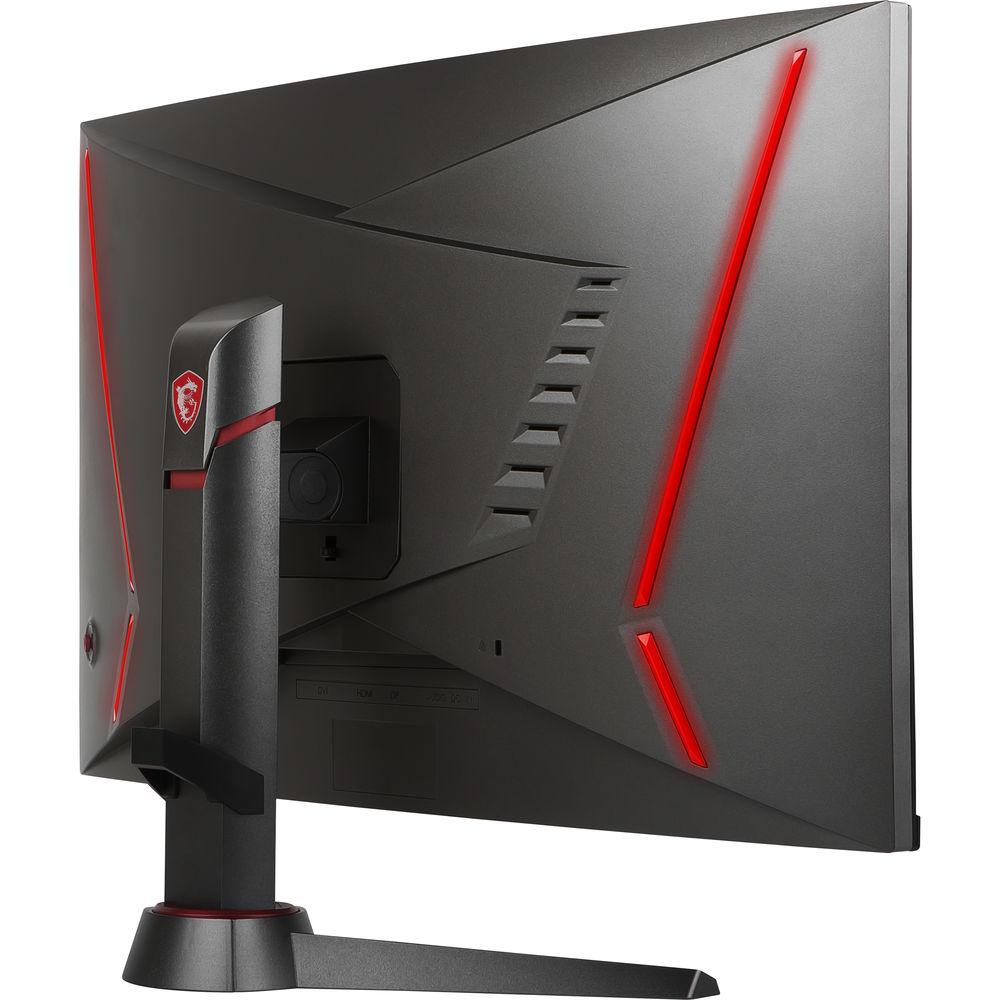

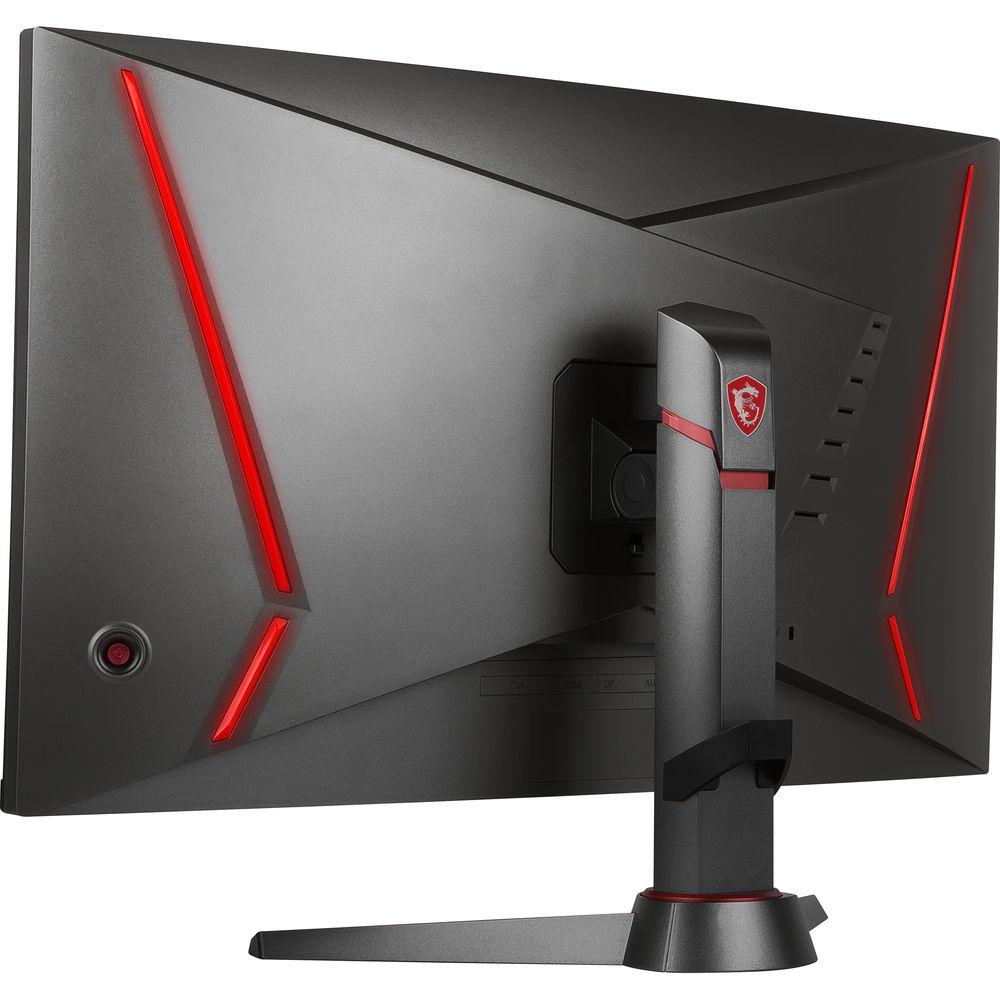

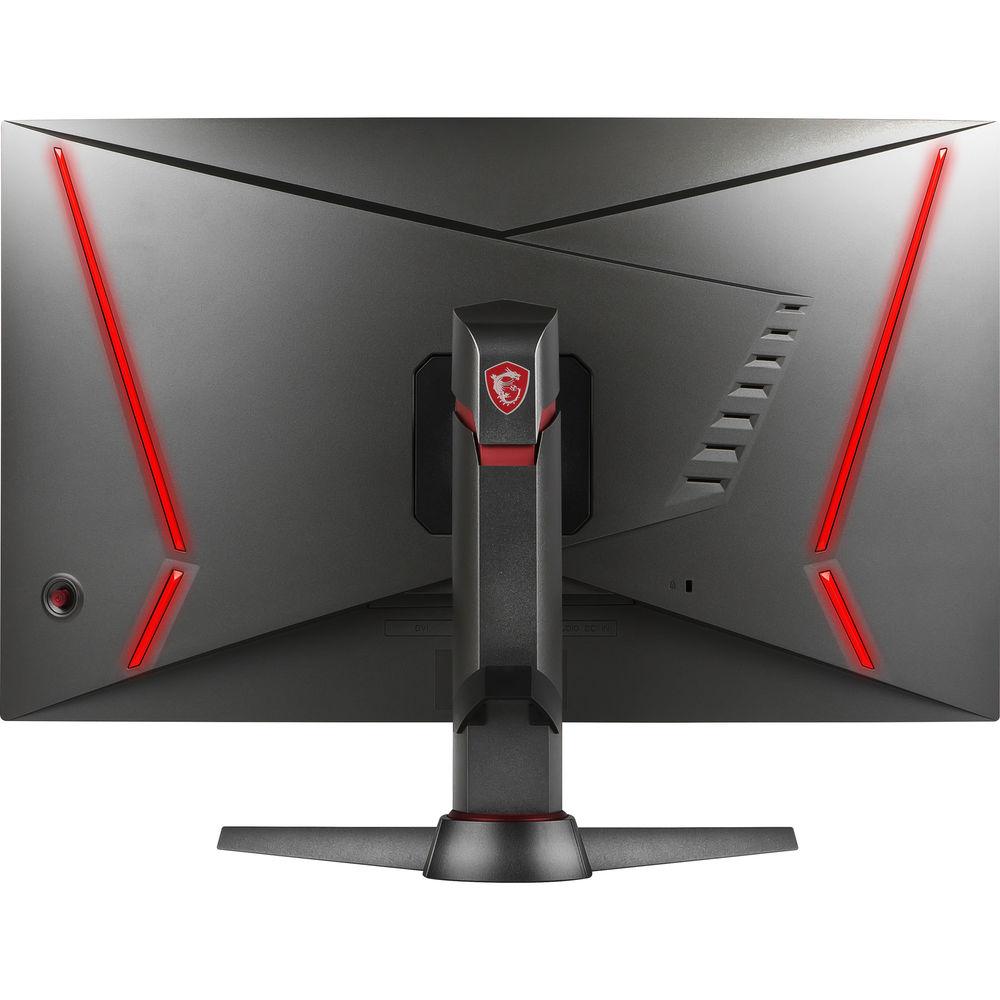

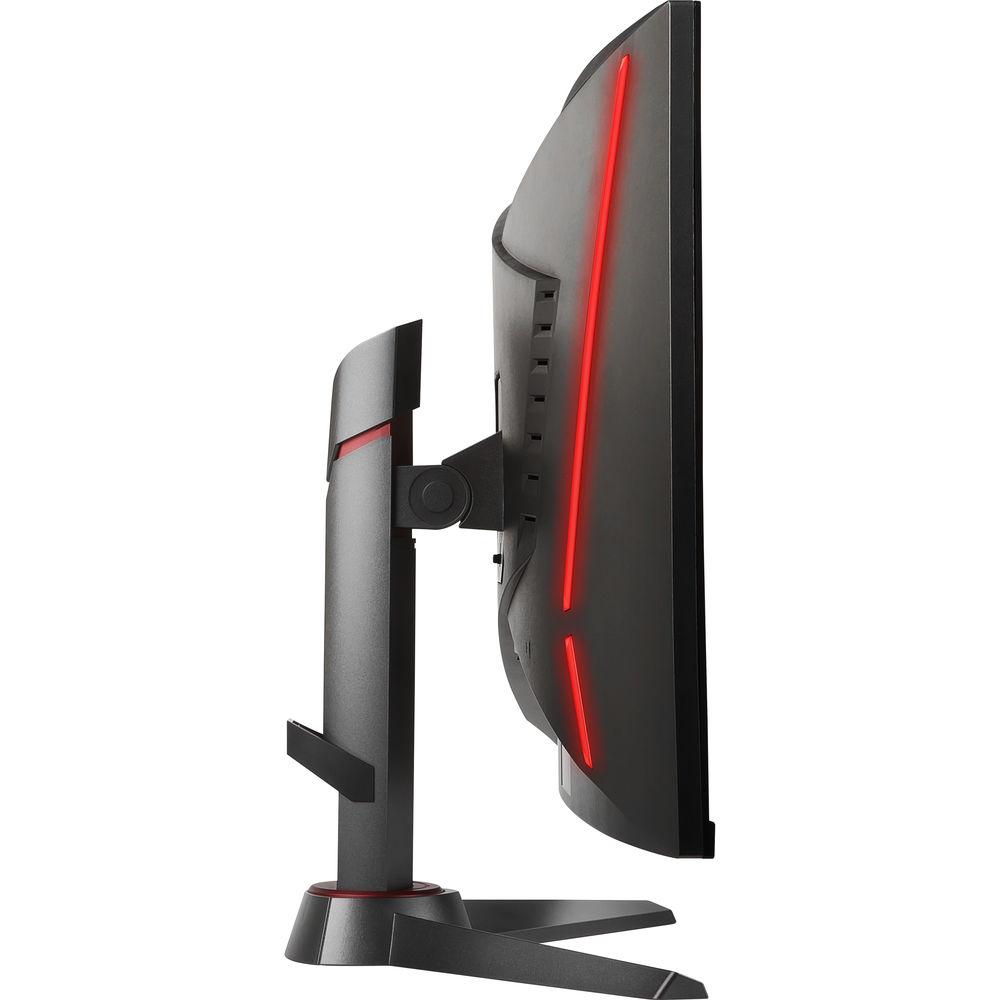

- RED LED Decorative Lighting
- Found on the back of the monitor, the RED LED lighting offers the ultimate gaming finish.
UPC: 824142152607 In the Box MSI Optix MAG27CQ 27" 16:9 Curved 144 Hz LCD Gaming Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Optix MAG27CQ 27" 16:9 Curved 144 Hz LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Optix MAG27CQ Specs | | | Size | 27" | | Screen Area | 23.49 x 13.22" / 59.67 x 33.57 cm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 56 to 215 kHz | | Vertical Frequency | 48 to 144 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 85% NTSC
110% sRGB | | Response Time | 1 ms (MPRT) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2331 x 0.2331 mm | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x HDMI 2.0 Input
1 x DVI Input
1 x 3.5 mm Input/Output | | Built-In Speakers | None | | | | Power Consumption | 60 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | DC Input Power | 12 VDC at 5 A | | | | Height Adjustment | 2.56" / 6.5 cm | | Rotation Adjustment | None | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 75 x 75 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 17.1 x 8.1" / 612.2 x 434.1 x 205.4 mm | | Weight | 10.78 lb / 4.89 kg | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 30.4 x 21.3 x 6.3" |
