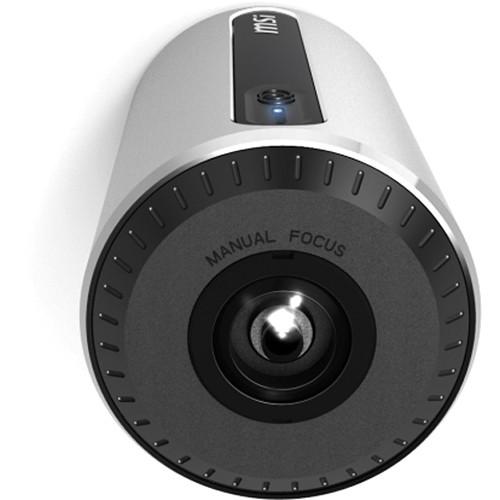

User Manual for MSI PANOCAM Panoramic Wi-Fi Camera Click to enlarge the picture
Contents of the user manual for the MSI PANOCAM Panoramic Wi-Fi Camera
- Product category: Wireless Cameras MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Wireless Cameras
 |
User manual for the MSI PANOCAM Panoramic Wi-Fi Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

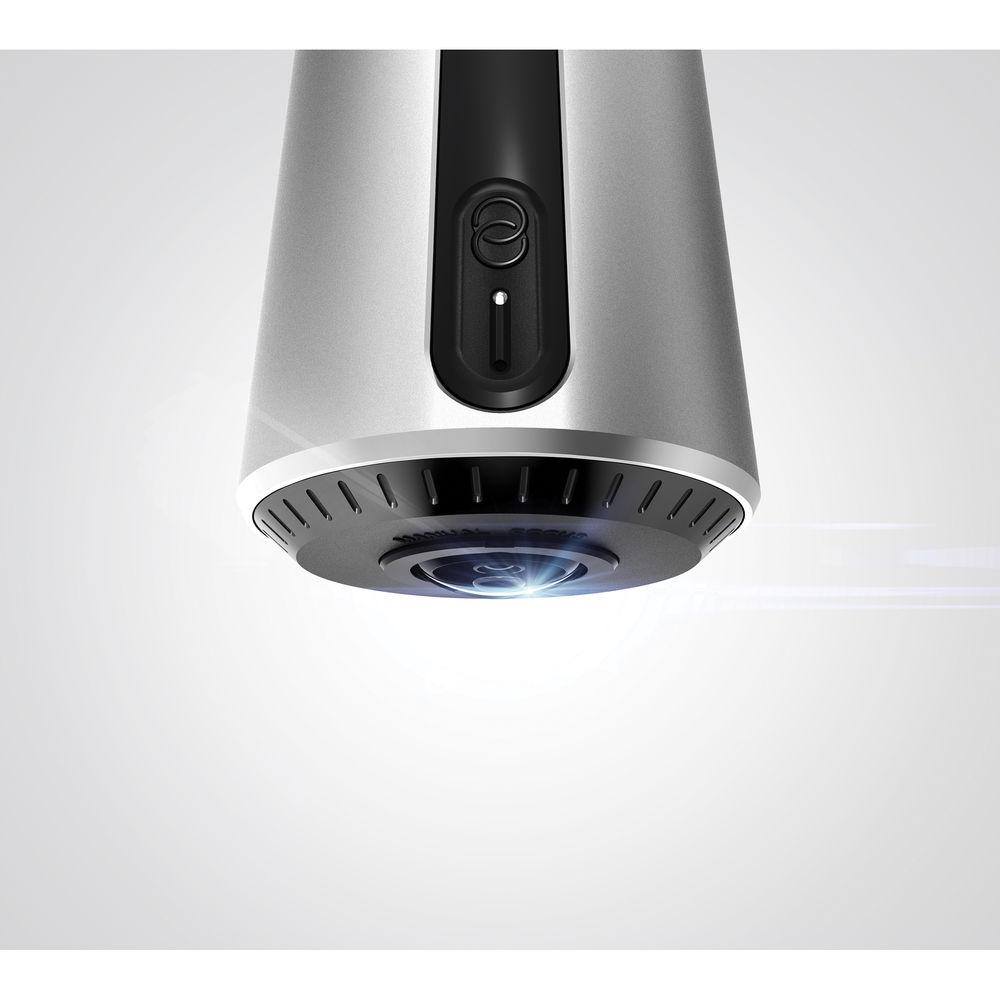

Product description MSI's PANOCAM is designed to give you a panoramic-type view of an environment, in real-time, right on your phone, tablet, or computer. Featuring a 180° fisheye lens, the PANOCAM provides a "bird's-eye view" of the environment, and you can see it all in a circular window on your device using the PANOCAM app, in high-definition 1600 x 1600 resolution. If the environment is a large one, you can move the circular window sideways to see everything. On devices with swipe functionality, you'll be able to move the window by swiping sideways. You can also record everything you see to a microSD card, sold separately. The PANOCAM is great for keeping an eye on your pet, home, and pretty much anything else, and two people can be viewing at once on separate devices.
Equipped with a mic and speaker, the PANOCAM allows for two-way communication, so you can let your pet hear your voice, or the kids hear your voice, and you can hear back from them. Additionally, you can set the PANOCAM to take a time-lapse recording of the day, so that when you come home, you can see an entire day's events in a quick time-lapse episode. This feature is very useful if you're curious to see what went on all day at home, in the office, or anywhere else you use the PANOCAM.

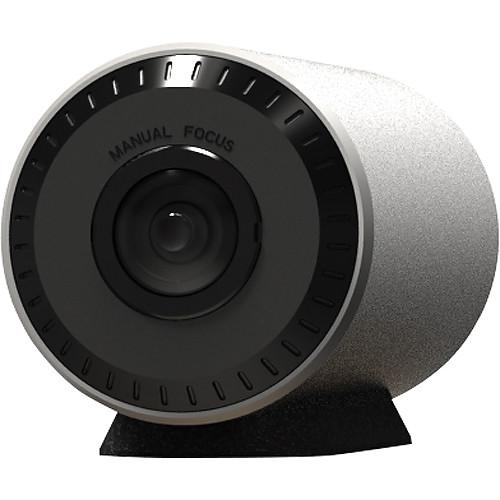

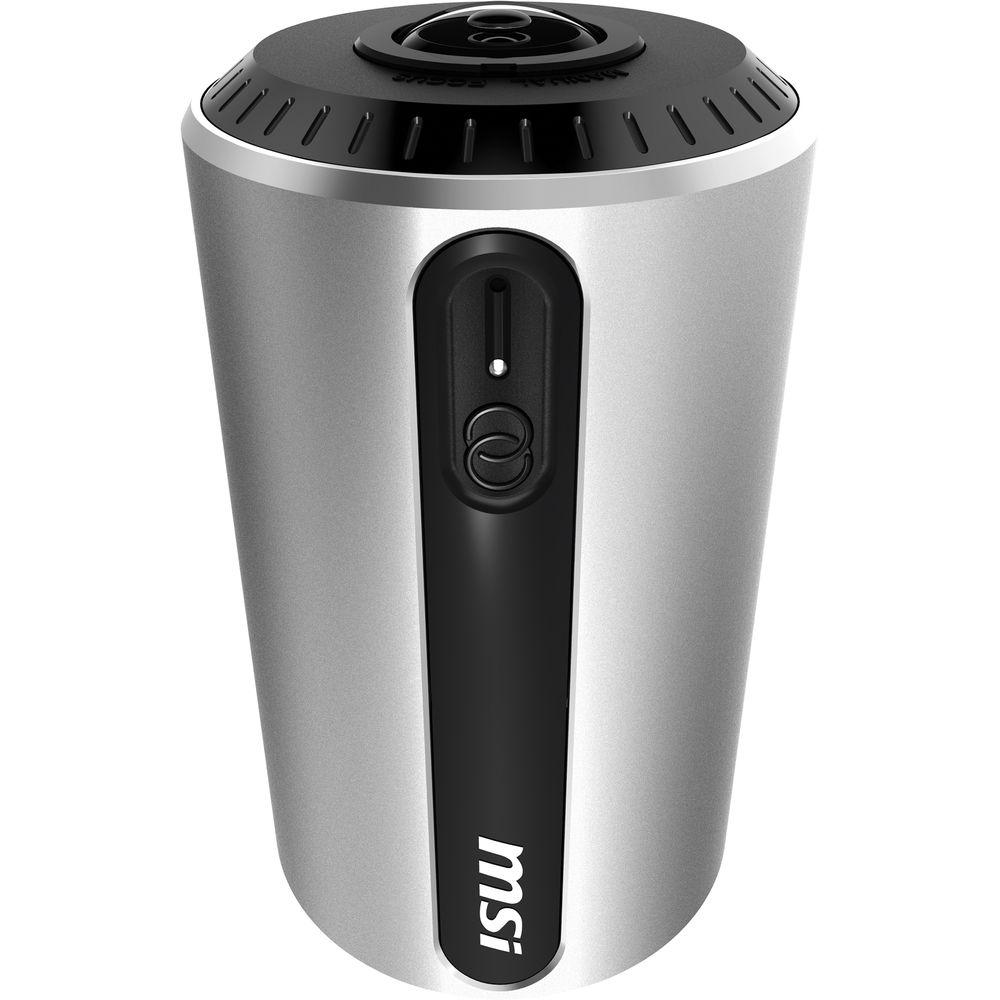

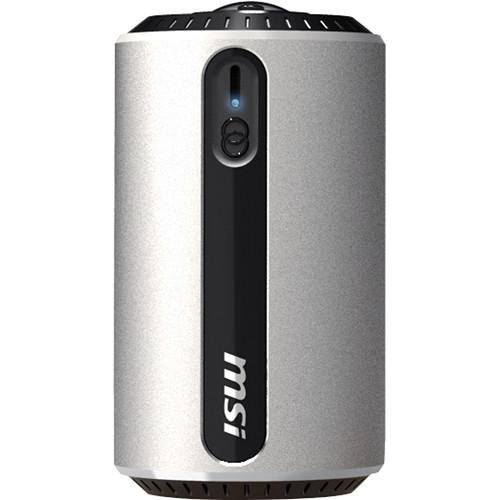

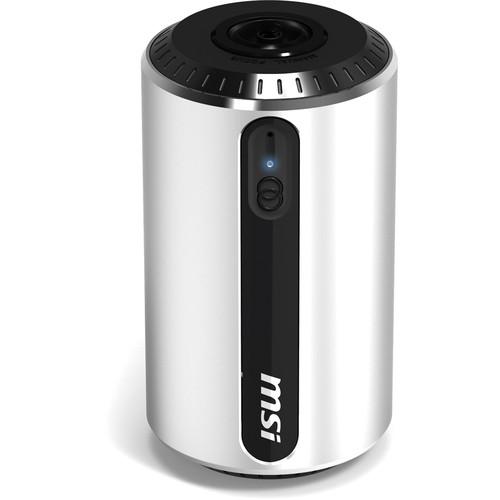

The PANOCAM is compact and housed in a trendy, metallic, cylindrical body. Using included accessories, place it on a shelf, table, or other desktop surface, or mount it on a wall or ceiling. Use it pointing up at the ceiling, down from the ceiling, or sideways, depending on what you want to capture. Connect it quickly and easily to your Internet connection via built-in Wi-Fi. Wi-Fi capability also makes the PANOCAM easy to move to different places. All the functions and features are manageable with just a few simple steps right from the app. The PANOCAM is powered via an included power supply. - Key Features
-
- Keep a 180°, panorama-type, bird's eye view on any environment in real time
- Monitor everything in real time right from your phone, tablet, or computer
- 1600 x 1600 HD resolution at 10 frames/sec
- Choose to record everything to up to 32 GB microSD cards
- Two-way communication -- talk to your kids, or pets, and hear back from them
- Take a time-lapse recording of the day's events and watch it quickly when you get home

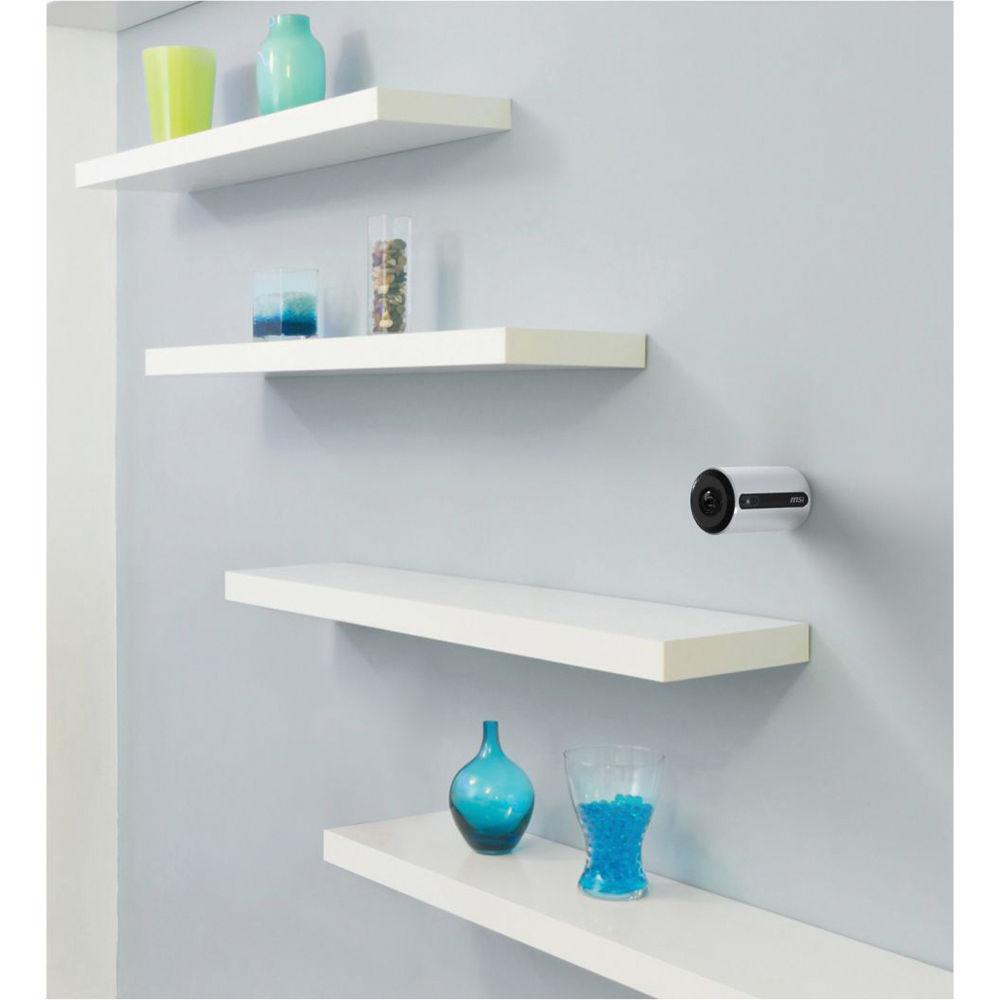

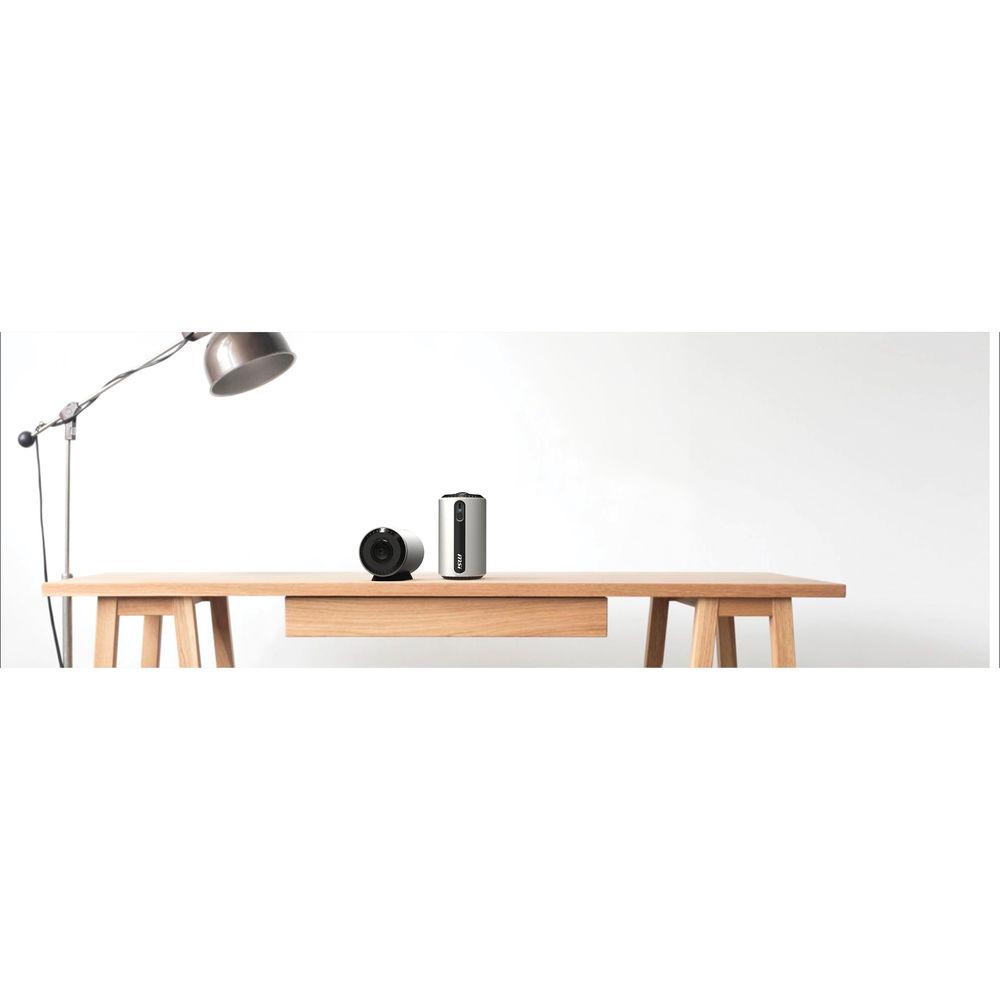

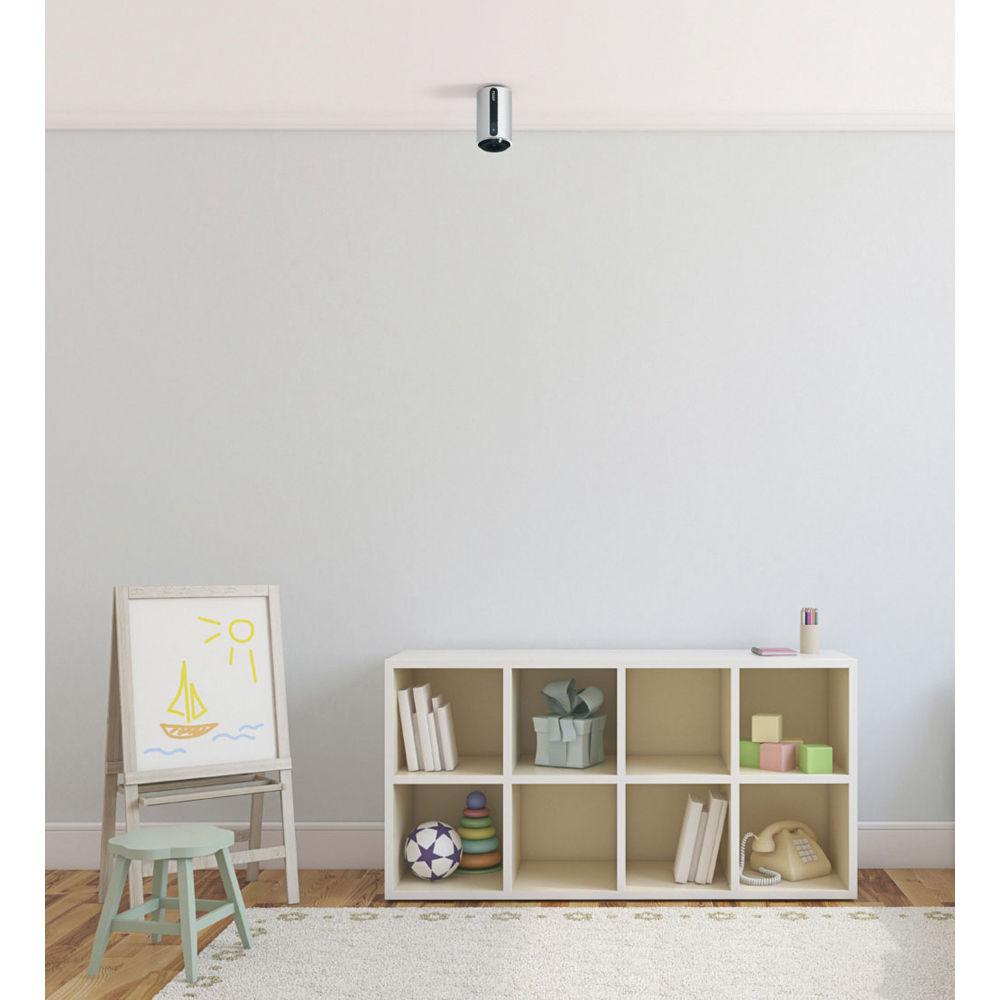

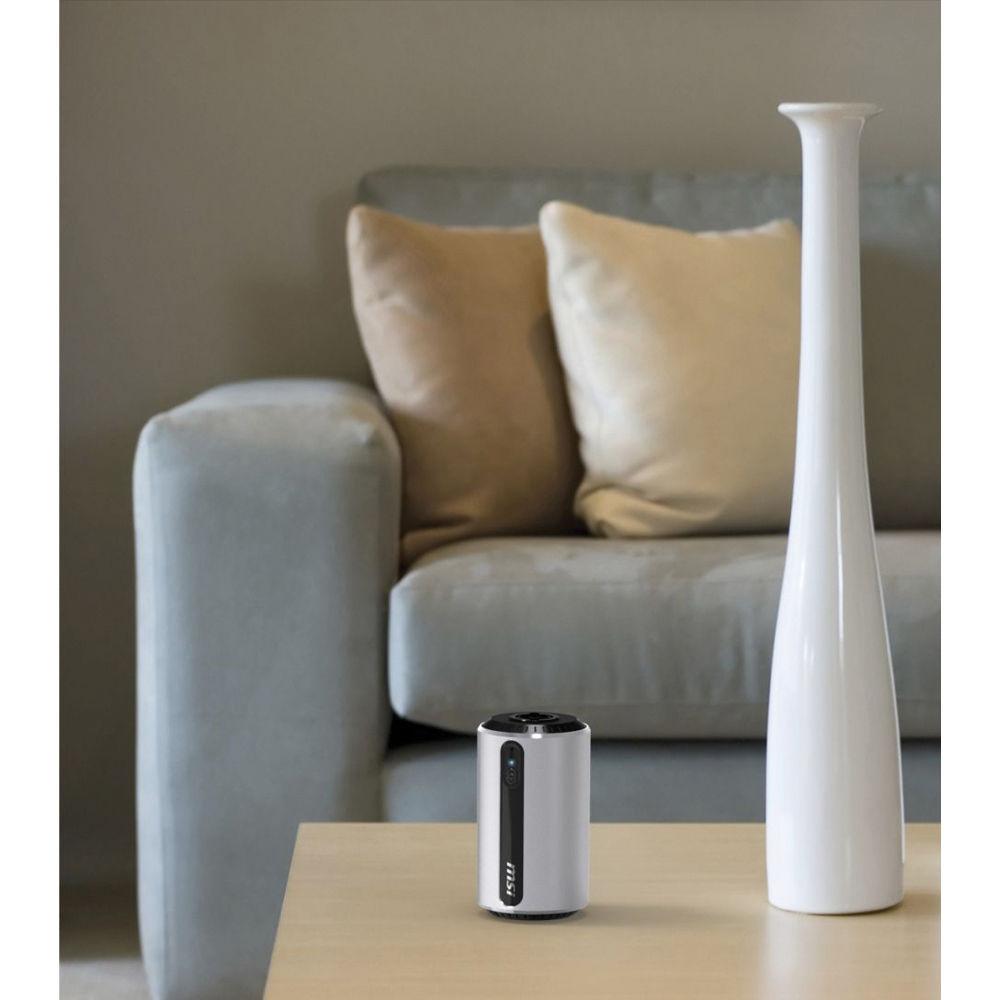

- Place it on a shelf, table, or other desktop surface, or mount it on a wall or ceiling
- Point it up, down, or sideways, depending on what you want to capture
- Connect quickly and easily to your Internet connection via built-in Wi-Fi
- H.264 compression
UPC: 824142113899 In the Box MSI PANOCAM Panoramic Wi-Fi Camera Desktop Stand Wall-Mount Accessory 5V/2A Power Supply Micro USB Power Cable 2 x Expansion Screws (Wall-Mount) 2 x Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI PANOCAM Panoramic Wi-Fi Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI 939-9A56-002 Specs | Image Sensor | 1/2.5" low lux sensor | | Lens | Fisheye, 180° field of view (diagonal) | | Video Recording | H.264 encoding 1600 x 1600 resolution at 10 frames/sec | | Audio Recording | G.711 u-law | | Storage | Supports up to 32 GB microSD cards | | Installation Requirements | High-Speed Internet Environment: FTTX, Cable, xDSL
Mobile Devices: iOS 7.0 or later, Android 4.3 or later
PC Web Browser: IE 9/11, Safari 6.0, and Firefox 30
Wi-Fi: 802.11b/g/n 2.4 GHz
Wireless Security: WEP (64-bit, 128-bit), WPA (TKIP, AES), WPA2 (TKIP, AES) | | Device Support | iOS 7.1.2 or Later:
iPod Touch
iPhone5/5S/6/6 Plus
iPad 2nd, 3rd, 4th Generation
iPad mini 1st, 2nd, 3rd Generation
iPad Air 1st and 2nd Generation
Android 4.0.4 or Later:
Android Phones
Window 7 or Later:
PC Browser: IE 11 / Chrome 39
*The PANOCAM is currently not compatible with Android Tablets or the Safari 6 web browser, but MSI plans on optimizing it for full compatibility at a later date. | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 4.3 x 2.4 x 2.4" (11 x 6 x 6 cm) | | Weight | 7.6 oz (215 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.7 x 4.9 x 2.7" |
