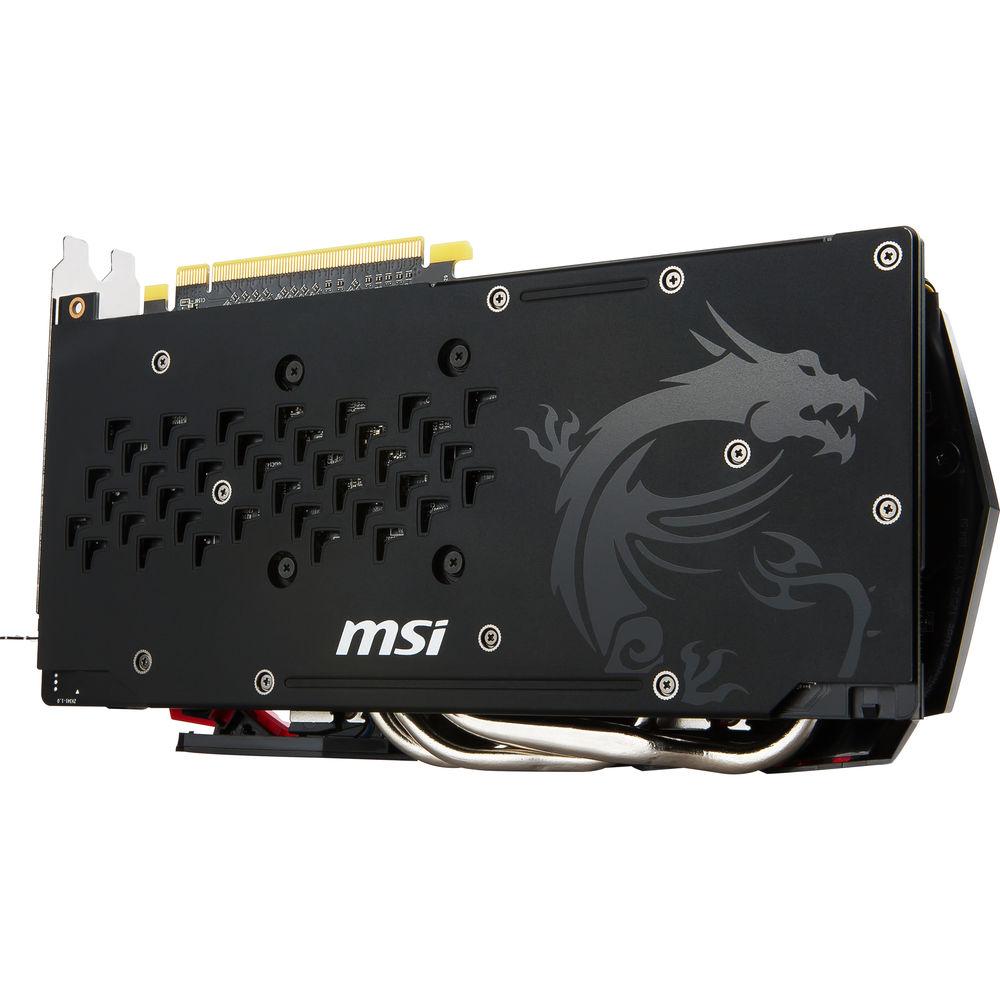

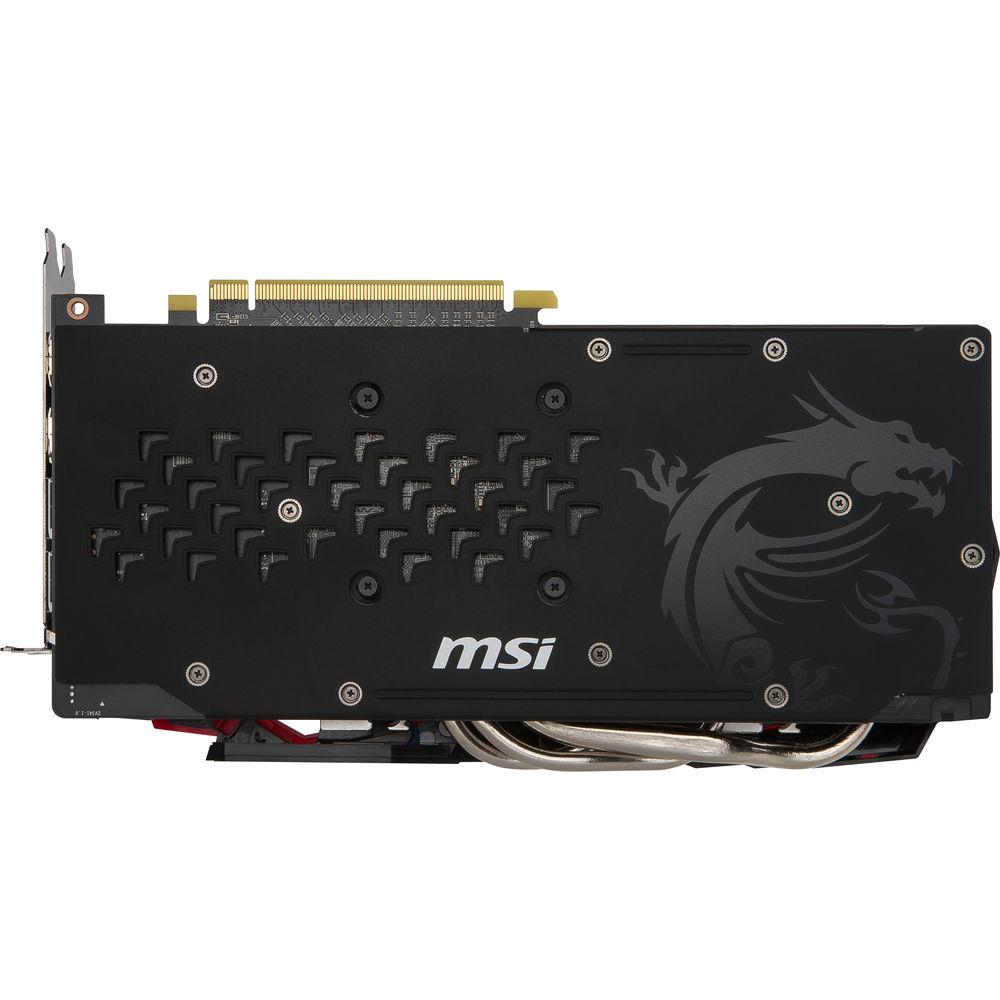

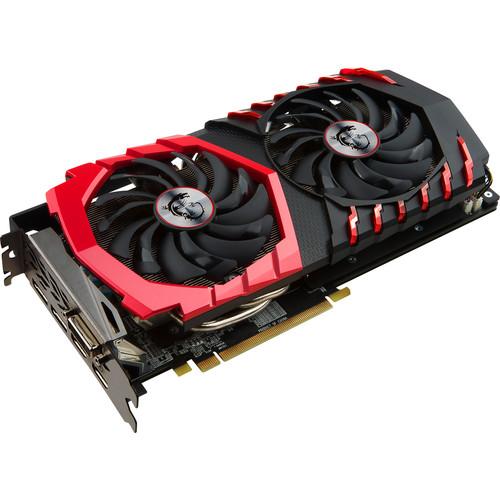

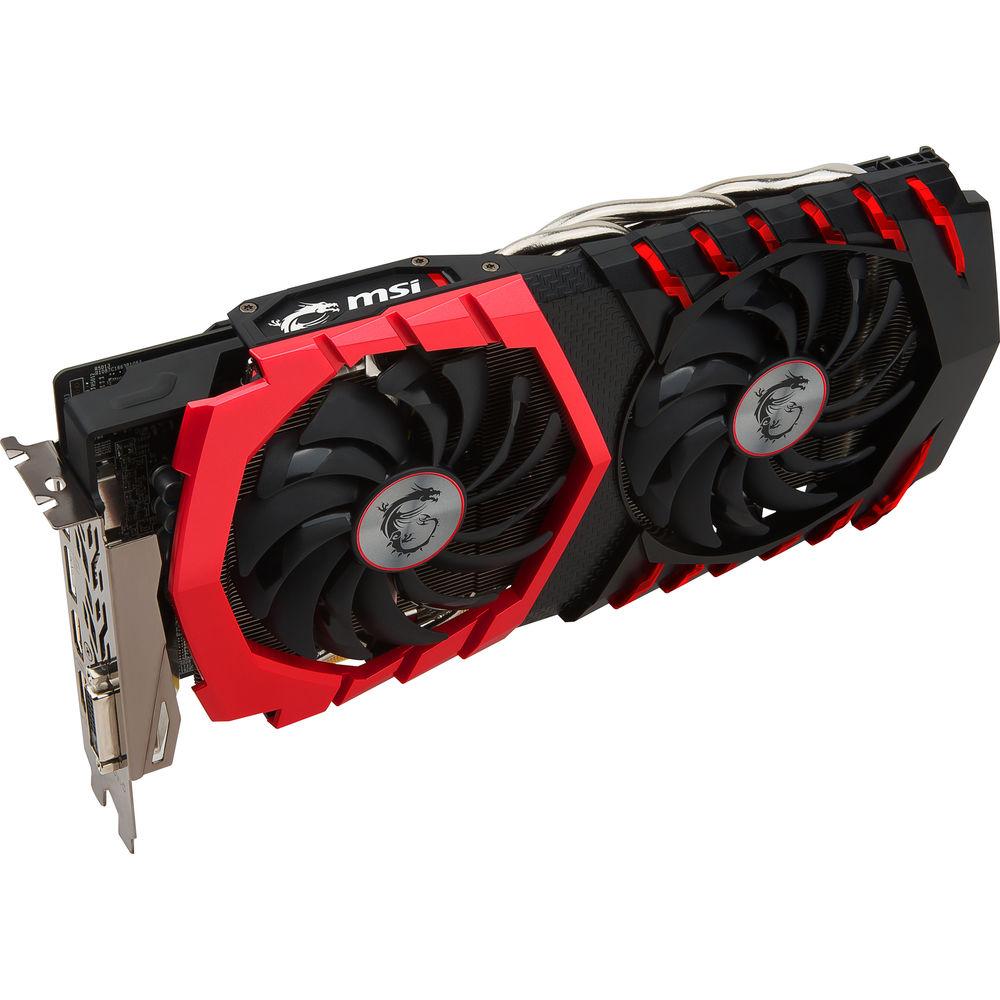

User Manual for MSI Radeon RX 580 GAMING X 8G Graphics Card Click to enlarge the picture
Contents of the user manual for the MSI Radeon RX 580 GAMING X
- Product category: Graphic Display Cards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Graphic Display Cards
 |
User manual for the MSI Radeon RX 580 GAMING X contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

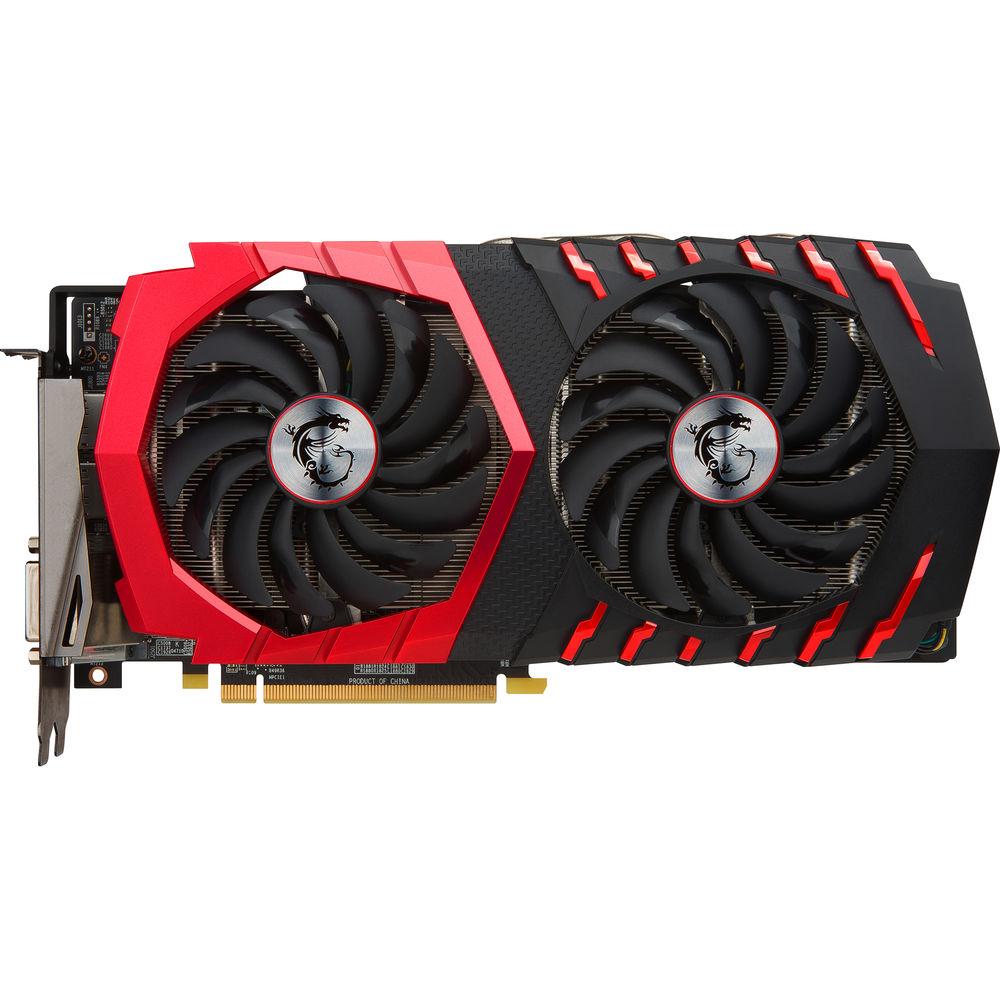

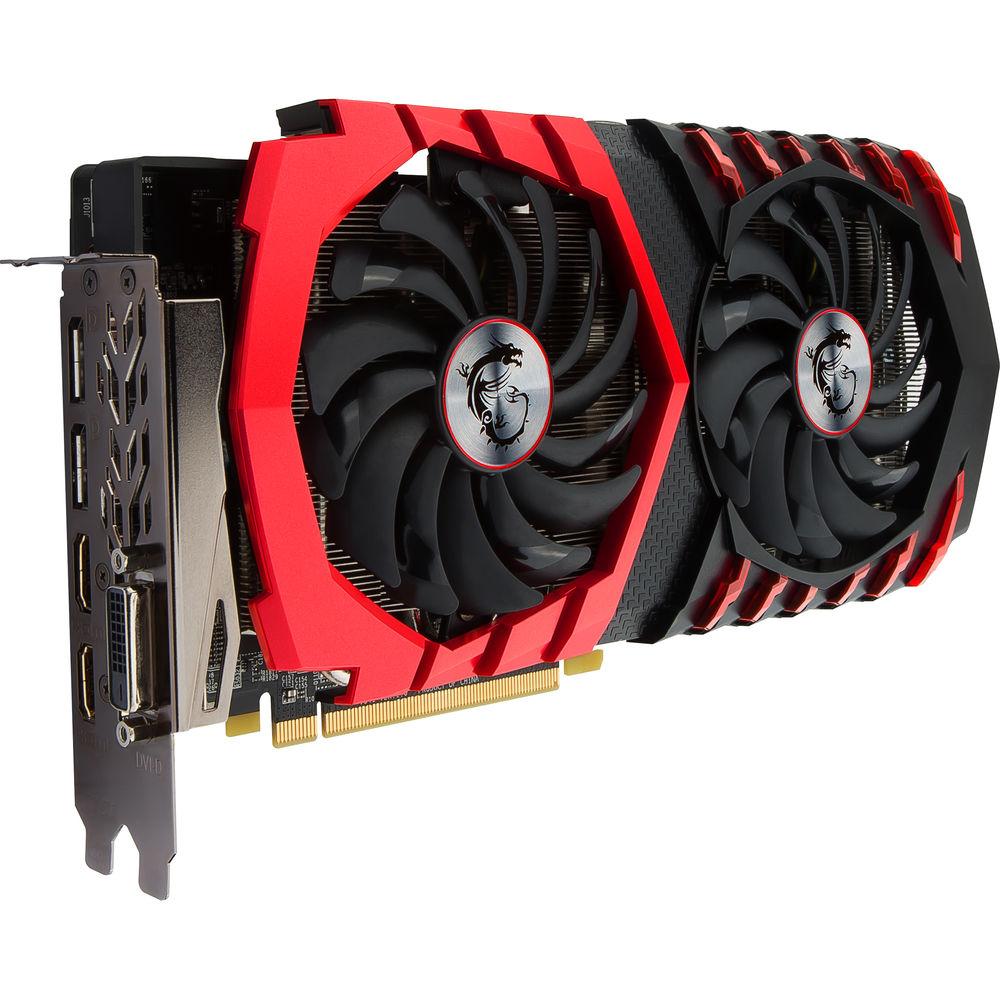

Product description With an overclocked core and memory, based on AMD's Polaris architecture, and AMD LiquidVR ready, the MSI Radeon RX 580 GAMING X 8G Graphics Card allows you to have the full virtual reality experience. Not only for gaming, the Radeon RX 580 supports APIs such as OpenCL and OpenGL. These APIs can take advantage of the GPU's 2304 Stream Processors to accelerate parallel computing tasks, taking some of the processing load off of the CPU. The front panel of the card features a variety of outputs. There are two DisplayPort 1.4 outputs and two HDMI 2.0b outputs as well as a dual link DVI-D output. Combined with AMD's Eyefinity, the GPU can provide an immersive gaming experience using up to four monitors. To keep cool, even when overclocked, MSI implemented their Twin Frozr VI cooler on this card. The Twin Frozr VI cooler uses two large fans to force air through the heatsink and dissipate heat and lower the GPU's internal temperature. Because this kind of cooler recirculates air back into the case, this card works best in cases that have unrestricted airflow. There are several LED lights on the GPU, which can be controlled individually by choosing any of the animation effects available in the MSI Gaming App. You can choose to have the LED lights respond to game sounds or music. You can pick a static color or have it breathing and flashing. Of course, you can just turn them off if you don't need them. - AMD LiquidVR Ready
- Experience the immersive world of VR gaming and entertainment. With Polaris architecture and AMD LiquidVR technology, this GPU is compatible with the Oculus Rift and the HTC Vive.
- HDR Ready
- This card is compatible with HDR (High Dynamic Range) content. When paired with an HDR capable display, you'll be able to experience enhanced contrast and colors for a sharp, vibrant visual experience.
- FreeSync Technology
- Reduce screen tearing with AMD's FreeSync Technology. FreeSync enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing screen tearing, stuttering, and other artifacts.
- Eyefinity
- With support for up to 4 monitors, AMD Eyefinity allows you to customize how your displays are shown on your desktop. Having multiple displays can not only make you more productivity, but can also provide an immersive gaming experience. If you're looking to stream online via Twitch, having a separate display for the twitch chat as well as the capture window for both your gameplay and webcam can facilitate the process.
- CrossFire
- Is one graphics card not enough? AMD's CrossFire works with compatible motherboards and allows you to install and combine up to two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality for supported applications.
UPC: 824142144916 In the Box MSI Radeon RX 580 GAMING X 8G Graphics Card Limited 3-Year Warranty Quick start Guide PDF 13.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Radeon RX 580 GAMING X 8G Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI RX 580 GAMING X Specs | | | GPU Model | AMD Radeon RX 580 | | Stream Processors | 2304 | | Boost Clock Speed | Silent Mode: 1340 GHz
Gaming Mode: 1380 GHz
OC Mode: 1393 GHz | | Interface | PCI Express 3.0 x16 | | Supported APIs | DirectX: 12
OpenGL: 4.5
Vulkan | | | | Memory Speed | 8.1 Gb/s | | Memory Configuration | 8 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 256-Bit | | Memory Bandwidth | 256 GB/s | | | | Display Connectors | 2 x DisplayPort 1.4
2 x HDMI 2.0b
1 x DVI-D DL | | | | PCI Power Connectors | 1 x 8-Pin | | Recommended System Power Requirement | 500 W | | | | Height | 5.51" / 140.00 mm | | Length | 10.87" / 276.00 mm | | Width | Dual-Slot | | | | Cooler Type | Open Fansink | | Lighting | RGB LED | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 13.6 x 10.6 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
