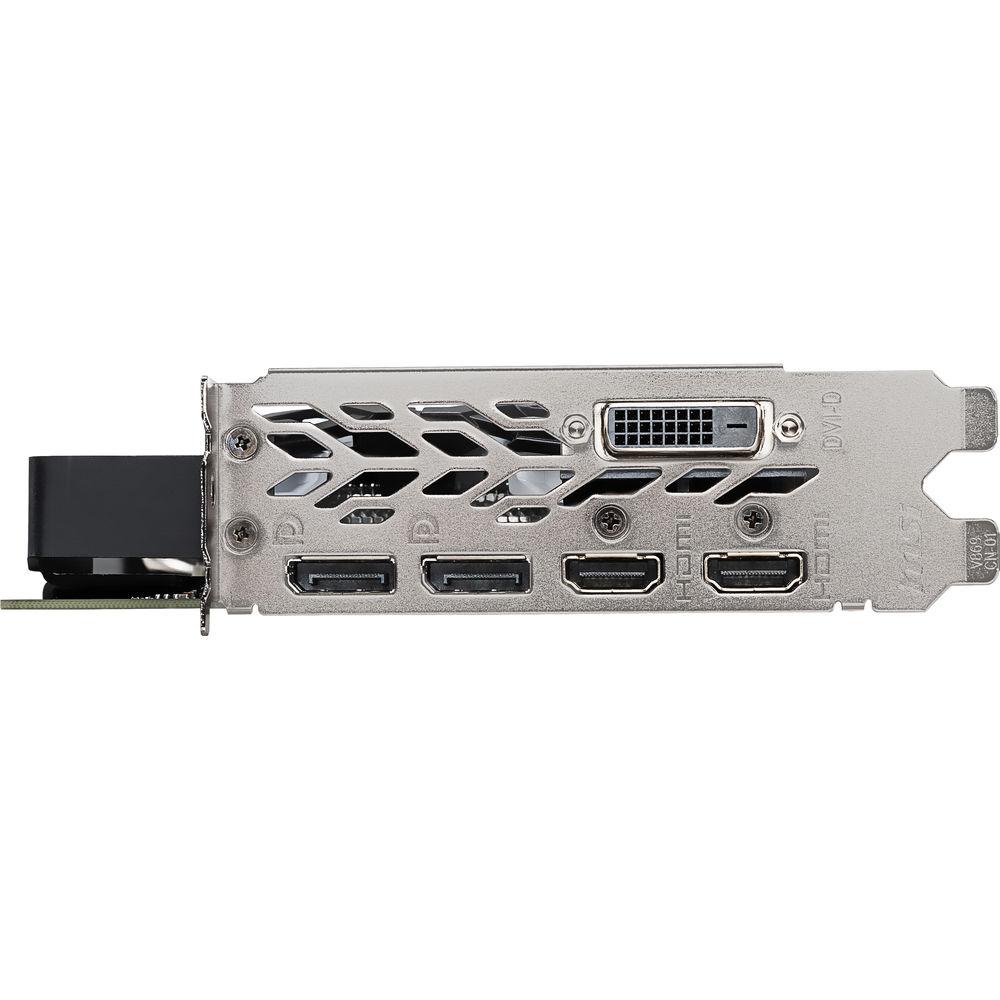

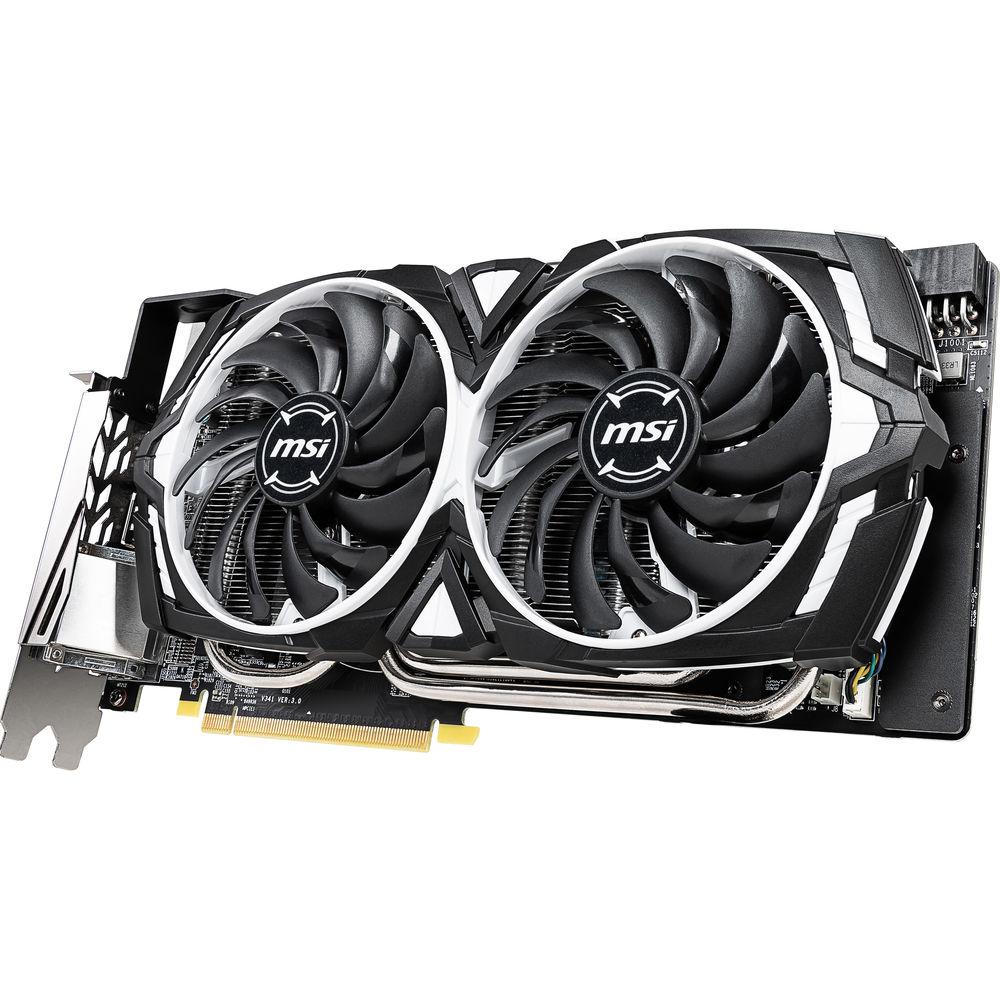

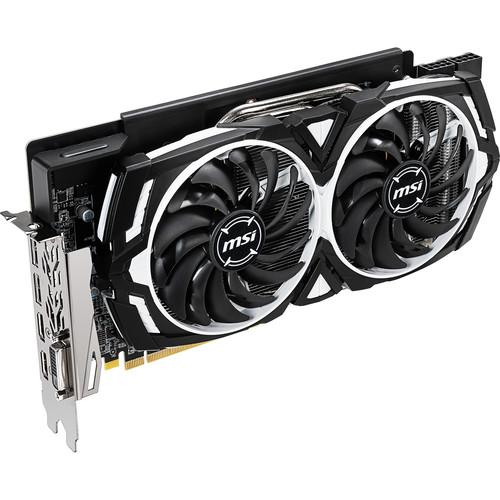

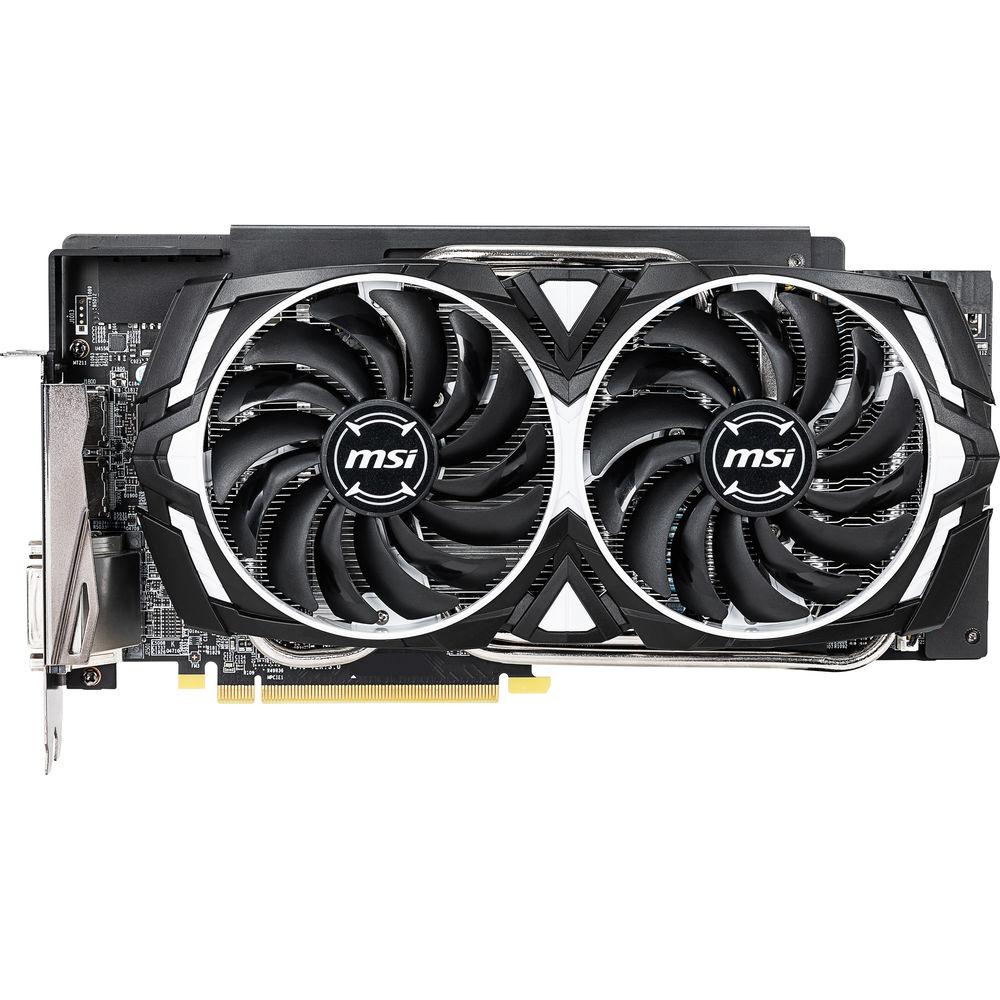

Product description With an overclocked core, based on AMD's Polaris architecture, and AMD LiquidVR ready, the MSI Radeon RX 590 ARMOR 8G OC Graphics Card allows you to have the full virtual reality experience. Not only for gaming, the Radeon RX 590 supports APIs such as OpenCL and OpenGL. These APIs can take advantage of the GPU's 2304 Stream Processors to accelerate parallel computing tasks, taking some of the processing load off of the CPU. The front panel of the card features a variety of outputs, such as DisplayPort, HDMI, and DVI-D DL. Combined with AMD's Eyefinity, the GPU can provide an immersive gaming experience using up to four monitors. For cooling, MSI implemented dual TORX fans, which maximizes downwards airflow and air dispersion to the heat sink below them. This GPU also utilizes MSI ZeroFrozr technology to eliminate fan noise by stopping the fans in low-load situations. - AMD LiquidVR Ready
- Experience the immersive world of VR gaming and entertainment. With Polaris architecture and AMD LiquidVR technology, this GPU is compatible with the Oculus Rift and the HTC Vive.
- HDR Ready
- This card is compatible with HDR (High Dynamic Range) content. When paired with an HDR capable display, you'll be able to experience enhanced contrast and colors for a sharp, vibrant visual experience.
- FreeSync Technology
- Reduce screen tearing with AMD's FreeSync Technology. FreeSync enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing screen tearing, stuttering, and other artifacts.
- Eyefinity
- With support for up to 4 monitors, AMD Eyefinity allows you to customize how your displays are shown on your desktop. Having multiple displays can not only make you more productive but can also provide an immersive gaming experience. If you're looking to stream online via Twitch, having a separate display for the Twitch chat as well as the capture window for both your gameplay and webcam can facilitate the process.
- CrossFire
- Is one graphics card not enough? AMD's CrossFire works with compatible motherboards and allows you to install and combine up to two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality for supported applications.

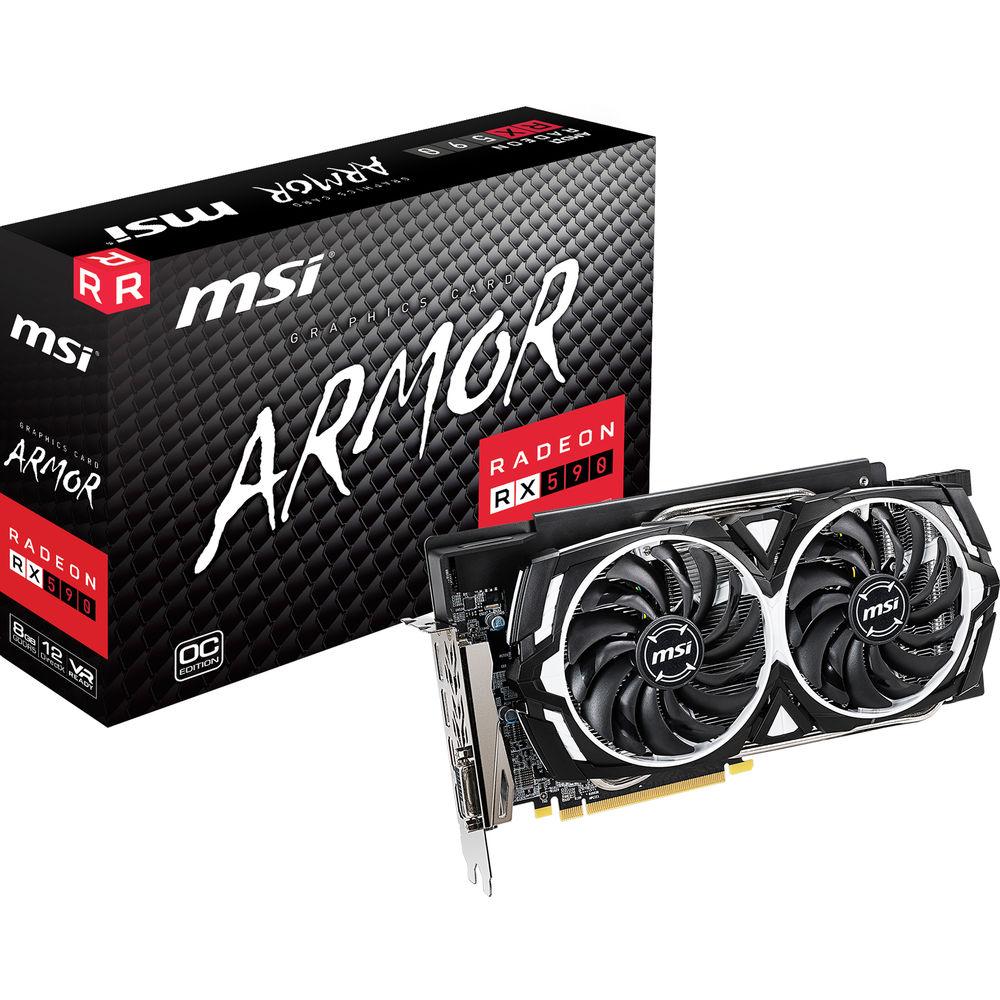

UPC: 824142179611 In the Box MSI Radeon RX 590 ARMOR 8G OC Graphics Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Radeon RX 590 ARMOR 8G OC Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Armor 8G OC Specs | | | GPU Model | AMD Radeon RX 590 | | Stream Processors | 2304 | | Boost Clock Speed | 1565 MHz | | Interface | PCI Express 3.0 | | Supported APIs | DirectX: 12
OpenGL: 4.5 | | | | Memory Speed | 8 Gb/s | | Memory Configuration | 8 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 256-Bit | | Memory Bandwidth | 256 GB/s | | | | Display Connectors | 2 x DisplayPort
2 x HDMI
1 x DVI-D DL | | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | | | Max Power Consumption | 220 W | | PCI Power Connectors | 2 x 8-Pin | | Recommended System Power Requirement | 500 W | | | | Height | 5.63" / 143.00 mm | | Length | 10.94" / 278.00 mm | | Width | Dual-Slot | | | | Package Weight | 3.105 lb | | Box Dimensions (LxWxH) | 13.8 x 10.55 x 3.45" |
