User Manual for MSI Radeon RX Vega 64 Air Boost 8G OC Graphics Card Click to enlarge the picture
Contents of the user manual for the MSI Radeon RX Vega 64 Air
- Product category: Graphic Display Cards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Graphic Display Cards
 |
User manual for the MSI Radeon RX Vega 64 Air contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|
Product description Based on AMD's Vega architecture and featuring high-bandwidth HBM2 memory, the ASUS Radeon RX Vega 64 Air Boost 8G OC Graphics Card allows you to have the full virtual reality experience. Not only for gaming, the Radeon RX Vega 64 supports APIs such as OpenCL and OpenGL. These APIs can take advantage of the GPU's 4096 Stream Processors to accelerate parallel computing tasks, taking some of the processing load off of the CPU. The Vega 64 also features a 2048-bit memory interface. The front panel of the card features a variety of outputs. There are three DisplayPort outputs and one HDMI 2.0 output. With 8GB of HBM2 VRAM, the Vega 64 card can support a resolution of 7680 x 4320. Combined with AMD's Eyefinity, the GPU can provide an immersive gaming experience using up to four monitors. AMD FreeSync 2 technology allows the Vega 64 GPU and your monitor to dynamically change frame rates to reduce screen tearing. For cooling, MSI implemented a blower-style fan cooler. This cooling configuration is good for SLI or other configurations where space between computer components can be a concern. - HBM2 Memory
- HBM2 (High-Bandwidth Memory 2) is a type of VRAM that can be vertically stacked, allowing for increased memory in a smaller form factor. HBM2 also has a wide bus to allow for higher bandwidth at a lower clock speed while using less power.
- AMD Radeon VR Ready Premium
- Experience the immersive world of VR gaming and entertainment. With Vega architecture, this GPU is compatible with the Oculus Rift and the HTC Vive.
- HDR Ready
- This card is compatible with HDR (High Dynamic Range) content. When paired with an HDR capable display, you'll be able to experience enhanced contrast and colors for a sharp, vibrant visual experience.
- FreeSync 2 Technology
- Reduce screen tearing with AMD's FreeSync 2 Technology. FreeSync 2 enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing screen tearing, stuttering, and other artifacts. FreeSync 2 also features a low-latency API for HDR content, which shifts the workload to the pipeline of a Radeon GPU, allowing a game to tone map directly to the HDR monitor's target luminance, contrast, and color space.
- Radeon Technologies
- This GPU features a full suite of Radeon technologies. Radeon Chill is an intelligent power-saving feature that dynamically regulates framerates based on your movements in-game (only works with certain games). Radeon WattMan controls the GPU's voltage, engine clocks, memory clocks, fan speed, and temperature. Radeon ReLive allows you to capture, stream, and share your gaming moments from an easily accessible in-game toolbar.
- Eyefinity
- With support for up to 4 monitors, AMD Eyefinity allows you to customize how your displays are shown on your desktop. Having multiple displays can not only make you more productivity but can also provide an immersive gaming experience. If you're looking to stream online via Twitch, having a separate display for the twitch chat as well as the capture window for both your gameplay and webcam can facilitate the process.
- CrossFire
- Is one graphics card not enough? AMD's CrossFire works with compatible motherboards and allows you to install and combine up to two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality for supported applications.

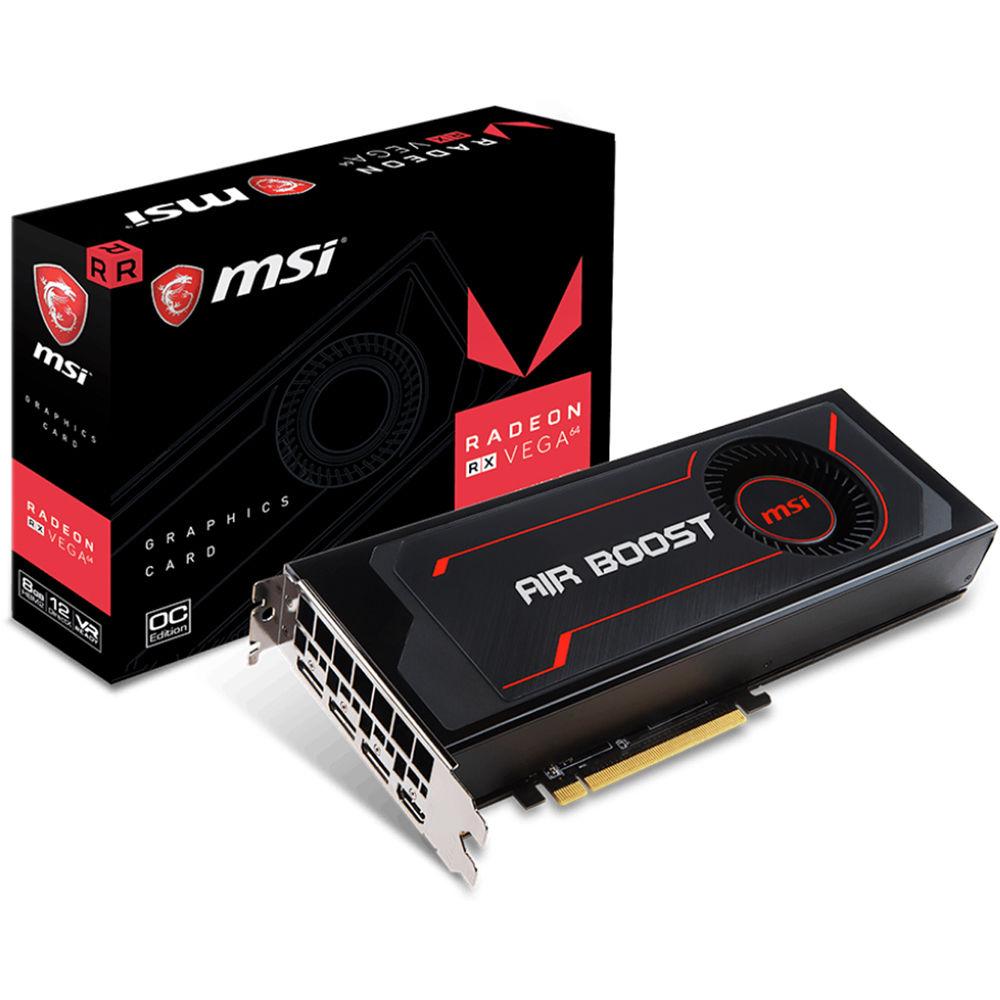

UPC: 824142152843 In the Box MSI Radeon RX Vega 64 Air Boost 8G OC Graphics Card 6-Pin to 8-Pin Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Radeon RX Vega 64 Air Boost 8G OC Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI RX Vega 64 Specs | | | GPU Model | AMD Radeon RX Vega 64 | | Stream Processors | 4096 | | Boost Clock Speed | 1575 MHz | | Base Clock Speed | 1272 MHz | | Interface | PCI Express 3.0 x16 | | Supported APIs | DirectX: 12
Vulkan: 4.5 | | | | Memory Speed | 945 MHz (Effective) | | Memory Configuration | 8 GB | | Memory Interface | HBM2 | | Memory Interface Width | 2048-Bit | | | | Display Connectors | 3 x DisplayPort
1 x HDMI | | | | Max Power Consumption | 295 W | | PCI Power Connectors | 2 x 8-Pin | | Recommended System Power Requirement | 750 W | | | | Height | 4.33" / 110.00 mm | | Length | 10.63" / 270.00 mm | | Width | Dual-Slot | | | | Cooler Type | Blower-Style Fan | | Lighting | RGB LED | | Weight | 37.67 oz (1068 g) | | | | Package Weight | 3.51 lb | | Box Dimensions (LxWxH) | 13.75 x 10.9 x 3.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
