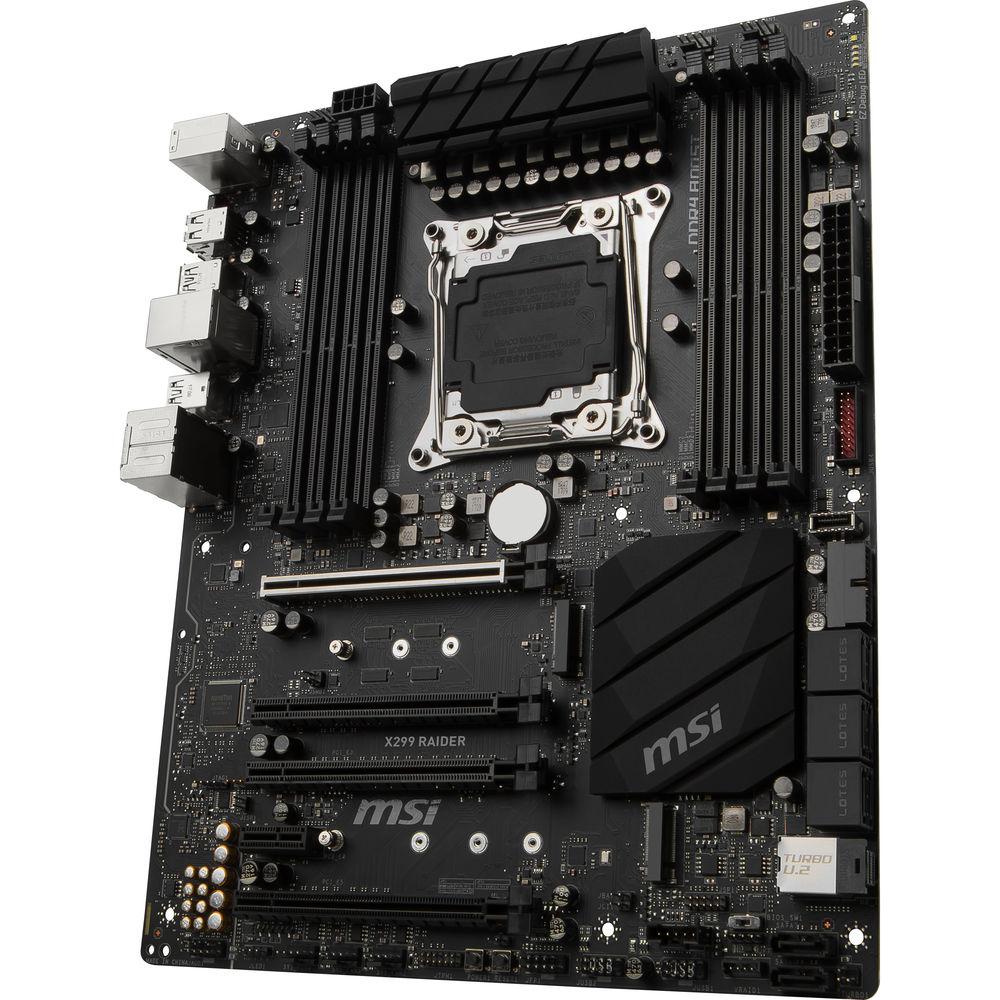

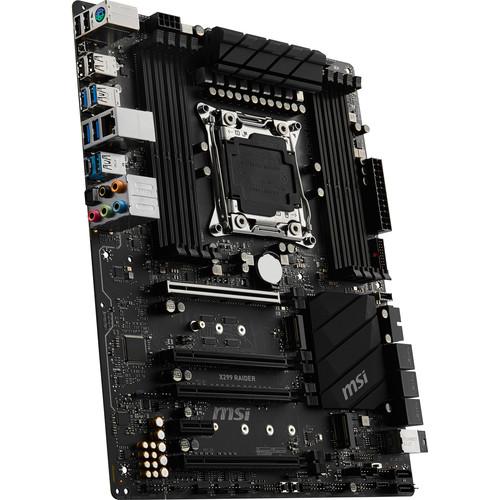

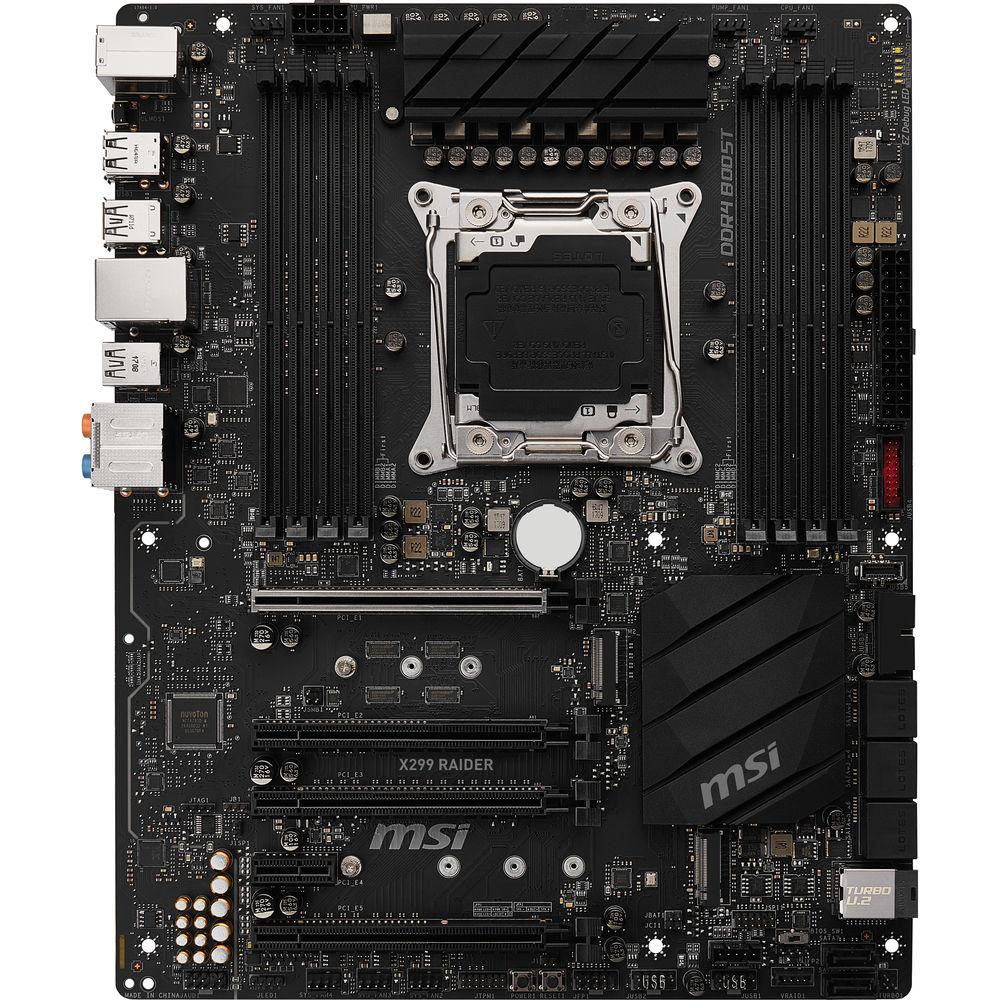

Product description The X299 RAIDER LGA2066 ATX Motherboard from MSI is built on the Intel X299 chipset supporting an LGA 2066 CPU socket. It has eight DDR4 memory slots that can hold up to 128GB of dual-channel RAM at speeds of up to 4500 MHz and quad-channel RAM at speeds of up to 4133 MHz. For storage, there are eight SATA III ports, two M.2 slots, and one U.2 port that can operate at speeds of up to 6 Gb/s. This motherboard features four PCIe 3.0 x16 and one PCIe 3.0 x1 expansion slot, and supports NVIDIA SLI and AMD CrossFire technologies. Other notable features include Realtek ALC1220 7.1-channel HD audio, Intel I219-V Gigabit LAN controller, and MSI Mystic Light RGB lighting. - Supports Intel Core X-series processors for LGA 2066 socket
- Supports quad-channel DDR4-4133 (OC)+ and dual-channel DDR4-4500 (OC)+
- Gives your DDR4 memory a performance boost
- TWIN TURBO M.2 and Intel Optane Memory Ready: NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
- TURBO U.2 with steel armor: The U.2 connector, featuring steel armor, allows connecting of the fastest NVMe based SSDs
- Powered by the ASMedia ASM3142 USB 3.1 Gen2 controller, Lightning USB offers fast USB speeds
- Military Class 6: Latest evolution in high quality components for best protection and efficiency
- Intel LAN: Good online experience through hardware design and bandwidth management offering low latency
- Audio Boost 4: Reward your ears with studio grade sound quality for a true HI-FI experience
- EZ DEBUG LED for troubleshooting
- MULTI-GPU with steel armor PCIe slot supports 3-way NVIDIA SLI & 3-way AMD crossfire
- Clear CMOS & Dual BIOS: Easy BIOS reset and recovery tools to ensure a booting system, no matter what

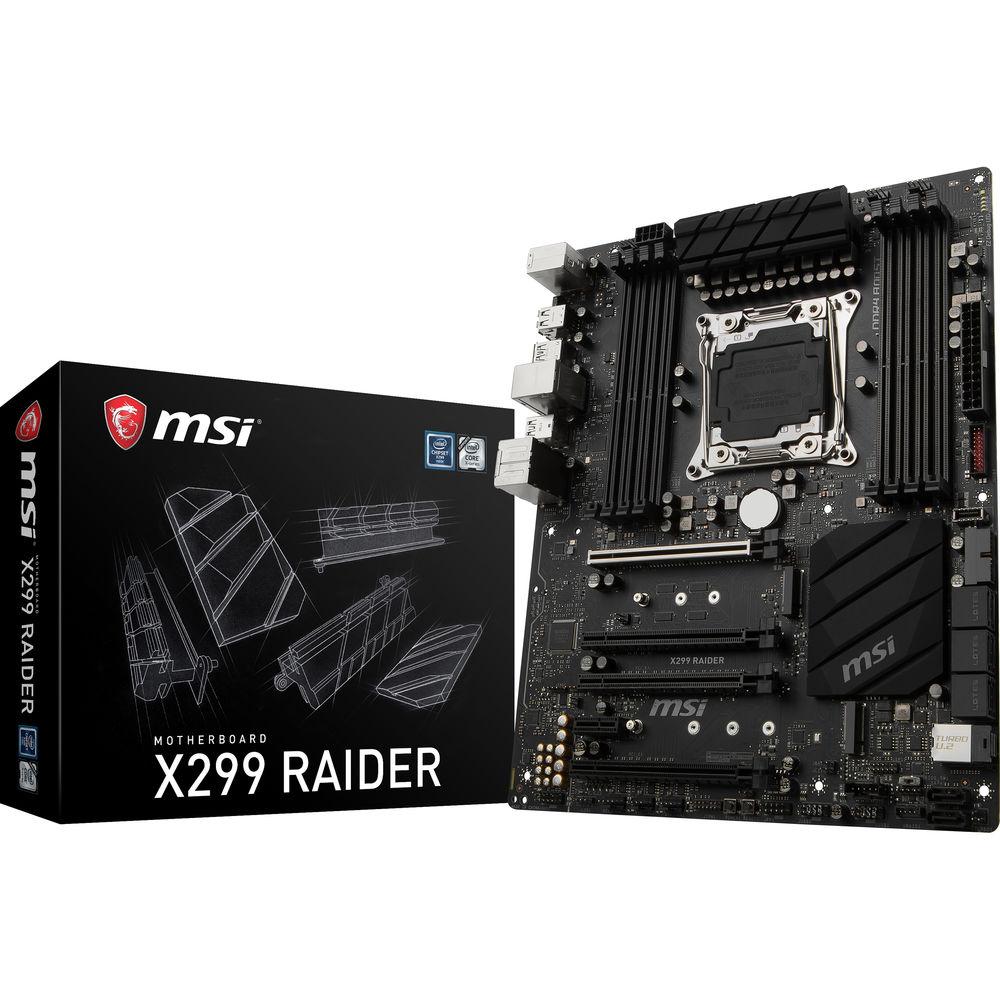

UPC: 824142148662 In the Box MSI X299 RAIDER LGA2066 ATX Motherboard I/O Shield SLI Bridge Connector 2 x SATA Cables Limited 1-Year Warranty User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI X299 RAIDER LGA2066 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

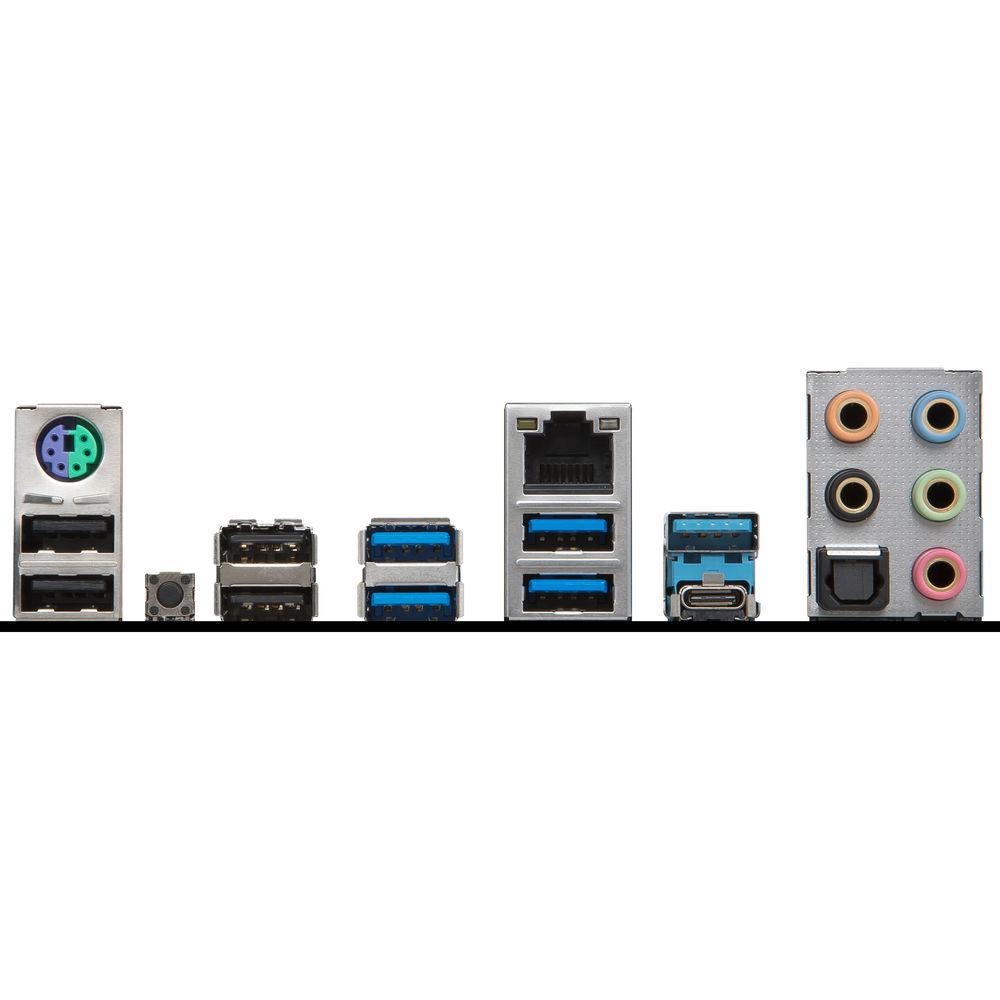

Technical parametersMSI RAIDER Specs | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | | | USB | 4 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 | | PS/2 | 1 x Combo | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Support | DDR4 2133, 2400, 2667, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400 MHz | | Maximum Capacity | 128 GB | | | | SATA | 8 x SATA III | | M.2 | 2 (PCIe 3.0 x4, SATA III) | | U.2 | 1 | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1 (M.2) | | | | Expansion Slots | 4 x PCIe 3.0 x16
1 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-C Ports) | | Multi-GPU Support | 3-Way AMD CrossFireX
3-Way NVIDIA SLI | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | Audio | 1 x S/PDIF | | Diagnostics | Power, Reset | | Add-On | 1 x Thunderbolt Card Header | | | | Audio Codec | Realtek ALC1220 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (32-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 30.48 x 24.38 cm | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 13.622 x 10.787 x 2.598" |
