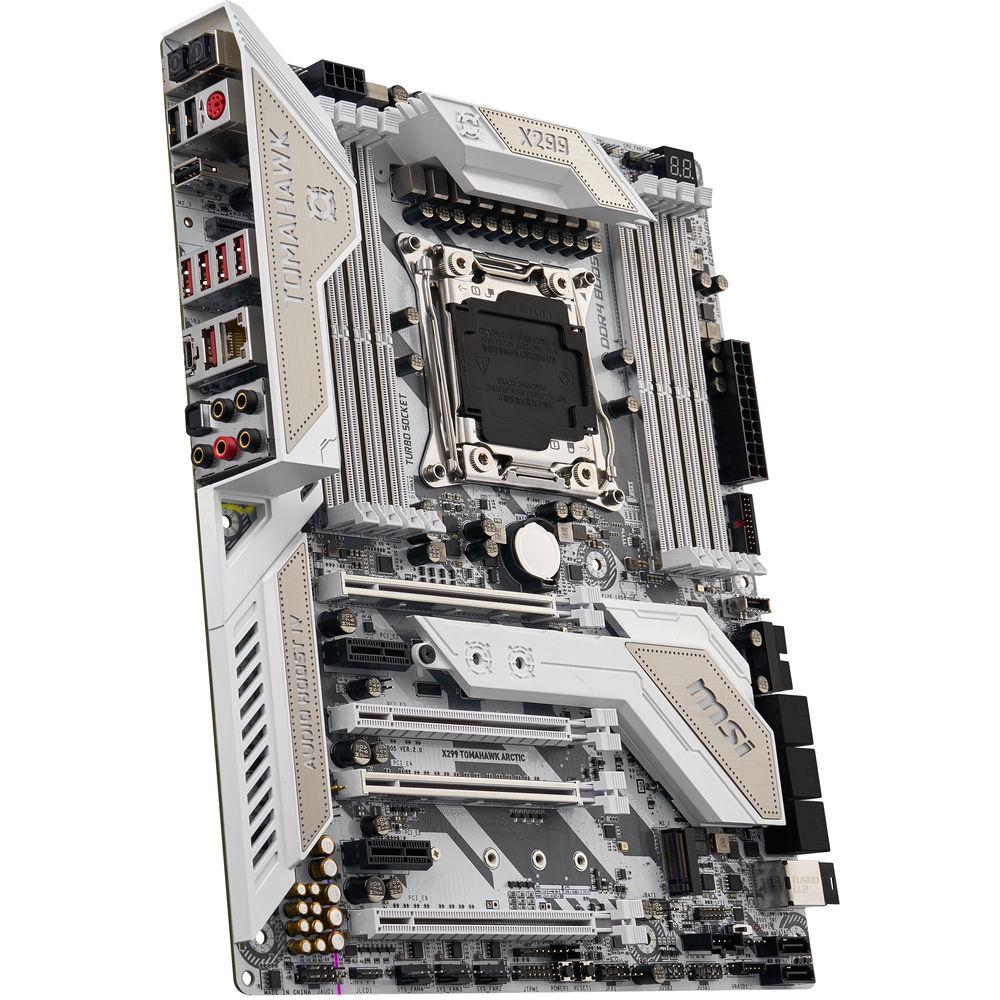

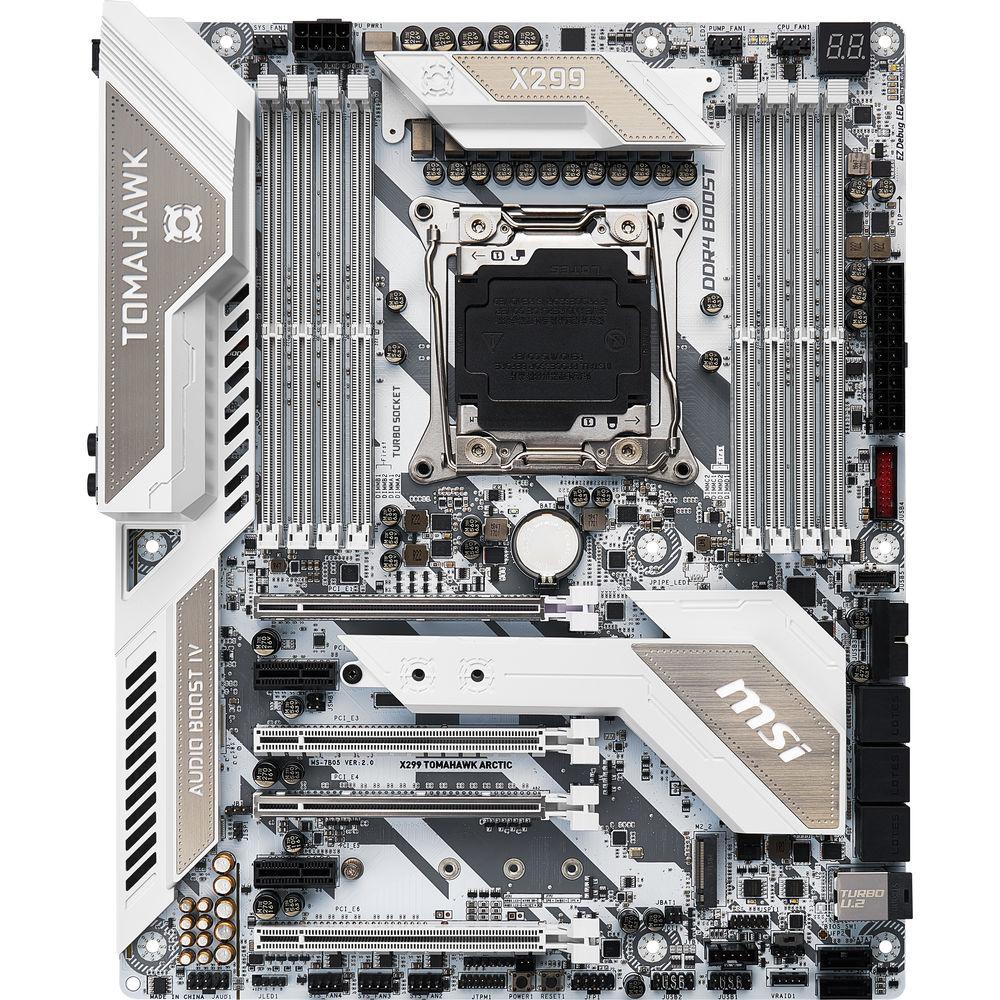

MSI X299 Tomahawk Arctic LGA 2066 ATX Motherboard MSI X299 Tomahawk Arctic LGA 2066 ATX Motherboard MSI X299 Tomahawk Arctic LGA 2066 ATX Motherboard MSI X299 Tomahawk Arctic LGA 2066 ATX Motherboard
User manual for the MSI X299 Tomahawk Arctic LGA 2066 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MSI product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!



Product description

Ready for Intel X-Series processors and VR, the X299 Tomahawk Arctic LGA 2066 ATX Motherboard from MSI is packed with heavy plated heatsinks, Military Class 5 components, Intel Optane Memory compatibility, Mystic Light Sync, plus more for a refined gaming experience. It is designed to fit in cases with an ATX form factor and only supports the Intel Core X-Series processor family, the LGA 2066 socket, and the X299 chipset. Also supported is USB 3.1 Type-A and Type-C, and USB 3.1 is supported via a front panel connector.

The ATX form factor of the X299 Tomahawk Arctic can support 128GB of RAM and comes with eight 288-pin quad-channel DIMM slots that can each hold 16GB of DDR4 4500+ (OC) dual-channel and DDR4 4122+ (OC) of quad-channel memory. It also has a total of 8 x SATA III 6 Gb/s ports that support RAID 0, 1, 5, and 10, 2 x M.2 slots (Key M) that support SATA III & PCIe 3.0 x4 SSDs, with options available for RAID 0 or 1. While one M.2 slot supports SSDs with a 2242, 2260, 2280, and 22110 form factor, the other supports 2242, 2260, and 2280 devices, and a separately sold U.2 card can support a PCIe 3.0 x4 NVMe U.2 SSD. There is also 1 x USB 3.1 Type-C port (rear), 1 x USB 3.1 Type-A port (rear), 4 x USB 3.0 Type-A ports (rear), 3 x USB 2.0 Type-A ports (rear), and 1 x Gigabit LAN port. For those looking to expand their system using PCIe, there are 4 x PCIe 3.0 x16 slots that support x16/4/x16/x8with 44-lane CPUs, x16/x4/x8/x4 with 28-lane CPUs, and x8/x4/x8/x0 and x8/x4/x4/x4 with 16-lane CPUs, as well as 2 x PCIe 3.0 x1 slots.

The X299 Tomahawk Arctic does not contain integrated graphics support, meaning that users will be free to install a dedicated GPU of their choice. Also supported is NVIDIA 3-Way SLI technology and AMD 3-Way CrossFireX technology. Using the ALC1220 audio codec, this motherboard can support 7.1-channel HD audio using its five audio jacks or S/PDIF audio-out jack.

The X299 Tomahawk Arctic LGA 2066 ATX Motherboard has also been designed with gaming features such as controllable fan headers, overclocking, low latency, LAN Protect, Intel Extreme Memory Profile (XMP), Load-Line Calibration, EZ Debug LED, Overvoltage Protection, DigitAll Power Design, X-Boost, Live Update, RAMDisk, Go2BIOS, CPU-Z, and more. This motherboard is protected by a limited 3-year warranty.

General Features

Mystic Light

    Personalize Your Gaming Rig
  • Customize and set up your own color scheme with RGB Mystic Light sync. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style.
    Extend Your RGB Experience
  • MSI's Mystic Light Extension pinheader provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. By simply connecting any 12V RGB LED strip to the 4-pin Mystic Light Extension RGB-strip header, gamers can sync colors to a variety of styles.
    Mystic Light Sync: Synchronize Your LED Experience
  • With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.

Cooling

    Stay Cool While Gaming
  • Cooling your PC is essential for reliable performance. MSI has made sure to include enough fan headers with full control to allow you to cool your system.
    Looking Cool While Keeping Cool
  • High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable with strong performance during long gaming sessions.
    Fully Controllable Fan Headers
  • MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system.
    DC or PWM Modes with Hysteresis
  • MSI fan headers running in DC or PWM mode for improved tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent.
    Fan Control in BIOS and Software
  • Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to four temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
    Optimized for Water Cooling
  • The X299 Tomahawk Arctic is designed to support All-In-One and custom water cooling solutions. A dedicated water pump PIN header supports up to 2A, giving you full control of the water pump speed. A clearly marked "keep-out-zone" allows for easy and safe installation.

Gaming

    Your In-Game Advantage
  • Outsmart and outperform your opponents in-game using an array of MSI hardware & software gaming tools.
    Freedom & Ease
  • Program your most-used commands and execute them with a single keystroke. You're free to choose any key you want, so choose wisely.
    Gaming Hotkey
  • Simply assign functions to any key whether to launch your favorite games, load profiles, or do real-time overclocking with the push of a single button.
    Dedicated Port for Gaming Peripherals
  • The Gaming Device Port is optimized to deliver connectivity for high-end gaming peripherals to fully utilize their features and responsiveness. Customize your mouse's dpi to enhance accuracy or program macro combinations using the easy-to-use Mouse Master software to perform multiple commands with just one click.
    Multi-GPU
  • Gaming enthusiasts are always looking for more performance to get an improved experience and using multiple graphics cards is a great way to find out just how good it gets. MSI GAMING motherboards fully support multi-GPU technologies and have strategic PCIe slot placement for the better thermal performance.
    A Different View on Gaming
  • MSI Dragon Eye allows you to watch a YouTube video or Twitch stream while simultaneously playing a game. Simply add a link or stream to the Dragon Eye application and select the size, position, volume, transparency, and start gaming. The hotkeys allow you to start/pause your video or set the volume.
    In-Game Feedback, On-Screen Display
  • Keep track of your system's performance with the OSD function in the Gaming App. This feature allows you to fully customize which statistics are shown on-screen while you play your games. Keep an eye on your CPU speed, fps counter, GPU temperature, and much more while gaming without having to leave the game.

Storage

    Be the First on the Battlefield
  • This MSI GAMING motherboard supports a wide variety of storage standards. This allows you to connect fast storage devices, giving you in-game benefits. Start games faster, load levels faster, and more.
    Optane: Boost Your HDD to Perform Like an SSD
  • Gamers and PC enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with an Intel Optane Memory device. Intel Optane technology provides a combination of high throughput, low latency, high quality of service, and high endurance. All MSI 200 Series motherboards are ready for Intel Optane Memory.
    M.2 Shield FROZR
  • SSDs can start to deliver lower performance when getting hot. Part of the motherboard's heatsink design, M.2 Shield FROZR is an M.2 Thermal solution that can help avoid this by offering the improved thermal protection to help ensure the SSD maintains strong performance.
    2 x Turbo M.2
  • Enjoy a fast system boot and quick loading of applications and games with MSI motherboards. Delivering speeds up to 32 Gb/s per device using PCIe Gen 3.0 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection.
    U.2 Connector with Steel Armor
  • U.2 delivers performance up to 32 Gb/s per device. The U.2 connector on this MSI motherboard also features Steel Armor for enhanced protection.
    X-Boost Your Storage Performance
  • This tool is very simple to use and automatically detects your storage devices connected to the system. When enabled, X-Boost optimizes your SSDs to keep your system fast and maximize storage performance.
    Easy RAID Setup with M.2 Genie
  • Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. That's why MSI created the M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.
    SATA Mass Storage
  • MSI made sure each motherboard comes with enough SATA ports to connect loads of HDDs for long term storage of large files and system backups.
    NVMe
  • MSI GAMING motherboards support the NVMe storage standard, offering fast storage options & performance.

Virtual Reality

    Immerse Yourself into Virtual Worlds
  • Integrating cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.
    VR Boost
  • Traditional USB ports can suffer signal drops, significantly impacting performance of connected devices. Exclusive to MSI motherboards, VR Boost is a smart chip that helps ensure a clean and strong signal to a VR optimized USB port, giving you an enjoyable VR experience.
    One Click to VR
  • Both hardware and software need to be in tune for a smooth VR experience. One Click to VR makes it very fast and easy to get primed for VR. A single click sets all your key components to their highest performance and helps ensure other software applications won't impact your virtual adventure.
    TriDef VR
  • TriDef VR enables gamers to play their favorite games in 3D on their HMD (head mounted display). DirectX 9, 10, and 11 games have been pre-configured to generate a 3D experience using GenMe's 2D-to-3D conversion technology. TriDef VR allows users to tweak their HMD to provide an improved user experience. It is compatible with both Oculus Rift and HTC Vive. It also offers a head tracked, hands-free user interface to allow users to launch games at will while wearing HMD. MSI offers a 3-month free license to let gamers fully benefit from TriDef and get more from their VR.

Audio

    Sounds That Pulls You into the Game
  • Get an immersive sound experience when gaming. MSI Audio Boost delivers the high sound quality through the use of premium audio components.
    Amplify Your Game with Audio Boost 4
  • Built on years of experience in building motherboards dedicated to giving gamers true Hi-Fi sound, Audio Boost has developed into a high-quality audio unit, offering an advantage over your opponents when gaming.
    Nahimic Sound Technology
  • Nahimic Sound Technology reflects surround sound at immersive levels, allows you as a gamer to experience improved sound & gameplay. Unique features, including a sound tracker which visually shows where the enemies are making noise in game, allow you to get the upper hand on the battlefield.
    Isolated Audio Design with LED Border
  • Audio Boost operates like a dedicated soundcard by being physically isolated from the rest of the motherboard's circuitry to ensure a pure audio signal. A bright border illuminated by LEDs showcases and protects the Hi-Fi audio unit.
    Separate Audio Layers for Clean Left & Right Channels
  • Using separated layers in the PCB helps ensure equal sound quality for both left and right audio channels.
    De-Pop Protection
  • Audio Boost helps protect your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.
    HD Audio Processors / Audio Boost 4
  • Audio Boost 4 is powered by an EMI-shielded high quality HD audio processor with a built-in DAC, making sure you enjoy pure sound quality in both stereo and surround sound. It provides 120 dB SNR / 32-bit and supports Direct Stream Digital (DSD Super Audio CD playback and recording.
    Dedicated Headphone Amplifier that Automatically Detects Impedance
  • The built-in dedicated headphone amplifier rewards audiophiles with headphones up to 600 ohms impedance by delivering studio-grade sound quality from your gaming PC. Audio Boost 4 automatically detects the proper impedance for your headphones and adjusts the output for improved sound quality.
    Chemi-Con Audio Capacitors
  • By dedicating golden audio capacitors to the front output, a high-fidelity sound experience with strong acoustics and realism for studio level headphones is ensured.
    Golden Connectors for 7.1 Sound Quality
  • With golden audio connectors, you get signal output with the least chance of distortion. Using gold also helps prevent any corrosion or oxidation in the long run, which could impact signal quality.

Gaming LAN

    Low Latency Gaming LAN Powered by Intel
  • Experience smooth gaming with Intel LAN. Intel LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering high TCP and UDP throughput. This means your CPU can be used more effectively, giving you more fps when gaming.
    MSI GAMING LAN Manager
  • MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you an online gaming experience with low latency.
    LAN Protect to Shield Your System Against Power Surges
  • Featuring 15kV anti-surge protection to shield your network from lightning strikes and static electricity, the LAN Protect connector is designed to give you a reliable networking experience.

Memory

    Enhanced Stability with Optimized Memory Layout
  • Optimized traces and a fully isolated memory circuitry helps ensure stability and performance, so you never have to worry about your system crashing during games.
    DigitALL Memory Power Design
  • An all-digital power design offers lower power consumption and precise voltage delivery for enhanced efficiency and longer gaming sessions.
    Shield Your Memory Signal with Steel Armor
  • Steel Armor helps protect your memory and memory slots from both physical damage and electrical overcurrent by adding extra ground points. It also helps ensure a clean data signal for your memory by shielding it from electromagnetic interference (EMI).
    Memory Speed & Performance
  • The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds. Enjoy the additional boost in gaming performance or when working with large video and photography files.
    Easy XMP
  • Enable Intel Extreme Memory Profile with ease using a single option in the BIOS to gain performance and create a stable system.
    Stability & Compatibility Testing
  • MSI conducts thorough memory testing to ensure your system runs stable. This helps optimize memory modules, configurations, and even overclocking.

Tuning

    OC Engine 2
  • This external clock generator gives you more freedom in BCLK adjustments to achieve the maximum overclock for your setup. It also offers lower jitter & power consumption resulting in a more solid system under extreme conditions.
    OC PCB
  • PCB design and added layers allows MSI to optimize all traces for overclocking. Power and signal traces are isolated, resulting in higher efficiency, stability, performance.
    BIOS Flashback+
  • Simply flash an old or new BIOS version and start overclocking within minutes. BIOS Flashback+ even works without a CPU, memory, or graphics card installed.
    Premium Power Phases
  • High quality components used in MSI motherboards ensure a stable and optimized power delivery for the best performance.
    DigitALL Power Design
  • A fully digital power design allows for a faster and undistorted current delivery to the CPU, creating improved conditions for CPU overclocking.
    EZ Debug LED
  • Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
    Overvoltage Protection
  • Helps prevents potential short-circuit damage to the CPU and other critical components.
    Load-Line Calibration
  • What you set is what you get. LLC helps makes sure your CPU voltage remains 100% stable under any load which improves stability when more CPU performance is required.
    Debug LED
  • The digital LED display will indicate the source of the problem so you know where to look to get up and running again.
    Clear CMOS Button
  • Placed on the IO panel, the Clear CMOS button lets you instantly reset the BIOS if needed, saving you the hassle of opening your case and removing the jumper.

USB

    Double Bandwidth with Lightning USB 3.1 (USB 3.1 Gen 2)
  • Featuring the Lighting ASmedia 3142 USB 3.1 controller, MSI motherboards offer improved USB speeds when connecting multiple USB devices at the same time. The Lightning USB connectors are covered with gold to help ensure a better signal and performance.
    Reversible Type-C Connector
  • Get all the performance benefits from USB 3.1 combined with the convenience of the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.
    X-Boost Your USB Performance
  • When enabled, X-Boost optimizes your devices for even better transfer speeds and can provide up to 20% increase in USB performance, saving a lot of time when transferring data. This handy tool is very easy to use and automatically detects & optimizes the USB devices connected to your system.
    Super Charge Your Phone & Gaming Gear
  • MSI's Super Charger USB ports charge any connected device faster. It delivers more power than regular USB ports to your smartphone, tablet, USB game controller, or portable console.
    Frontside USB 3.0 Type-A and 3.1 Type-C
  • Ready for next generation cases and designed to use with the smartphones, the onboard frontside USB connector now offers high speeds through USB 3.0 Type-A and Type-C.
    Double ESD Protection
  • The USB ports on MSI motherboards are shielded by a set of protective ICs to help prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

Software

    X-Boost Your Storage
  • This software allows you to boost the performance of any storage or USB device connected to your system. Simply use X-Boost's Easy or Advanced mode to tune your system for up to 20% increased speeds, higher system responsiveness, and faster loading of in-game levels.
    App Manager
  • Use this smart tool to keep an easy overview of the available applications for your system to help you configure, tune, and set up your system to your personal preferences. Simply click on icon to install additional apps such as Command Center, Gaming App, Live Update, and many more.
    Command Center
  • MSI's Command Center software is the perfect tool to get the most out of your motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance, and optimize your system's cooling features.
    Up to Date
  • MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software so you can focus on your game.
    MSI RAMDisk
  • MSI motherboards include RAMDisk, allowing you to create a virtual drive from your system's RAM memory. Instantly load your favorite game and speed up your browser or your page file to significantly speed up your system.
    MSI Fast Boot
  • With the latest operating systems supporting UEFI fast booting methods, MSI has added a "Fast Boot" option to take full advantage of this. Simply enable "Fast Boot" either in the BIOS or with the convenient application for faster boot times.
    Go2BIOS
  • Avoid having to mash your DEL/F2 button to get into the BIOS with the Go2BIOS button in the MSI Fast Boot application. Your PC will automatically go to the BIOS on the next reboot and some models even have an onboard Go2BIOS button.
    CPU-Z MSI GAMING Edition
  • MSI has worked closely with the CPUID team to develop a special edition of CPU-Z featuring the MSI GAMING dragon. Use CPU-Z to gather key information of your system's key components, like CPU speed, memory speed and timings, motherboard BIOS version, and much more.

Quality & Protection

    PCIe Steel Armor
  • MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing damage due to heavy graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for a purer gaming experience and even higher overclocking.
    Shield Your SSD with Steel Armor
  • MSI Steel Armor protects your M.2 SSD and slot from physical harm. It also ensures a clean data signal between the motherboard and M.2 SSD by shielding against electromagnetic interference (EMI). Steel Armor helps to deliver a smooth gaming experience.
    Double ESD Protection
  • MSI motherboards feature Double ESD protection with double layer grounding around the motherboard mounting holes, preventing electrostatic discharge (ESD) surges from damaging the motherboard.
    Military Class 5 Components
  • MSI uses Military Class 5 components, which are shielded to help make sure your system runs smoothly under extreme gaming conditions.
    Titanium Choke II
  • Ti Choke II is smaller in size and has improved by 30% in power efficiency and power delivery, allowing for better overclocking and stability.
    Dark Caps
  • A key ingredient in high-end motherboard designs, Dark Caps have lower Equivalent Series Resistance (ESR) and an increased lifespan of over 10 years.
    Dark Choke
  • A core design allows the Dark Choke to run at a lower temperature, offering better power efficiency and stability.

BIOS

    High-Res BIOS Font
  • A high-resolution, scalable font is used to make CLICK BIOS 5 easy to read. The clean design layout, together with this font makes CLICK BIOS 5 a true next gen UEFI BIOS.
    Quick Gaming Tweaks
  • When you just want to get back to your game, EZ-mode presents you with basic BIOS settings and functions for some quick adjustments. If you feel like spending more time fine-tuning options to boost your system's performance, the Advanced mode is the way to go.
    Easy Search & Favorites
  • Can't find a specific BIOS setting? Don't worry, a permanent search option in the top right corner can be used to find what you need. Want quick access to important settings? My Favorites gives easy access to selected Favorite settings, supporting up to five groups of favorites.
    Hardware Monitor with Fan Control
  • Hardware Monitor lets you take control of your system and check your primary system vitals in a simplified graphical interface. You can also set up to four temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically.
    Make Your SSD Fast with Secure Erase+
  • When using an SSD, its performance will slowly decrease over time as more and more data is written onto it. This will slow down read/write speeds and increase access times of your SSD, making your system feel sluggish. Using an optimized formatting algorithm, Secure Erase+ lets you enjoy your SSD at faster speeds, making your system feel brand new.
    Boot Up Recovery
  • Run into trouble when updating your BIOS or somehow corrupted it? SYSTEM SAVER offers 3 easy to use options to successfully boot your system again.

    Clear CMOS
    The ClearCMOS button helps to restore the BIOS default settings which helps in 99% of the cases to successfully boot again. ClearCMOS will not restore the original BIOS code (will not revert back to the original BIOS version).

    BIOS Flashback+
    Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue gaming within minutes with BIOS Flashback+. BIOS Flashback+ even works without a CPU, memory, or graphics card installed.

    Dual BIOS
    Still aren't able to successfully boot? Having 2 physical BIOS chips allows to have a plan B. Simply move the onboard switch to select the secondary stock BIOS and try booting from there. The second BIOS chip contains the factory default BIOS.
    Optimize & Boost Performance
  • CLICK BIOS 5 provides easy access to XMP memory profiles to optimize your internal memory timings and speeds for greater stability and performance in-game. Safely overclock your CPU with a single button for more performance using MSI Game Boost.

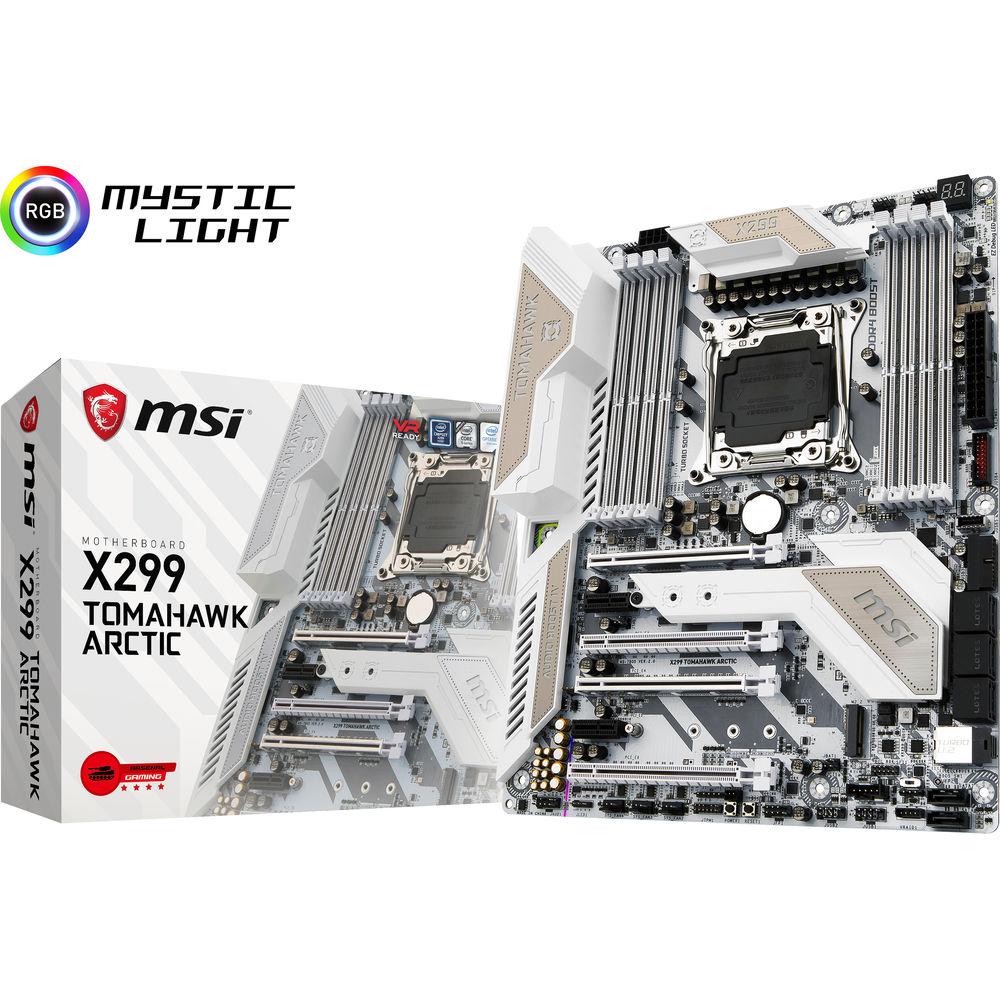

UPC: 824142148884 In the Box MSI X299 Tomahawk Arctic LGA 2066 ATX Motherboard
  • Limited 3-Year Warranty
  • User Manual PDF 10.7mbzvfudtfzfydvbdtfxt Table of Contents




    Upload User Manual

    Have you got an user manual for the MSI X299 Tomahawk Arctic LGA 2066 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MSI TOMAHAWK ARCTIC Specs

    Chipset Intel X299
    CPU Socket LGA 2066
    USB 1 x USB 3.1 Gen 2 Type-C
    1 x USB 3.1 Gen 2 Type-A
    8 x USB 3.1 Gen 1 Type-A
    3 x USB 2.0 Type-A
    Audio 5 x 3.5 mm
    1 x S/PDIF
    Ethernet / Controller 1 x Intel I219V Gigabit
    PS/2 1 x Combo
    Buttons BIOS Flashback, Clear CMOS
    Memory Slots 8 x 288-Pin
    Memory Support DDR4 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4500 MHz
    Maximum Capacity 128 GB
    Channel Architecture Quad Channel
    SATA 8 x SATA III
    M.2 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
    1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
    U.2 1
    RAID Support RAID 0, 1, 5, 10 (SATA)
    RAID 0, 1 (M.2)
    Expansion Slots 4 x PCIe 3.0 x16
    2 x PCIe 3.0 x1
    USB 1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-C Ports)
    2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
    2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
    Multi-GPU Support 3-Way AMD CrossFireX
    3-Way NVIDIA SLI
    Air Cooling 1 x 4-Pin CPU
    4 x 4-Pin System
    Liquid Cooling 1 x 4-Pin Pump
    Power Connectors 1 x 24-Pin Mainboard
    1 x 8-Pin CPU
    1 x 4-Pin CPU
    Security Chassis Intrusion, TPM Module
    LED Header 1 x RGB
    Diagnostics BIOS Selection, Clear CMOS, Power, Reset
    Add-On 1 x Thunderbolt Card Header
    I/O Connection Headers AAFP
    Audio Codec Realtek ALC1120 (8-Channel)
    Wi-Fi None
    Module Support 1 E Key M.2
    Form Factor ATX
    Dimensions 12.0 x 9.6" / 30.5 x 24.4 cm
    Package Weight 4.35 lb
    Box Dimensions (LxWxH) 13.4 x 10.8 x 3.5"

    Rating

    50% users recommend this product to others. And what about you?
    Rating: 2.5 of 5

    This product has already been rated by 20 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    The discussion is empty - enter the first post

    Post a new topic / query / comment:

    Items marked with * are required.
    Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
    Processing of personal data in accordance with GDPR


    Request for user manual
    You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

    I’m looking for a manual / Request for manual

    Current requests for instruction manuals:

    looking for a user manual for Quickbooks Premier Nonprofit 2020 for a Disabled American Veterans office....
    Bower SFD9260....
    4-IN-1 WIRELESS CHARGER ...
    Brand :Gemini,model # XGA 4000,AND IT WAS PURCHASED NEW IN 2022,OR POSSIBLY EARLY 2023.WORKED perfect till one day I hit power switch and blew fuse x2...
    ZZSTAR binoculars...

    Discussion
    Latest contributions to the discussion:

    v18
    Name: Craig Mcinturff
    Davis & Sanford Provista 7518B Tripod
    I am looking for a camera mounting plate for a v18 fluid head Davis & Sandford ...
    Impact SF-ABRL160 Flash stopped working
    Name: Sarah sananes
    Impact SF-ABRL160 Stand Mount Flash with
    Hello, our flash is connected to a canon camera and all of the sudden the flash is no longer working. Does the flash have a certain battery life? ...
    REPEAT REQUEST AS YOU DID NOT ANSWER YOU JUST SENT ME MY MESSAGE BACK -PLEASE HELP
    Name: Tish Hopkins
    Benro TAD37C Series 3 Adventure Carbon
    Hi again-- all this did was send this email back to me with a link that brought me right back here... what is this?? also a link to search for manuals-- ive been there done that there is NO Manual to be found that answers my ? Please HELP thanks!! Hi there is an extra small sc...
    Tripod heads DO NOT sit flush on the plate of the tripod Help Please
    Name: Tish Hopkins
    Benro TAD37C Series 3 Adventure Carbon
    Hi there is an extra small screw on the plate that the tripod head screws on that prevents my gimbal tripod head from sitting flush when it is screwed on. this is very annoying and does not allow my camera to stay steady when shooting. Please tell me how to resolve this issue. th...
    battery replacement
    Name: Danette L Boyd-Perez
    Doxie Go SE Portable Scanner
    Hello-- I have been working w/ support- it seems they sent incorrect battery replacement. I confirmed DX-255 and was sent battery NP 120. There is no way that battery fits inside the panel of the DX-255. Please advise next steps thank you....

    PDF User Manuals
    We regularly supplement and update our library. Latest instruction manuals added for download:

    Detail - PROPEL Star Wars T-65 X-Wing Star
    https://www.search-manual.com/ upload/ propel-star-wars-t-65-x-wing-star-fighter-quadcopter-243530-user-manual.pdf
    Detail - Lenovo ThinkCentre M625q Tiny Thin Client
    https://www.search-manual.com/ upload/ lenovo-thinkcentre-m625q-tiny-thin-client-desktop-computer-294499-user-manual.pdf
    Detail - Power2000 XP-UNV AC DC Universal Battery
    https://www.search-manual.com/ upload/ power2000-xp-unv-ac-dc-universal-battery-charger-110732-user-manual.pdf
    Detail - Core SWX Fleet Q V-Mount Four-Position
    https://www.search-manual.com/ upload/ core-swx-fleet-q-v-mount-four-position-charger-224861-user-manual.pdf
    Detail - Memento Electronics Flat Power Cable Kit
    https://www.search-manual.com/ upload/ memento-electronics-flat-power-cable-kit-for-memento-smart-frame-178564-user-manual.pdf


    What our users say about us:

    Peter Morgan: "Thanks for this website! With help from your instructions I’ve got my dishwasher working again."

    Nick Jackson: "Your site’s been a massive help because the user manual didn’t come with the product. Thanks a lot."

    Leslie Scott: "I finally found the user's guide with you that I couldn’t find anywhere else! Totally happy!"

    Take a look through our user manuals in our on-line library, with instruction manuals and service handbooks downloadable in PDF format. Our instructions database is constantly updated and supplemented with new products. Looking for instruction manuals? Ask us!
    SEARCH-MANUAL.com
    Sitemap.xml
