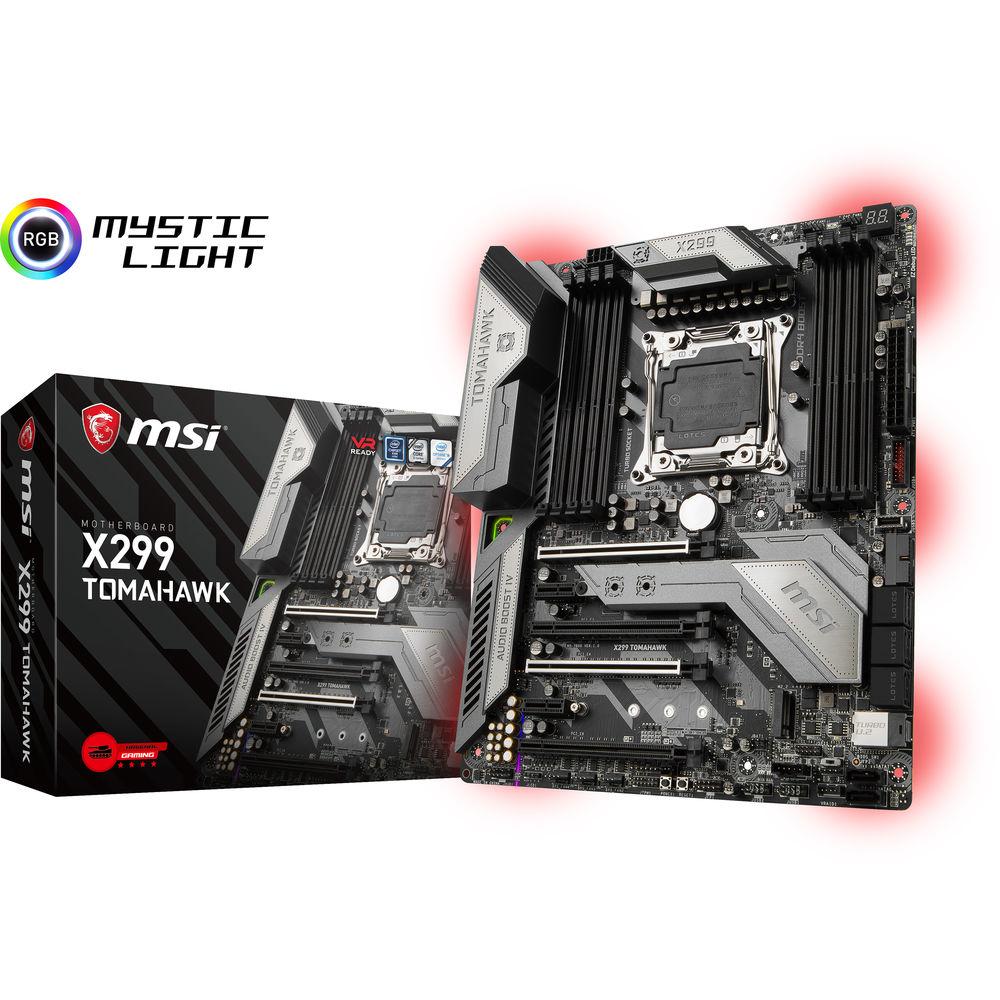

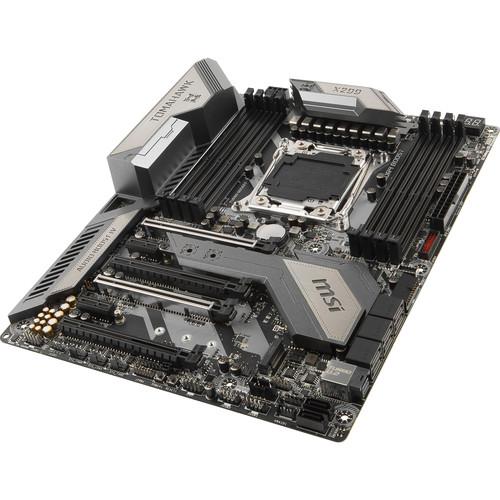

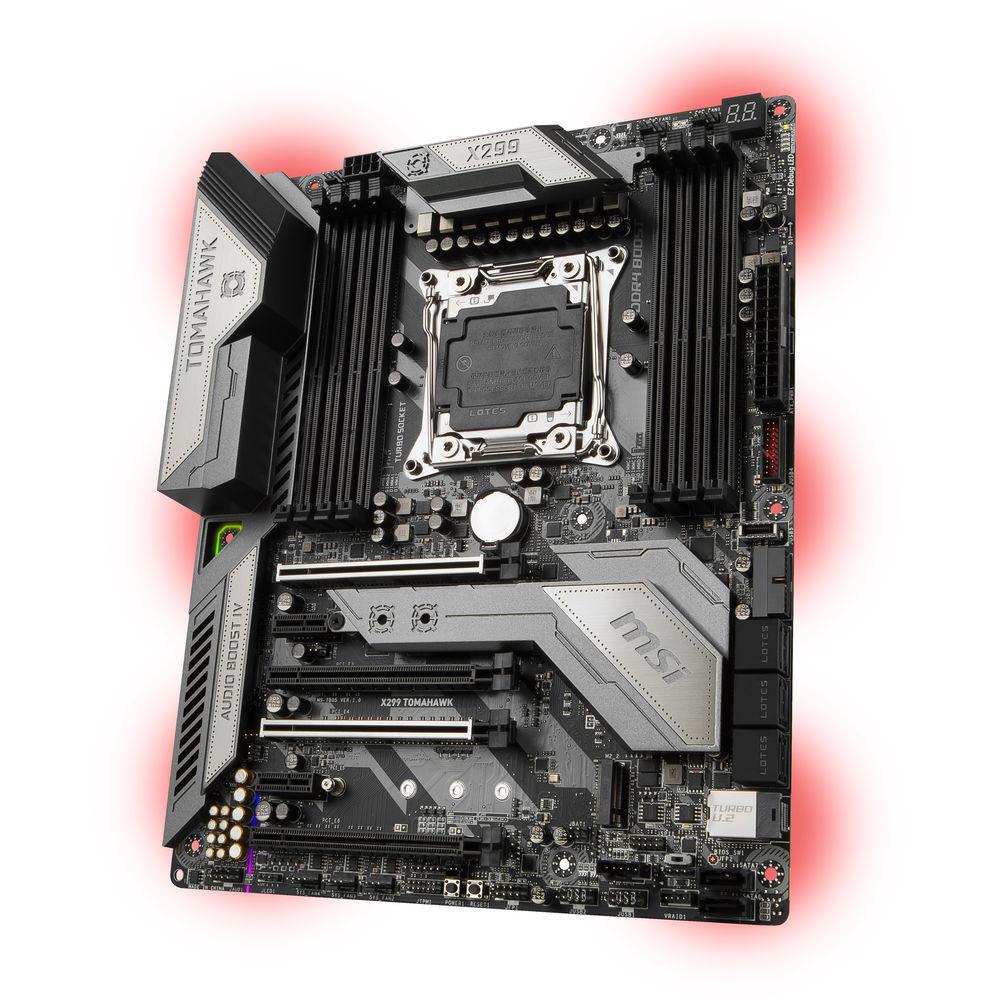

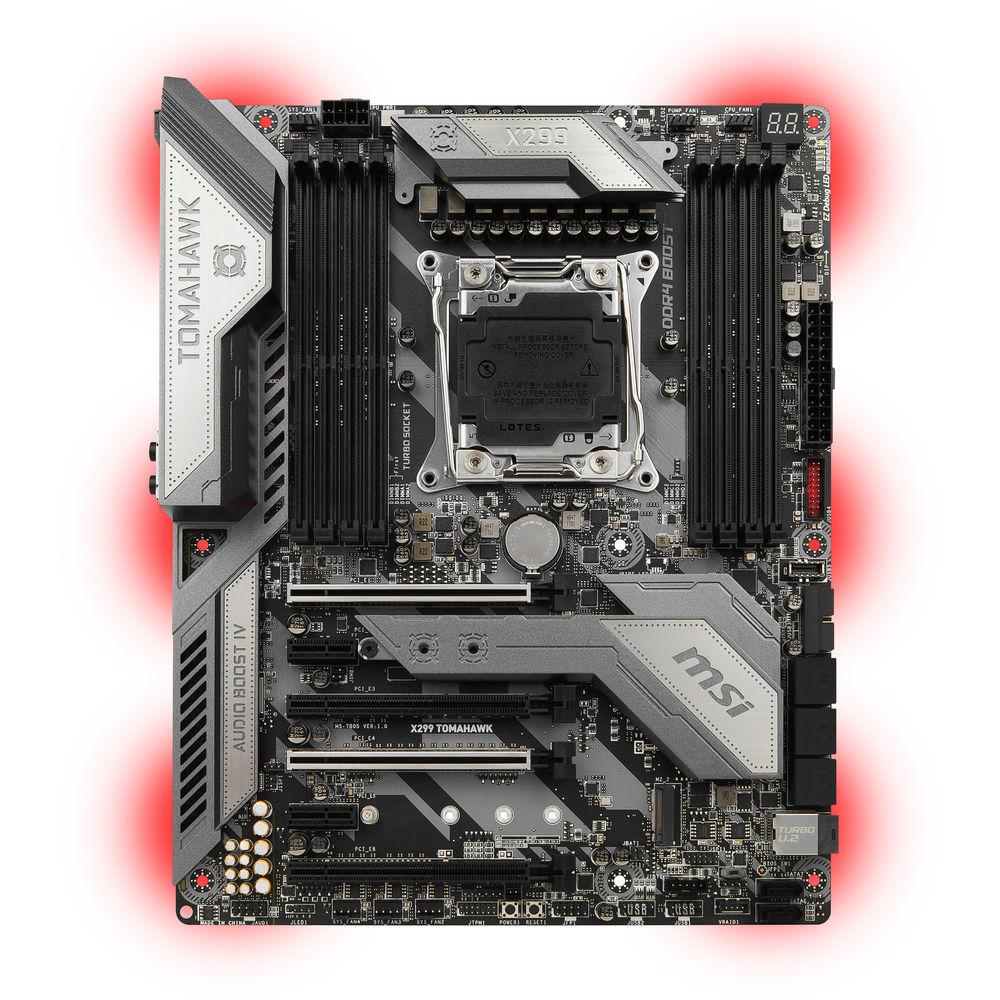

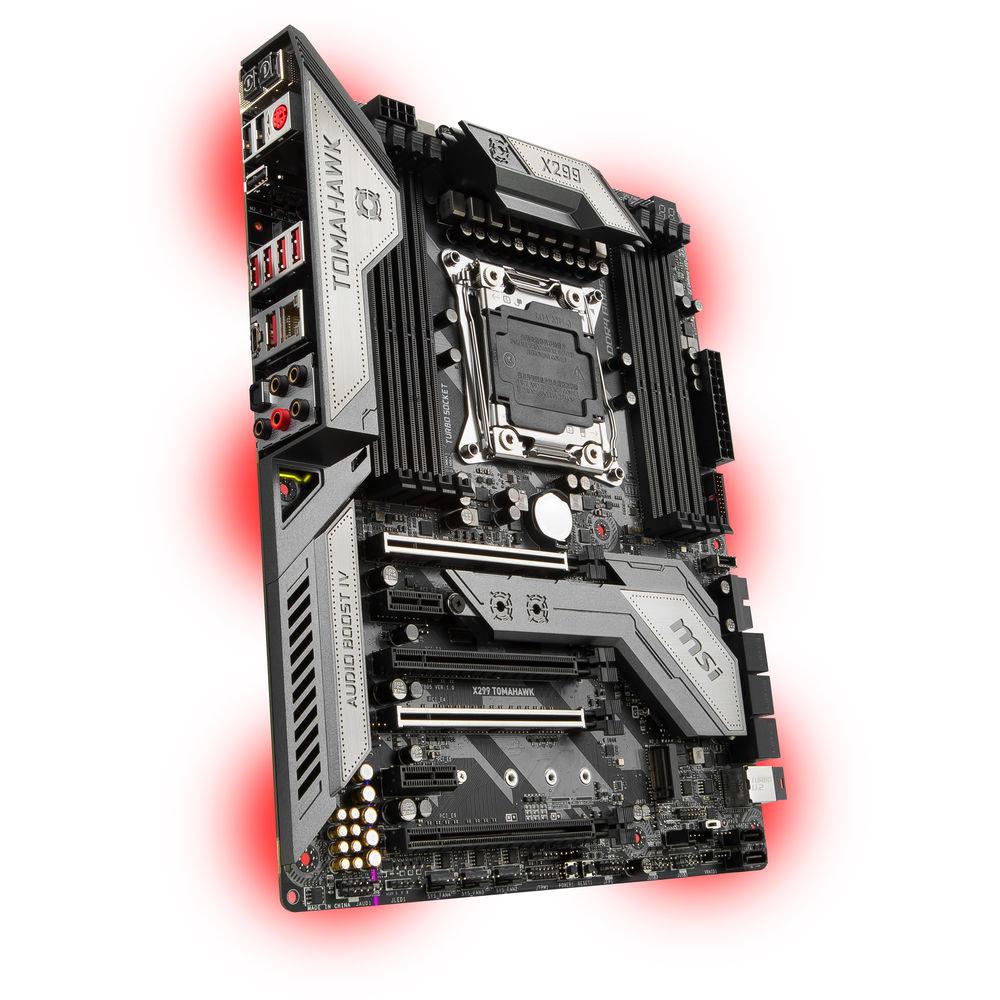

Product description MSI has equipped the X299 Tomahawk ATX Motherboard with an Intel X299 chipset and an LGA 2066 socket to build a desktop system that supports the performance of your Intel Core X-series processor. This motherboard features eight DDR4 DIMM slots, letting you build a system outfitted with up to 128GB of memory. For storage options, eight SATA ports are available to support optical drives, HDDs, and SSDs. In addition, one U.2 connector and three M.2 slots allow you install fast PCI-based SSDs, so the system can have instant access to data.
MSI gives you the option to create a gaming system with four dedicated graphics cards linked with AMD CrossFire or NVIDIA SLI technology by offering four PCIe 3.0 x16 slots. Audio is handled by the built-in Realtek ALC1220 processor that provides 8-channel sounds through the motherboard's six audio jacks. Other ports offered are two USB 3.1, four USB 3.0, and three USB 2.0 ports as well as a PS/2 combo port and a Gigabit Ethernet port. The two USB 3.1 ports transmit data at rates of up to 10 Gb/s, and one of these ports is armed with a USB Type-C design for connecting a USB-C cable on the first try. For additional ports, USB 3.1 Type-C and Thunderbolt 3 headers provide a USB 3.1 Type-C port in the front of the case and a Thunderbolt 3 port with an optional add-on card. Furthermore, two PCIe 3.0 x1 slots allow you to add additional capabilities and ports to this motherboard.
This motherboard provides you with the tools to overclock your unlocked Intel Core X-series processor by including support for liquid-cooling solutions and offering two BIOS chips and CLICK BIOS 5, which allows easy optimizations to the memory and processor. Aside from enhancing the CPU, built-in LEDs illuminate the insides of your case, and an extension Mystic Light header lets you add optional LED strips. - LGA 2066 Socket
- The LGA 2066 socket supports Intel Core X-series processors that sport four, six, and higher core counts. With different core counts from X-Series processors, this motherboard is able to accommodate quad- or dual-memory configurations. The X-Series processors can have up to 44 PCIe lanes to provide performance to the motherboard's PCIe slots.
- Intel X299 Chipset
- The Intel X299 chipset provides USB 3.0 ports, SATA 6 Gb/s ports, and other essential features for a computer system.
- X299 Tomahawk Features
-
- RGB Mystic Light offers 16.8 million colors and 17 effects to personalize the insides of the case
- Mystic Light Extension pinheader controls additional RGB strips and other RGB peripherals, without needing a separate RGB controller
- MSI fan headers running in DC or PWM mode for optimal tuning of fan speeds and silence
- Hysteresis makes your fans spin up fluently to make sure your system stays quiet
- A dedicated water pump PIN header supports up to 2A, giving you full control of the water pump's speed
- GAMING Device Port is optimized to fully utilize your device's special features
- Intel Optane technology compatible
- M.2 Shield FROZR is a thermal solution for M.2 drives
- Three M.2 slots and one U.2 connector to accommodate PCIe-based SSDs
- Supports NVMe drives
- VR ready
- VR Boost is a smart chip that ensures a clean and strong signal to a VR optimized USB port
- Audio Boost 4, which is an EMI-shielded audio processor with built-in DAC, and Nahimic Sound technology provide surround sounds through the six golden audio jacks
- Isolated audio design with LED border
- Separate audio layers for clean left and right audio channels
- De-Pop protection
- Golden audio ports
- Dedicated headphone amplifier for supporting headphones with up to 600Ω impedance
- Intel LAN is optimized for online gaming by reducing CPU overhead and offering high TCP and UDP throughputs
- LAN Protect provides 15KV anti-surge protection that shields your network from lightning strikes and static electricity
- Optimized traces and isolated circuitry help ensure memory stability and performance
- All-digital power design offers lower power consumption and precise voltage delivery
- XMP LED lights up when an Extreme Memory Profile is active
- Steel Armor protects your DDR4 memory along with U.2 and M.2 drives from both physical damage and electrical overcurrent by adding extra ground points
- OC Engine 2 is an external clock generator that gives you higher BCLK adjustments
- BIOS Flashback+ lets you flash the BIOS without a CPU, memory, or graphics card installed
- Optimized PCB design and added layers allow MSI to optimize all traces for overclocking
- Power phases provide stable, optimized power delivery
- Load-Line Calibration makes sure the CPU voltage remains 100% stable under different loads
- Digital LED display notifies you of the source of the problem so you know exactly where to look
- Clear CMOS button lets you instantly reset the BIOS
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- USB 3.1 Type-C port transfers data at up to 10 Gb/s and features a reversible connection design
- MSI Super Charger USB ports charge power-hungry devices quickly
- USB ports on MSI motherboards are shielded by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices
- MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold and protects PCI Express signals against electromagnetic interference
- Dual BIOS setup with onboard switch
- Software Features
-
- Mystic Light App for your smartphone from Google Play or App Store to control LED lights
- Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface
- Gaming Hotkey for assigning functions to any key to launch your favorite games, load profiles, or perform real-time overclocking
- Mouse Master software performs multiple commands with just one click
- MSI Dragon Eye allows you to watch an online video stream while playing a game simultaneously
- OSD function in Gaming App lets the system display CPU speed, FPS counter, GPU temperature, and other statistics while playing a game
- WTFast and Xsplit Gamecaster included
- X-Boost optimizes your SSDs
- Configure PCIe, M.2, and U.2 SSDs in RAID 0 with M.2 Genie
- One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact your virtual adventure
- TriDef VR uses 2D-to-3D conversion technology to play your favorite games in 3D on your HMD (head mounted display)
- MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games
- DDR4 Boost allow for more stability at higher memory speeds when compared to other motherboards
- App Manager to keep an easy overview of available applications for your system to help you configure, tune, and set up your system to your personal preferences
- MSI's Command Center software allows you to tune settings to increase system stability, maximize performance, and optimize your system's cooling features
- MSI Live Update automatically downloads and installs the latest drivers, BIOS and software
- RAMDisk lets you to create a virtual drive from your system RAM memory
- Fast Boot option for enabling UEFI fast booting methods
- Go2BIOS button allows you to automatically go to the BIOS on the next reboot for quick access
- CPU-Z gathers key information of your system's key components, such as CPU speed, memory speed and timings, motherboard BIOS version, and more
- Hi-res BIOS fonts
- EZ and Advanced modes for configuring the BIOS settings
- With an optimized formatting algorithm, Secure Erase+ restores your SSD's performance<
- System Saver offers 3 easy-to-use options to successfully boot your system again
- CLICK BIOS 5 provides easy optimizations to the memory and processor
UPC: 824142148624 In the Box MSI X299 Tomahawk LGA 2066 ATX Motherboard I/O Panel Set of SATA Cables Labels Driver & Utilities Disc 2 x SATA Cables Case Badge SLI HB Bridge M Limited 3-Year Warranty User Manual PDF 10.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI X299 Tomahawk LGA 2066 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

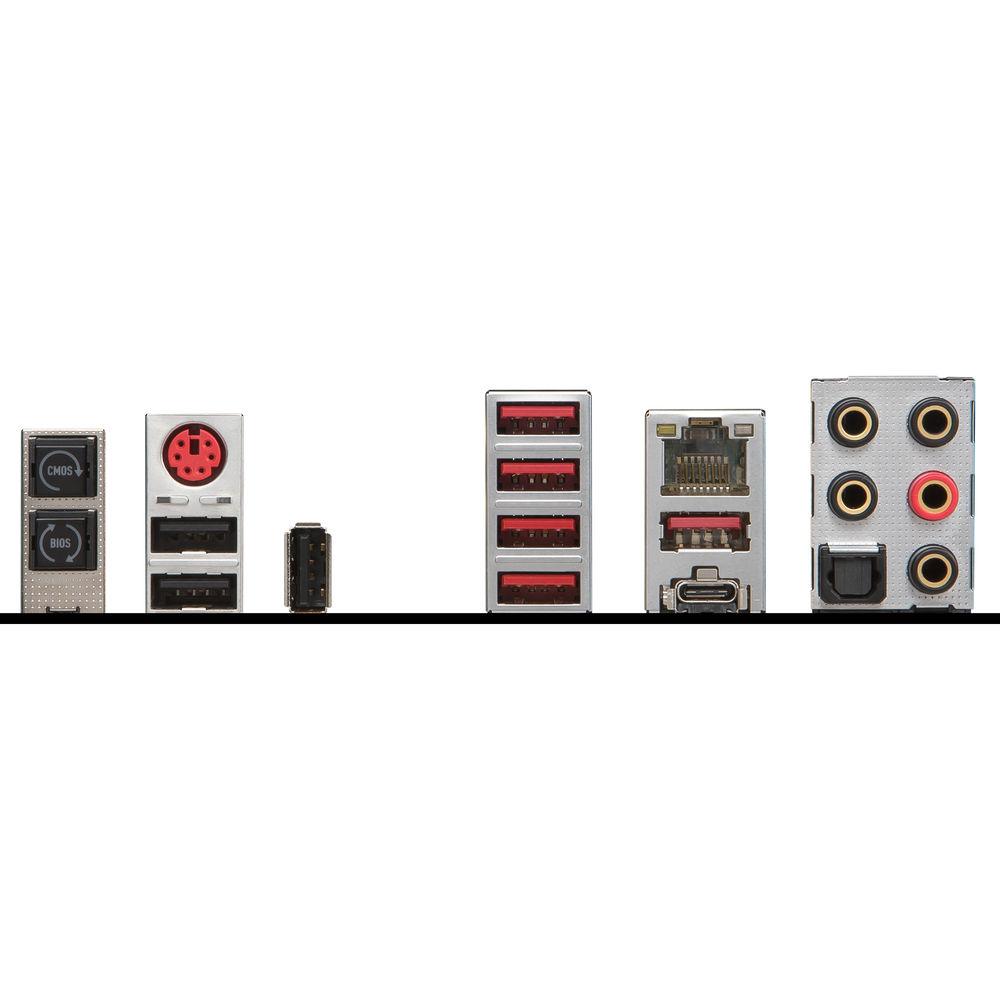

Technical parametersMSI X299 TOMAHAWK Specs | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | | | USB | 3 x USB 2.0 Type-A
4 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel I219V Gigabit | | PS/2 | 1 x Combo | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2667, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4500 MHz | | Maximum Capacity | 128 GB | | Channel Architecture | Quad Channel | | | | SATA | 8 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | 1 | | RAID Support | RAID 0, 1, 5, 10 | | | | Expansion Slots | 4 x PCIe 3.0 x16
2 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-C Ports)
2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Diagnostics | BIOS Selection, Clear CMOS, Power, Reset | | Add-On | 1 x Thunderbolt Card Header | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC1220 (8-Channel) | | | | Wi-Fi | None | | Module Support | 1 E Key M.2 | | | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 13.6 x 10.6 x 3.5" |
