User Manual for MSI X370 Gaming Pro Carbon ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI X370 Gaming Pro Carbon ATX
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI X370 Gaming Pro Carbon ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

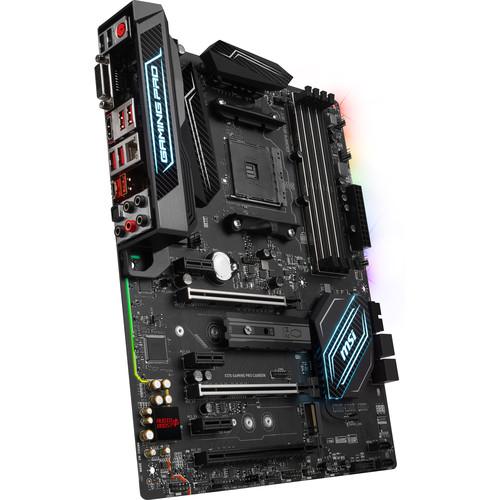

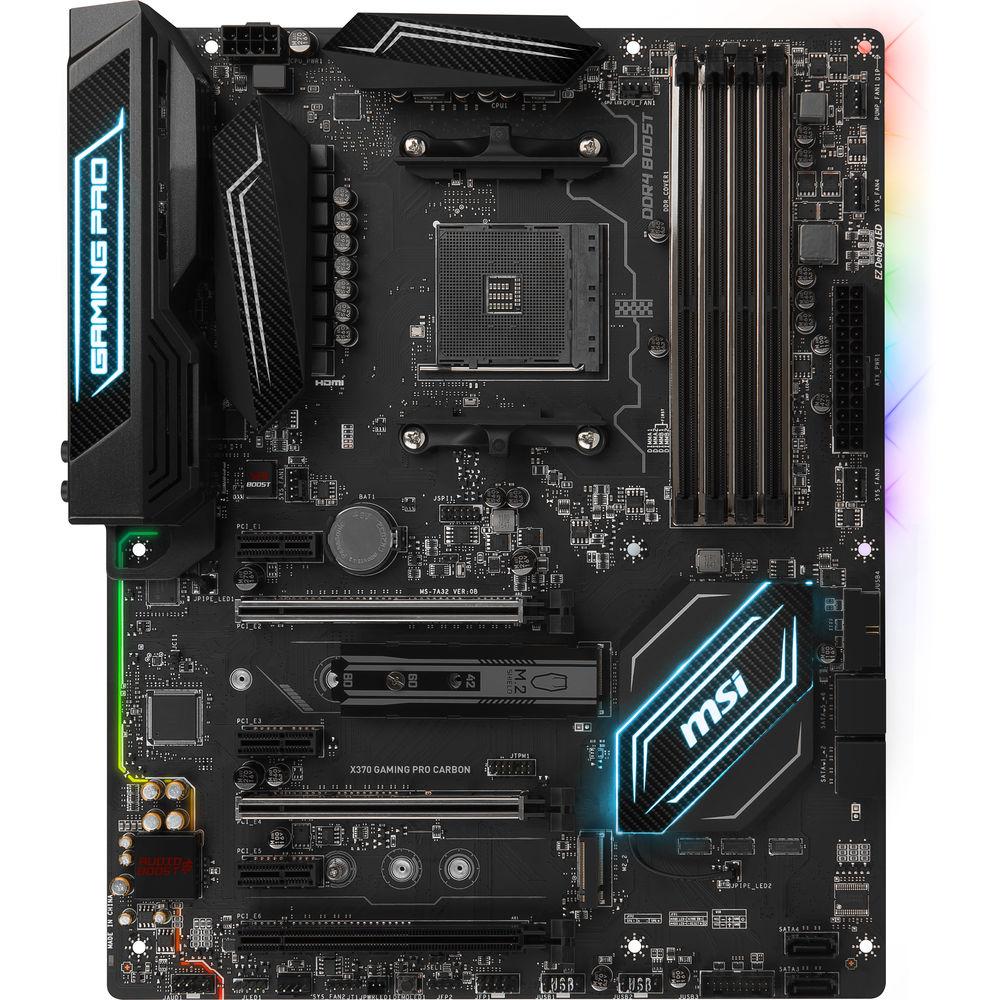

Product description The MSI X370 Gaming Pro Carbon ATX Motherboard features an AM4 socket and X370 chipset to support AMD RYZEN A-series (7th-gen.) or Athlon (7th-gen.) system builds. The X370 Gaming Pro Carbon comes equipped with two PCIe 3.0 x16 slots along with one PCIe 2.0 x16 slot, letting you install multiple graphics cards and link them with either 2-Way NVIDIA SLI or 3-Way AMD CrossFire technologies. It is outfitted with four DDR4 memory slots that allow you to install up to 64GB of memory and are compatible with up to 3200 MHz memory speeds. For ultra-fast SSD support, two M.2 slots are on board and offer compatibility with PCIe- and SATA-based M.2 SSDs. There are also six SATA III connections for adding optical and storage drives.

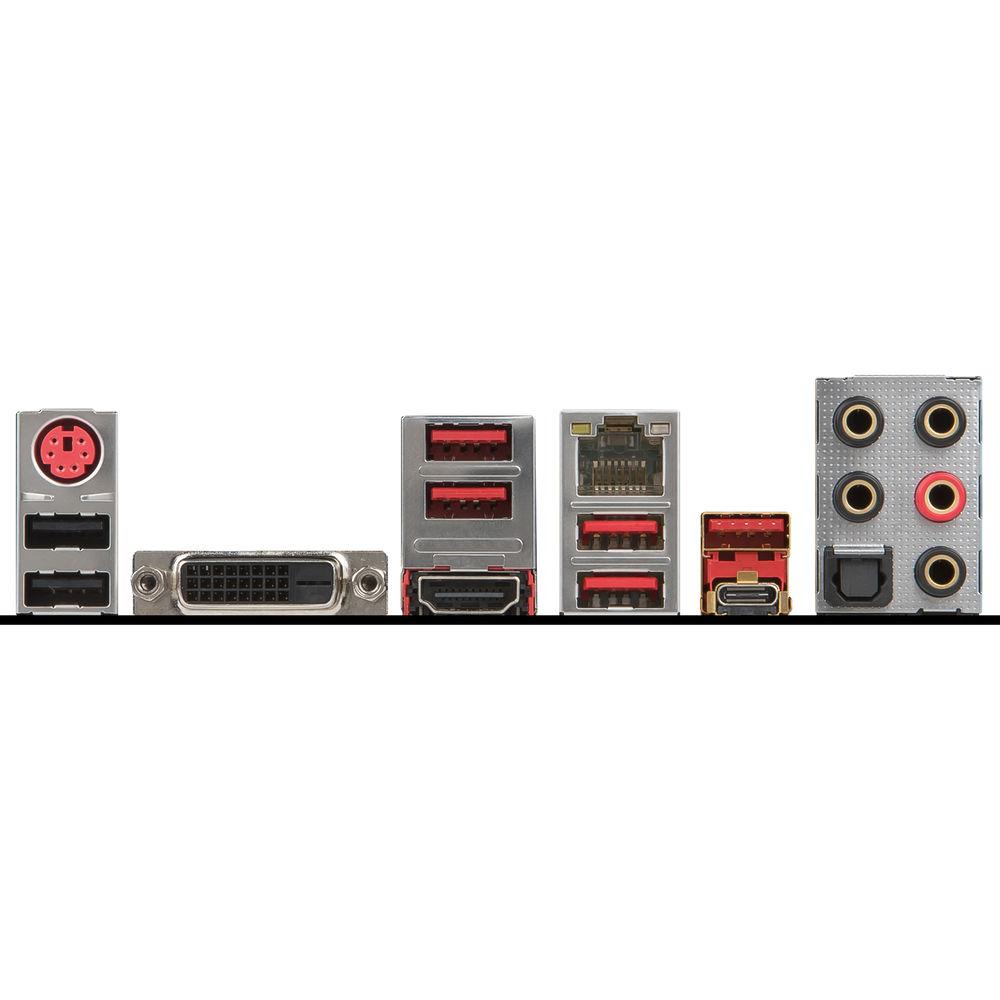

With an AMD Accelerated Processing Unit (APU) processor installed, the X370 Gaming Pro Carbon motherboard delivers up to 4K visuals through its HDMI and DVI-D outputs. MSI has built this motherboard with a Realtek ALC1220 audio processor, six audio jacks, and one optical port to complete the multimedia experience. Aside from multimedia, the motherboard sports two USB 2.0 and four USB 3.0 ports as well as two USB 3.1 ports with 10 Gb/s speeds. Moreover, one of these USB 3.1 ports sports a USB Type-C interface that lets you connect with a USB-C cable the first try. Other notable features include Gigabit Ethernet connectivity, three PCIe 2.0 x1 slots, and built-in RGB LEDs on the motherboard for illuminating the insides of your case. - X370 and AM4
- AM4 and X370 chipsets provide dedicated PCIe lanes for USB, graphics, data, and other I/O. The AM4 socket is compatible with AMD RYZEN series processors as well as 7th-generation A-series and Athlon processors.
- Personalize Your Gaming Rig
- Customize and set up your own color scheme with RGB Mystic Light Sync. You can select from up to 16.8 million colors as well as 17 lighting effects using the MSI Gaming app for smartphones and desktops to match your personal style. This motherboard features LEDs on the I/O cover, heatsink, and back to create a glow inside your case. For additional lighting inside, Mystic Light extension headers are on board for controlling optional RGB strips, fans, and other gear—without needing a separate RGB controller. Additionally, Mystic Light Sync can also work with select LED-enabled keyboards and mice.
- Cooling
- MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Total Fan Control software is offered so you to take control of your fans and check the system's characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan's speeds automatically. Additionally, the motherboard comes with a water-pump PIN header that supports up to 2A, offering you full control of the water pump's speed.
- Audio
- With Audio Boost 4 components and Nahimic 2 technology, this motherboard offers studio grade sound by offering separated audio layers, golden audio jacks, and Chemi-Con audio capacitors as well as an isolated audio design, De-Pop protection, and EMI-shielded HD audio processor. In addition, it comes with a dedicated headphone amplifier for supporting 600Ω impedance headphones.
- Software Included
-
- Gaming Hotkey assigns functions to any key to launch your favorite games, load profiles, or overclock the CPU with the push of a single button
- Mouse Master software and dedicated PS/2 port enhance mouse controls
- MSI Game Boost enables one-second overclocking for the CPU and memory
- MSI Dragon Eye allows you to watch a YouTube video or Twitch Stream while playing a game
- Gaming app produces an on-screen overlay on top of your game to help you keep track of CPU speeds, FPS, and temperatures
- WTFAST provides an optimized private network for gaming
- XSplit lets you record your gaming moments and broadcast your live gameplay sessions to share with others
- X-Boost optimizes SSDs to keep the system fast and maximize storage and can provide up to 20% increase in USB speeds
- One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact the virtual-reality experience
- MSI GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games
- DDR4 Boost enhances memory speeds
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software
- RAMDisk creates a virtual drive from RAM
- CPU-Z gathers key information of the CPU speed, memory speed and timings, motherboard BIOS version, and more
- CLICK BIOS 5 offers sharp scalable fonts and EZ and Advanced modes as well as search and favorites features to help you configure the system's components
- Secure Erase+ uses an optimized formatting algorithm, so SSDs can operate at maximum speeds
- Additional Features
-
- Supports 3-Way AMD CrossFire and 2-Way NVIDIA SLI technologies
- M.2 Shield included for cooling M.2 SSDs
- M.2 slots deliver speeds of up to 32 Gb/s using PCIe 3.0 x4 lanes
- Six SATA ports support RAID
- M.2 connection supports NVMe solutions
- VR Boost is a smart chip that ensures a clean and strong signal to a VR optimized USB port to provide an enjoyable VR experience
- Intel LAN is optimized for reducing CPU overhead and offering high TCP and UDP throughputs
- LAN Protect shields the motherboard from power surges
- Fully-isolated memory circuitry and optimized traces help ensure stability and performance
- Steel Armor protects your memory and memory slots from both physical damage and electrical overcurrent by adding extra ground points
- Load-Line Calibration helps the CPU's voltage remain stable under different loads
- Onboard LEDs for key components indicate the source of the problem, so you'll know what to fix
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- USB Type-C interface offers effortless connections to USB-C cables
- Two USB 3.1 ports deliver speeds of up to 10 Gb/s
- MSI Super Charger USB ports deliver more power than standard ports to charge mobile devices quickly
- PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
- Double ESD protection and double layer grounding around the motherboard mounting holes to protect the motherboard from Electrostatic discharge (ESD) surges

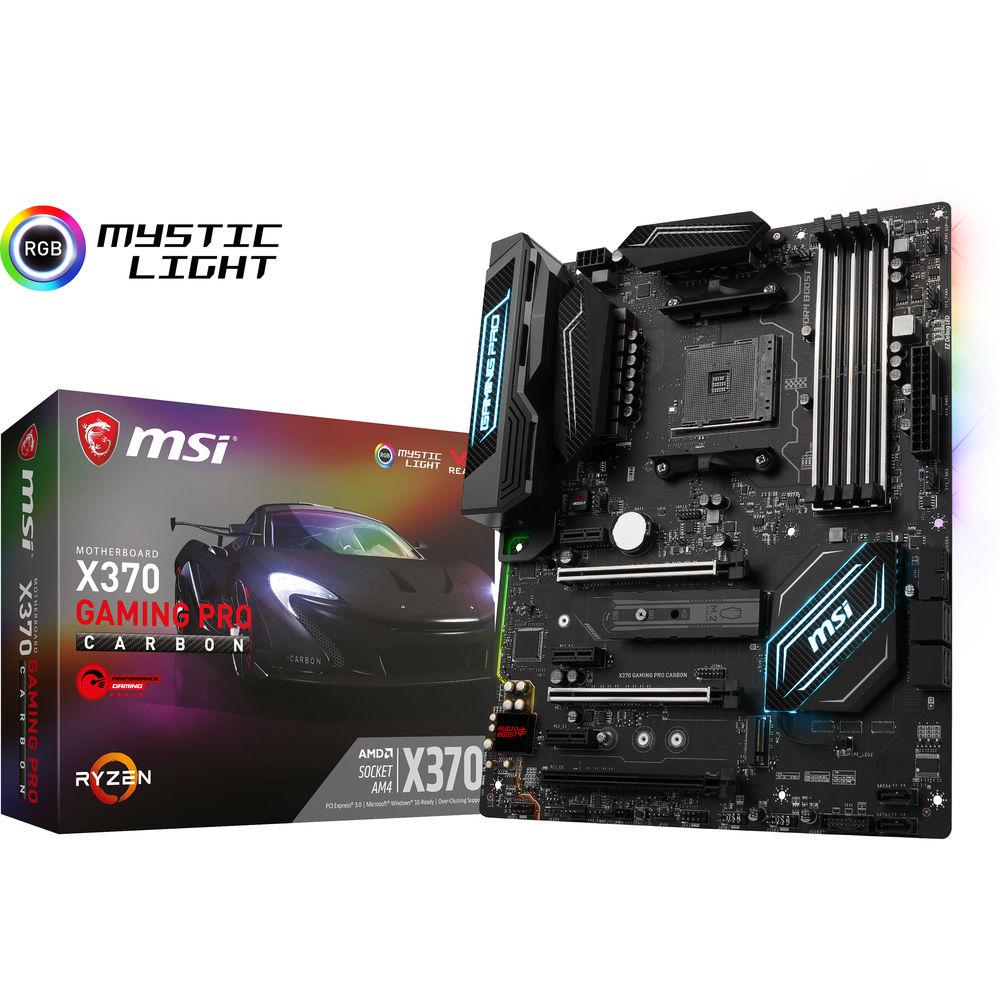

UPC: 824142143650 In the Box MSI X370 Gaming Pro Carbon ATX Motherboard Driver/Utilities Disc I/O Shield 2 x SATA Cables SLI Bridge Connector 3.1" (80mm) 1-to-2 LED Extension Y Cable Set of SATA Cable Labels Limited 3-Year Warranty User Manual PDF 6.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI X370 Gaming Pro Carbon ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI X370 GAMING PRO CARBON Specs | | | Chipset | AMD X370 | | CPU Socket | AM4 | | | | USB | 2 x USB 2.0 Type-A
4 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Display | 1 x DVI-D
1 x HDMI 1.4 | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel 1211AT Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 1866, 2133, 2400, 2667, 2933, 3200 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x 2242, 2260, 2280 (SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 10 | | | | Expansion Slots | 2 x PCIe 3.0 x16
1 x PCIe 2.0 x16
3 x PCIe 2.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX
2-Way NVIDIA SLI | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Diagnostics | Clear CMOS | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC1220 (8-Channel) | | | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 13.9 x 10.7 x 3.3" |
