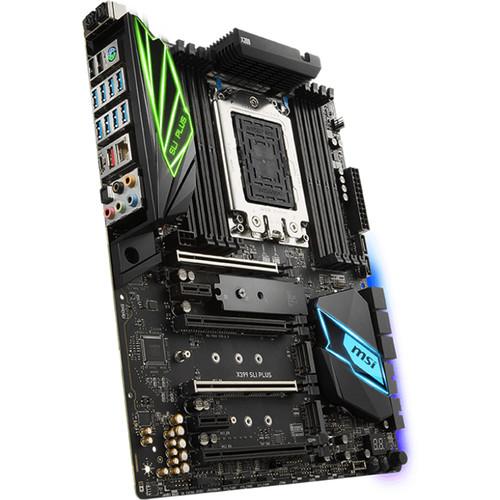

User Manual for MSI X399 SLI Plus TR4 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI X399 SLI Plus TR4 ATX
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI X399 SLI Plus TR4 ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

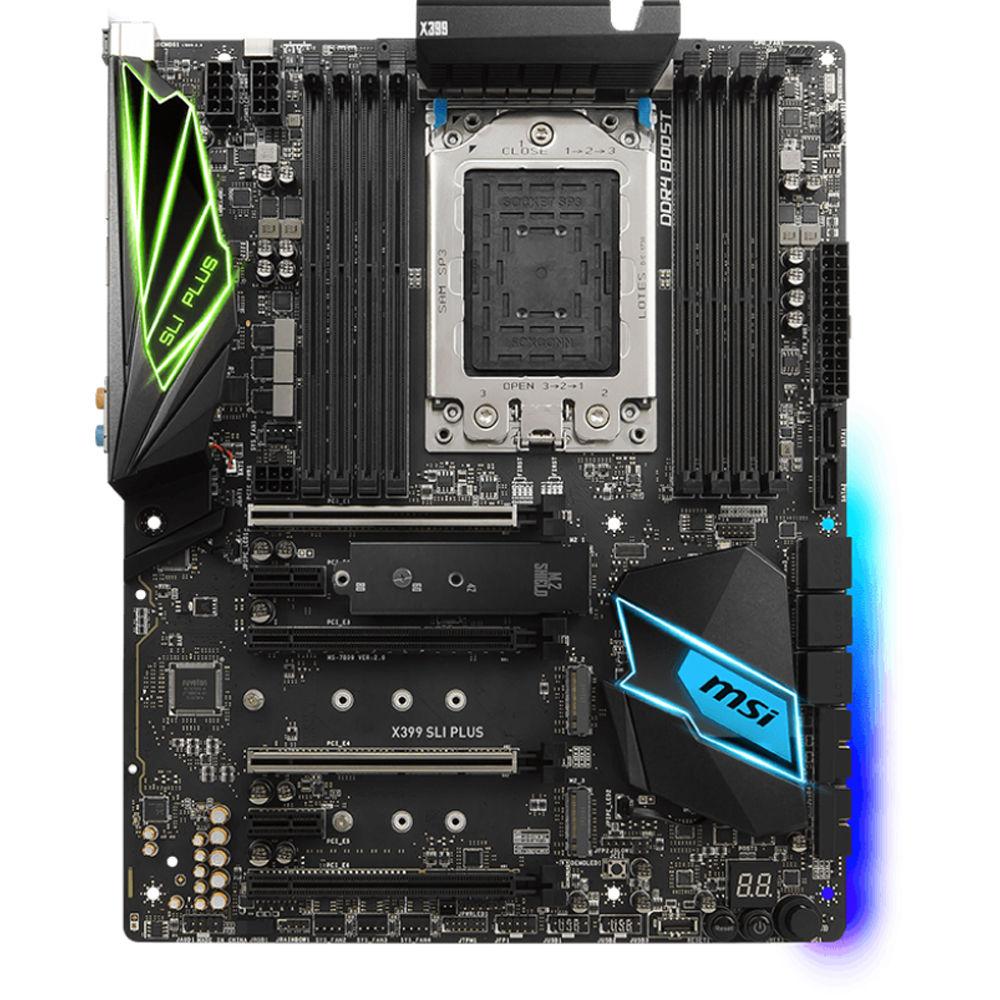

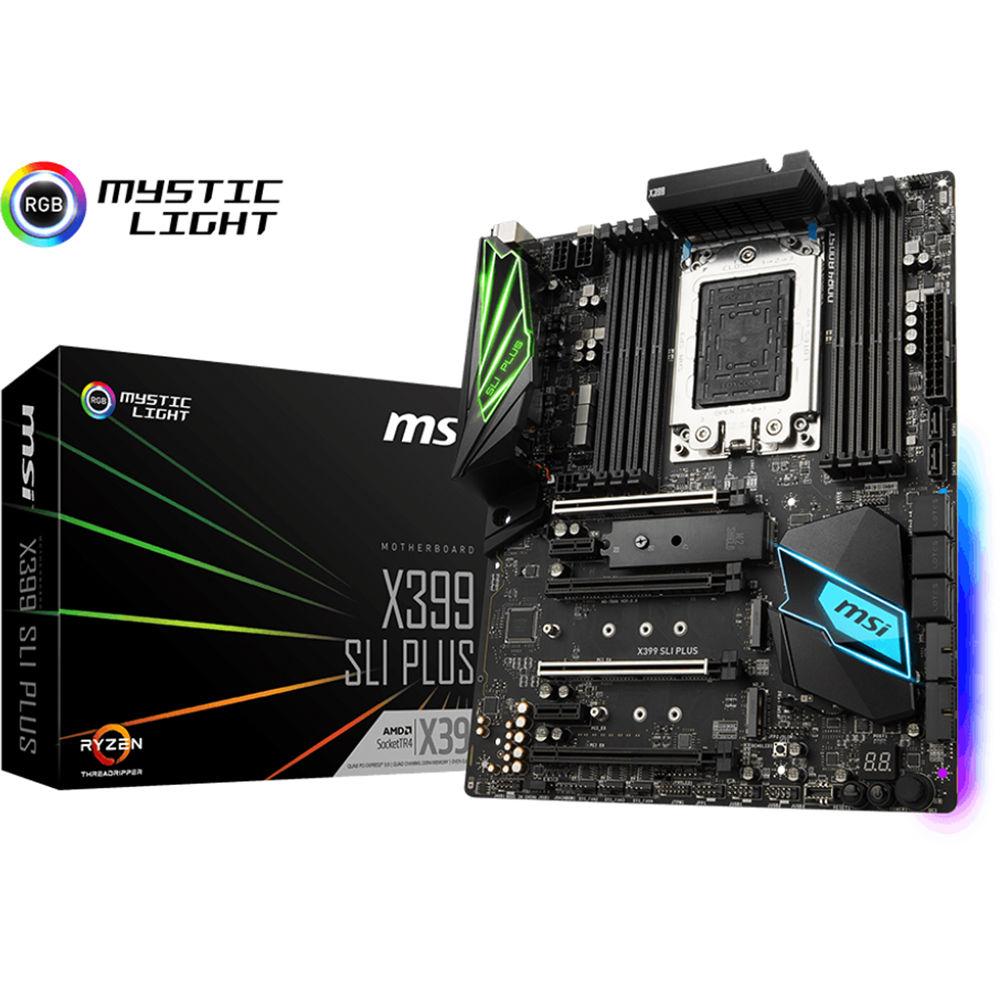

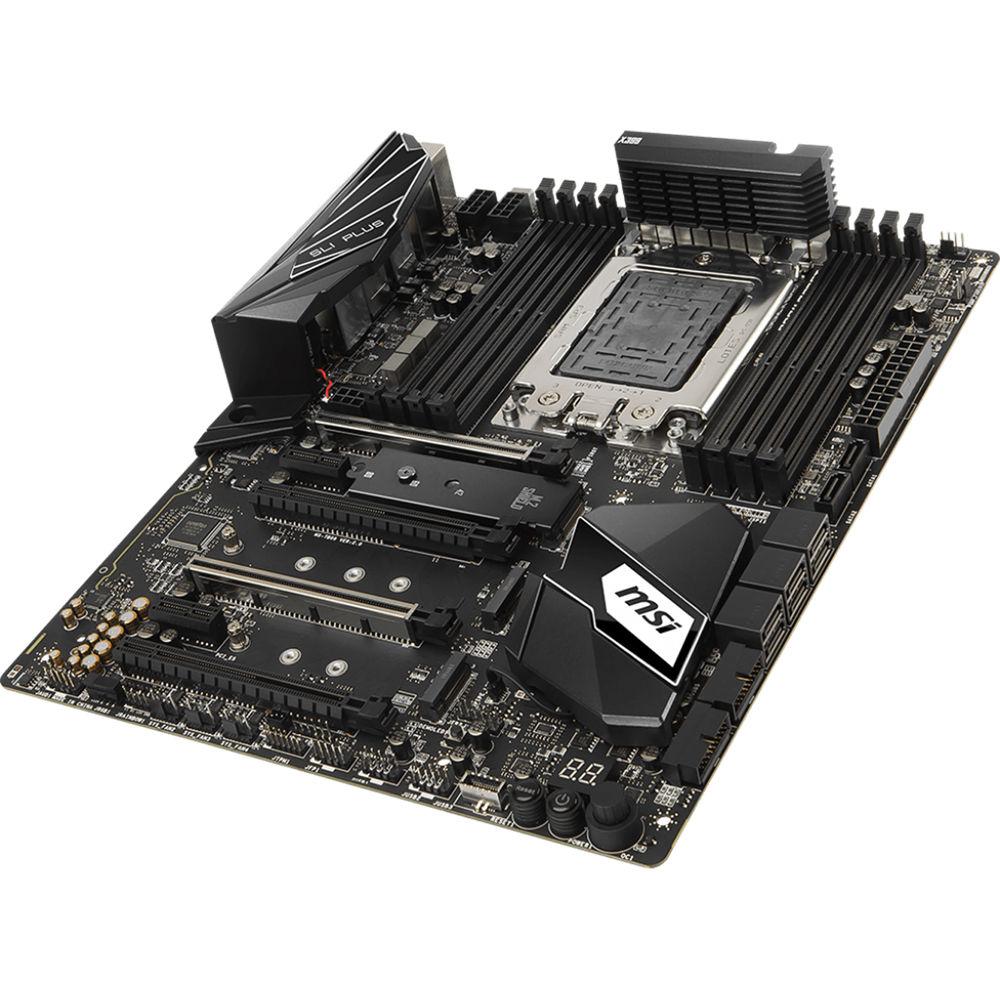

Product description The X399 SLI Plus TR4 ATX Motherboard from MSI is built on the AMD X399 chipset, supporting AMD Ryzen Threadripper series processors with a TR4 socket. It has eight DDR4 slots that can hold up to 128GB of quad-channel RAM at speeds of up to 3600 MHz and above when overclocked. For storage, there are eight SATA III ports and three M.2 slots that can operate at speeds of up to 32 Gb/s when used with a compatible NVMe drive. Without integrated video ports, this motherboard will have to rely on a dedicated GPU for graphical processing and video output. There are four PCIe 3.0 x16 slots that can accommodate 4-way NVIDIA SLI and AMD CrossFire configurations as well as two PCIe 2.0 x1 slots for additional PCIe-based hardware. Other notable features include Realtek ALC1220 7.1-channel HD audio, Intel I211 Gigabit LAN, and MSI Mystic Light RGB lighting. - Mystic Light RGB Cover & Heatsink
- The X399 SLI Plus is built with RGB lighting that you can customize using MSI's software. Choose from multiple lighting effects and millions of colors to fit your style, and even sync it with other RGB-compatible product with Mystic Light Sync.
- Cooling
- This motherboard is built with six fan headers for cooling your system. Once connected, the fans can be adjusted in BIOS or with a third-party software to your preferred speed, so you can find a perfect balance between noise and cooling performance.
- NVIDIA SLI & AMD CrossFire Support
- If you aren't getting the graphical fidelity and frame rates you want in your games, you can install additional graphics cards on this motherboard for enhanced performance. It supports up to 4-way NVIDIA SLI and AMD CrossFire.
- Storage
- There are eight SATA III ports on this motherboard designed for traditional 2.5" and 3.5" drives. Moreover, it's also equipped with three M.2 slots, one of which features an M.2 Shield that is built with thermal pads and a heatsink to keep temperatures low and prevent throttling. With a PCIe 3.0 x4 interface, these slots can deliver speeds up of up 32 Gb/s when used with a compatible NVMe drive. For an additional boost in performance, you can enable X-Boost within MSI's software.
- Audio
- MSI Audio Boost consists of both hardware and software additions that are designed to provide you with a high-quality listening experience. The left and right channels are built on separate PCB layers, De-Pop Protection prevents loud popping noises, an EMI-shielded audio processor ensure clean stereo and surround sound, and a dedicated headphone amplifier automatically detects the optimal impedance for your headphones.
- Memory
- The DDR4 memory slots on this motherboard are built with an optimized memory layout and an all-digital power design to offer stability, performance, and low power consumption. Additionally, this motherboard supports XMP for enhanced RAM speeds.
- Additional Features
-
- Intel Gigabit LAN with bandwidth management and LAN protect against surges
- USB 3.1 Gen 2 connectivity with speeds of up to 10 Gb/s
- 13-phase power design for stable overclocking
- Command Center system monitoring software
- Live Update software
- RAMDisk storage management solution
- Steel Armor plated PCIe slots
UPC: 824142153581 In the Box MSI X399 SLI Plus TR4 ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI X399 SLI Plus TR4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

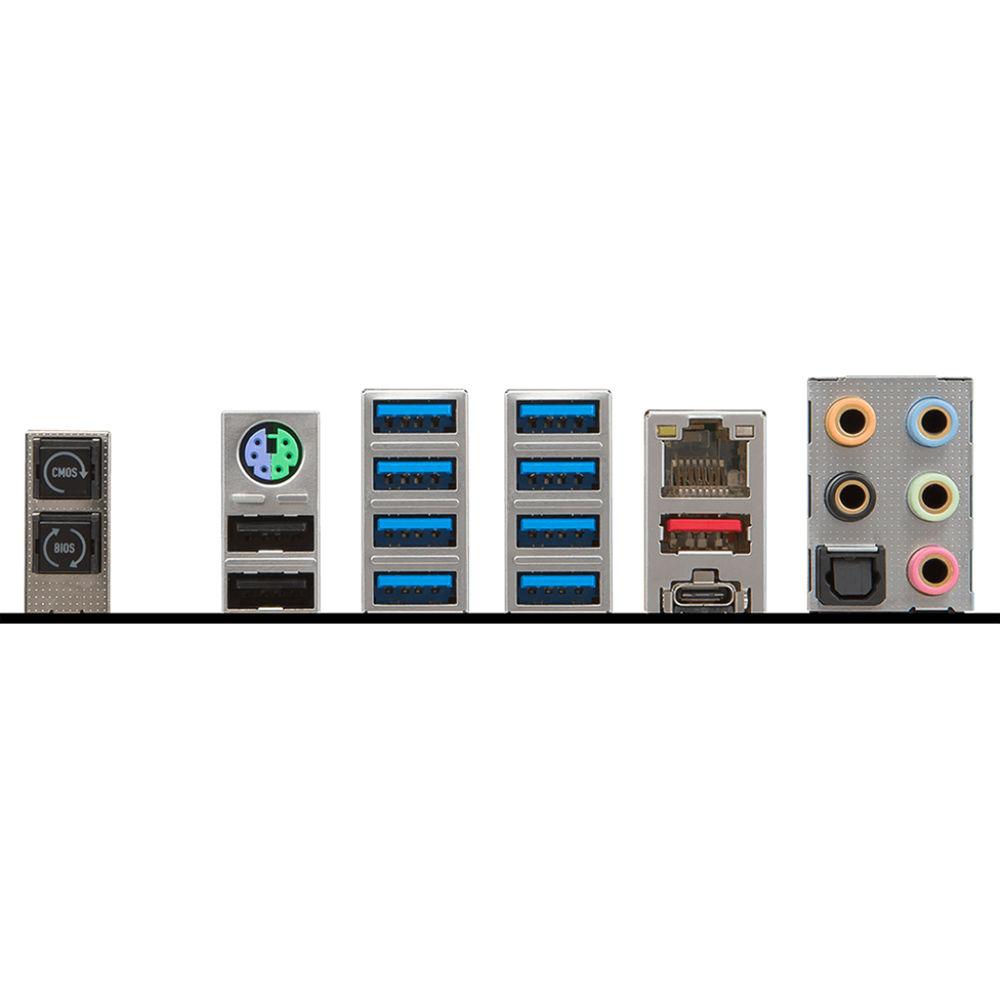

Technical parametersMSI X399 SLI Plus Specs | | | Chipset | AMD X399 | | CPU Socket | TR4 | | | | USB | 2 x USB 2.0 Type-A
8 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel I211 Gigabit | | PS/2 | 1 x Combo | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2667, 2800, 2933, 3066, 3200, 3333, 3466, 3600 MHz | | Maximum Capacity | 128 GB | | Channel Architecture | Quad Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 8 x SATA III | | M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 10 (SATA) | | | | Expansion Slots | 4 x PCIe 3.0 x16
2 x PCIe 2.0 x1 | | USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 4-Way AMD CrossFireX
4-Way NVIDIA SLI | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 6-Pin ATX | | Security | TPM Module | | LED Header | 2 x RGB | | Audio | None | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC1220 (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 4.0" |
