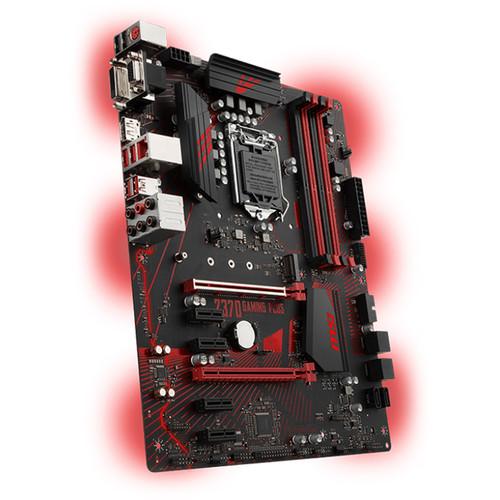

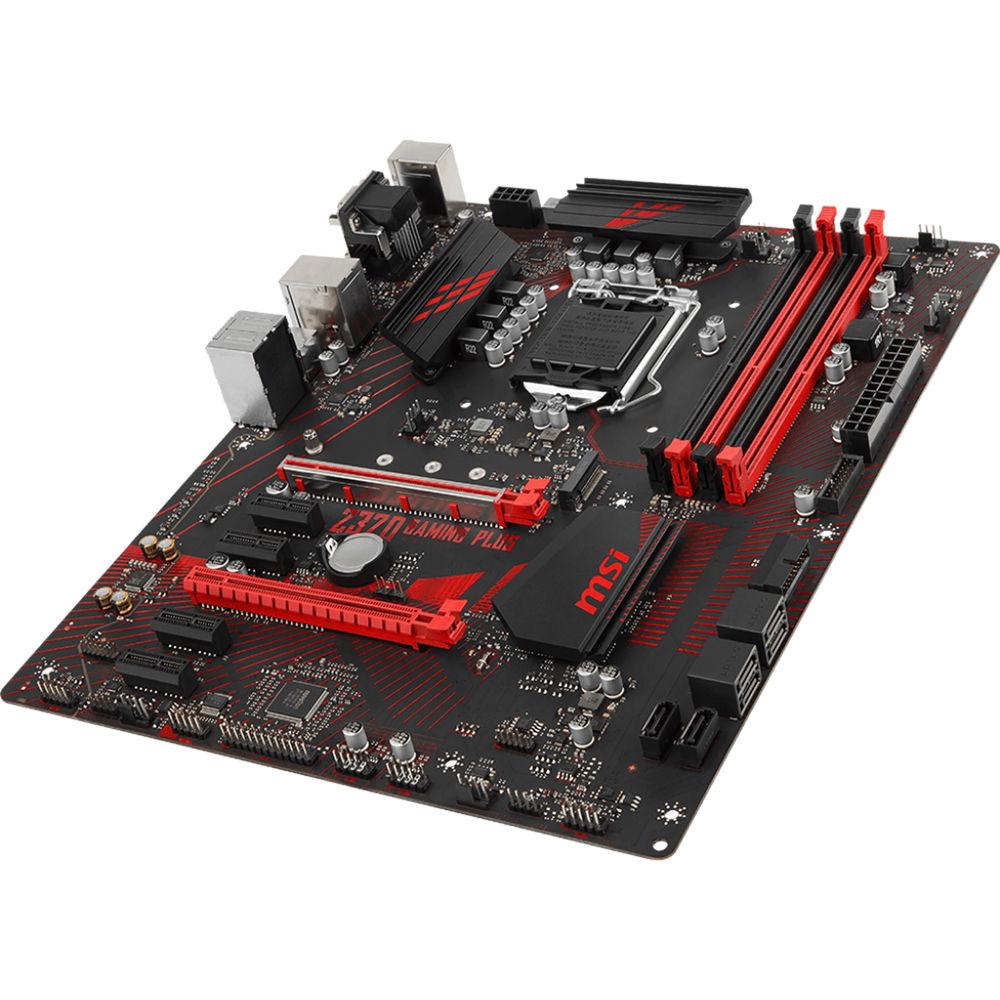

Product description The Z370 Gaming Plus LGA 1151 ATX Motherboard from MSI is built on the Intel Z370 chipset, supporting 8th generation Intel Core, Pentium and Celeron processors with an LGA 1151 socket. It has four DDR4 slots that can hold up to 64GB of dual-channel RAM at speeds of up to 4000 MHz and above when overclocked. For storage, there are six SATA III ports and a single M.2 slot that can operate at speeds of up to 32 Gb/s when used with a compatible NVMe drive. While this motherboard does have VGA, DVI-D, and DisplayPort for onboard graphics, it's also equipped with two PCIe 3.0 x16 slots for dedicated GPUs as well as four PCIe 3.0 x1 slots for additional PCIe-based hardware. Other notable features include Realtek ALC892 7.1-channel HD audio and Intel I219-V Gigabit LAN. - Mystic Light RGB
- The Z370 Gaming Plus is built with RGB lighting that you can customize using MSI's software. Choose from multiple lighting effects and millions of colors to fit your style, and even sync it with other RGB-compatible product with Mystic Light Sync.
- Cooling
- This motherboard is equipped with six fan headers with DC and PWM support for complete fan control. Have them run automatically or manually adjust the fan speed within BIOS or a third-party software to find a balance between performance and noise.
- AMD CrossFire Support
- If you aren't getting the graphical fidelity and frame rates you want in your games, you can install additional graphics cards on this motherboard for enhanced performance. It supports up to 2-way AMD CrossFire.
- Display
- Equipped with VGA, DVI-D, and DisplayPort, this motherboard can be used with processors that have an integrated graphics chip for video output.
- Storage
- There are six SATA III ports on this motherboard designed for traditional 2.5" and 3.5" drives. Moreover, it's also equipped with a single M.2 slot that can utilize the PCIe 3.0 x4 interface for speeds up of up 32 Gb/s when used with a compatible NVMe drive. For an additional boost in performance, you can enable X-Boost within MSI's software.
- Memory
- The DDR4 memory slots on this motherboard are built with an optimized memory layout to offer stability, performance, and low power consumption. Additionally, this motherboard supports XMP for enhanced RAM speeds.
- Audio
-
- Audio Boost - Delivers an enhanced and immersive listening experience with multiple hardware and software features.
- Isolated Audio Design - Physically isolated circuitry ensures better audio signal.
- Separated Audio Layers - Separated layers in the PCB provide better sound quality for left- and right-audio channels.
- De-Pop Protection - Eliminates loud popping sounds when plugging or unplugging devices, or turning your system on or off.
- Dedicated Audio Processor - An EMI-shielded HD audio processor offers enhanced sound quality for both stereo and surround sound.
- Additional Features & Software
-
- Gaming Hotkey for mapping keys, functions, and more
- Gaming Device Port provides a better connection for peripherals
- X-Boost storage performance enhancing software
- Command Center system monitoring software
- Live Update software
- RAMDisk storage management solution
- Steel Armor plated PCIe slot

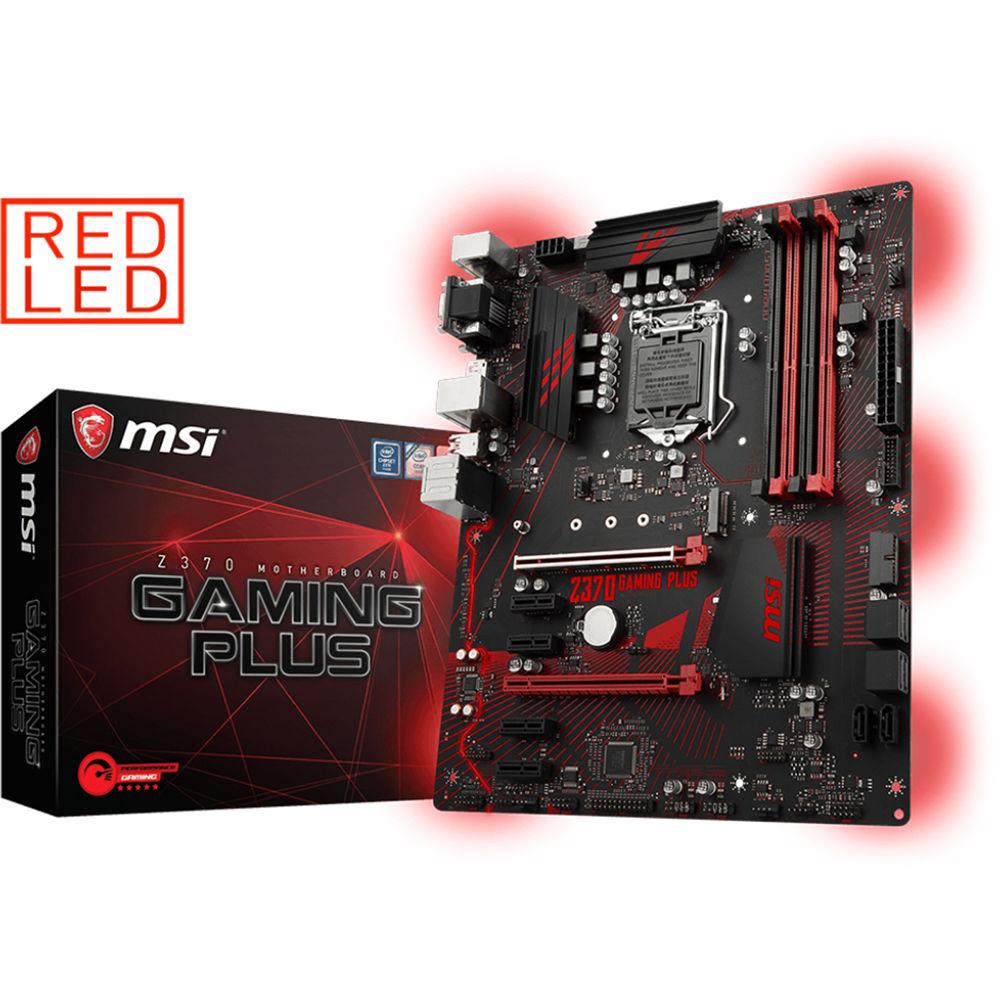

UPC: 824142153000 In the Box MSI Z370 Gaming Plus LGA 1151 ATX Motherboard Limited 3-Year Warranty User Manual PDF 4.2mbbxwectbvfywfsytsvcrwvufrsfxqyzdbxerv Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Z370 Gaming Plus LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

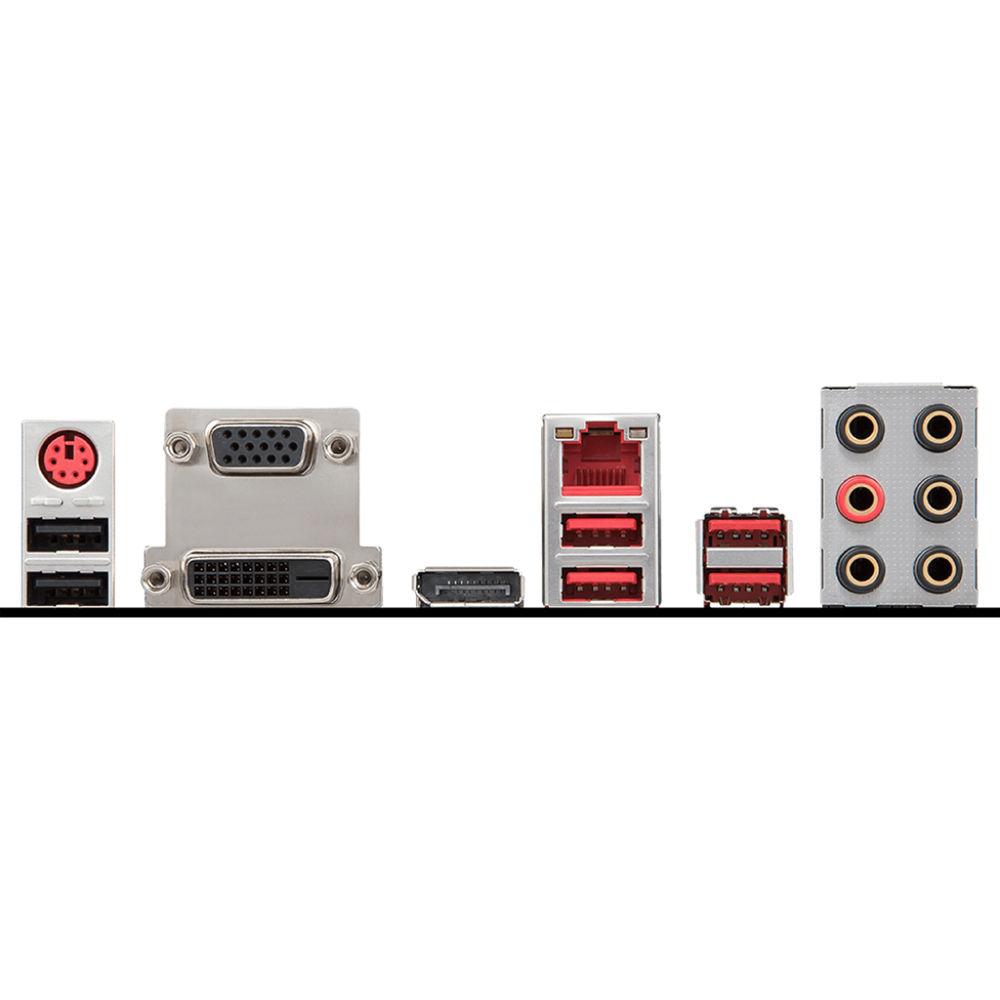

Technical parametersMSI Z370 Gaming Plus Specs | | | Chipset | Intel Z370 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 2.0 Type-A
4 x USB 3.1 Gen 1 Type-A | | Display | 1 x VGA
1 x DVI-D
1 x DisplayPort | | Audio | 6 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219-V Gigabit | | PS/2 | 1 x PS/2 | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2667, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | 1 x RGB | | Audio | None | | Diagnostics | Clear CMOS | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Serial
1 x Parallel | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC892 (7.1-Channel) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 13.6 x 10.7 x 2.6" |
