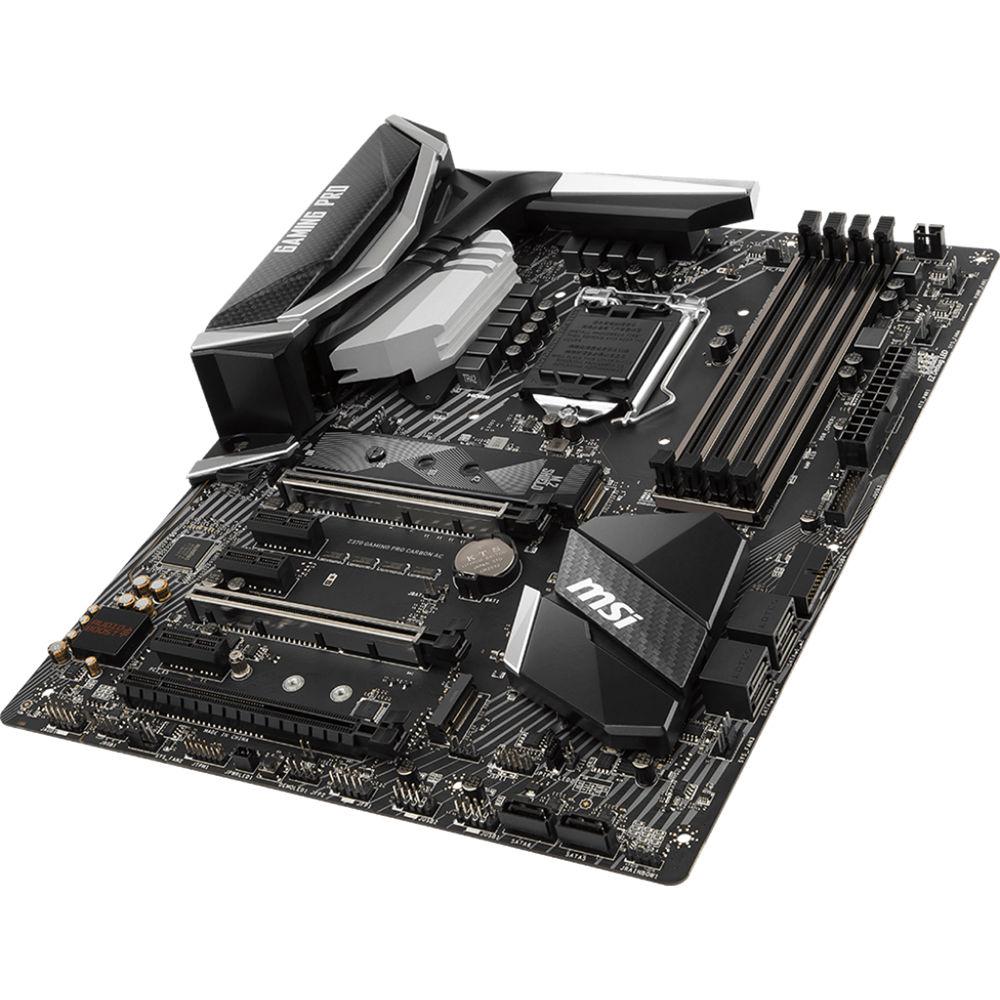

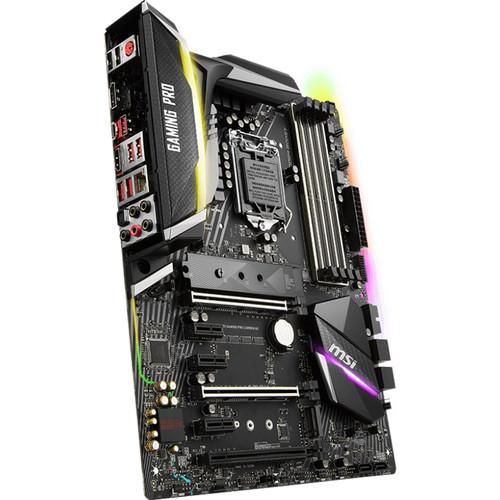

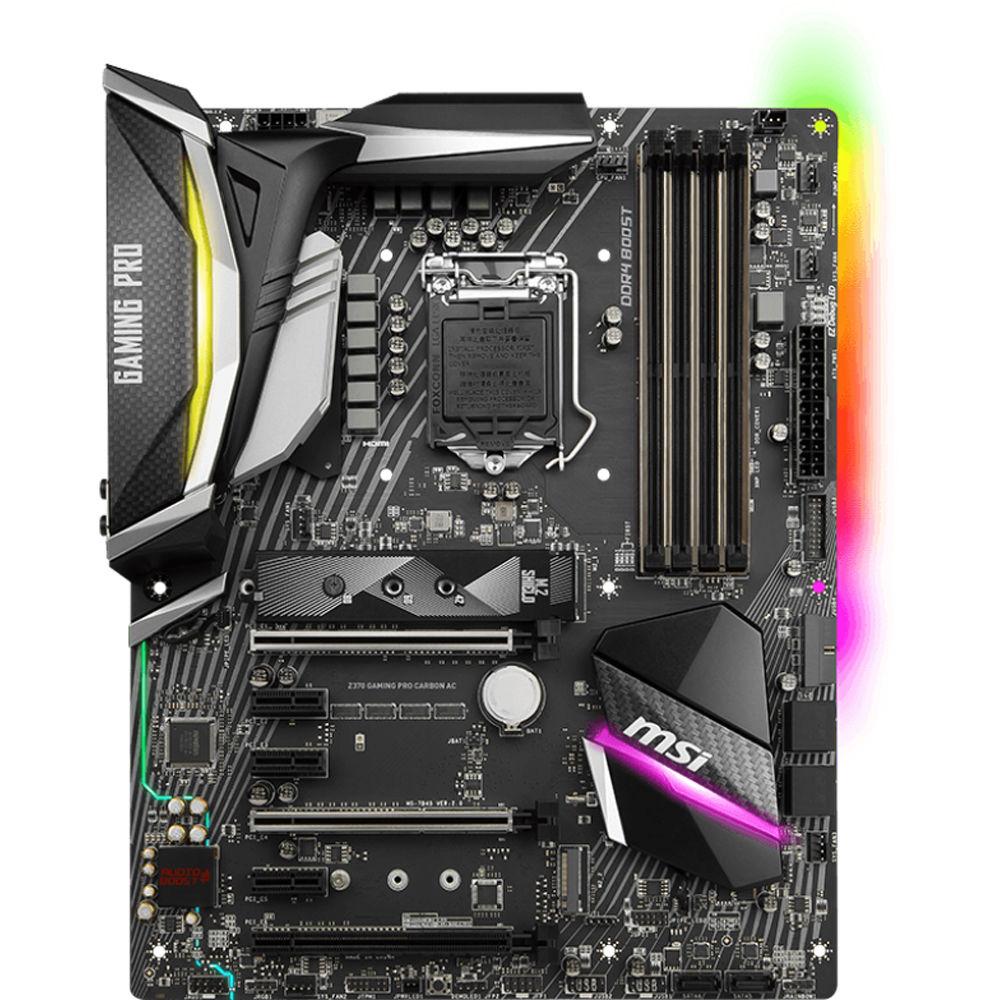

User Manual for MSI Z370 Gaming Pro Carbon AC LGA 1151 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the MSI Z370 Gaming Pro Carbon AC
- Product category: Motherboards MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Motherboards
 |
User manual for the MSI Z370 Gaming Pro Carbon AC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|
Product description Build an 8th-generation Intel-based wireless desktop system with the MSI Z370 Gaming Pro Carbon Motherboard AC, which offers an Intel Z370 chipset and LGA 1151 socket along with an 802.11ac Wi-Fi/Bluetooth 4.2 PCIe card. This ATX motherboard comes armed with four DDR4 DIMM slots that can accommodate up to 64GB of memory modules, and you can set the chips to 4000 MHz speeds. For storage, six SATA connectors and two M.2 slots are on board to access lightning-fast SSDs, large-capacity HDDs, and versatile optical drives. To create a gaming system or video-editing workstation, there are three PCIe 3.0 x16 slots, which support NVIDIA SLI and AMD CrossFire linking technology. Furthermore, the motherboard is armed with onboard LED lighting and supports user-supplied LED strips to illuminate the insides of your case with 16.7 million colors and 17 lighting effects.
With two USB 2.0, two USB 3.1, and four USB 3.0 ports available, the motherboard can accommodate external storage drives, printers, and other useful USB devices. The two USB 3.1 ports transmit data at 10 Gb/s speeds, and one of the USB 3.1 ports features a convenient USB Type-C design. Other notable connections include HDMI and DisplayPort outputs as well as six audio jacks powered by a Realtek ALC1220 processor. To access the Internet reliably, Intel Gigabit Ethernet is available. For more connectivity options, you can install optional PCIe cards to the motherboard's three PCIe 3.0 x1 slots. - Mystic Light
- MSI's Mystic Light feature provides built-in lighting that can produce 16.8 million colors to match the style of your system. In addition to color selection, it provides 17 LED effects. You can turn off the onboard lighting or connect optional RGB strips to the motherboard. Without needing a separate RGB controller, the motherboard comes with 4-pin JRGB-strip and 3-pin JRAINBOW-strip headers. A Mystic Light app is available for controlling all of the LEDs. Moreover, the lighting system can sync to Mystic Light compatible products.
- Cooling
- The motherboard's six fan headers can automatically detect fans running in DC or PWM mode for optimal tuning of speeds and quietness. Hysteresis also makes your fans spin up fluently to help ensure your system stays silent. With the Total Fan Control app, you can take control of your fans and check the primary system's characteristics in a simplified graphical interface. Additionally, you can set up four temperature targets for the processor and motherboard to automatically adjust the fan's speed. For AIO or custom liquid-cooling solutions, there's a dedicated water header that supports up to 2A of power, giving you full control of the pump's speed.
- Software Features
-
- Gaming Hotkey assigns functions to any key to launch your favorite games, load profiles, or overclock the CPU with the push of a single button
- Mouse Master software and dedicated PS/2 port to enhance mouse controls
- MSI Game Boost enables one-second overclocking for the CPU and memory
- MSI Dragon Eye allows you to watch a video or stream while playing a game simultaneously
- Gaming app produces an on-screen overlay on top of your game to help you keep track of CPU speeds, FPS, and temperatures
- WTFAST provides an optimized private network for gaming
- X-Boost optimizes SSDs and USB ports
- M.2 Genie helps you set up a RAID array using M.2 and U.2 SSDs
- One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact the virtual-reality experience
- TriDef VR provides 2D-to-3D conversion technology and allows you to tweak your HMD to offer an optimal user experience
- MSI GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games
- DDR4 Boost for enhancing speeds of memory modules
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software
- RAMDisk creates a virtual drive from RAM
- UEFI provides a "Fast Boot" option for faster boot times
- Go2BIOS lets you boot into the BIOS setup screen on the next restart without pressing the DEL or F2 key
- CPU-Z gathers key information of the CPU speed, memory speed and timings, motherboard BIOS version, and more
- CLICK BIOS 5 offers EZ and Advanced modes as well as search and favorites features to help you configure the system's components
- MSI 300 series motherboards support Legacy (MBR) and UEFI (GPT) boot options for compatibility with older and newer operating systems
- Secure Erase+ uses an optimized formatting algorithm, so SSDs can operate at maximum speeds
- Supports XMP memory profiles
- Additional Features
-
- Intel Optane Memory ready
- M.2 Shield helps dissipate heat coming from your M.2 SSD
- M.2 slots deliver speeds of up to 32 Gb/s to accommodate NVMe drives
- Audio Boost 4 technology enhances the sound quality coming from the EMI-shielded Realtek ALC1220 processor
- Isolated audio design with RGB LED border
- Separated layers in the PCB help ensure clear sound quality for both left and right audio channels
- De-pop protection eliminates popping noise when turning your system on or off as well as plugging or unplugging devices
- Built-in dedicated headphone amplifier supports headphones with up to 600Ω impedance
- Intel LAN reduces CPU overhead and offers high TCP and UDP throughputs
- LAN Protect shields the motherboard from power surges
- Intel Wi-Fi/Bluetooth PCIe module uses smart MU-MIMO technology to deliver AC speeds up to 867 Mb/s wirelessly
- Optimized traces and isolated memory circuitry help ensure stability and performance
- XMP LED light on the motherboard notifies you when an XMP memory profile is active
- Load-line calibration helps ensure CPU voltage levels remain stable under various loads
- A digital power design allows for faster and undistorted current delivery to the CPU
- Onboard LEDs indicate the source of the problem during system failures
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- MSI Super Charger USB ports deliver more power than standard ports to charge mobile devices quickly
- Double ESD protection with double layer grounding around the motherboard mounting holes prevent Electrostatic discharge (ESD) surges from damaging the motherboard
- PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
- Supports 3D-printable parts

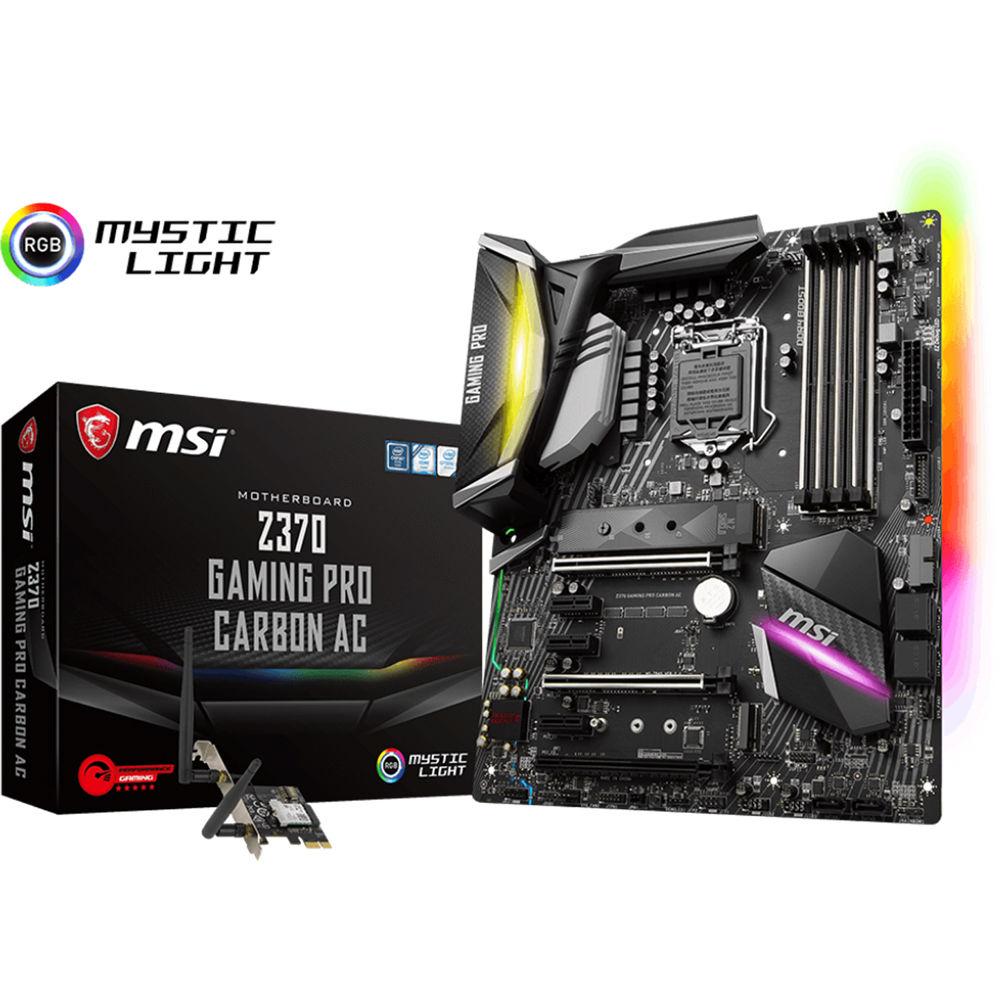

In the Box MSI Z370 Gaming Pro Carbon AC LGA 1151 ATX Motherboard I/O Panel Label Kit Support DVD SLI Bridge Pack of Cables Limited 3-Year Warranty User Manual PDF 8.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Z370 Gaming Pro Carbon AC LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Z370 Gaming Pro Carbon Specs | CPU | Supports 8th Gen Intel Core processors and Intel Pentium and Celeron processors for socket LGA 1151 | | Chipset | Intel Z370 Chipset | | Memory | 4 x DDR4 memory slots, support up to 64 GB
Supports DDR4 4000+(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3300(OC), 3200(OC), 3000(OC), 2800(OC), 2667, 2400, 2133 MHz Memory
Dual-channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) | | Expansion Slots | 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
3 x PCIe 3.0 x1 slots | | Graphics | 1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 30 Hz, 2560 x 1600 @ 60 Hz
1 x DisplayPort, supports a maximum resolution of 4096 x 2304 @ 24 Hz, 3840 x 2160 @ 60 Hz, 1920 x 1200 @ 60 Hz
Supports 3-Way AMD CrossFire Technology
Supports 2-Way NVIDIA SLI Technology | | Audio | Realtek ALC1220 Codec | | Wireless | Intel 8265 wireless AC supports 802.11a/b/g/n/ac Wi-Fi, dual-band (2.4 GHz, 5 GHz) up to 867 Mb/s speeds
Dual-mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 | | Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
6 x SATA 6 Gb/s connectors
1 x M.2 slot (Key M, PCIe 3.0 x4 and SATA 6 Gb/s, supports 2242, 2260, 2280, 22110)
1 x M.2 slot (Key M, PCIe 3.0 x4 and SATA 6 Gb/s, supports 2242, 2260, 2280)
2 x USB 3.0 connectors (support additional 4 USB 3.0 ports)
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
2 x 5050 RGB LED strip 12 V connectors
1 x WS2812B Individually Addressable RGB LED strip 5 V connector
1 x CORSAIR Individually Addressable RGB LED strip 5 V connector
1 x TPM module connector
1 x Chassis Intrusion connector

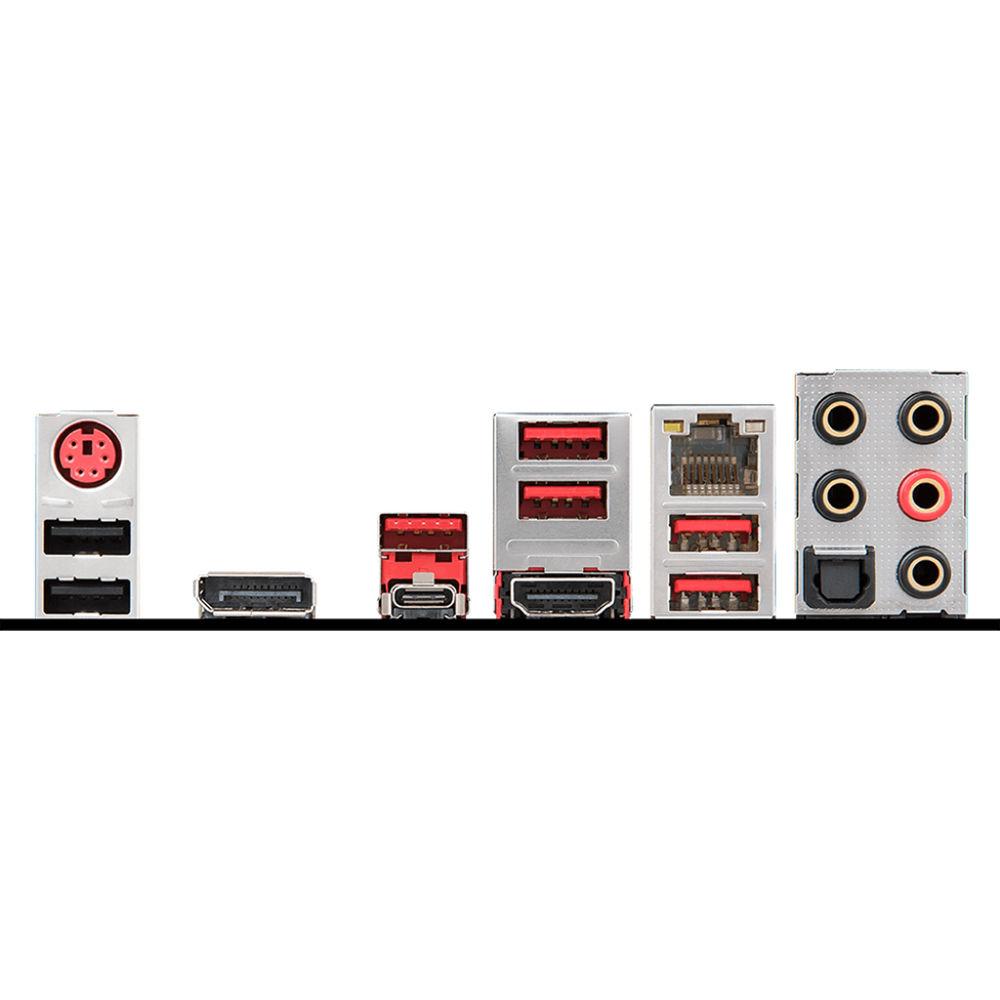

1 x Clear CMOS jumper | | Back I/O Ports | 1 x PS/2 keyboard/mouse combo port
1 x USB 3.1 Type-A port
1 x USB 3.1 Type-C port
4 x USB 3.0 Type-A ports
2 x USB 2.0 Type-A ports
1 x HDMI port
1 x DisplayPort port
1 x Intel I219-V Gigabit Ethernet port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connector | | Form Factor | ATX | | Dimensions | 12 x 9.6" (30.4 x 24.3 cm) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 13.6 x 10.7 x 3.5" |
