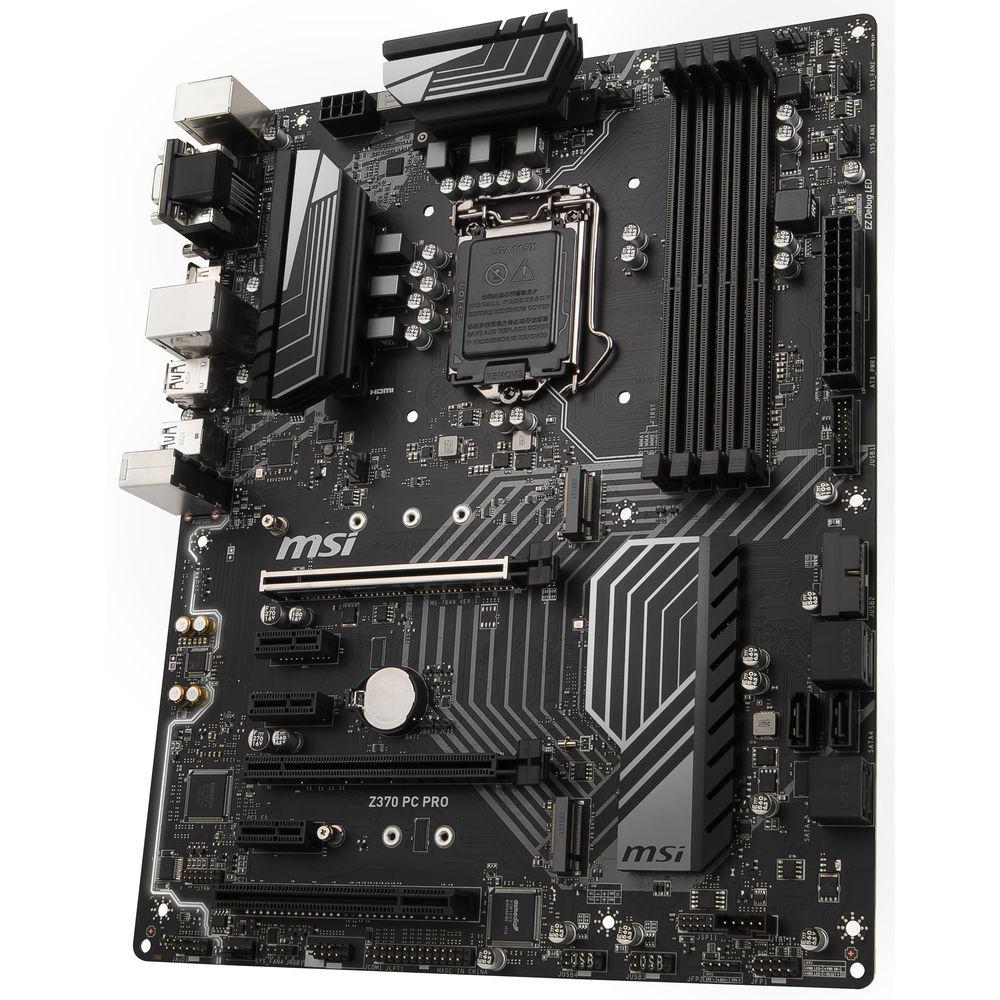

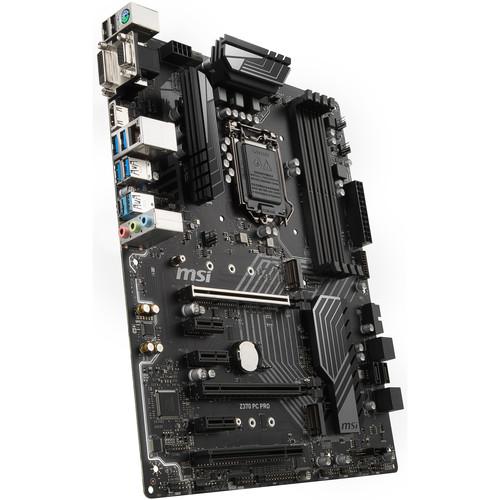

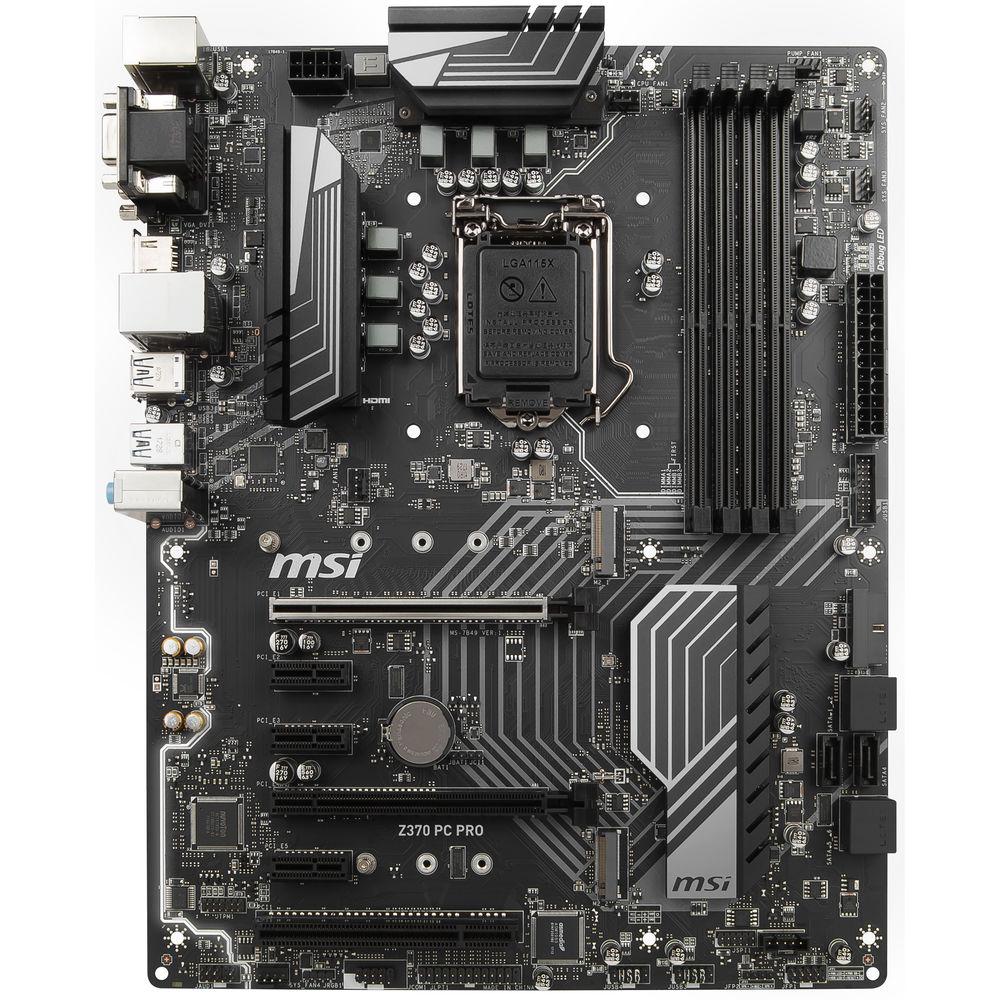

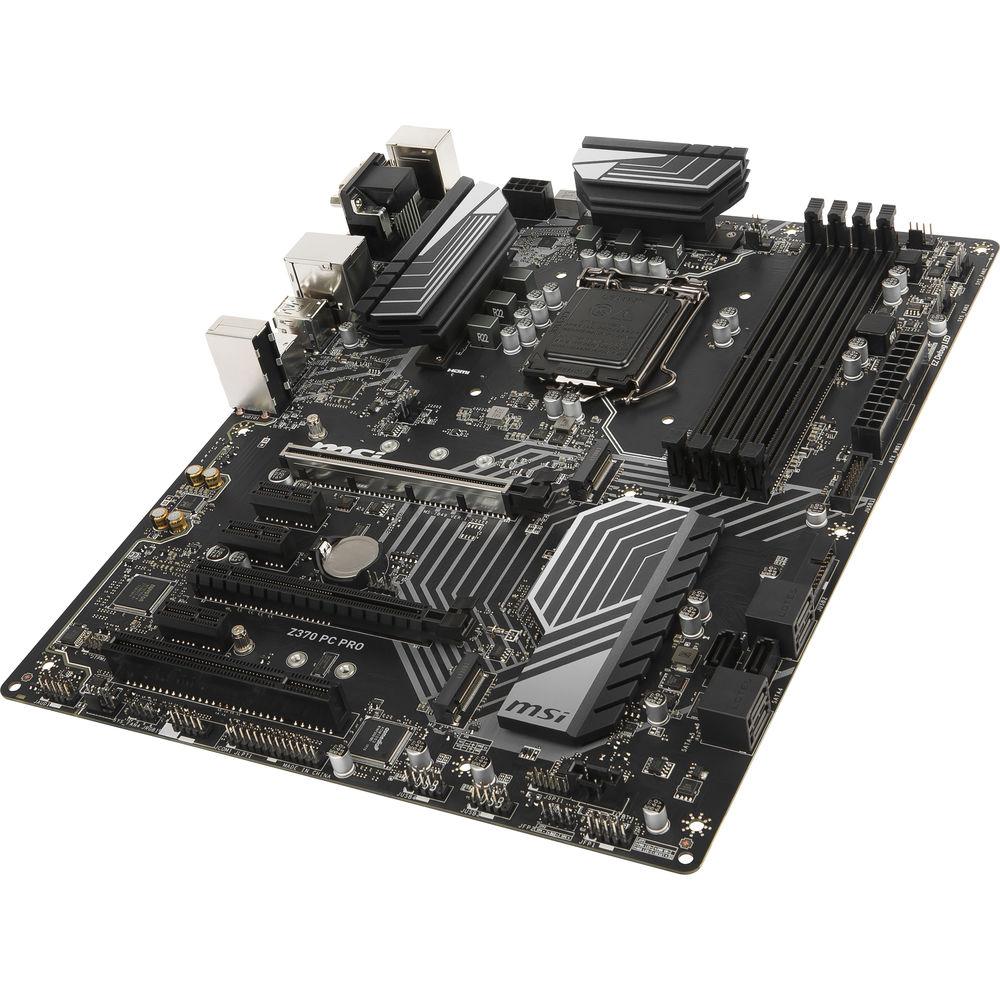

Product description The MSI Z370 PC Pro LGA 1151 ATX Motherboard has an LGA 1151 socket and an Intel Z370 chipset to support Intel's 8th-generation processors, so you can build a desktop system designed for the home or office. The Z370 PC Pro motherboard provides four DDR4 DIMM slots that can accommodate up to 64GB of memory modules. For storage, the motherboard supports SATA- and PCIe-based hard drives and SSDs by offering two M.2 slots and six SATA connectors. Other notable features include DVI-D, VGA, and HDMI outputs, powered by an integrated graphics chipset, and two PCIe 3.0 x16 slots for gaming builds. There's also onboard lighting, which illuminates the insides of your case with 7 million colors and 5 light effects.
The MSI Z370 PC Pro motherboard can access external storage drives, printers, and other useful peripherals via two USB 2.0, two USB 3.1, and four USB 3.0 ports. The two USB 3.1 ports transmit data at 10 Gb/s speeds, and one of the USB 3.1 ports features a convenient USB Type-C design. Aside from USB connectivity, three audio jacks are available and are powered by a Realtek ALC887 processor. To access the Internet reliably, an Intel Gigabit Ethernet port is provided. For more connectivity options, the motherboard's single PCI and three PCIe 3.0 x1 slots allow you to install optional USB, FireWire, and serial cards. - Mystic Light
- MSI's Mystic Light feature provides built-in lighting that can produce 7 million colors to match the style of your system. In addition to color selection, it provides no animation, breathing, flashing, double flashing, and random effects. You can turn off the onboard lighting or connect optional RGB strips to the motherboard. A Mystic Light app is available for controlling all of the LEDs. Moreover, the lighting system can sync to Mystic Light compatible products.
- Cooling
- The motherboard's six fan headers can automatically detect fans running in DC or PWM mode for optimal tuning of speeds and quietness. Hysteresis also makes your fans spin up fluently to help ensure your system stays silent. With the Total Fan Control app, you can take control of your fans and check the primary system's characteristics in a simplified graphical interface. Additionally, you can set up four temperature targets for the processor and motherboard to automatically adjust the fan's speed. For AIO or custom liquid-cooling solutions, there's a dedicated water header that supports up to 2A of power, giving you full control of the pump's speed.
- Software Features
-
- X-Boost optimizes SSDs and USB ports
- M.2 Genie helps you set up a RAID array using M.2 and U.2 SSDs
- One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact the virtual-reality experience
- Network Manager for easy bandwidth optimizing
- DDR4 Boost for enhancing speeds of memory modules
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software
- RAMDisk creates a virtual drive from RAM
- UEFI provides a "Fast Boot" option for faster boot times
- Go2BIOS lets you boot into the BIOS setup screen on the next restart without pressing the DEL or F2 key
- CPU-Z gathers key information of the CPU speed, memory speed and timings, motherboard BIOS version, and more
- CLICK BIOS 5 offers EZ and Advanced modes as well as search and favorites features to help you configure the system's components
- MSI 300 series motherboards support Legacy (MBR) and UEFI (GPT) boot options for compatibility with older and newer operating systems
- Secure Erase+ uses an optimized formatting algorithm, so SSDs can operate at maximum speeds
- Supports XMP memory profiles
- Additional Features
-
- DVI-D port to support legacy monitors
- Intel Optane Memory ready
- M.2 slots deliver speeds of up to 32 Gb/s to accommodate NVMe drives
- Audio Boost technology enhances the sound quality coming from the EMI-shielded Realtek ALC887 processor
- Separated layers in the PCB help ensure clear sound quality for both left and right audio channels
- De-pop protection eliminates popping noise when turning your PC on or off as well as plugging or unplugging devices
- Built-in dedicated headphone amplifier supports headphones with up to 600Ω impedance
- Intel LAN reduces CPU overhead and offers high TCP and UDP throughputs
- LAN Protect shields the motherboard from power surges
- Optimized traces and isolated memory circuitry help ensure stability and performance
- Load-line calibration helps ensure CPU voltage levels remain stable under various loads
- A digital power design allows for faster and undistorted current delivery to the CPU
- Onboard LEDs indicate the source of the problem during system failures
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- MSI Super Charger USB ports deliver more power than standard ports to charge mobile devices quickly
- USB 3.1 re-driver chips strengthen the USB signal, enabling you to use longer USB cables without impacting performance
- Double ESD protection with double layer grounding around the motherboard mounting holes prevent Electrostatic discharge (ESD) surges from damaging the motherboard
- PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
UPC: 824142152980 In the Box MSI Z370 PC Pro LGA 1151 ATX Motherboard I/O Panel Support DVD Package of Cables Limited 3-Year Warranty Quick start Guide PDF 7.3mbuzdufetssxvzyzeqxctqsuw Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Z370 PC Pro LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Z370 PC PRO Specs | CPU | Supports 8th Gen Intel Core processors and Intel Pentium and Celeron processors for socket LGA 1151 | | Chipset | Intel Z370 Chipset | | Memory | 4 x DDR4 memory slots, support up to 64 GB
Supports DDR4 4000+(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3300(OC), 3200(OC), 3000(OC), 2800(OC), 2667, 2400, 2133 MHz Memory
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) | | Expansion Slots | 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
3 x PCIe 3.0 x1 slots
1 x PCI slot | | Graphics | 1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 30 Hz, 2560 x 1600 @ 60 Hz
1 x DVI-D port, supports a maximum resolution of 1920 x 1200 @ 60 Hz
1 x VGA port, supports a maximum resolution of 2048 x 1536 @ 50 Hz, 2048 x 1280 @ 60 Hz, 1920 x 1200 @ 60 Hz
Supports 2-Way AMD CrossFire Technology | | Audio | Realtek ALC887 Codec | | Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
6 x SATA 6 Gb/s connectors
1 x M.2 slot supports 2242/2260/2280/22110 storage devices
1 x M.2 slot supports 2242/2260/2280 storage devices
2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x Thunderbolt add-on card connector
1 x RGB LED connector

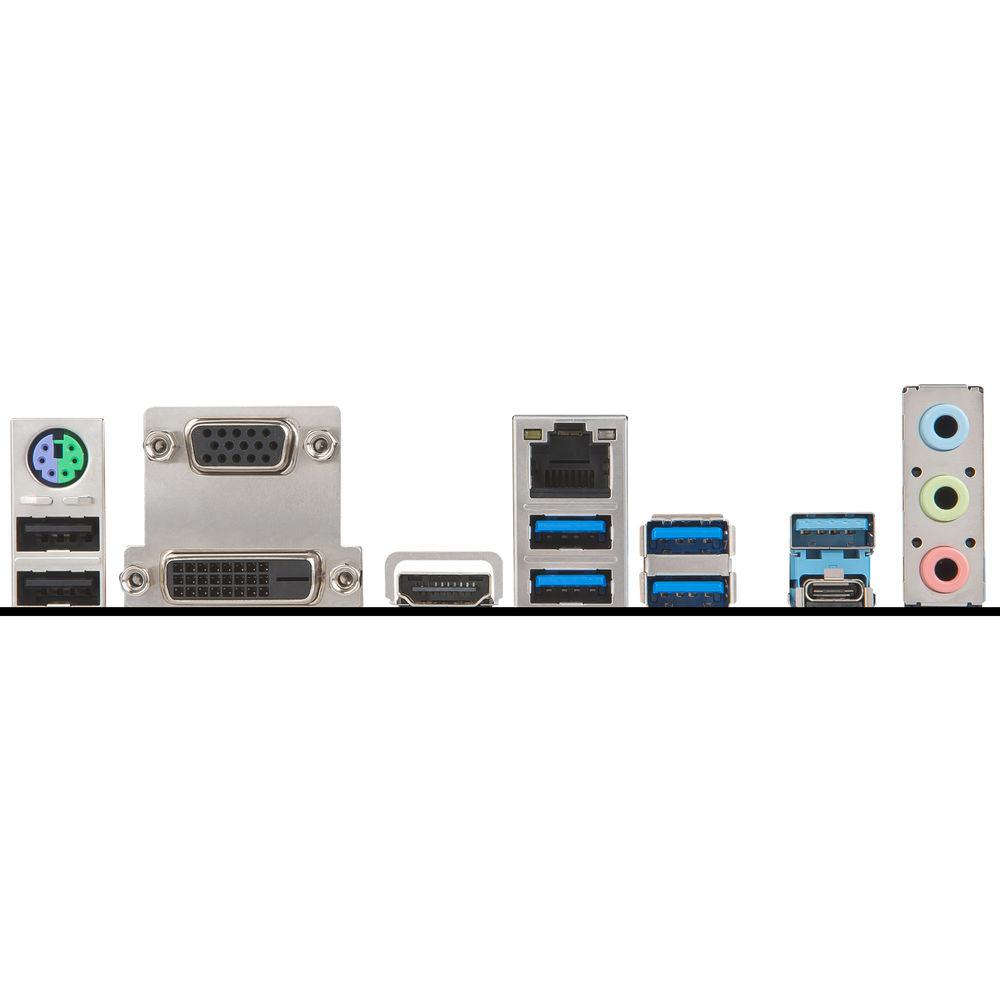

1 x Clear CMOS jumper | | Back I/O Ports | 1 x PS/2 mouse/keyboard combo port
1 x VGA port
1 x DVI-D port
1 x HDMI port
1 x USB 3.1 Type-A port
1 x USB 3.1 Type-C port
2 x USB 2.0 ports
4 x USB 3.0 Type-A ports
1 x Intel I219-V Gigabit Ethernet port
3 x Audio jacks | | Form Factor | ATX | | Dimensions | 12 x 9.6" (30.5 x 24.4 cm) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 13.622 x 10.709 x 2.835" |
