MSI Z370 SLI Plus LGA 1151

Search your instruction manual in PDF to download

User Manual for MSI Z370 SLI Plus LGA 1151 ATX Motherboard

Click to enlarge the picture
MSI Z370 SLI Plus LGA 1151 ATX Motherboard Contents of the user manual for the MSI Z370 SLI Plus LGA 1151
  • Product category: Motherboards MSI
  • Brand: MSI
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for MSI Motherboards

MSI Z370 SLI Plus LGA 1151 ATX Motherboard MSI Z370 SLI Plus LGA 1151 ATX Motherboard MSI Z370 SLI Plus LGA 1151 ATX Motherboard MSI Z370 SLI Plus LGA 1151 ATX Motherboard MSI Z370 SLI Plus LGA 1151 ATX Motherboard
User manual for the MSI Z370 SLI Plus LGA 1151 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MSI product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!



Product description

The MSI Z370 SLI Plus ATX Motherboard lets you build a system outfitted with an 8th-generation Intel Core processor by providing an LGA 1151 socket and an Intel Z370 chipset. The Z370 SLI Plus comes equipped with three PCIe 3.0 slots for linking graphics cards with NVIDIA SLI or AMD Crossfire technology, plus it has three PCIe 3.0 x1 slots, which allow you to install expansion cards that grant additional ports. Other notable slots include four DDR4 DIMM and two M.2 slots, so you can install up to 64GB of RAM and SSDs utilizing PCIe technology. For accommodating 2.5", 3.5", and optical drives, six SATA connectors are available. There's also onboard LED lighting, which illuminates the insides of your case with 16.8 million colors and 17 light effects.

The MSI Z370 SLI plus motherboard can access external storage drives, printers, and other useful peripherals via two USB 2.0, two USB 3.1, and four USB 3.0 ports. The two USB 3.1 ports transmit data at 10 Gb/s speeds, and one of the USB 3.1 ports features a convenient USB Type-C design. Aside from USB connectivity, a Realtek ALC1220 processor delivers 7.1-channel sound through the motherboard's six audio jacks. Additionally, MSI has armed this motherboard with Gigabit Ethernet and PS/2 ports along with DVI-D and HDMI outputs, which utilize Intel's integrated graphics chipset to produce detailed visuals.
    Mystic Light
  • MSI's Mystic Light feature provides built-in lighting that can produce 16.8 million colors to match the style of your system. In addition to color selection, it provides 17 LED effects. You can turn off the onboard lighting or connect optional RGB strips to the motherboard. A Mystic Light app is available for controlling all of the LEDs. Moreover, the lighting system can sync to Mystic Light compatible products.
    Cooling
  • The motherboard's six fan headers can automatically detect fans running in DC or PWM mode for optimal tuning of speeds and quietness. Hysteresis also makes your fans spin up fluently to help ensure your system stays silent. With the Total Fan Control app, you can take control of your fans and check the primary system's characteristics in a simplified graphical interface. Additionally, you can set up four temperature targets for the processor and motherboard to automatically adjust the fan's speed. For AIO or custom liquid-cooling solutions, there's a dedicated water header that supports up to 2A of power, giving you full control of the pump's speed.
    Software Features
    • X-Boost optimizes SSDs and USB ports
    • M.2 Genie helps you set up a RAID array using M.2 and U.2 SSDs
    • One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact the virtual-reality experience
    • Network Manager for easy bandwidth optimizing
    • DDR4 Boost for enhancing speeds of memory modules
    • MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
    • MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software
    • RAMDisk creates a virtual drive from RAM
    • UEFI provides a "Fast Boot" option for faster boot times
    • Go2BIOS lets you boot into the BIOS setup screen on the next restart without pressing the DEL or F2 key
    • CPU-Z gathers key information of the CPU speed, memory speed and timings, motherboard BIOS version, and more
    • CLICK BIOS 5 offers EZ and Advanced modes as well as search and favorites features to help you configure the system's components
    • MSI 300 series motherboards support Legacy (MBR) and UEFI (GPT) boot options for compatibility with older and newer operating systems
    • Secure Erase+ uses an optimized formatting algorithm, so SSDs can operate at maximum speeds
    • Supports XMP memory profiles
    Additional Features
    • DVI-D port to support legacy monitors
    • Intel Optane Memory ready
    • M.2 slots deliver speeds of up to 32 Gb/s to accommodate NVMe drives
    • Audio Boost 4 technology enhances the sound quality coming from the EMI-shielded Realtek ALC1220 processor
    • Separated layers in the PCB help ensure clear sound quality for both left and right audio channels
    • De-pop protection eliminates popping noise when turning your PC on or off as well as plugging or unplugging devices
    • Built-in dedicated headphone amplifier supports headphones with up to 600Ω impedance
    • Intel LAN reduces CPU overhead and offers high TCP and UDP throughputs
    • LAN Protect shields the motherboard from power surges
    • Optimized traces and isolated memory circuitry help ensure stability and performance
    • XMP LED light on the motherboard notifies you when an XMP memory profile is active
    • Load-line calibration helps ensure CPU voltage levels remain stable under various loads
    • A digital power design allows for faster and undistorted current delivery to the CPU
    • Onboard LEDs indicate the source of the problem during system failures
    • Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
    • MSI Super Charger USB ports deliver more power than standard ports to charge mobile devices quickly
    • USB 3.1 re-driver chips strengthen the USB signal, enabling you to use longer USB cables without impacting performance
    • Double ESD protection with double layer grounding around the motherboard mounting holes prevent Electrostatic discharge (ESD) surges from damaging the motherboard
    • PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
UPC: 824142152522 In the Box MSI Z370 SLI Plus LGA 1151 ATX Motherboard
  • I/O Panel
  • SLI Bridge
  • Support DVD
  • Package of Cables
  • Set of Labels
  • Limited 3-Year Warranty
  • Specification PDF 1.3mb Table of Contents




    Upload User Manual

    Have you got an user manual for the MSI Z370 SLI Plus LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MSI Z370 SLI PLUS Specs

    CPU Supports 8th Gen Intel Core processors and Intel Pentium and Celeron processors for socket LGA 1151
    Chipset Intel Z370 Chipset
    Memory 4 x DDR4 memory slots, support up to 64 GB
    Supports DDR4 4000+(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3300(OC), 3200(OC), 3000(OC), 2800(OC), 2667, 2400, 2133 MHz Memory
    Dual channel memory architecture
    Supports non-ECC, un-buffered memory
    Supports Intel Extreme Memory Profile (XMP)
    Expansion Slots 3 x PCIe 3.0 x16 slots
    3 x PCIe 3.0 x1 slots
    Graphics 1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 30 Hz, 2560 x 1600 @ 60 Hz
    1 x DVI-D port, supports a maximum resolution of 1920 x 1200 @ 60 Hz

    Supports 2-Way NVIDIA SLI/3-Way AMD CrossFire Technology
    Audio Realtek ALC1220 Codec
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12 V power connector
    6 x SATA 6 Gb/s connectors
    1 x M.2 slot supports 2242/2260/2280/22110 storage devices
    1 x M.2 slot supports 2242/2260/2280 storage devices
    2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
    2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    1 x 4-pin CPU fan connector
    1 x 4-pin water pump fan connector
    4 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x Front panel connectors
    1 x RGB LED connector
    1 x TPM module connector
    1 x Chassis Intrusion connector
    1 x Serial port connector
    1 x Clear CMOS jumper

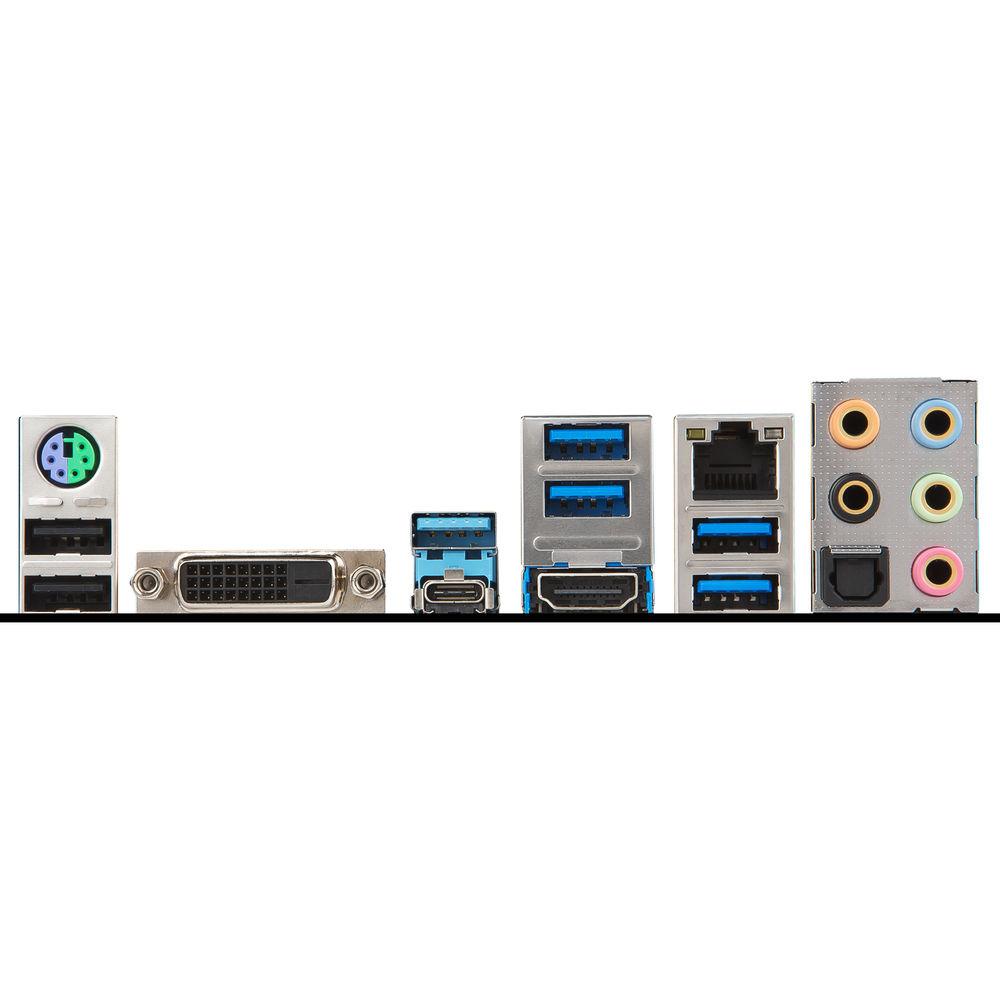

    Back I/O Ports 1 x PS/2 mouse/keyboard combo port
    1 x DVI-D port
    1 x HDMI port
    2 x USB 2.0 ports
    1 x USB 3.1 Type-A port
    1 x USB 3.1 Type-C port
    4 x USB 3.0 Type-A ports
    1 x Intel I219-V Gigabit Ethernet port
    1 x Optical S/PDIF out connector
    5 x audio jacks
    Form Factor ATX
    Dimensions 12 x 9.6" (30.5 x 24.4 cm)
    Package Weight 3.1 lb
    Box Dimensions (LxWxH) 13.858 x 10.63 x 3.071"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5.0 of 5

    This product has already been rated by 58 owners. Add your rating and experience with the product.
