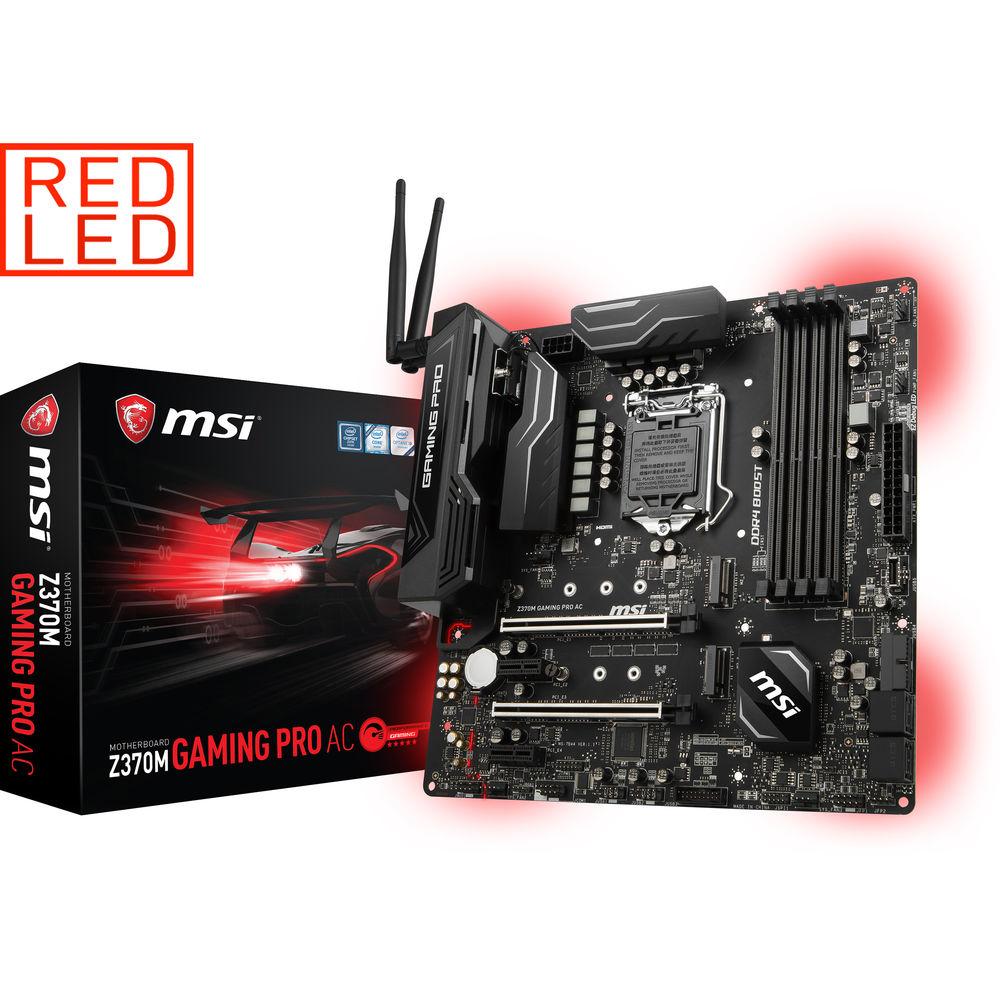

Product description The MSI Z370M Gaming Pro AC Motherboard features a micro-ATX form factor, Intel Z370 chipset, and LGA 1151 socket, so you can build a compact desktop system that runs on an 8th-generation Intel processor. With four DDR4 DIMM slots available, up to 64GB of memory modules can be installed. For storage, the motherboard has four SATA connectors and two M.2 slots. To create a gaming system or video-editing workstation, there are two PCIe 3.0 x16 slots. Furthermore, 802.11ac Wi-Fi and Bluetooth 4.2 are on board to access the Internet and devices wirelessly.
The MSI Z370M Gaming Pro AC motherboard can accommodate external storage drives, printers, and other useful peripherals by offering two PS/2, two USB 3.1, and four USB 3.0 ports. The two USB 3.1 ports transmit data at 10 Gb/s speeds, and one of the USB 3.1 ports features a convenient USB Type-C design. Other notable connections include HDMI and DisplayPort outputs as well as six audio jacks powered by a Realtek ALC1220 processor. To access the Internet reliably, Intel Gigabit Ethernet is available. For more connectivity options, you can install optional PCIe cards to the motherboard's two PCIe 3.0 x1 slots. - Cooling
- This motherboard is equipped with fan headers, which support DC or PWM modes, to offer you full fan controls. For AIO or custom liquid cooling solutions, it sports a 2A water pump PIN header. MSI also includes Total Fan Control software that allows you to take control of your fans and check the system's characteristics in a simplified graphical interface. You can also set up temperature targets, which will adjust the fan speeds automatically.
- Software Included
-
- Gaming Hotkey assigns functions to any key to launch your favorite games, load profiles, or overclock the CPU with the push of a single button
- Mouse Master software and dedicated PS/2 port to enhance mouse controls
- MSI Game Boost enables one-second overclocking for the CPU and memory
- MSI Dragon Eye allows you to watch a video or stream while playing a game simultaneously
- Gaming app produces an on-screen overlay on top of your game to help you keep track of CPU speeds, FPS, and temperatures
- WTFAST provides an optimized private network for gaming
- X-Boost optimizes SSDs to keep the system fast and maximize storage
- M.2 Genie helps you set up a RAID array using M.2 and U.2 SSDs
- One Click to VR sets all your key components to their highest performance and makes sure other software applications won't impact the virtual-reality experience
- TriDef VR provides 2D-to-3D conversion technology and allows you to tweak your HMD to offer an optimal user experience
- MSI GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games
- DDR4 Boost for enhancing speeds of memory modules
- X-Boost increases USB and storage speeds
- MSI Command Center allows you to tune settings to increase system stability, maximize performance, and optimize cooling
- MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software
- RAMDisk creates a virtual drive from RAM
- UEFI provides a "Fast Boot" option for faster boot times
- Go2BIOS lets you boot into the BIOS setup screen on the next restart without pressing the DEL or F2 key
- CPU-Z gathers key information of the CPU speed, memory speed and timings, motherboard BIOS version, and more
- CLICK BIOS 5 offers sharp scalable fonts and EZ and Advanced modes as well as search and favorites features to help you configure the system's components
- MSI 300 series motherboards support Legacy (MBR) and UEFI (GPT) boot options for compatibility with older and newer operating systems
- Secure Erase+ uses an optimized formatting algorithm, so SSDs can operate at maximum speeds
- Additional Features
-
- Intel Optane Memory compatible
- M.2 slot delivers speeds of up to 32 Gb/s using PCIe 3.0 x4 lanes
- M.2 Slots support NVMe drives
- Audio Boost delivers sound through six audio jacks and is illuminated by LEDs
- Audio Boost is powered by an EMI-shielded Realtek ALC1220 audio processor with built-in DAC
- Separated layers in the PCB help ensure clear sound quality for both left and right audio channels
- De-pop protection eliminates popping noise when turning your PC on or off as well as plugging or unplugging devices
- Built-in dedicated headphone amplifier supports headphones with up to 600Ω impedance
- Intel LAN reduces CPU overhead and offers high TCP and UDP throughputs
- LAN Protect shields the motherboard from power surges
- Intel Wi-Fi/Bluetooth solution uses smart MU-MIMO technology, delivering AC speeds up to 867 Mbps
- Optimized traces and isolated memory circuitry help ensure stability and performance
- Supports Intel Extreme Memory Profiles
- Load-line calibration helps ensure CPU voltage levels remain stable under various loads
- A digital power design allows for faster and undistorted current delivery to the CPU
- Onboard LEDs indicate the source of the problem during system failures
- Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components
- MSI Super Charger USB ports deliver more power than standard ports to charge mobile devices quickly
- Protective ICs prevent damage to the system's components caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices
- PCI Express Steel Armor slots are armed with more solder points to prevent electromagnetic interference and damage from heavy graphics cards
- Double ESD protection with double layer grounding around the motherboard mounting holes prevent Electrostatic discharge (ESD) surges from damaging the motherboard
- Supports 3D-printable parts
In the Box MSI Z370M Gaming Pro AC LGA 1151 Micro-ATX Motherboard I/O Panel Label Kit Support DVD SLI Bridge Pack of Cables Limited 3-Year Warranty Specification PDF 1.2mbawqztxttdybqvasfwauucsrauz Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Z370M Gaming Pro AC LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Z370M GAMING PRO AC Specs | CPU | Supports 8th Gen Intel Core i3/i5/i7 processors and Intel Pentium and Celeron processors for socket LGA 1151 | | Chipset | Intel Z370 Chipset | | Memory | 4 x DDR4 memory slots, support up to 64 GB
Supports DDR4 4000+ (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2667, 2400, 2133 MHz Memory
Dual-channel 288-pin memory architecture
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) | | Expansion Slots | 2 x PCIe 3.0 x16 slots (support x16/x0, x8/x8 modes)
2 x PCIe 3.0 x1 slots | | Graphics | 1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 30 Hz, 2560 x 1600 @ 60 Hz
1 x DisplayPort, supports a maximum resolution of 4096 x 2304 @ 24 Hz, 3840 x 2160 @ 60 Hz, 1920 x 1200 @ 60 Hz
Supports 2-Way AMD CrossFire Technology
Supports 2-Way NVIDIA SLI Technology | | Audio | Realtek ALC1220 Codec | | Wireless | Intel 8265 wireless AC supports 802.11a/b/g/n/ac Wi-Fi, dual-band (2.4 GHz, 5 GHz) up to 867 Mbps speeds
Dual-mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 | | Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
4 x SATA 6 Gb/s connectors
1 x M.2 slot (Key M, PCIe 3.0 x4 and SATA 6 Gb/s, supports 2242, 2260, 2280, 22110)
1 x M.2 slot (Key M, PCIe 3.0 x4 and SATA 6 Gb/s, supports 2242, 2260, 2280)
1 x USB 3.1 Type-C connector
2 x USB 3.0 connectors (support additional 4 USB 3.0 ports)
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
3 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x Serial port connector
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper | | Back I/O Ports | 2 x antenna connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x DisplayPort port
1 x HDMI port
1 x USB 3.1 Type-A port
1 x USB 3.1 Type-C port
4 x USB 3.0 Type-A ports
1 x Intel I219-V Gigabit Ethernet port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connector | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 9.6" (24.4 x 24.4 cm) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 11.1 x 10.7 x 3.2" |
