User manual

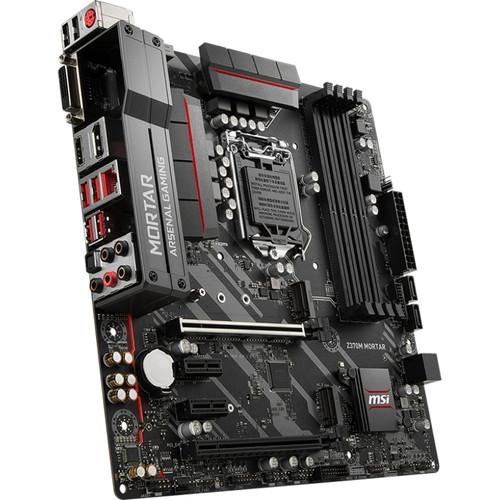

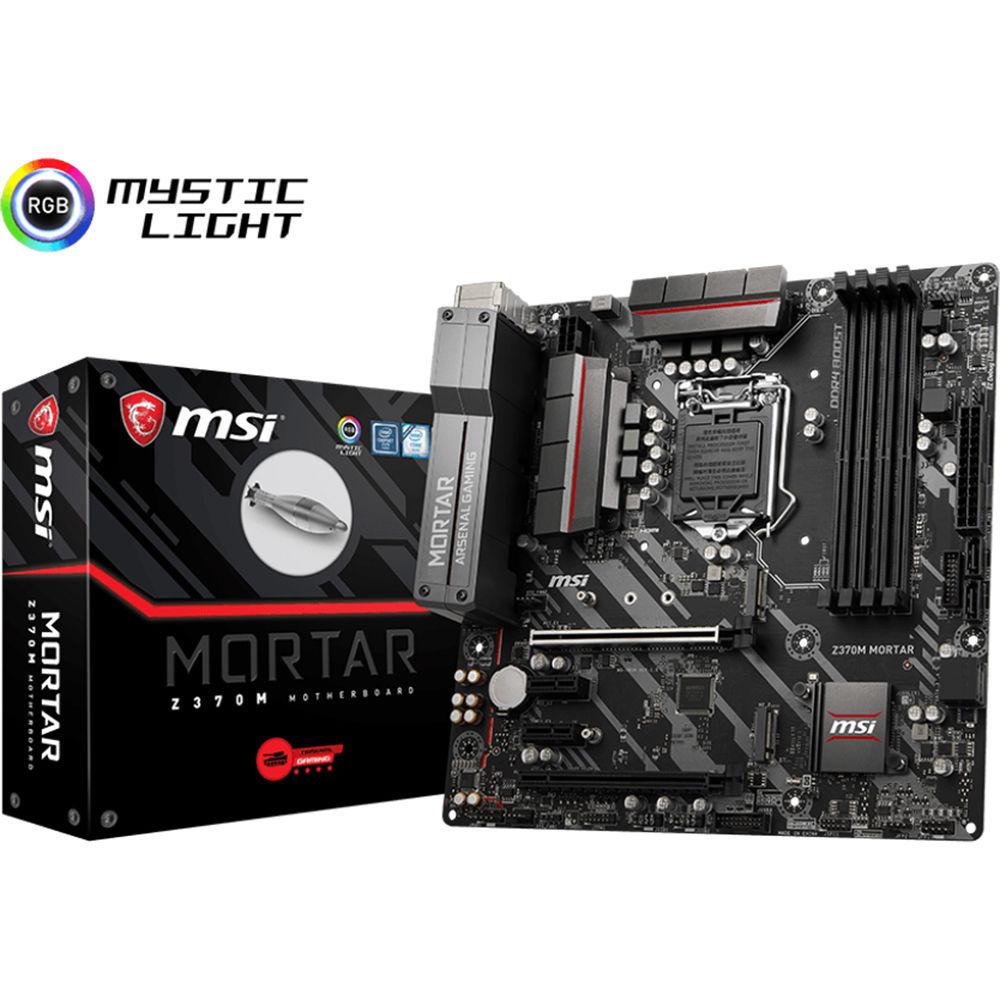

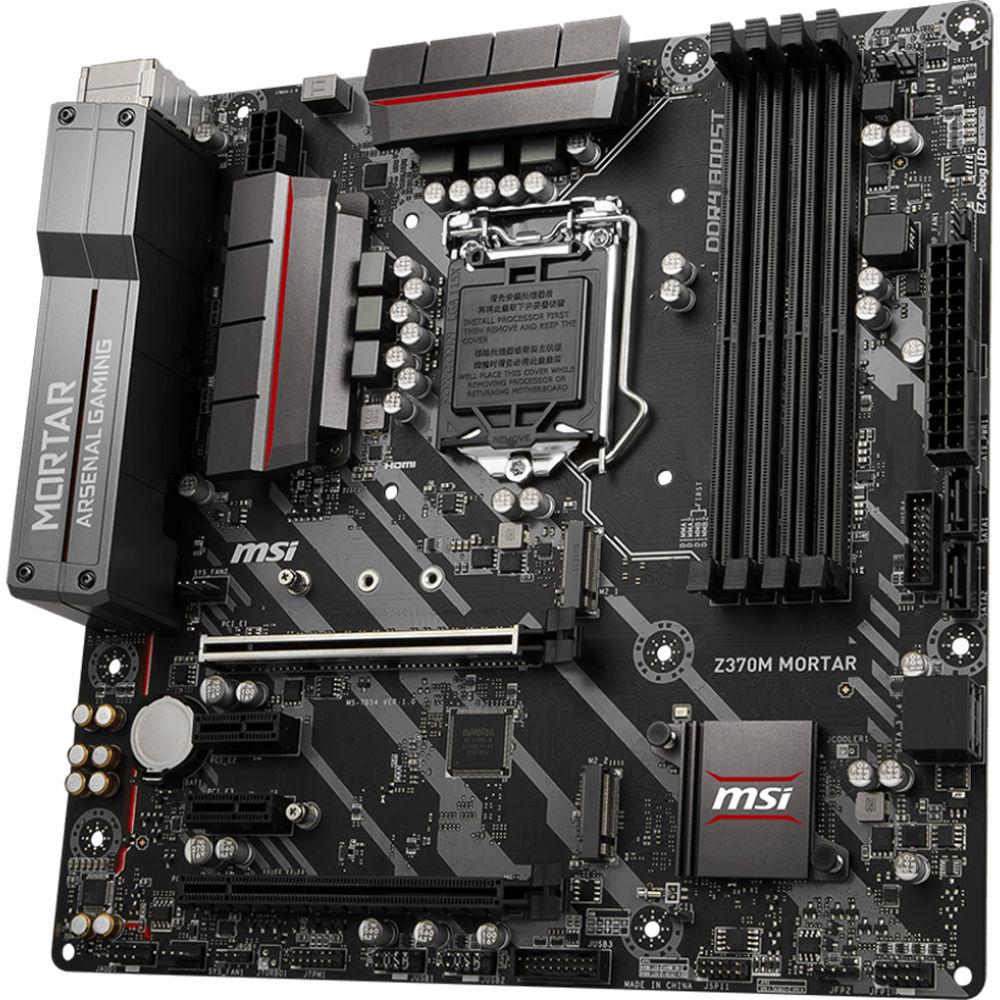

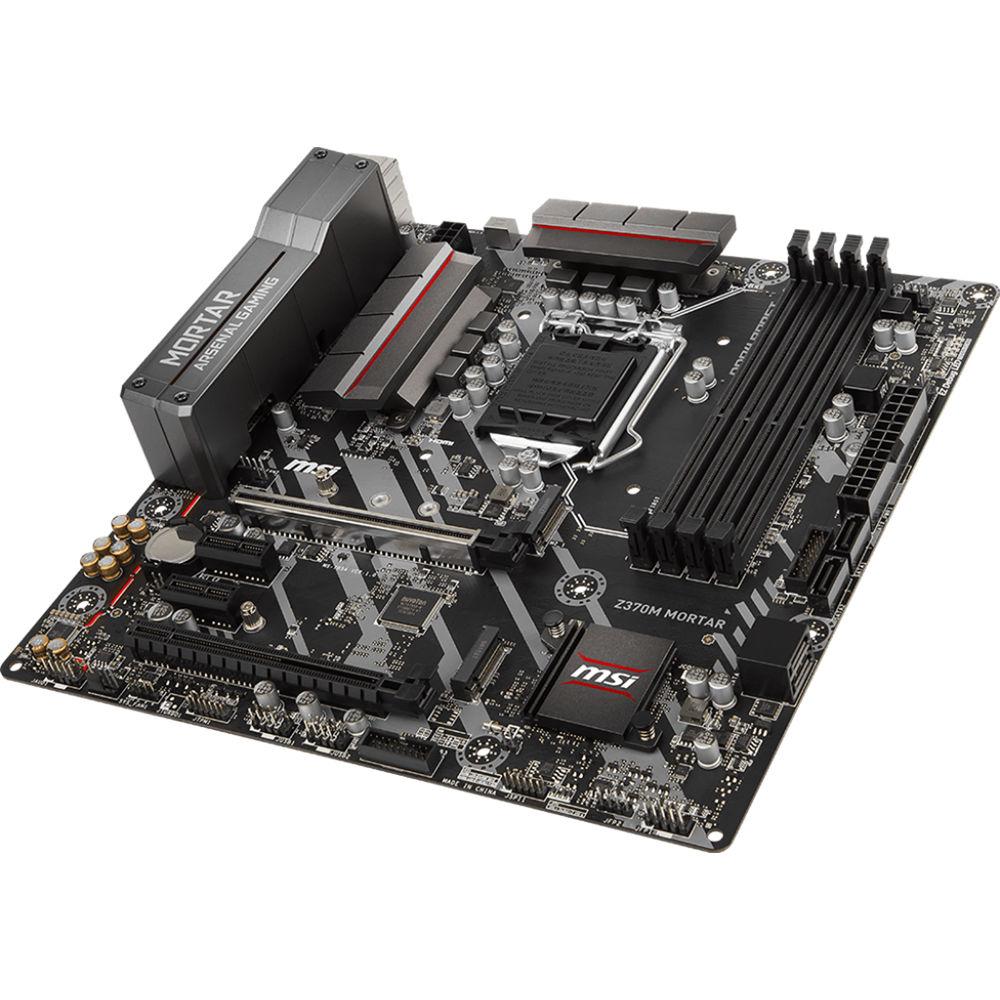

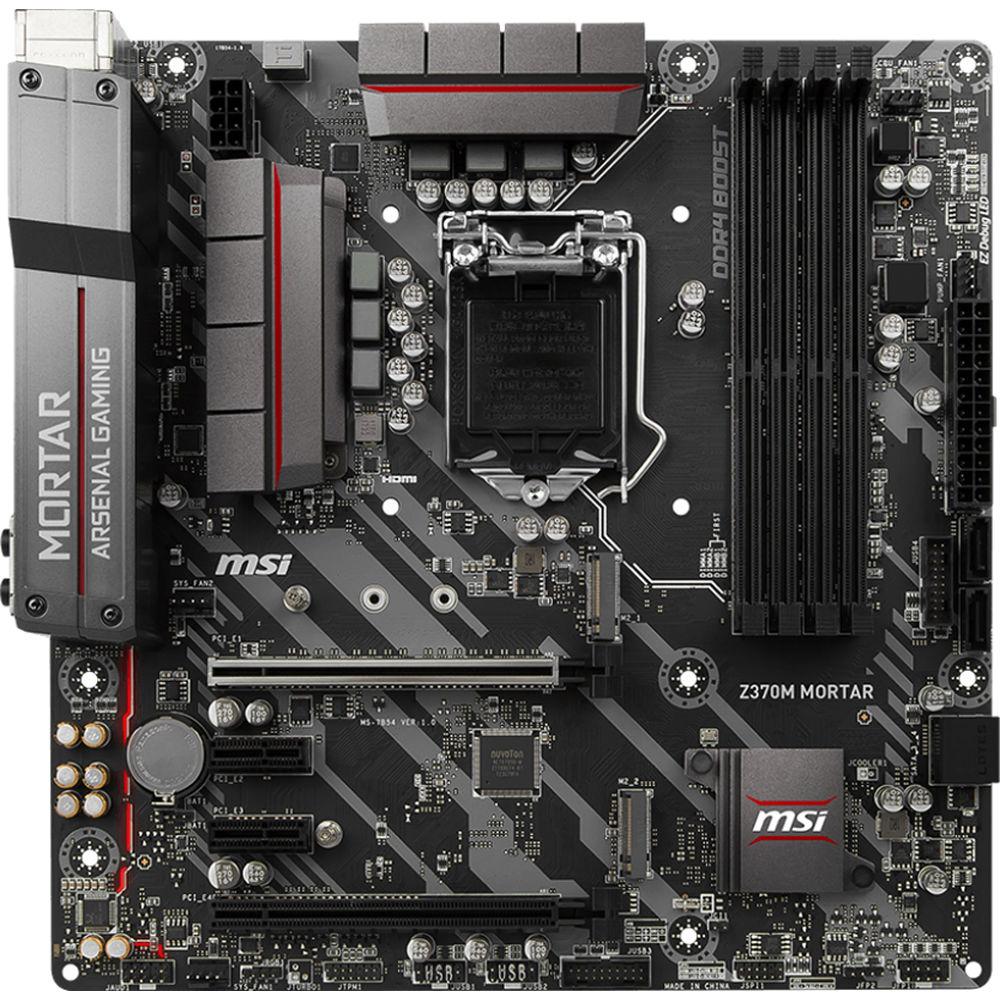

MSI Z370M Mortar LGA 1151 Micro-ATX

User Manual for MSI Z370M Mortar LGA 1151 Micro-ATX Motherboard

• Product category: Motherboards MSI
• Brand: MSI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for MSI Motherboards

Product description

General Features

Mystic Light

Personalize Your Gaming Rig
• Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Quickly and simply change the look of your system.

Gaming Ambiance
• With multiple colors available, you are the artist to create your own unique gaming rig. Done selecting colors? Choose between several LED effects to really make your system come alive and enjoy your personalized design.

Extend Your RGB Experience
• MSI's Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. By simply connecting any 12V RGB LED strip to the 4-pin Mystic Light Extension RGB-strip header, gamers can sync colors to many different styles.

Mystic Light Sync: Synchronize Your LED Experience
• With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards, and mice or RGB system fans.

Smartphone & Windows Control
• Create your own colorful masterpiece with ease. The easy-to-use Mystic Light app is available for Windows, smartphones, and tablets, and offers remote control. Make your system look and feel brand new with just a few clicks.

Cooling

Stay Cool While Gaming
• Cooling your PC is essential for reliable performance. MSI has made sure to include enough fan headers with full control to allow you to cool your system the way you want.

Looking Cool While Keeping Cool
• High-quality materials and smart fan optimizations contribute to cooling essential components, which is key to making sure your system runs smoothly while delivering strong performance during long gaming sessions.

Fully Controllable Fan Headers
• MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool and silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

DC or PWN Mode with Hysteresis
• MSI fan headers run in DC or PWM mode for improved tunings of fan speeds and silence. Hysteresis also makes your fans spin up fluently to help ensure your system stays silent.

Fan Mode LED Indicators
• Onboard LED indicators show if your fans are running in a mode that's controllable or not. When the LED indicator is red, you have full control of your fan. If the LED indicator is green, it means your fan is running in a mode you cannot control.

Total Control in BIOS and Software
• Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically.

Optimized for Water Cooling
• Designed to support popular all-in-one and custom water cooling solutions on the market, a dedicated water pump pin header supports up to 2A, giving you full control of the water pump speed. A clearly marked "keep-out-zone" allows for easy and safe installation and a good fit. Water-pump header speeds can be controlled from the BIOS and operating system.

Gaming

Your In-Game Advantage
• Outsmart and outperform your opponents in-game using an array of MSI Gaming tools. Clever hardware & software tools can be used to keep you one step ahead of the competition and boost your skills.

Total Freedom, Maximum Ease
• Program your most-used commands and execute them with a single keystroke. Simply assign functions to any key whether to launch your favorite games, load profiles, or do real-time overclocking with the push of a single button.

Dedicated Port for Gaming Peripherals
• The Gaming Device Port is optimized to deliver the connectivity for high-end gaming peripherals to fully utilize their features and responsiveness. Customize your mouse's dpi to enhance accuracy or program macro combinations using the user-friendly Mouse Master software to perform multiple commands with just one click.

1-Second Overclocking
• Need more power from your CPU and memory to get more fps? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your system gets another adrenaline shot!

Multi-GPU
• Gaming enthusiasts are always looking for more performance to get an improved experience. Using multiple graphics cards is a great way to find out just how good it gets. MSI Gaming motherboards fully support multi-GPU technologies and have PCIe slot placement for more efficient thermal performance.

In-Game Feedback, On-Screen Display
• Keep track of your system's performance with the OSD function in Gaming App. This feature allows you to fully customize which statistics are shown on-screen while you play your games. Keep an eye on your CPU speed, fps counter, GPU temperature, and much more while gaming without having to leave the game.

Storage

Be the First on the Battlefield
• This MSI Gaming motherboard supports many storage standards. This allows you to connect fast storage devices, giving you in-game benefits. Start games faster, load levels faster, and have a real advantage over your enemies.

Intel Optane Memory: Boost Your HDD to Perform Like an SSD
• Gamers and PC enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with an Intel Optane Memory device. Intel Optane technology provides a combination of high throughput, low latency, a high quality of service, and high endurance.

2 x Turbo M.2
• Enjoy fast system boot times and the quick loading of applications and games with MSI motherboards. Delivering speeds up to 32 Gb/s per device using PCIe Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection.

X-Boost Your Storage Performance
• This tool is very simple to use and automatically detects your storage devices connected to the system. When enabled, X-Boost optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving time when transferring data.

RAID Setup with M.2 Genie
• Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. That's why MSI created M.2 Genie, a feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.

SATA Mass Storage
• MSI made sure each MSI motherboard comes with enough SATA ports to connect loads of HDDs for long-term storage of large files and system backups.

Virtual Reality

Immerse Yourself into Virtual Worlds
• Through joint efforts with major VR brands, combined with MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content comes alive.

Straight into the Action with One Click to VR
• Both hardware and software need to be in tune for a smooth VR experience. One Click to VR makes it fast and easy to get primed for VR. A single click sets all your key components to their highest performance and helps makes sure other software applications won't impact your virtual adventure.

Audio

Sound That Pulls You into the Game
• Get an immersive sound experience when gaming. MSI Audio Boost delivers high-quality sound through the use of premium audio components. This lets you enjoy exciting gameplay.

Amplify Your Game with Audio Boost
• Built on years of experience in building motherboards dedicated to giving gamers true Hi-Fi sound, Audio Boost has developed into a high-quality audio unit, offering an advantage over your opponents when gaming. Locate your enemies with your eyes closed using Audio Boost.

Isolated Audio Design with LED Border
• Audio Boost operates like a dedicated soundcard by being physically isolated from the rest of the motherboard circuitry to help ensure a pure audio signal. A bright border illuminated by LEDs showcases and protects the Hi-Fi audio unit.

Separated Audio Layers for Clean Left & Right Channels
• Using separated layers in the PCB helps ensure equally high sound quality for both left and right audio channels.

De-Pop Protection
• Audio Boost helps protect your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your system on/off.

Dedicated High Definition Audio Processor
• Audio Boost is powered by an EMI-shielded high-quality HD audio processor, making sure you enjoy the pure sound quality in both stereo and surround sound.

Chemi-Con Audio Capacitors for a Warmer Sound
• By dedicating golden audio capacitors to the front output, a high-fidelity sound experience with strong acoustics and realism for studio level headphones is ensured.

Golden Connectors for 7.1-Channel Sound
• With golden audio connectors, you get strong signal output with the least chance of distortion. Using gold also helps prevents corrosion or oxidation in the long run, which could impact signal quality.

Gaming LAN

Dominate the Game with Low Latency
• Get ready to crush your enemies on the battlefield with MSI GAMING LAN. It features high-quality components tuned to deliver a strong online gaming experience without lag.

Low Latency Gaming LAN Powered by Intel
• Experience smooth gaming with Intel LAN. Intel LAN is optimized for championship-level online and LAN eSports by reducing CPU overhead and offering high TCP and UDP throughput. This means your CPU can be used more effectively, giving you more fps when gaming.

Optimize Online Gaming Traffic for Lower Latency
• MSI Gaming LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games, giving you an online gaming experience with low latency.

LAN Protect to Shield Your System Against Power Surges
• Featuring 15kV anti-surge protection to shield your network from lightning strikes and static electricity, the LAN Protect connector is designed to give you a reliable networking experience.

Memory

Memory Performance
• MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability, and increased stability.

Enhanced Stability with Optimized Memory Layout
• Optimized traces and a fully isolated memory circuitry helps ensure stability and performance, which works to prevent system crashes while gaming.

Memory Speed Impacts Performance
• The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds. Enjoy the additional boost in gaming performance or when working with large video and photography files.

Easy XMP
• Enable Intel Extreme Memory Profile with ease using a single option in the BIOS to gain performance and create a more stable system.

Stability & Compatibility Testing
• MSI conducts thorough memory testing with the popular memory brands under extreme conditions to help ensure your system runs stable. Their memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules, configurations, and even improve overclocking.

Tuning

Designed for Limitless Tuning
• Founded on experience and with a long history of creating performing motherboards packed with smart features, you can count on this motherboard to deliver performance under extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

Load-Line Calibration
• What you set is what you get. LLC helps make sure your CPU voltage remains 100% stable, thus improving stability when demanding more CPU performance.

EZ Debug LED
• Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

DigitAll Power Design
• A fully digital power design allows for faster and undistorted current delivery to the CPU, helping to create improved conditions for CPU overclocking.

Overvoltage Protection
• Helps prevents potential short-circuit damage to the CPU and other critical components.

USB

Maximize Your USB Device Performance
• Transfer your favorite games, music, and movies over USB faster than before. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering fast transfer speeds up to 10 Gb/s.

X-Boost Your USB Performance
• When enabled, X-Boost optimizes your devices for even better transfer speeds and can provide up to a 20% increase in USB performance, saving a lot of time when transferring data. This handy tool is very easy to use and automatically detects & optimizes the USB devices connected to your system.

Super Charge Your Phone & Gaming Gear
• MSI Super Charger USB ports charge any connected device faster. It delivers more power than regular USB ports to your smartphone, tablet, USB game controller, or portable console.

Double ESD Protection
• The USB ports on MSI motherboards are shielded by a set of protective ICs to help prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

Software

Apps to Improve Efficiency
• With years of experience in creating performance-enhancing tools that are easy to use, only high quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

X-Boost Your Storage
• This software allows you to boost the performance of any storage or USB device connected to your system. Simply use X-BOOST's Easy or Advanced mode to tune your system for up to 20% increased speeds, higher system responsiveness, and faster loading of in-game levels.

Manage All MSI Apps Through the App Manager
• Use this smart tool to keep an easy overview of the available applications for your system to help you configure, tune, and set up your system to your personal preferences. Simply click on icon to install additional apps such as Command Center, Gaming App, Live Update, and many more.

Take Command of Your System
• MSI's Command Center software helps users get the most out of their motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance, and optimize your system's cooling features.

Always Up-To-Date
• MSI Live Update automatically downloads and installs the latest drivers, BIOS, and software so you can focus on your game.

MSI RAMDisk
• MSI motherboards include RAMDisk, allowing you to create a virtual drive from your system RAM memory. Instantly load your favorite game, speed up your browser, or your page file to significantly speed up your system.

Instant System Startup with MSI Fast Boot & Go2BIOS
• With operating systems supporting UEFI fast booting methods, MSI has added a "Fast Boot" option to take full advantage of this. Simply enable "Fast Boot" either in the BIOS or with the application for faster boot times.

Go2BIOS
• Avoid having to mash your DEL/F2 button to get into the BIOS with the Go2BIOS button in the MSI Fast Boot application. Your system will automatically go to the BIOS on the next reboot. Some models even have an onboard Go2BIOS button.

CPU-Z MSI Gaming Edition
• MSI has worked closely with the CPUID team to develop a special edition of CPU-Z featuring the MSI GAMING dragon. Use CPU-Z to gather key information of your system's key components, like CPU speed, memory speed and timings, motherboard BIOS version, and much more.

Quality & Protection

Built on Everlasting Protection
• Using quality components and technological innovations delivers an impressive gaming experience. Rigorous quality testing under the most extreme conditions helps ensure a reliable, high-performance motherboard.

Fortify Your System with PCIe Steel Armor
• MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, helping to prevent damage due to heavy graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for an improved gaming experience and higher overclocking.

Ultimate Motherboard Protection
• MSI has made sure you can enjoy your system endlessly. MSI motherboards feature Double ESD protection with double layer grounding around the motherboard mounting holes, helping to prevent Electrostatic discharge (ESD) surges from damaging the motherboard.

Stable Gaming with High-Quality Components
• MSI uses Military Class 5 components, which are shielded to help make sure your system runs smoothly under the most extreme gaming conditions. Titanium Chokes run cooler and deliver a 30% improvement in power efficiency, allowing for improved overclocking and stability, while Dark Caps have a lower Equivalent Series Resistance (ESR) and an increased lifespan of over 10 years. Lastly, Dark Chokes utilize a core design to run at lower temperatures, which delivers improved power efficiency and stability. There is also protection against humidity, temperature, circuitry, ESD, and EMI.

Certified for Gaming
• Each model is tweaked to deliver the fps needed for a stutter-free gaming experience. Tested in 24-hour online and offline gaming sessions with popular gaming gear, you can enjoy top performance and reliability.

BIOS

A Gamers' BIOS
• MSI has made sure their BIOS contains all the latest options and is user-friendly. The extensive features let you tune your system to deliver reliable maximum performance when gaming.

Easy-To-Read, Hi-Res BIOS Font
• A high-resolution, scalable font is used to make Click BIOS 5 easy to read.

Easy Mode for Quick Gaming Tweaks
• When you just want to get back to your game, EZ Mode presents you with basic BIOS settings and functions for some quick adjustments. If you feel like spending more time fine-tuning options to boost your system's performance, the Advanced mode is the way to go.

Easy Search & Favorites
• Can't find a specific BIOS setting? Don't worry, a permanent search option in the top right corner can be used to find what you need. Want quick access to important settings? My Favorites gives easy access to selected Favorite settings, supporting up to 5 groups of Favorites.

Hardware Monitor with Fan Control
• Hardware Monitor lets you take control of your system and check your primary system vitals in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Make Your SSD Fast with Secure Erase+
• When using an SSD, its performance will slowly decrease over time as more and more data is written onto it. This will slow down read/write speeds and increase access times of your SSD, making your system feel sluggish. Using an optimized formatting algorithm, Secure Erase+ lets you enjoy your SSD at faster speeds, making your system feel new again.

Optimize and Boost Performance
• Click BIOS 5 provides easy access to XMP memory profiles to optimize your internal memory timings and speeds for greater stability and performance. Safely overclock your CPU with a single button for more performance using MSI Game Boost.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

MSI Z370M MORTAR Specs
