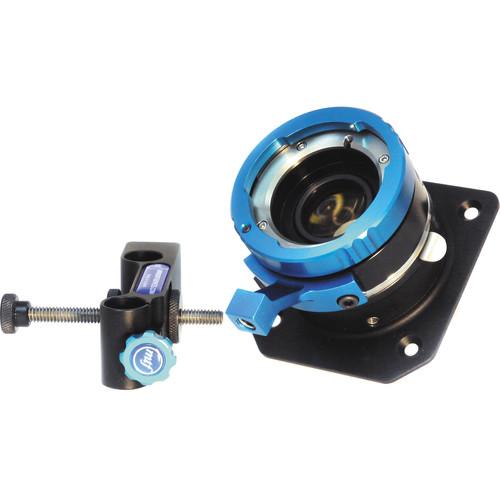

User Manual for MTF Services Ltd B4 TO AJA CION Package Click to enlarge the picture
Contents of the user manual for the MTF Services Ltd B4 TO AJA
- Product category: Lens Mount Adapters MTF Services Ltd
- Brand: MTF Services Ltd
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MTF Services Ltd Lens Mount Adapters
|
User manual for the MTF Services Ltd B4 TO AJA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MTF Services Ltd product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MTF Services Ltd user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MTF Services Ltd product will considerably shorten its lifespan!
|
Product description The MTF Services Ltd. B4 TO AJA CION Package simplifies mounting optional 2/3" B4 mount ENG lenses on your AJA CION camera. The package consists of a B4 to Canon EF Lens Mount Adapter, a Canon EF to AJA CION Replacement Lens Mount, and a Lens Bridge Support. The B4 TO AJA CION package uses multi layer coated optics that maintains the quality of the image from your B4 mount lens, as it enlarges the image to cover the APS-C sized sensor of your CION camera.
The package properly orients the image to be right side up in your camera so you don't have to flip the image in post or operate the camera upside down. However, to accomplish this, you must engage the 2x extender in your ENG style lens, and there is a cost of 2.5 stops of light. MTF Services recommends using an HD lens designed to cover a 2/3" sized sensor with a 2X extender to ensure full coverage.
You can use the entire package to shoot with optional B4 mount lenses on your CION camera, or use only the B4 to Canon EF mount adapter on optional cameras with a Canon EF mount and APS-C sized sensor, such as the 7D or C-100. - B4 2/3" to Canon EF Adapter The B4 2/3" to Canon EF Adapter from MTF Services Ltd enables the use of ENG style B4 2/3" lenses on cameras with the Canon EF mount. The adapter features multi layer coated optics, solid aluminum construction and a chrome plated EF mount. A lens support bridge for use with industry standard 15mm rod support systems is also included. Note: In order to avoid vignetting, the B4 2/3" lens will need to have the 2x extender engaged and the camera's image sensor should be Super 35mm or smaller. HD lenses are recommended. Engaging the 2x extender also allows the adapter to optically correct for using your lens on a single sensor.
- Adapts B4 2/3" lenses to Canon EF mount cameras
- Multi layer coated optics and solid aluminum construction
- Includes support bridge for use with 15mm rod support systems
UPC: 635346640773 - Canon EF to AJA CION Replacement Lens Mount Don't adapt your Canon EF lenses for use on your Cion camera, replace the camera's mount instead with the Canon EF to AJA CION Replacement Lens Mount from MTF. Services Ltd. Take advantage of the CION's replaceable mount design and convert your Cion camera from a PL Mount to a Canon EF mount using just four screws.
The body of the adapter is made from aluminum for its balance between strength and weight, and it is anodized for scratch and corrosion resistance. The nickel-plated brass mounting surface mates with your Canon EF lenses. The replacement mount is mechanical only and does not contain any optics or electronics, which means you will need to use manual focus/iris lenses. - Nickel-plated brass mounting surface for wear resistant mounting.
- Black anodized interior to minimize reflections.
UPC: 635346640506 - Lens Support Bridge The Lens Support Bridge from MTF Services Ltd is a bridge designed to support lenses with a compatible support toe. It is fully adjustable and fits any 15mm support bar system. The lens support has a standard 1/4"-20 stud as well as 1/4"-20 and 3/8"-16 hellicoiled threads to the side.
- Fits any 15mm rod support system
- Holds compatible lenses firmly to avoid lens rotation while adjusting zoom and focus
- Standard 1/4"-20 stud to support lenses fitted with a support toe
- Auxiliary 1/4"-20 and 3/8"-16 hellicoiled threads to the side
- Designed and made in the UK
UPC: 635346640599 In the Box Bundle Items B4 2/3" to Canon EF Adapter ssysuxbzcf Canon EF to AJA CION Replacement Lens Mount Lens Support Bridge
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the MTF Services Ltd B4 TO AJA CION Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - B4 2/3" to Canon EF Adapter
| Mount Type | B4 2/3" (female) to Canon EF (male) | | | | Box Dimensions (LxWxH) | 7.4 x 4.4 x 3.0" | - Canon EF to AJA CION Replacement Lens Mount
| Dimensions (W x H x D) | 3.2 x 3.3 x 1.1" / 81 x 85 x 29 mm | | | | Box Dimensions (LxWxH) | 4.5 x 4.3 x 4.1" | - Lens Support Bridge
| Rod Mounts | 15mm | | Mounting Stud | 1/4"-20 | | Threads | 1/4"-20 and 3/8"-16 auxiliary hellicoiled threads | | | | Box Dimensions (LxWxH) | 4.5 x 4.3 x 4.2" |
