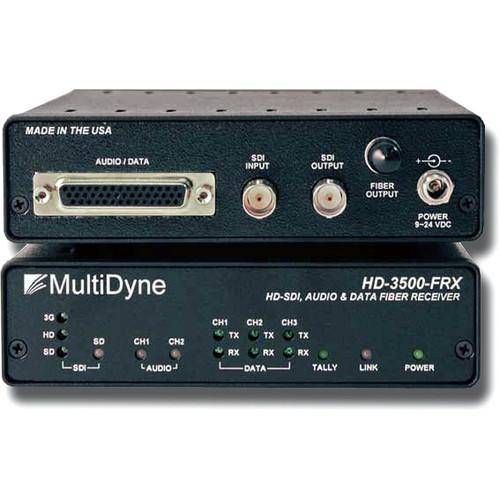

Product description The HD-3500-FRX-ST Multi-Rate Serial Video & Fiber-Optic Receiver from MultiDyne routes all of the signals needed to any remote camera and its operator, up to 24.9 miles (40km) away from its base station. 3G HD uncompressed videos are transported without any loss or degradation of the signal. This unit supports 3 discreet bi-directional—RS-232, 422, and 485—data channels as well as 4 GPIO’s and one tally. Data paths and GPIO channels allow for easy remote control of critical camera parameters and the tally circuit lets the camera operator know when the system is live.The system has audio inputs for 2 channels of outbound digital AES audio or 4 analog audio channels with 2 more bi-directional audio channels. Audio paths allow for multiple line level audios from the camera-end of the link as well as bi-directional 4-wire circuits for intercom. In addition, you can take advantage of your digital audio sources and microphones by inputting AES signals and get both analog and AES out at the control room, saving the cost of A/D converters.This unit offers multi-rate HD-SDI fiber optic transport with options for multiple audio, intercom, and bi-directional data over a single fiber with high-definition transport of uncompressed 3G HD-SDI signals up to 1080p.This receiver unit provides loop outs, equalized inputs, and reclocked dual outputs supporting 5 Mb/s to 2.970 Gb/s, SDI, HD-SDI, 3G HDSDI, DVB, ASI, and SMPTE standards 424M, 292M, 259M, and 310M.It is suitable for remote camera control in broadcast environments, POV (point-of-view) cameras, action sports shots, sky cams and intelligent transportation systems as well as for high-definition surveillance, casinos and Homeland Security.The HD-3500 unit can be used as a stand-alone product, or alternately, it can be rack mounted using MultiDyne’s convenient rack kits (sold separately). It can also be integrated with other MultiDyne products to create custom solutions. Note: This device can perform as a transceiver, in that the optics that are used in its construction are able to send and receive signals. However, in order to form a working pair, one side must be designated as a transmitter and the other as a receiver. Embedded audio within the HD-SDI video signal is supported by this receiver as long as the resultant signal is SMPTE compliant. - Supports SMPTE standards 424M, 259M, 292M, and 310M
- Equalized inputs and re-clocked dual outputs
- 4 analog audio or 2 AES to base
- 3 data (RS232, 422, 485) paths
- Quiet operation with no fans
- Applications: Remotely controlled, cameras such as goal cams, surveillance/Homeland Security, distance learning, houses of worship, surgical video, specialty cameras
In the Box MultiDyne HD-3500-FRX-ST Multi-Rate Serial Video & Fiber-Optic Receiver Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MultiDyne HD-3500-FRX-ST Multi-Rate Serial Video & Fiber-Optic Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMultiDyne HD-3500-FRX-ST Specs | | | Number of Inputs | 1 with loop out, dual outs | | Interface | SMPTE 424M, 297M, 292M, M259M-C, DVB-ASI | | Input | Coax EQ:
@3 Gb/s for 262.47' (80.00 m)
@1.485 Gb/s for 492.13' (150.00 m)
@143 to 360 Mb/s for 1,148.29' (350.00 m)
Level: 100 mV (peak to peak) | | Impedance | 75 Ω | | Bit Error Rate | 10-12 | | Jitter | <0.03IU under 1 MHz | | Rise / Fall time | <270 ps | | Return Loss | >15 dB at 5 MHz to 1.485 GHz
>10 dB up to 3 GHz | | | | Data Channels | RS-232, 422, 485 with DC to 3 Mb/s | | Input Voltage | 232: ±25 V maximum, 2 V minimum
422, 485: -7 to 12 V, 0.2 V diff minimum | | Output Voltage | 232: ±5 V @ 3 kΩ, 1.6 V sens | | GPIO | Normally open, Form 1 SPST | | | | S/N | >90 dB | | Frequency Response | <±0.1 dB (20 Hz to 20 kHz) | | Distortion | <0.05% | | Level | Adjust: 28,16,10,4 dBu
Maximum I/O: 28 dBu | | Impedance | Input: >600 Ω (balanced)
Output: <10 Ω (balanced) | | Intercom | Level: 4 dBu FS
Input Impedance: 10 kΩ
Output Impedance: <50 Ω | | | | Input/Output | Balanced, AES3/AES3id | | Impedance | Input/Output: 110 Ω / 75 Ω (DIP Sw) ±20%, 0.1 to 6.0 MHz | | Input | Minimum / Maximum: 2 to 7 Vpp into 110 Ω | | Rise / Fall time | 5 to 30 ns for 10 Ω | | Jitter | <20 ns | | | | Operating Wavelength | DFB 1,271 to 1,591 nm | | Receiver Sensitivity | -20 dBm | | Compatibility | Fiber: Single mode | | Optical Connector | ST | | Distance Limitation | Up to 24.9 miles (40.0 km) | | | | Connectors | Video: BNC
Audio/Data: DB-44F | | Temperature Range | -13 to 131°F (-25 to 55°C) | | Humidity Range | 0 to 95% RH (non condensing) | | Power Input | 2.5 mm jack
Center pin + | | Power Rating | Nominal: 50 W maximum @ 14 VDC | | Power Requirement | <10 W @ 5 to 24 VDC | | Dimensions (L x W x H) | 6.75 x 5.50 x 1.75" (171.45 x 139.70 x 44.45 mm) | | Weight | 1.50 lb (0.68 kg) |
