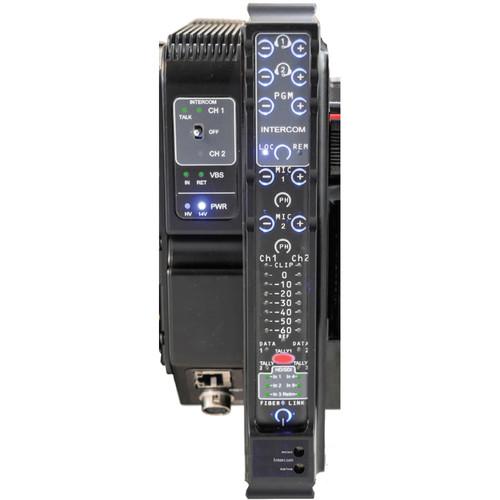

User Manual for MultiDyne SilverBack 4K5 Camera Unit for 4K Quad-Link 3G Fiber Optic System Click to enlarge the picture
Contents of the user manual for the MultiDyne SilverBack 4K5 Camera Unit for
- Product category: Camera Adapters & Interfaces MultiDyne
- Brand: MultiDyne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MultiDyne Camera Adapters & Interfaces
|
User manual for the MultiDyne SilverBack 4K5 Camera Unit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MultiDyne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MultiDyne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MultiDyne product will considerably shorten its lifespan!
|
Product description The SilverBack 4K5 Camera Unit from MultiDyne mounts to any dual-link or quad-link 4K camera seamlessly via the V-mount plate on each side. The system provides all signals needed for multi-camera 4K/UHDTV production onto a single SMPTE hybrid fiber cable to the Base Station (sold separately) at up to 12.4 miles distance, insuring robust, trouble-free connectivity on any studio or remote production. The display uses high-intensity blue LEDs that are easy for the operator to see. Equipped with the integrated "Juice", no external power supplies are required and the rear battery plate can be used for back-up power.
Ten standard BNC connectors allows connection from the camera's four 4K quad-link outputs, an additional HD/SDI path from the camera for menus, VBS input and output, as well as return 3G-HD/SDI and genlock/sync. Two 3-pin female XLR allows for microphone and line level inputs, with a 5-pin XLR for intercom headset and a 3.5mm headset jack also available for Program/IFB to the operator or Talent. - Six full bandwidth paths of 3G-SDI
- Universal intercom interface with IFB/PGM inject
- Two microphone inputs with phantom and pre-amps
- Optical connector on integrated swivel
- Top and bottom dovetail plates with 1/4"-20 & 3/8"-16 taps for mounting accessories
- Suitable for 4K sports & OB, music & entertainment, digital cinema, and 3-D acquisition
In the Box MultiDyne SilverBack 4K5 Camera Unit for 4K Quad-Link 3G Fiber Optic System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MultiDyne SilverBack 4K5 Camera Unit for 4K Quad-Link 3G Fiber Optic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMultiDyne SB3-C451-D2RJ-5CVV-S Specs | | | Signal | Signal Count: 5 | | Interface | SMPTE 424M, 292M, 259M | | Data Rate | 3 Gb/s, 1.5 Gb/s, or 270 Mb/s | | Input/Output Level | 800 mV (Peak to Peak) | | I/O Impedance | 75 Ohms | | Return Loss | 15 dB Typical (5 to 1500 MHz)
>10 dB Typical (1.5 to 3 GHz) | | Cable Equalization | 270 MHz: Up to 1640' / 500 m
1.5 GHz: Up to 656' / 200 m
3 GHz: Up to 492' / 150 m | | | | Interface | RS170, NTSC, PAL, HDTV Y Component | | Frequency Response | 30 Hz to 4.2 MHz at ±3 dB | | Video S/N Ratio | ≥70 dB | | Differential Phase | <2° | | | | Sync | Genlock, Black Burst, Tri-Level | | | | Ethernet Support | 10Base-T/100Base-T/Gig E | | Compatible Cables | UTP 100 Ohms Twisted Pair Cat 5 | | | | Format | Analog or Digital | | Channels | Analog: 2
AES: 1 | | Mic Input Level | -60 to 0 dBu | | Phantom Power | 48 V | | Impedance | >15 kOhms | | Maximum Input Level | 22 dBu | | Sampling | 24 Bits, 48 kS/s | | Frequency Response | ±0.5 dB, 20 Hz to 20 KHz | | | | Channels | 2 | | RS-422/RS-485 | 0 to 1 Mbaud | | RS-232 | 0 to 300 Kbaud | | | | Inputs | On: TTL Low or Short to GND
Off: TTL High or Open | | Outputs | 2 Pos Form A (SPST, Norm Open) Relay, to GND | | Switching Voltage | 24 VDC/VAC | | Current (Maximum) | 1 A | | | | Output Power | 14 VDC, 1 A | | Electro-Optical | Nominal Optical Loss Budget Values:
TX Laser Output Power (Std/Opt): -6 dBm / 0 dBm
RX Sensitivity, HD/SDI (Bars): -22 dBm
Fiber Compatibility: Single Mode
Optical Connector Option:
Local Power: OpticalCON, MX, STs, FC, LC
Remote Power: OpticalCON, SMPTE 304M | | Connectors | 1 x OpticalCON Duo, Camera Fiber
1 x BNC, HD-SDI 1 Program Input
1 x BNC, HD-SDI 2 4K Input
1 x BNC, HD-SDI 3 4K Input
1 x BNC, HD-SDI 4 4K Input
1 x BNC, HD-SDI 5 4K Input
1 x BNC, HD-SDI 5 Loop Output
1 x BNC, HD-SDI Return Output
1 x BNC, Analog VBS (HD/Y) Input
1 x BNC, Reference/Sync Output
1 x BNC, Analog Return VBS Output
1 x RJ45, Ethernet Port
1 x LEMO 7-Pin, RS232/422 Data Port 1
1 x LEMO 7-Pin, RS232/422 Data Port 2
1 x LEMO 16-Pin, AUX, Audio, Power, LTC, Headset, and GPI/GPO
1 x 5-Pin XLR Female, Intercom Headset
1 x 3-Pin XLR Female, Microphone/Line Audio Input 1
1 x 3-Pin XLR Female, Microphone/Line Audio Input 2
1 x LEMO, Audio 3 & 4 Output
1 x 3.5mm Jack, Headphones Program/IFB Output | | | | Power Consumption | 20 W at 14 VDC | | Mounting | 2 x Dovetail Mount with 1/4"-20 and 3/8"-16 Taps
2 x V-Mount Battery Plate | | Temperature Range | -13 to 131°F / -25 to 55°C | | Humidity | 0 to 95% | | Compliance | Class 1 Laser
RoHS | | Dimensions | 4.0 x 6.8 x 7.0" / 10.2 x 17.1 x 17.8 cm | | Weight | 3.25 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 16.0 x 16.0 x 8.0" |
