User Manual for Music Hall A15.3 Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Music Hall A15.3 Integrated Amplifier
- Product category: Amplifiers Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Amplifiers
 |
User manual for the Music Hall A15.3 Integrated Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|

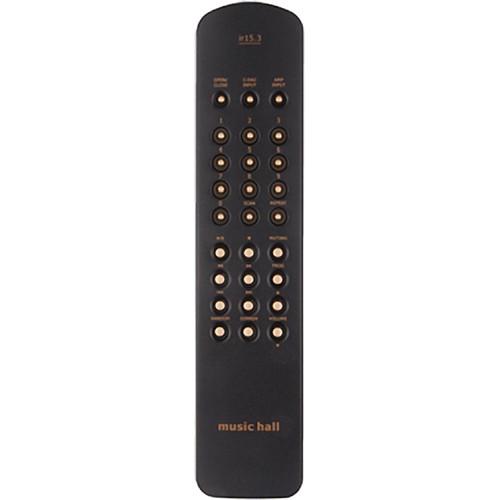

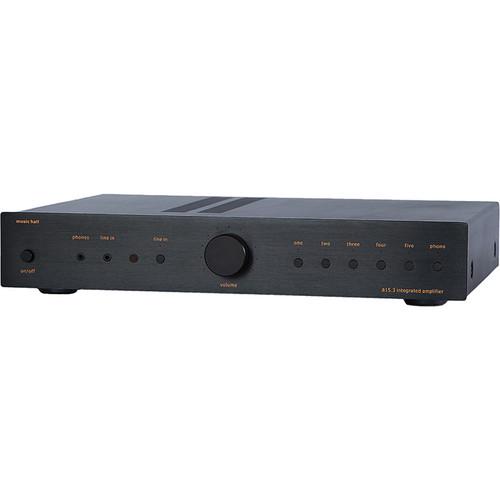

Product description Listen to high-quality audio from multiple sources with the A15.3 Integrated Amplifier from Music Hall in black. This unit features a 2-channel design that delivers up to 50W per channel at 8 ohms. With phono, 3.5mm, and five stereo RCA inputs, the A15.3 can accept a wide variety of audio components such as CD players, turntables, and tuners. When lower listening levels are required, a 3.5mm headphone output is also on-board. For easy control, the A15.3 includes a standard remote control. - High-current 50 watt per channel amplifier
- Low noise pre-amplifier section
- Moving-magnet phono input
- Brushed aluminum face plate and solid chassis
- Gold-plated RCA inputs and heavy-gauge speaker binding posts
- Padded vibration damping feet

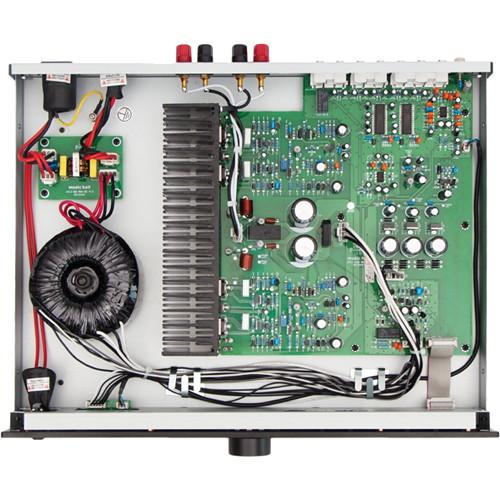

- High-current toroidal power transformer
- Voltage switchable and removable power cord
UPC: 091037334596 In the Box Music Hall A15.3 Integrated Amplifier (Black) Power Cord Remote Control 2 x AAA Batteries Limited 1-Year Warranty Manual PDF 150kbyeecyfxdesfcaazxvzfrubawbfsqwd Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall A15.3 Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall A15.3 Specs | | | Channels | 2 | | Power Output | 50 W per channel at 8 ohms
75 W per channel at 4 ohms | | Signal-to-Noise Ratio | >90 dB | | Pre-Out | 660 mV | | THD & Noise | <0.02% (20 Hz to 20 kHz) | | Frequency Response | RCA: 20 Hz to 20 kHz (-0.5 dB)

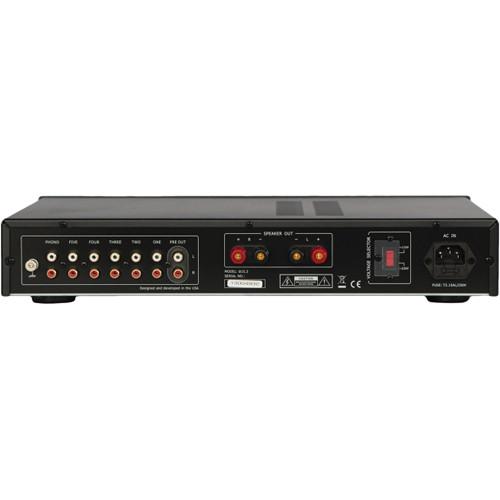

Phono: RIAA compliant | | | | Inputs | 5 x Stereo RCA
1 x MM Phono
1 x 1/8" (3.5 mm) audio | | Outputs | 1 x Stereo RCA pre-out
1 x 1/8" (3.5 mm) headphone | | Other Connectors | 2 x Speaker
1 x AC-in | | | | Power Requirements | 115 or 230 VAC via voltage selector | | Compliance | FCC | | Dimensions (WxHxD) | 16.9 x 3.1 x 14.3" / 430.0 x 79.0 x 364.0 mm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 22.0 x 18.3 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
