User Manual for Music Hall a30.3 Stereo 170W Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Music Hall a30.3 Stereo 170W Integrated
- Product category: Amplifiers Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Amplifiers
 |
User manual for the Music Hall a30.3 Stereo 170W Integrated contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|

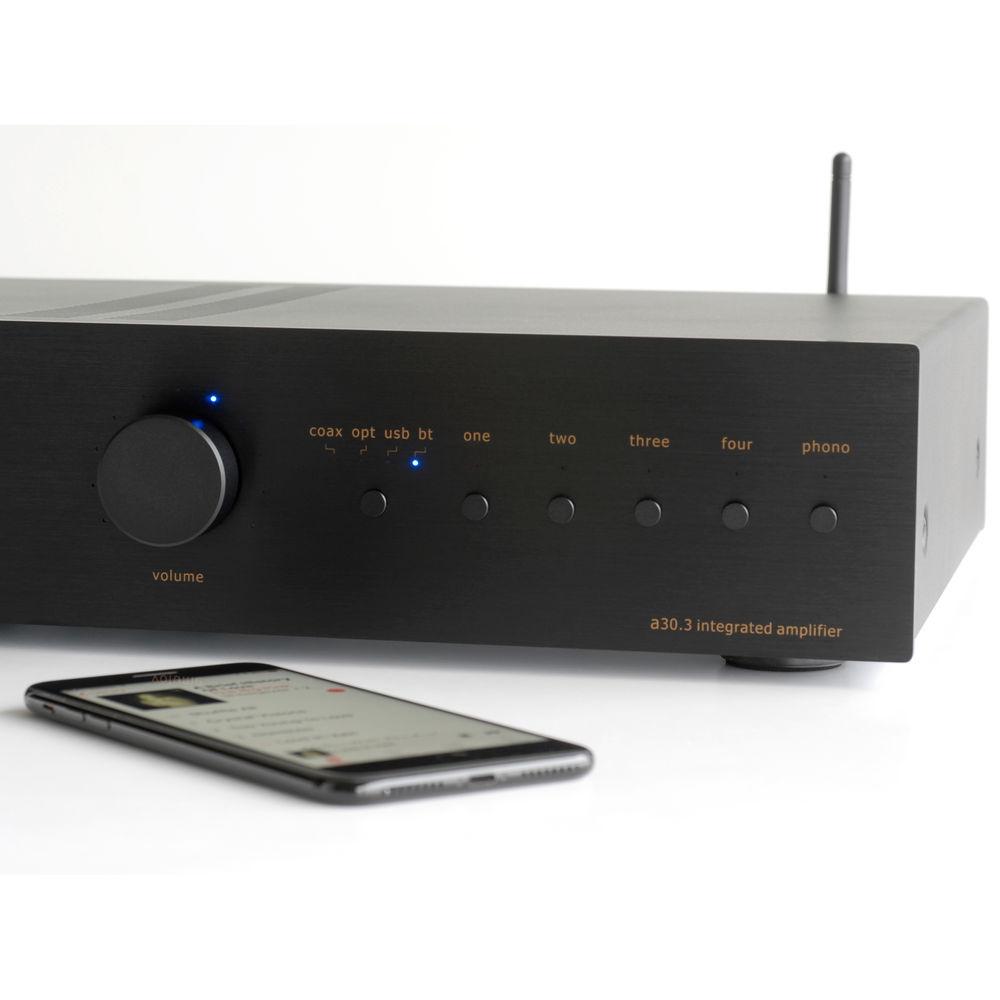

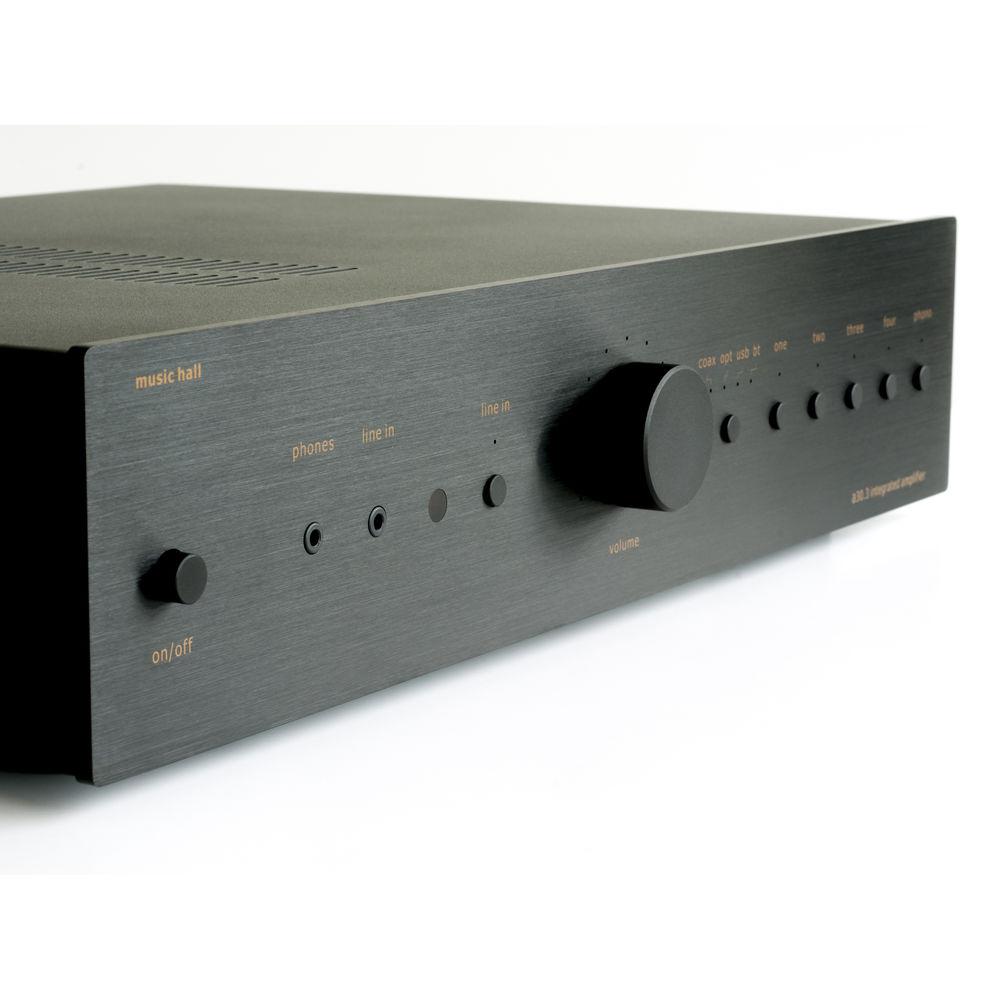

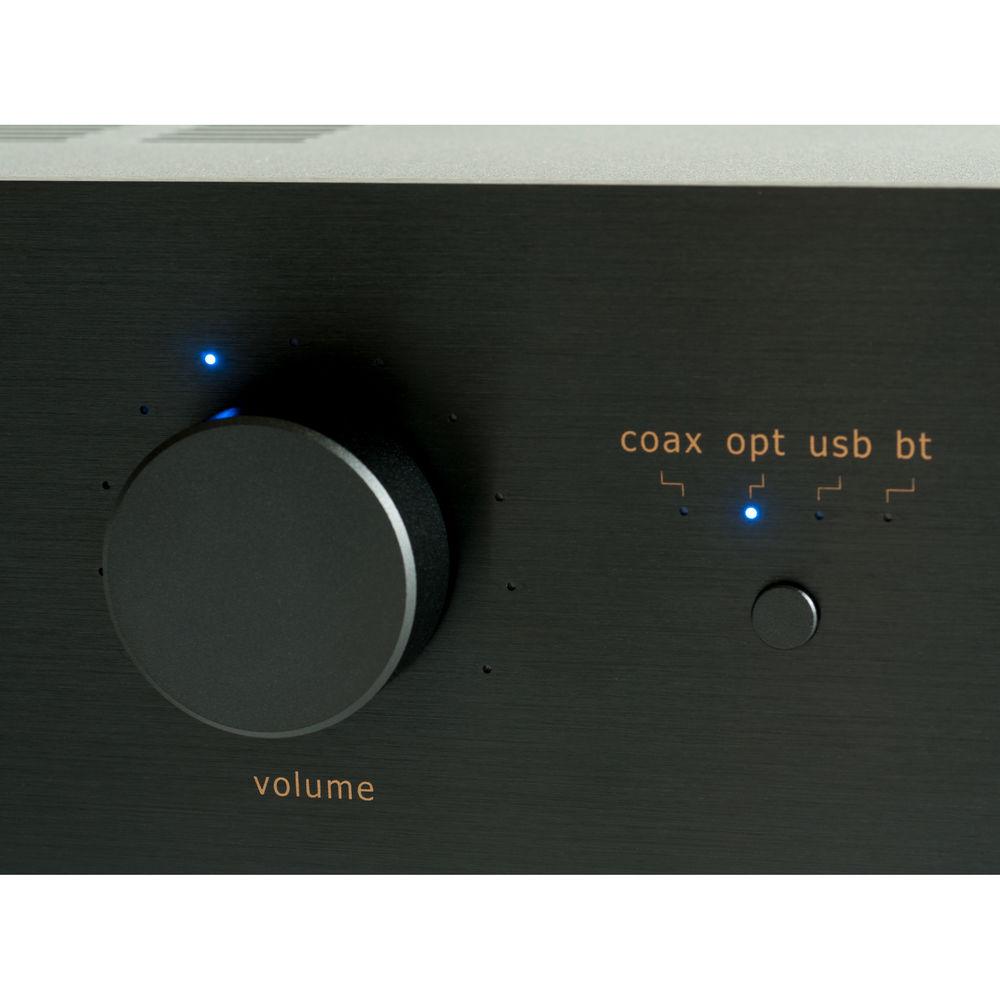

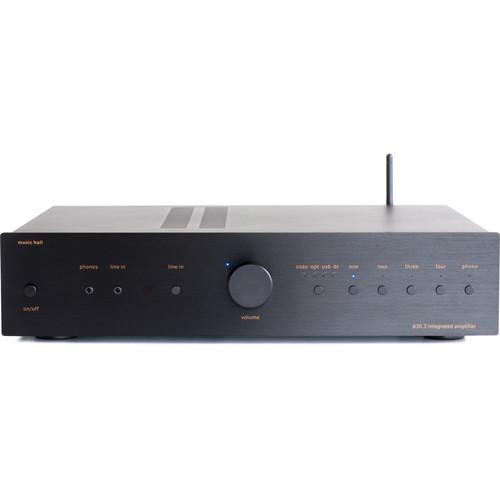

Product description Enjoy multiple source audio with the Music Hall a30.3 Stereo 170W Integrated Amplifier. This unit features a 2-channel design that delivers up to 85W per channel at 8 Ohms. With a phono and four stereo RCA inputs, the a30.3 can accept a variety of audio components such as CD players, turntables, and tuners. For easy control, the a30.3 includes a remote control. - 24-bit/192 kHz Cirrus Logic CS4398 DAC

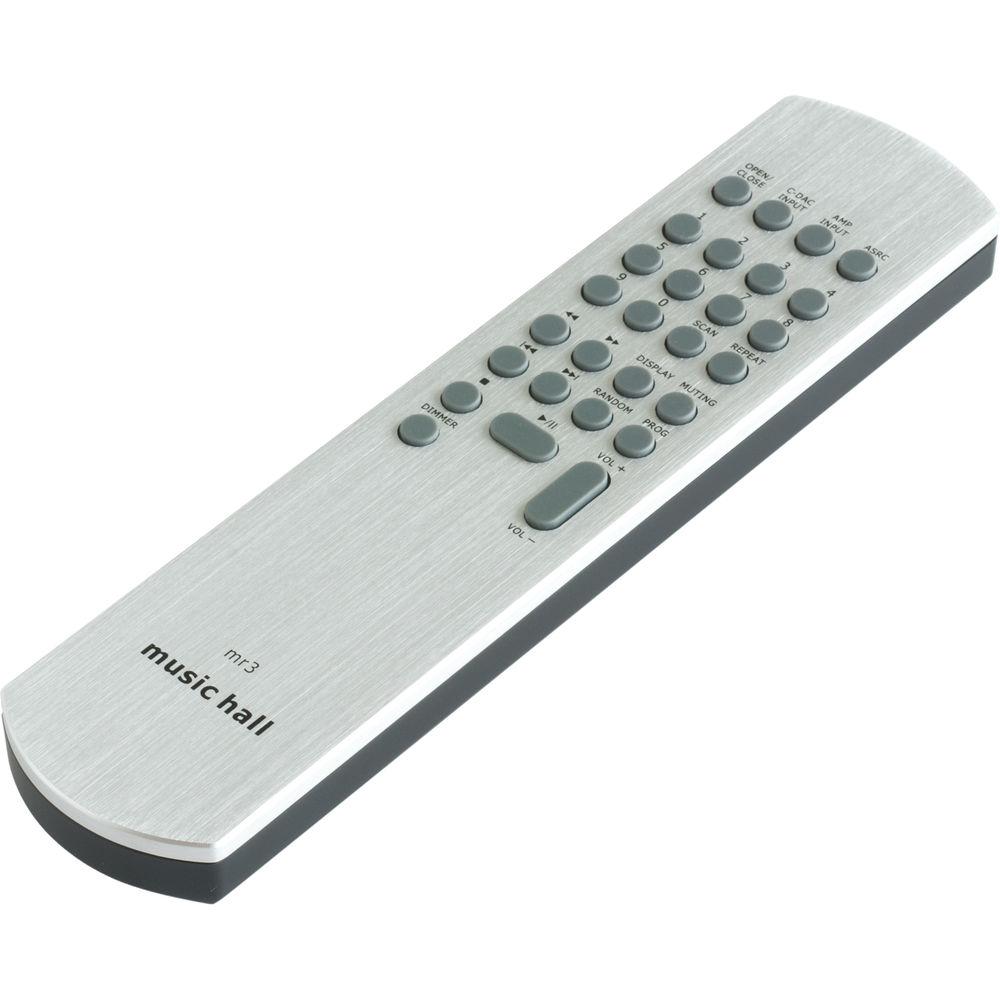

In the Box Music Hall a30.3 Stereo 170W Integrated Amplifier Remote Control Bluetooth Antenna Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall a30.3 Stereo 170W Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMusic Hall A30.3 Specs | | | Channels | 2 | | Power Output | 85 W per channel at 8 Ohms
160 W per channel at 4 Ohms | | Signal-to-Noise Ratio | >100 dB | | Pre-Out | 800 mV | | THD & Noise | <0.02% (20 Hz to 20 kHz) | | Frequency Response | RCA: 20 Hz to 20 kHz (±0.5 dB)

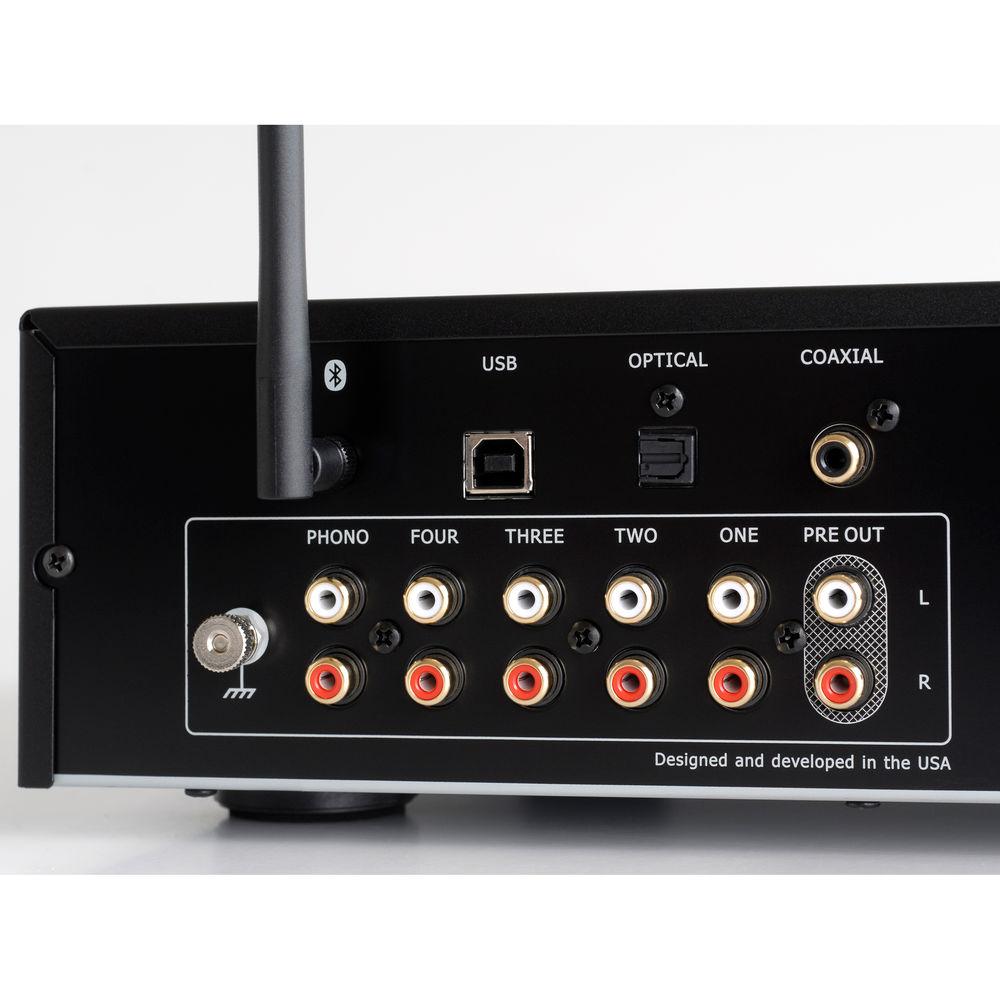

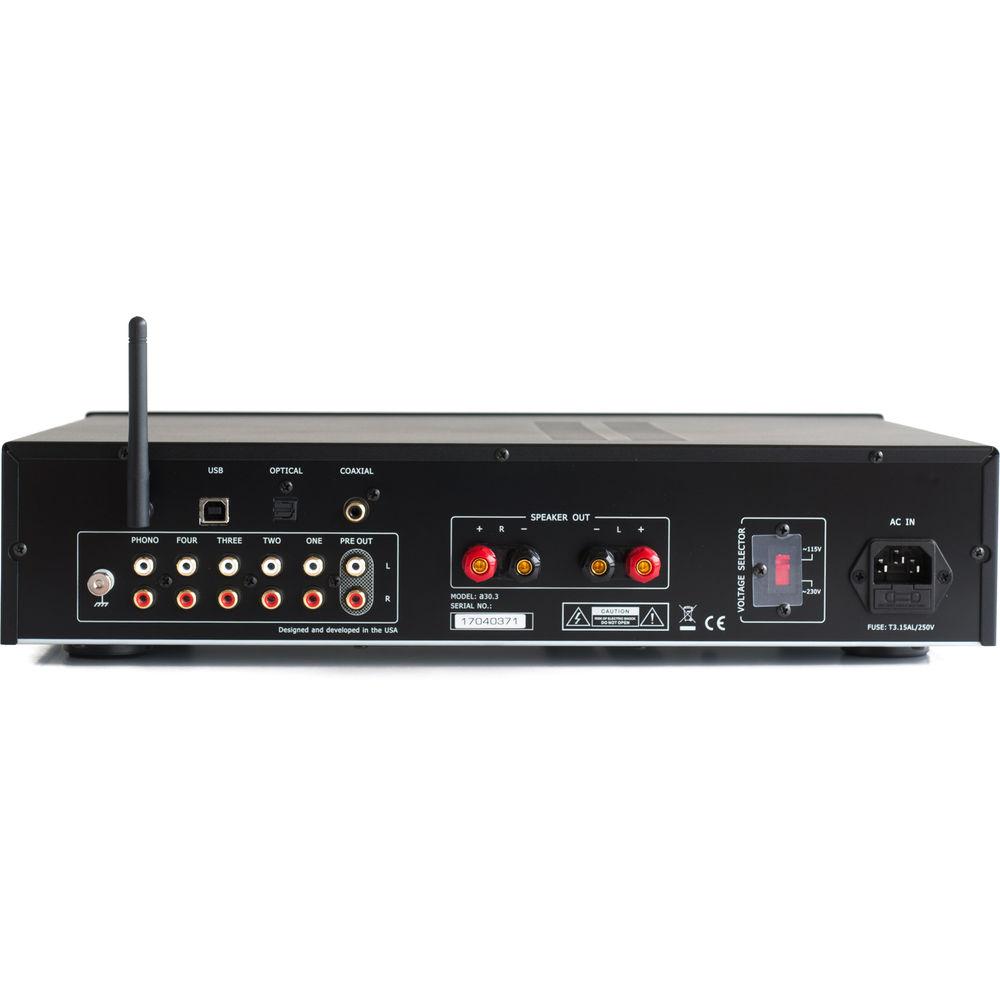

Phono: RIAA compliant | | | | Inputs | 4 x stereo RCA
1 x MM phono
1 x optical TOSLINK
1 x digital coaxial
1 x USB Type-B | | Output | 1 x stereo RCA pre-out | | Speaker Connectors | 2 x binding post pairs | | Other Connectors | 1 x Bluetooth antenna
1 x AC-in
1 x phono screw | | Input Sensitivity | RCA: 410 mV
Phono (MM): 2 mV | | | | D/A Converter | CS4398 | | Sampling Rate | 24-bit / 192 kHz (coaxial, optical, USB) | | USB | CM6631A | | Frequency | USB: PCM 24-bit / 192 kHz | | Bluetooth Version | V2.1 + aptX | | | | Power Requirements | 115 or 230 VAC via voltage selector | | Compliance | FCC | | Construction Material | Faceplate: Aluminum | | Dimensions (W x H x D) | 16.9 x 4 x 14.3" (430 x 102 x 364 mm) | | Weight | 17.6 lb (8 kg) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
