Music Hall c-dac15.3 dac CD Player

Search your instruction manual in PDF to download

User Manual for Music Hall c-dac15.3 dac CD Player

Click to enlarge the picture
Music Hall c-dac15.3 dac CD Player Contents of the user manual for the Music Hall c-dac15.3 dac CD Player
  • Product category: CD Players & Changers Music Hall
  • Brand: Music Hall
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Music Hall CD Players & Changers

Music Hall c-dac15.3 dac CD Player Music Hall c-dac15.3 dac CD Player Music Hall c-dac15.3 dac CD Player
User manual for the Music Hall c-dac15.3 dac CD Player contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Music Hall product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!



Product description

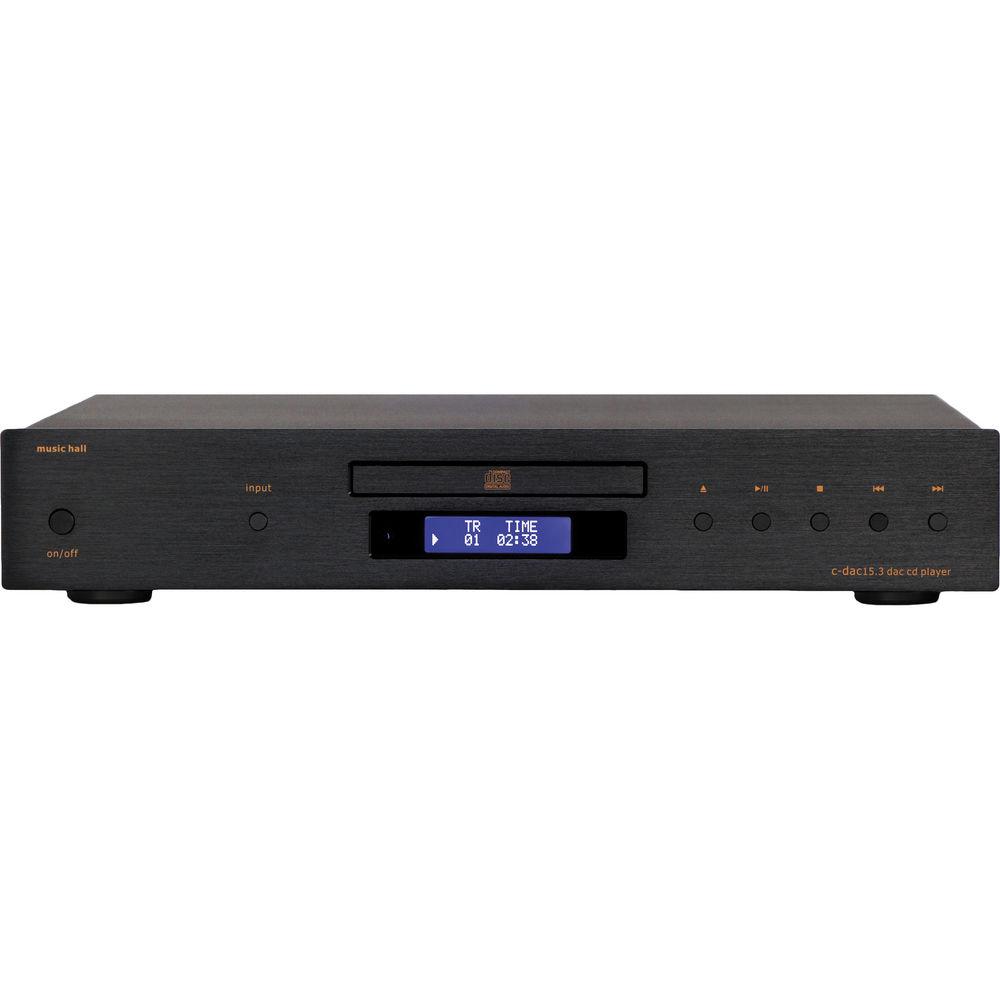

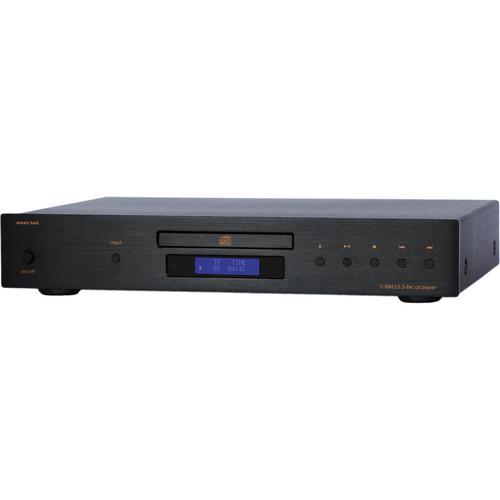

The black Music Hall c-dac15.3 dac CD Player plays CD and CD-R/RW discs. It includes a vibration-dampened CD transport, a brushed aluminum faceplate, and a Burr Brown PCM1796 24 bit/192 kHz DAC for CD playback. It includes three digital inputs to analog converters using the Wolfson 8805 chip. These combined features guarantee that the c-dac15.3 will deliver the level of audio performance you desire. When used in a top-end audio system, your Music Hall dac CD Player will provide years of enjoyment.
  • Plays CD and CD-R/RW

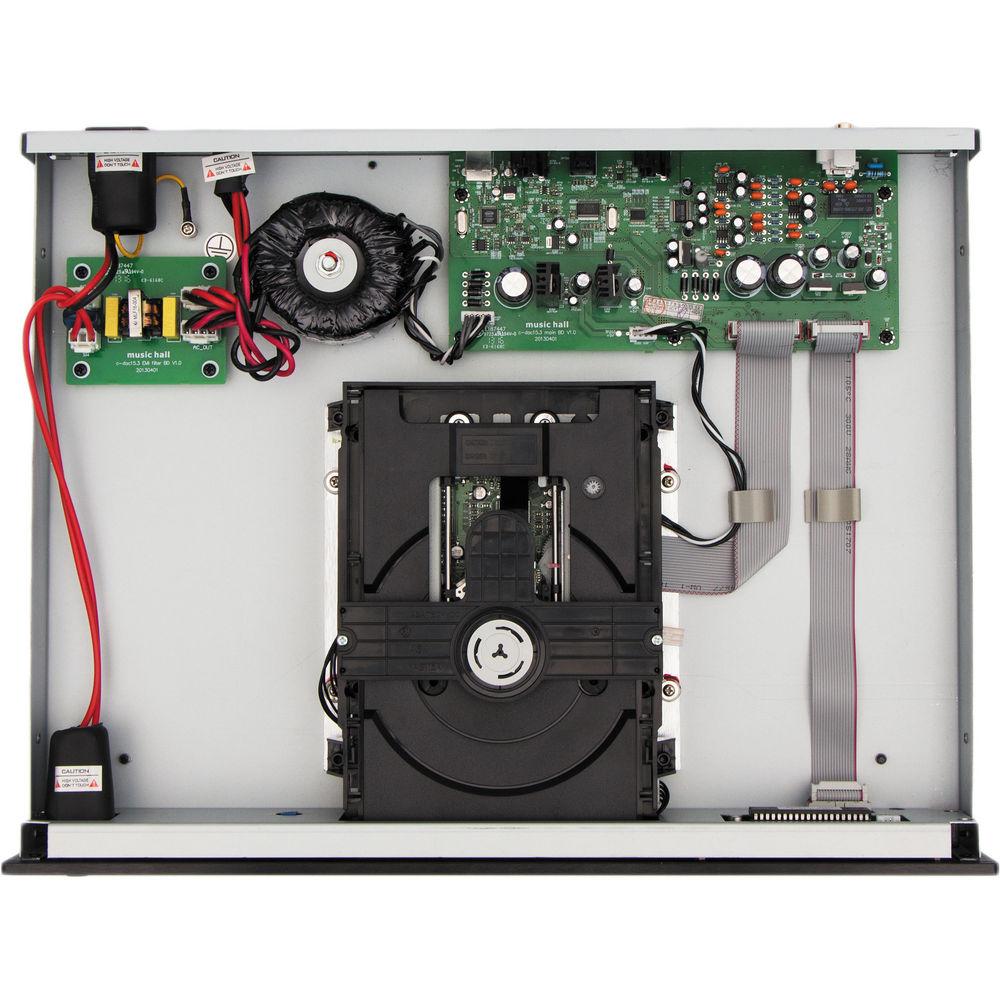

  • Mid-ship mounted vibration damped CD transport
  • High efficiency toroidal power transformer
  • Gold plated stereo output
  • Coaxial digital output
  • Padded vibration damping feet
  • Brushed aluminum faceplate
  • Switchable voltage
  • System remote control
  • Easy to view display
  • Removable power cord
UPC: 091037334602 In the Box Music Hall c-dac15.3 dac CD Player (Black)
  • Remote Control
  • 2 x AAA Batteries
  • Removable Power Cord
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Music Hall c-dac15.3 dac CD Player in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Music Hall C-DAC15.3 Specs

    Type DAC CD player
    Compatible Discs CD, CD-R/RW

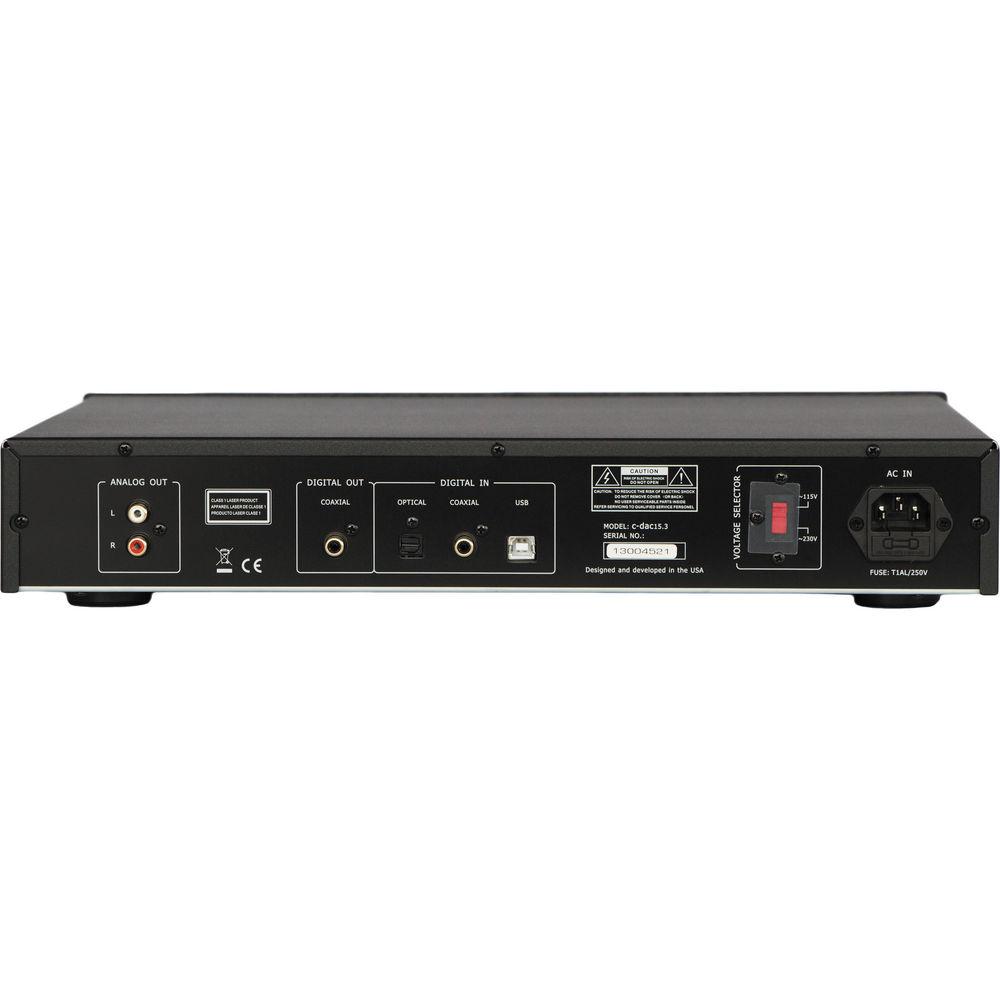

    Inputs/Outputs 1 x Analog out
    1 x Coaxial digital output
    1 x Optical in
    1 x Coaxial
    1 x USB
    D to A Converters CD DAC: Burr-Brown PCM 1796 24 bit/192 kHz
    Digital Inputs DAC: Wolfson WM8805
    Analog Outputs Frequency Response: 20 Hz - 20 KHz, +0dB / -0.5 dB
    Signal-to-Noise Ratio: 105 dB
    Dynamic: >95 dB
    Channel Separation: >100 dB, 1 kHz
    THD: <0.002% (A-Weighted)
    Output Level: 2.2 V, 1 kHz Output Impedance: 100 ohms
    Digital Input Coaxial:
    0.5 Vpp/75 (IEC60958-3 compliant)
    Input Signal Sampling Frequency Range: 32-192 kHz
    Optical:
    Input Signal Sampling Frequency Range: 32-96 kHz
    USB:
    Supports Standard Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
    Resolution: 16-24 bit
    Input Format: 0.5 Vpp/75 (IEC60958-3 compliant)
    Digital Output Coaxial (IEC 60958):
    Output Impedance: 75 ohm
    Open Voltage: 1.0 Vp-p
    Load Voltage: 0.5 Vp-p
    Transport: Sanyo HD850
    Digital Output Connection: Coaxial: 75 ohm
    Dimensions (HxWxD) 3.1 x 16.9 x 13.2" (79 x 429.3 x 336 mm)
    Weight 11 lb (5 kg)
    Package Weight 16.6 lb
    Box Dimensions (LxWxH) 21.732 x 18.189 x 7.874"

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 51 owners. Add your rating and experience with the product.
