User Manual for Music Hall cruise control 2.0 Click to enlarge the picture
Contents of the user manual for the Music Hall cruise control 2.0
- Product category: Turntable Accessories Music Hall
- Brand: Music Hall
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Music Hall Turntable Accessories
 |
User manual for the Music Hall cruise control 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Music Hall product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Music Hall user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Music Hall product will considerably shorten its lifespan!
|
Product description The music hall cruise control 2.0 provides variable electronic speed control of music hall and Project turntables between 33.3 and 45 revolutions per minute via a simple plus/minus touch button array. Removing the platter and moving the belt from one pulley to the next is no longer required. The quartz-locked speed control affords unmatched speed stability to within ±0.0001% deviation. Used with the appropriate pulley and cartridge, it also permits the replay of 78 rpm records. The replay speed can be increased and decreased in 20 steps of 0.1 rpm. The quartz lock provides perfect speed control for all Music Hall turntables, many Project models and any turntable with 120v AC synchronous motor. - Speed Flexibility for Playing Records
- The Cruise Control 2.0 enables electronic speed control of Music Hall and Project turntables revolving between 33.3 and 45 rpm. Play speed can be increased and decreased in 20 steps of 0.1 rpm.
- Turntable Compatibility
- The Cruise Control 2.0 is compatible with Music Hall MMF2, MMF2.1, MMF2.1LE, MMF2.1WH, MMF5, MMF5.1, MMF 5.1LE, MMF5.1LE, MMF5.1WH, MMF7, and MMF7.1 turntables. Additionally, it is designed to work with most turntables that have a 120 VAC synchronous motor.

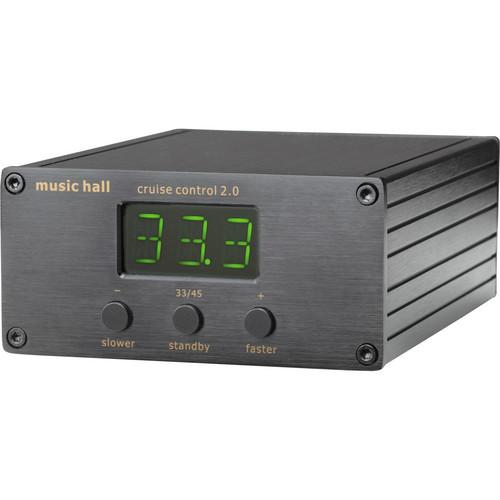

- Digital Readout
- You can tell exactly how fast the record is rotating from the large green numerals on the Cruise Control's front LCD.
- Push Button Speed Adjustments
- Simply press the slower or faster button below the digital readout for incremental control of your turntable's speed. A third button lets you toggle between 33.3 and 45 rpm.
- 78 RPM Option
- In order to play records at 78 rpm your turntable must be equipped with the appropriate 78 rpm pulley and cartridge. The pulley is available as an optional accessory.
UPC: 013964298130 In the Box Music Hall cruise control 2.0 External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall cruise control 2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

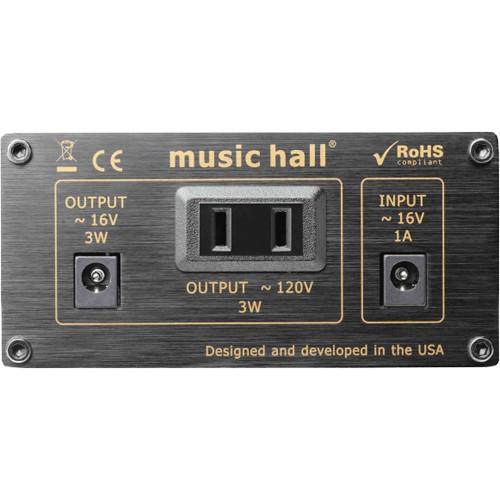

Technical parametersMusic Hall cruise control 2.0 Specs | Speeds | 33 and 45 rpm (optional 78 rpm) | | Oscillator | Quartz oscillator: speed stability of 0.0001% | | Pitch Control | 20 step/0.1 rpm | | Connectors | Output to turntable:
16V/AC (3W power consumption max.)
120V/AC (3W power consumption max.)
Input from power supply:
~16V 1A | | Power Supply | Outboard power supply: 16V/1.000mA AC | | Power Consumption | 3W | | Dimensions (WxHxD) | 4.2 x 5.8 x 2.0" (10.7 x 14.7 x 5.1 cm) | | Weight | 1.43 lb (0.65 kg) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 11.4 x 6.1 x 2.1" |
