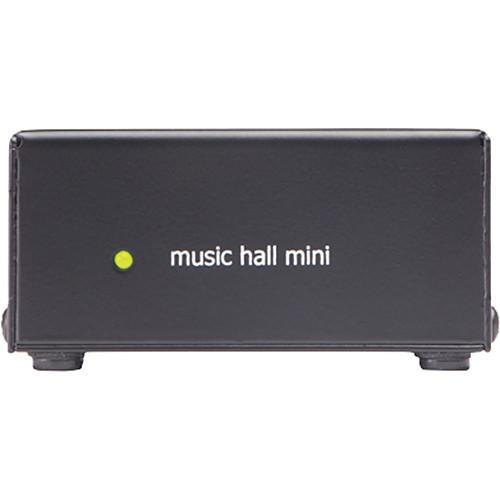

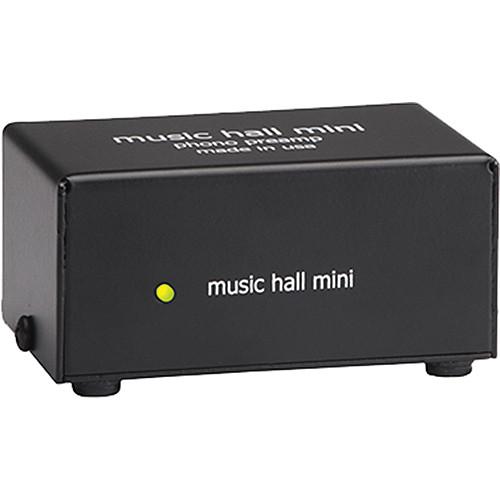

Product description The Music Hall Mini Phono Amp is a solid state moving magnet phono preamp designed to amplify an RIAA equalized phono signal to a high level signal for connecting to your amplifier or receiver. It is compatible with moving magnet and high-output moving coil cartridges, features a tough steel chassis, and is designed to serve as an affordable, yet high-quality phono preamplifier for your home hi-fi system. UPC: 675889069907 In the Box Music Hall Mini Phono Amp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Music Hall Mini Phono Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

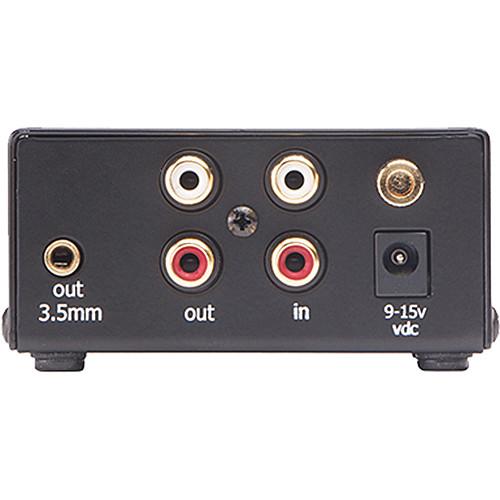

Technical parametersMusic Hall MINI Specs | Frequency Response | 20 Hz to 20 kHz, +/- 1.5 dB (conforms to RIAA equalization curve) | | Chassis | Steel | | I/O Connectors | RCA, 3.5 mm TRS stereo | | Input Sensitivity | 35 dB gain @ 1 kHz, 47k ohms input Z | | Input Capacitance | 5 pf + cable capacitance | | Input Impedance | 50 kOhms | | Output Impedance | 1 kOhm | | Maximum Output Level | > 10 dB @ 1 kHz at .1% dist | | S/N Ratio | > 80 dB unweighted | | THD | .02 % @ 1 kHz | | Power | 9 - 15 VDC | | Indicator LEDs | 1 power LED | | Dimensions | 3.25 x 2.00 x 1.50" (82.6 x 50.8 x 38.1") | | Weight | 1 lb (.45 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.9 x 4.7 x 2.5" |
